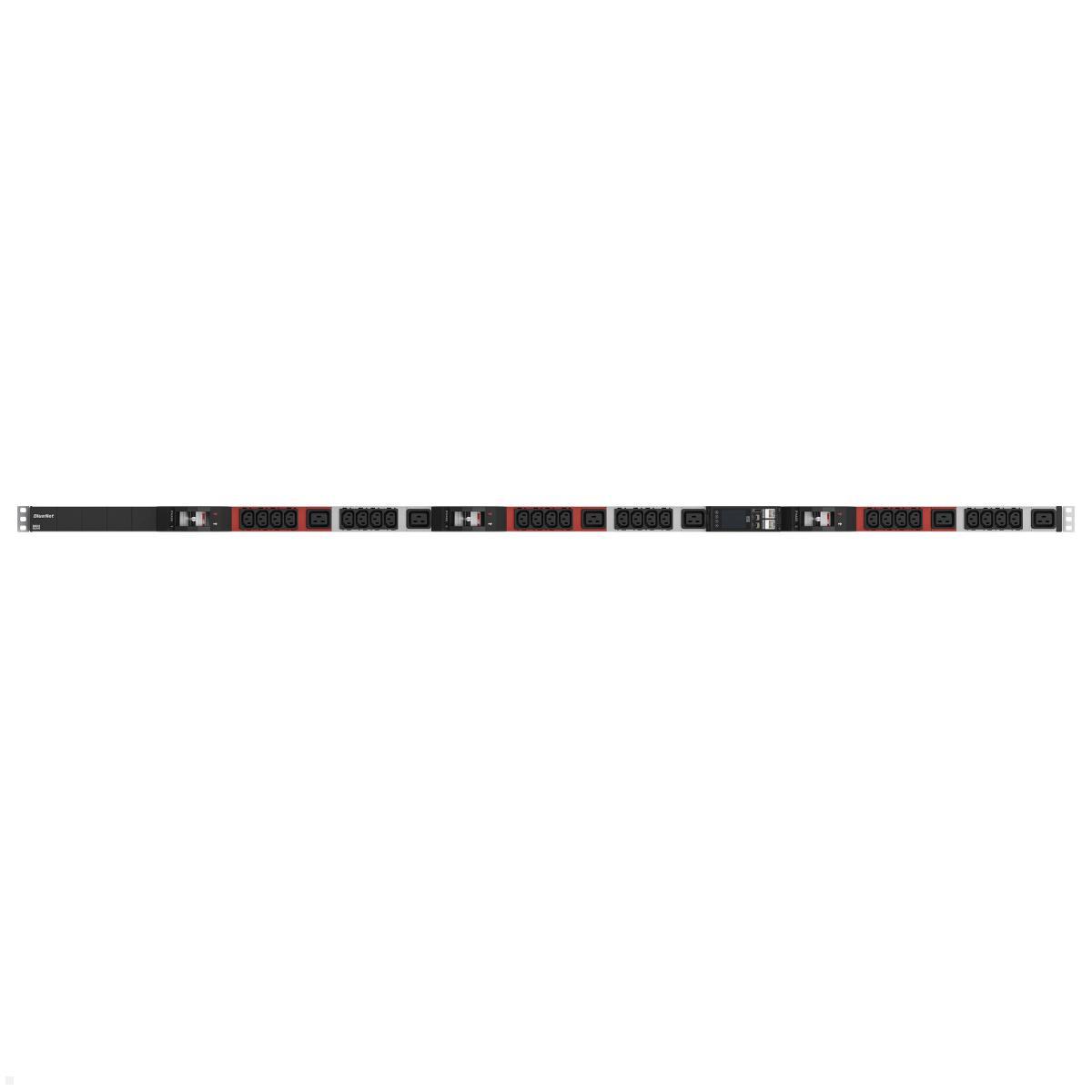

Bachmann BN ESSENTIAL Metered - 32/5p Rack PDU with 24xC13, 6xC19, 6xMCB & Display (BM0024228)
Highlights
- Three-phase PDU with 32A/400V input and 22 kW power
- 24x C13 and 6x C19 IEC appliance sockets, protected by 6x C16A MCBs
- Per-phase measurements: current, voltage, active, reactive, and apparent power
- Integrated web server, 2x 1Gbit/s Ethernet, 1x USB-A, 2x sensor ports
- 2.0" TFT color display, hot-swappable controller while in operation, incl. mounting brackets
Bachmann BN ESSENTIAL Metered PDU – three-phase power distribution with intelligent measurement technology
The Bachmann BN ESSENTIAL Metered is a professional Power Distribution Unit for use in data centers, server rooms and IT infrastructure. With a input of 32A/400V and 22 kW total power it reliably supplies critical IT systems. The 30 outlets – 24x C13 (0°) and 6x C19 (90°) – are distributed across three phases, with each phase divided into two blocks and each protected by its own C16A circuit breaker. The 3.0 m supply cable (4 mm²) with red CEE 32A plug ensures a safe and standards-compliant feed.
Ideal for data centers, server rooms, colocation environments and professional IT infrastructures where energy monitoring and remote management are essential. The integrated measurement function records per-phase current, voltage, reactive, apparent and active power, active energy, frequency and power factor. The PDU can be conveniently monitored remotely via the integrated web server with web interface and two 1 Gbit/s Ethernet ports. Additional features include a 2.0" TFT color display, a hot-swappable controller, 1x USB-A port, 2x sensor interfaces and SNMP support.
Technical details Bachmann BN ESSENTIAL Metered PDU 32A three-phase
- Product group: Power Distribution Unit (PDU)
- Input: 32A / 400V | 22 kW
- Rated current: 32.00 A
- Supply voltage: 400 V
- Number of phases: 3
- Output: 24x C13 (0°) + 6x C19 (90°) IEC outlets
- Circuit breakers: 6x MCB C16A
- Supply cable: 3.0 m | 4 mm² | CEE 32A plug, red
- Measurement: current, voltage, reactive, apparent and active power, active energy, frequency, power factor
- Measurement per phase: Yes
- SNMP: Yes
- Display: 2.0" TFT color display
- Web server: integrated with web interface
- Ethernet: 2x 1 Gbit/s
- USB: 1x USB-A
- Sensor ports: 2x
- Controller: hot-swappable
- Color: aluminum
- Mounting orientation: vertical
- Overvoltage category: 2
- Mounting dimension: 1,781.28 mm
- Dimensions (L×W×H): 1756 x 44 x 59 mm
- Delivery contents: PDU, mounting brackets, with BACHMANN logo, packaging in cardboard box
| Product sheet: |  [pdf] |
|---|---|

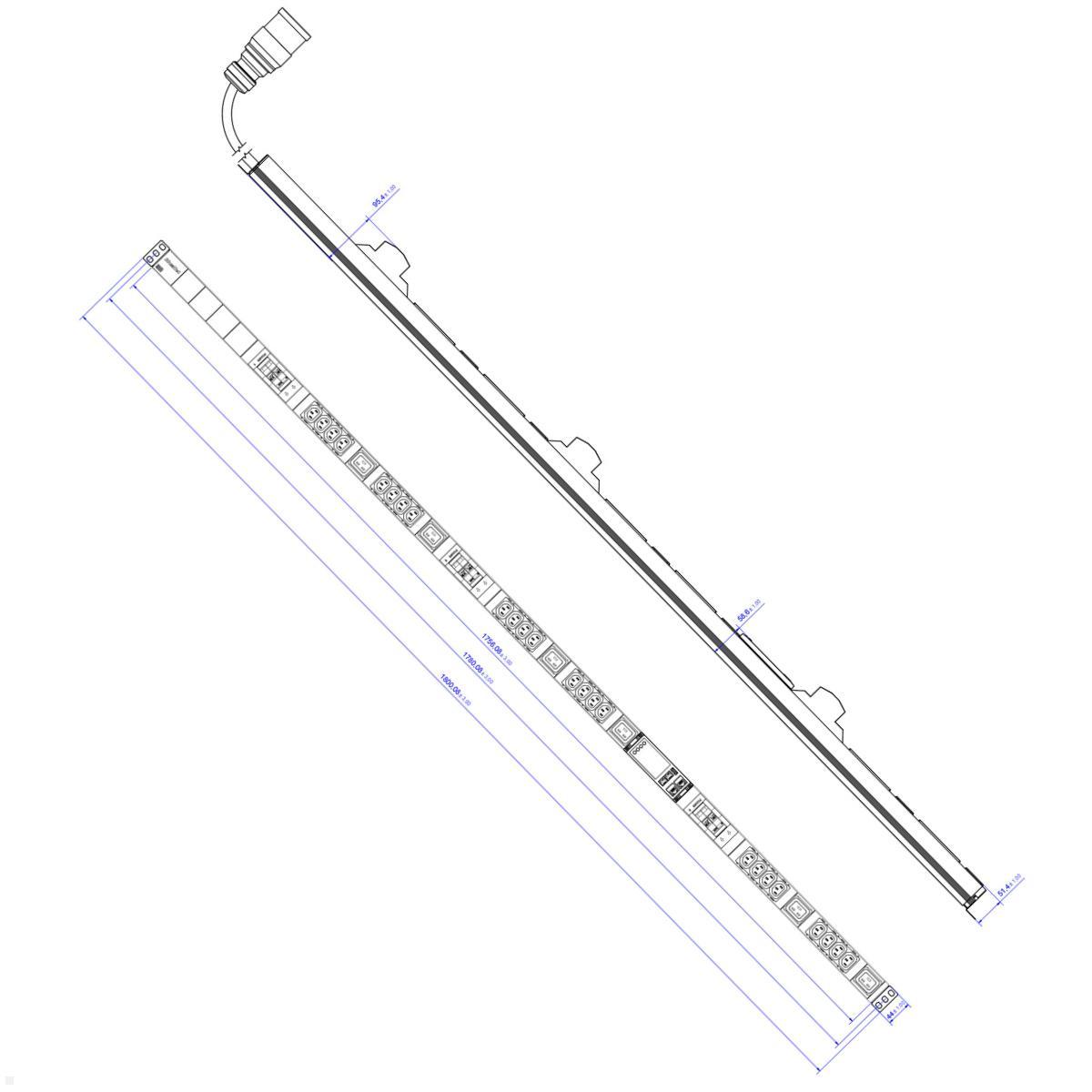

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | No |
| Größe PDU: | Vertikal |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black/Red |
| Form: | eckig |
| USB-Charger: | USB-A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Bachmann BN ESSENTIAL Metered – the three-phase PDU for professional data centers
The Bachmann BN ESSENTIAL Metered is a powerful Power Distribution Unit specially designed for use in modern data centers and server rooms. With an input of 32A/400V and a total power of 22 kW, it reliably distributes power to 24 C13 and 6 C19 outlets, which are divided across three phases and protected by six C16A circuit breakers. Each phase is divided into two separate blocks so that in the event of a fault only one block is shut down – the remaining devices remain in operation. The 3.0 m long feed cable with red CEE 32A plug (4 mm²) ensures standards-compliant and secure power input. Thanks to vertical mounting, a compact aluminum housing and dimensions of 1756 x 44 x 59 mm, the PDU can be integrated space-efficiently in the server rack. The included mounting bracket simplifies installation and ensures a secure fit in the rack.
What measurement functions does the Bachmann BN ESSENTIAL Metered PDU offer?
The BN ESSENTIAL Metered impresses with comprehensive metering at the phase level. It measures current, voltage, active power, apparent power, reactive power, active energy, frequency and power factor – separately for each of the three phases. This granular overview enables precise analysis of the energy consumption of individual phases and helps detect and correct load imbalances early. The integrated 2.0" TFT color display shows all relevant measurements on-site directly, without the need for an external monitor or laptop. The integrated web server with web interface and SNMP support also allows complete remote monitoring – ideal for administrators who need to centrally monitor multiple sites or racks. Two 1 Gbit/s Ethernet ports provide redundant network connectivity, a USB-A port and two sensor interfaces allow connection of external sensors for temperature and humidity measurement.
Why is the hot-swappable controller a decisive advantage for high-availability environments?
A central feature of the Bachmann BN ESSENTIAL Metered is the hot-swappable controller. Maintenance work or firmware upgrades on the control module can be performed without shutting down the PDU and without interrupting the power supply – a crucial advantage for high-availability environments where even short downtimes are critical. Combined with three-phase protection provided by two circuit breakers per phase, the BN ESSENTIAL Metered offers maximum operational safety. Together with Bachmann quality standards, the robust aluminum housing and easy installation, the Bachmann BN ESSENTIAL Metered is the ideal solution for colocation providers, enterprise data centers and demanding IT infrastructures that require the highest levels of reliability, transparency and energy efficiency.
