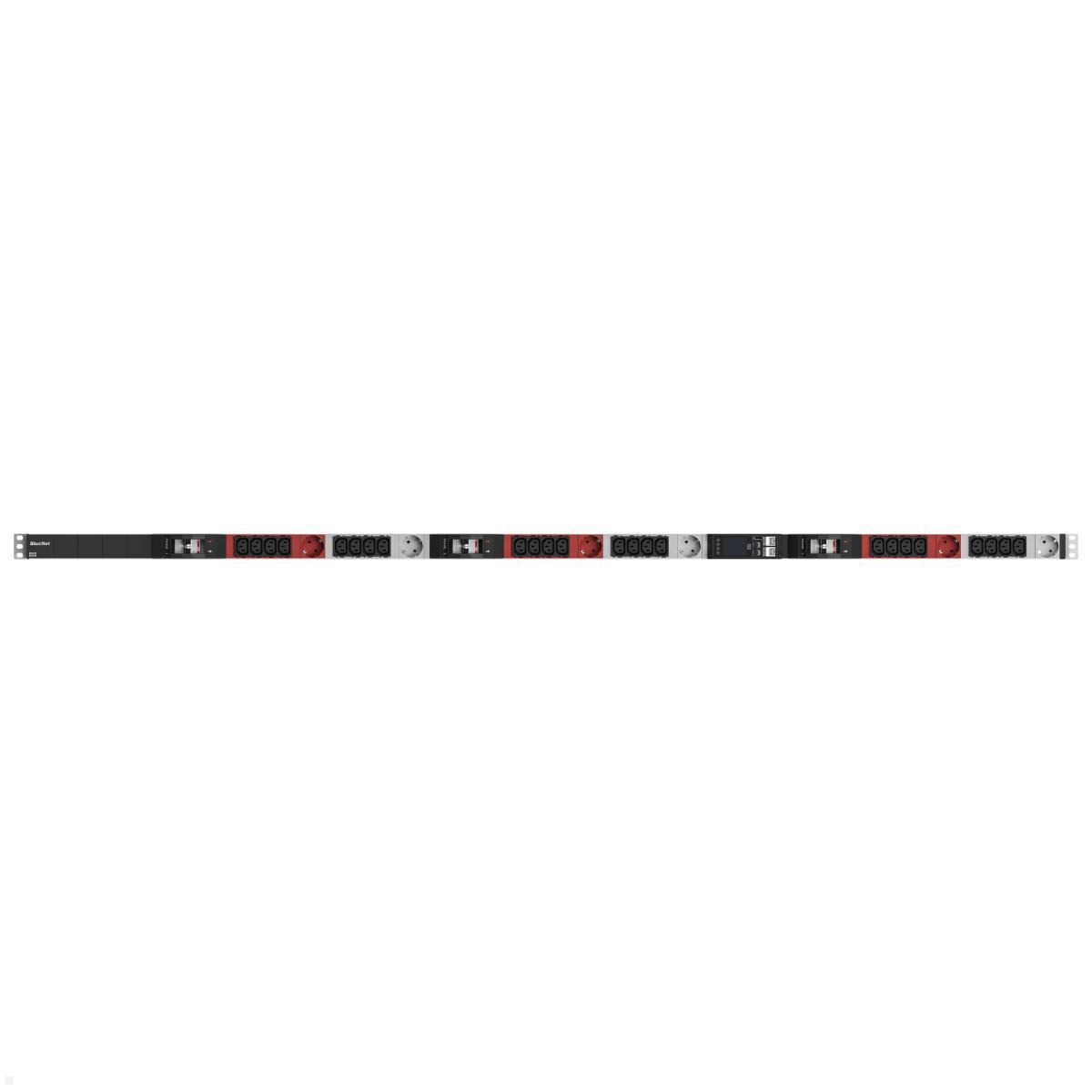

Bachmann BN ESSENTIAL Metered - 32/5p Rack PDU with 24xC13, 6xCEE7/3, 6xMCB & Display (BM0024229)
Highlights
- Three-phase PDU with 32 A/400 V input and 22 kW power
- 24x C13 (0°) and 6x CEE7/3 (35°) sockets, protected by 6x C16A circuit breakers
- Per-phase measurements: current, voltage, active, reactive and apparent power
- Integrated web server, 2x 1 Gbit/s Ethernet, 1x USB-A, 2x sensor ports
- 2.0" TFT color display, hot-swappable controller, including mounting bracket
Bachmann BN ESSENTIAL Metered PDU – three-phase power distribution with Schuko and C13 outlets
The Bachmann BN ESSENTIAL Metered is a professional Power Distribution Unit for use in data centers, server rooms and IT infrastructures. With an input of 32A/400V and 22 kW total power it reliably supplies critical IT systems. The 30 outlets – 24x C13 (0°) and 6x CEE7/3 Schuko outlets (35°) – are distributed across three phases, with each phase divided into two blocks and each protected by its own C16A circuit breaker. The 3.0 m supply cable (4 mm²) with red CEE 32A plug ensures a safe and standards-compliant power feed.
Ideal for data centers, server rooms, colocation environments and professional IT infrastructures where energy monitoring and remote monitoring are essential. The integrated measurement function records per phase current, voltage, reactive, apparent and active power, active energy, frequency and power factor. Via the integrated web server with web interface and two 1 Gbit/s Ethernet ports the PDU can be conveniently remotely monitored. The equipment is complemented by a 2.0" TFT color display, a hot-swappable controller, 1x USB-A port, 2x sensor interfaces and SNMP support.
Technical details Bachmann BN ESSENTIAL Metered PDU 32A CEE7/3 three-phase
- Product group: Power Distribution Unit (PDU)
- Input: 32A / 400V | 22 kW
- Rated current: 32.00 A
- Supply voltage: 400 V
- Number of phases: 3
- Output: 24x C13 (0°) + 6x CEE7/3 Schuko outlets (35°)
- Circuit breakers: 6x CB C16A
- Supply cable: 3.0 m | 4 mm² | CEE 32A plug, red
- Measurement: current, voltage, reactive, apparent, active power, active energy, frequency, power factor
- Measurement per phase: Yes
- SNMP: Yes
- Display: 2.0" TFT color display
- Web server: integrated with web interface
- Ethernet: 2x 1 Gbit/s
- USB: 1x USB-A
- Sensor ports: 2x
- Controller: hot-swappable
- Color: aluminum
- Mounting direction: vertical
- Overvoltage category: 2
- Mounting dimension: 1811.28 mm
- Dimensions (L×W×H): 1786 x 44 x 59 mm
- Scope of delivery: PDU, mounting brackets, with BACHMANN logo, packaging in cardboard box
| Product sheet: |  [pdf] |
|---|---|

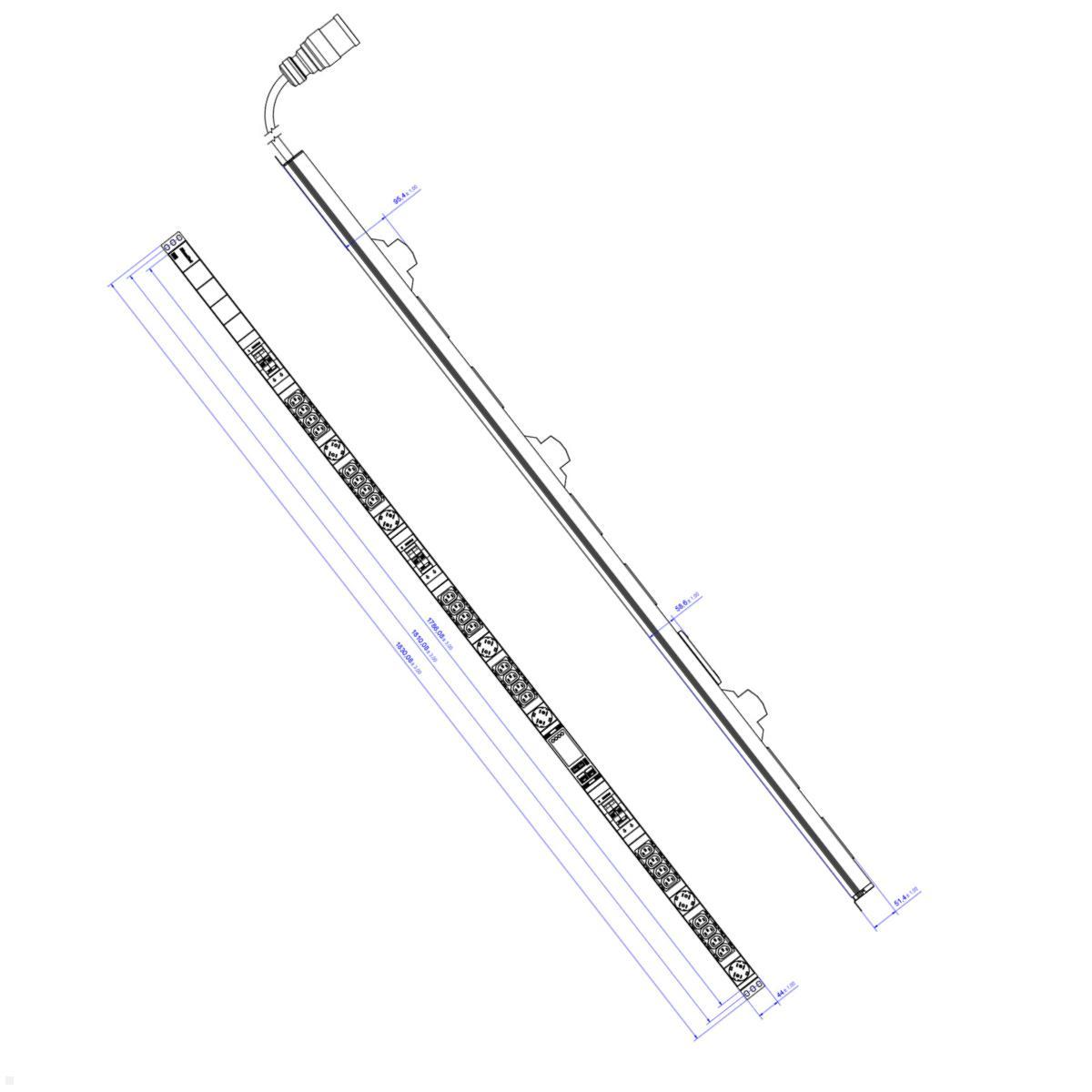

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | No |
| Größe PDU: | Vertikal |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black/Red |
| Form: | eckig |
| USB-Charger: | USB-A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Bachmann BN ESSENTIAL Metered – three-phase PDU with CEE7/3 and C13 outputs for data centers

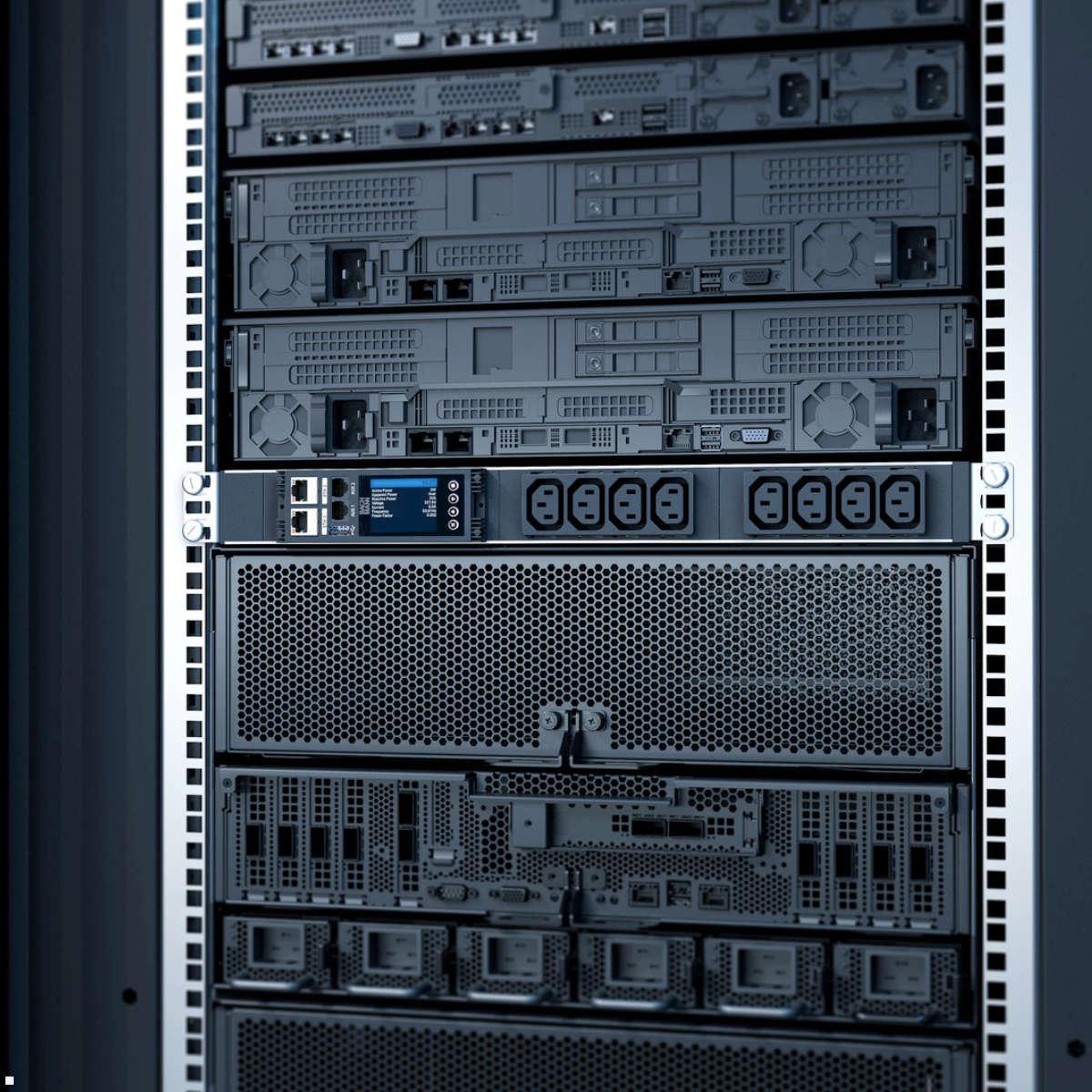

The Bachmann BN ESSENTIAL Metered is a powerful Power Distribution Unit for professional use in data centers and server rooms. With an input of 32A/400V and 22 kW total power, it distributes the power to 24x C13 (0°) and 6x CEE7/3 protective contact sockets (35°), divided across three phases, each with two blocks protected by C16A circuit breakers. The two-stage phase distribution ensures that in the event of a fault only one block is switched off while all other devices continue to be powered. The 3.0 m supply cable with red CEE 32A plug (4 mm²) and the compact aluminum housing with dimensions 1786 x 44 x 59 mm make the PDU the ideal solution for space-saving vertical mounting in the server cabinet. The included mounting bracket ensures easy and secure installation.
Which measurement functions does the Bachmann BN ESSENTIAL Metered PDU offer?
The BN ESSENTIAL Metered impresses with comprehensive metering at phase level. Measured are current, voltage, active power, apparent power, reactive power, active energy, frequency and power factor – separately for each of the three phases. These detailed measurements enable precise analysis of energy consumption and help detect load imbalances between the phases early. The 2.0" TFT color display shows all measured values directly on site without additional hardware. Via the integrated web server with web interface and SNMP support, full remote monitoring is also possible. Two 1Gbit/s Ethernet ports provide redundant network connectivity, while a USB-A port and two sensor interfaces allow connection of external temperature and humidity sensors.
Why is the Bachmann BN ESSENTIAL Metered particularly suitable for mixed IT environments?
The combination of 24 C13 outputs for standard IT devices and 6 CEE7/3 protective contact sockets makes the Bachmann BN ESSENTIAL Metered - 32/5p Rack PDU with 24xC13, 6xCEE7/3, 6xMCB & Display (BM0024229) particularly flexible for mixed server environments in which both IEC devices and conventional mains devices and peripherals need to be powered simultaneously. The hot-swappable controller allows maintenance and firmware upgrades without interrupting power – a decisive advantage for highly available systems. This combination of flexibility, metering and operational reliability according to Bachmann quality standards makes the BN ESSENTIAL Metered the ideal choice for colocation providers, enterprise data centers and IT infrastructures where maximum availability and precise energy management are top priorities.
