Bachmann ELEVATOR 2 retractable built-in socket 3-way, 1x CEE7/3, 2x Euro
Highlights
- Retractable built-in power outlet with 1× CEE 7/3 and 2× Euro sockets
- Soft-opening mechanism for smooth, low-noise extension
- IP44 splash protection for safe use in the kitchen
- Fits standard 80 mm cut-out, only 180 mm installation depth
- High-quality finish for seamless integration into any kitchen architecture
Bachmann ELEVATOR 2 – retractable 3-socket outlet for the modern kitchen

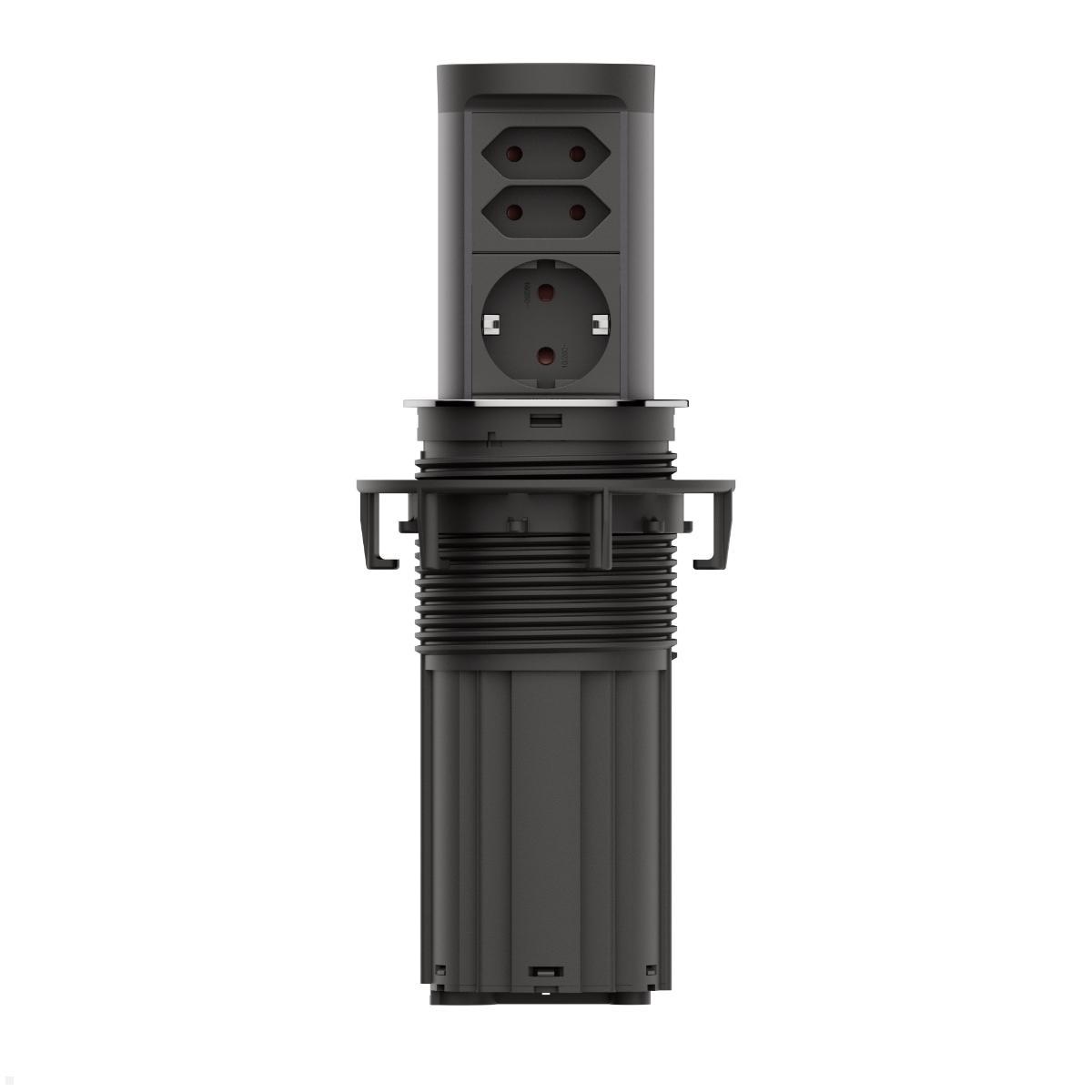

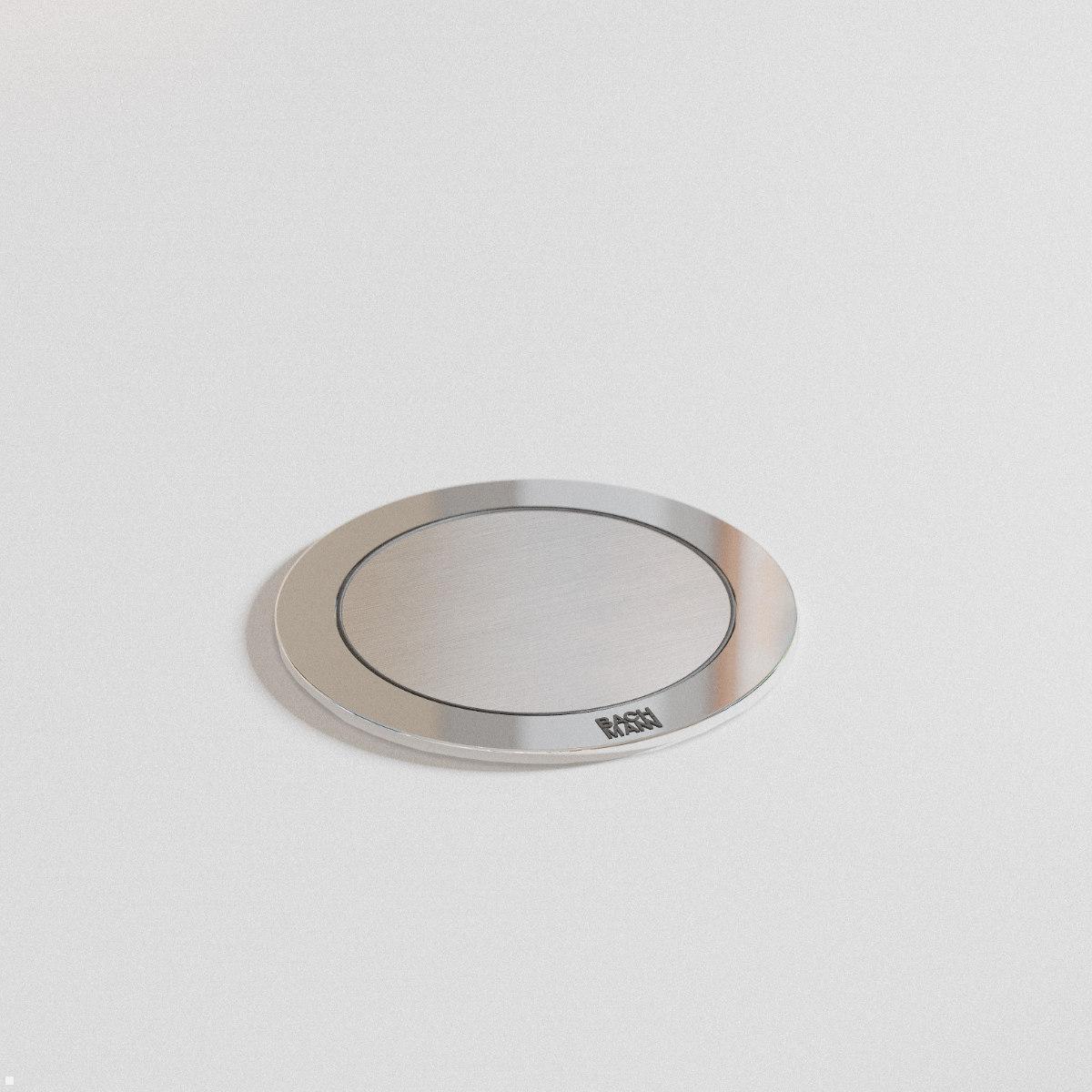

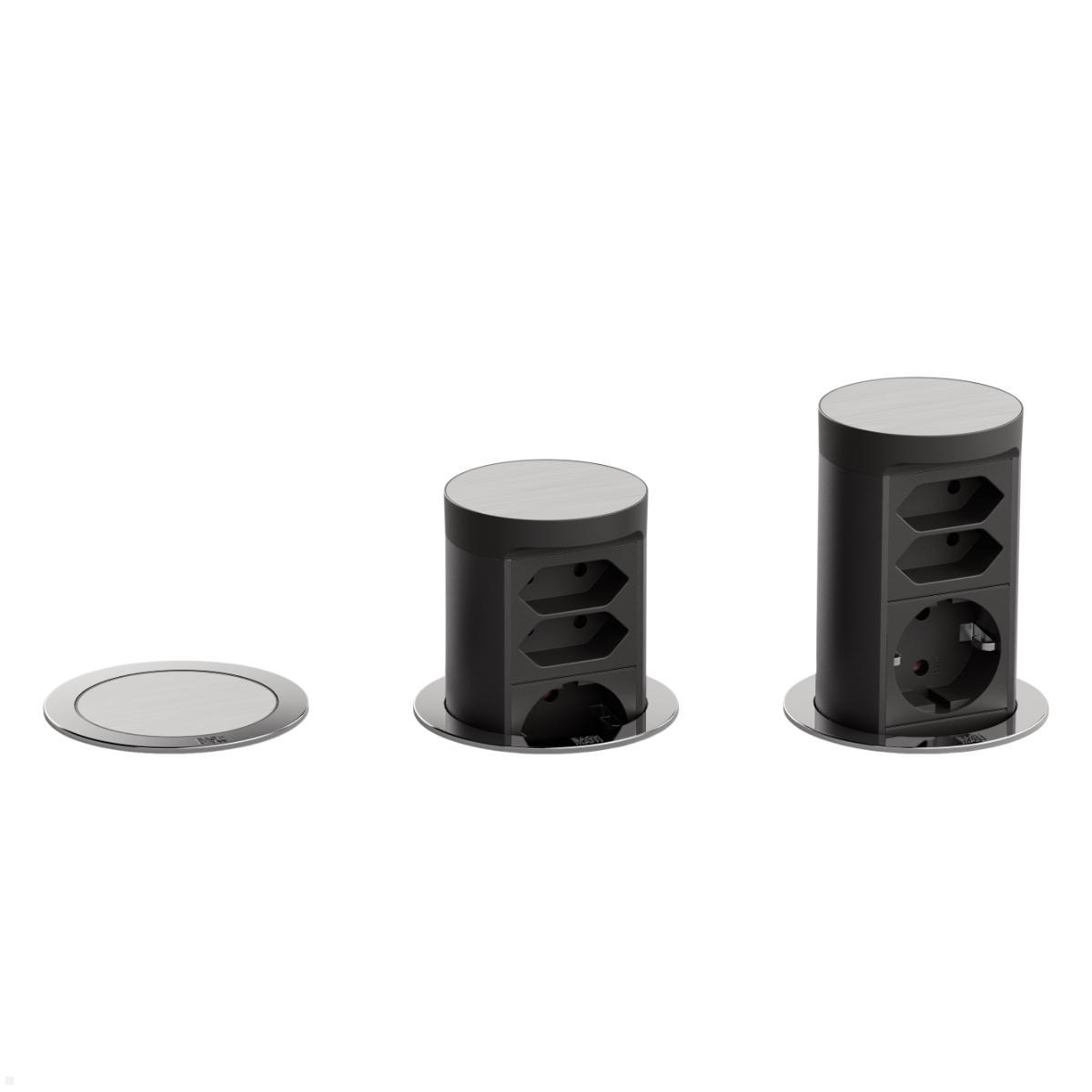

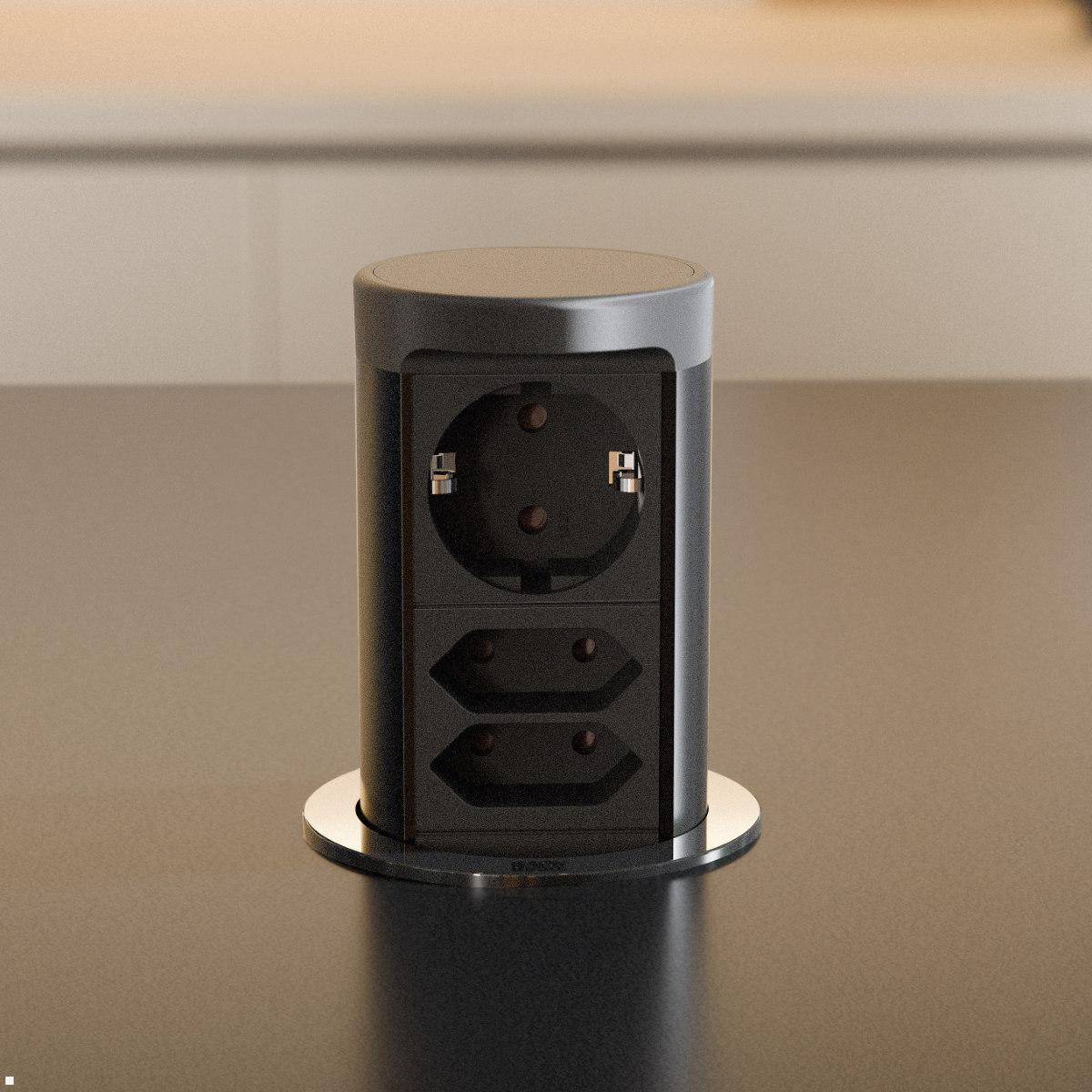

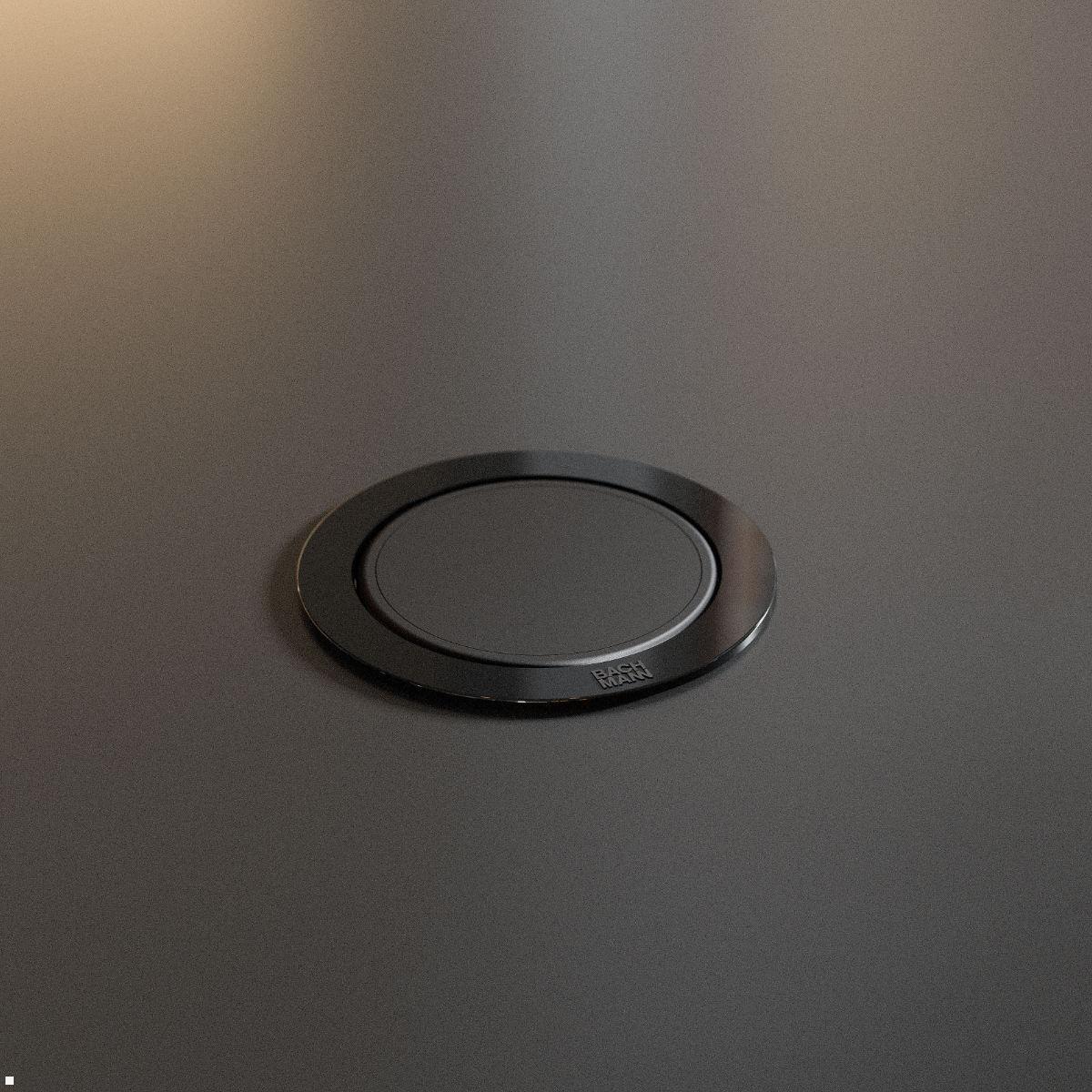

The Bachmann ELEVATOR 2 built-in socket combines a grounded socket CEE 7/3 with two Euro sockets in a compact, retractable housing. At the push of a finger, the retractable socket extends smoothly and quietly from the worktop thanks to the Soft Opening mechanism and retracts just as discreetly. When closed, only an unobtrusive surface remains visible – perfectly matched to modern kitchen architecture and design requirements.
The 3-socket configuration offers flexible connection options for different appliances directly on the kitchen worktop. The certified splash protection IP44 ensures safe operation even in damp environments. Thanks to the compact installation dimensions of only 80 mm diameter and 180 mm installation depth, the built-in socket can be mounted space-savingly – even retrofitted into worktops, cabinets, and kitchen islands.
Technical Details Bachmann ELEVATOR 2 retractable 3-socket outlet
- Configuration: 1x grounded socket CEE 7/3 (Type F) + 2x Euro socket
- Protection rating: IP44 (splash protection)
- Rated voltage: 250 V
- Rated current: 16 A
- Connection cable: 2.0 m with AEH plug
- Installation diameter: 80 mm (standard cut-out)
- Installation depth: 180 mm
- Mechanism: Soft Opening by fingertip
- Mounting: Installation in worktops, cabinets, kitchen islands
- Retrofitable: Yes
| Product sheet: |  [pdf] |
|---|---|

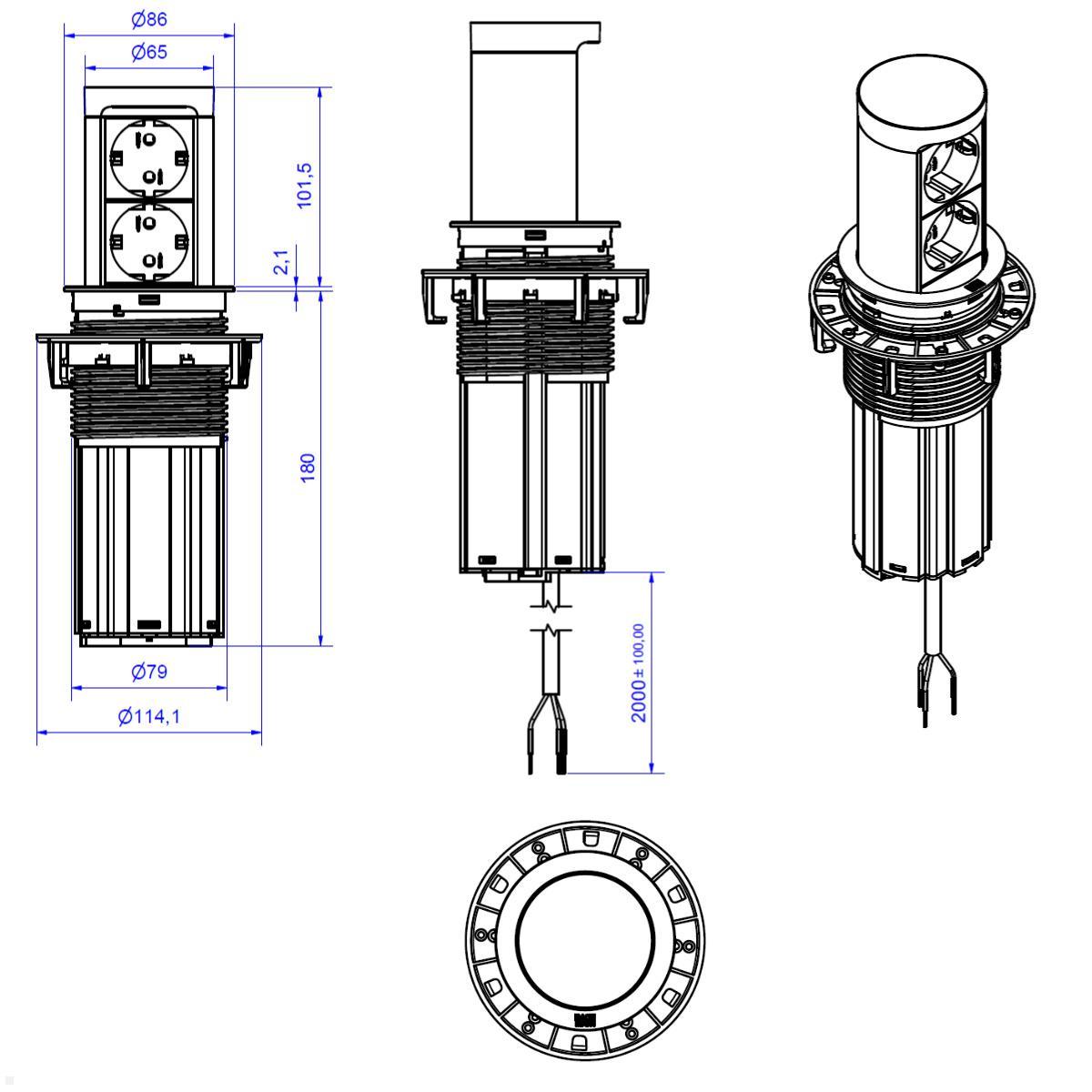

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What makes the Bachmann ELEVATOR 2 3-socket the ideal retractable outlet for the kitchen?
The Bachmann ELEVATOR 2 built-in outlet was specifically developed for use in modern kitchens. Unlike conventional power strips, the retractable outlet disappears completely into the worktop and only appears at the press of a finger. The soft-opening mechanism ensures a smooth, quiet extension—without any jerking upward. The combination of one protective-earth socket CEE 7/3 and two Euro sockets offers flexible connection options for various kitchen appliances such as blenders, kettles, or chargers.
What safety features does the ELEVATOR 2 3-socket built-in outlet offer in the kitchen?
In the kitchen, water and electricity regularly meet—especially on the worktop. The Bachmann ELEVATOR 2 is equipped with certified splash protection to IP44. This reliably protects the outlet from water splashes from all directions and enables safe use even in the immediate vicinity of the sink and cooktop. The protective-earth socket of type F complies with the German standard and ensures a safe electrical connection with grounding, while the Euro sockets supply compact devices with low power requirements.
How easy is it to install and retrofit the retractable 3-socket built-in outlet?
Installation of the ELEVATOR 2 is extremely straightforward. The built-in outlet fits into the common 80 mm standard cutout and requires only 180 mm installation depth. This makes it suitable for both new installations and retrofitting in existing kitchens. The outlet can be integrated into worktops, cabinets, and kitchen islands. The 2.0 m long connecting cable with AEH plug provides sufficient flexibility in positioning. This turns any work surface into a tidy, functional power supply solution with high design standards.
