Bachmann ELEVATOR 2 retractable built-in socket 3-socket, 1x CEE7/3, 2x USB-C, 2m
Highlights
- Retractable built-in socket with 1x CEE 7/3 and 2x USB-C charging ports

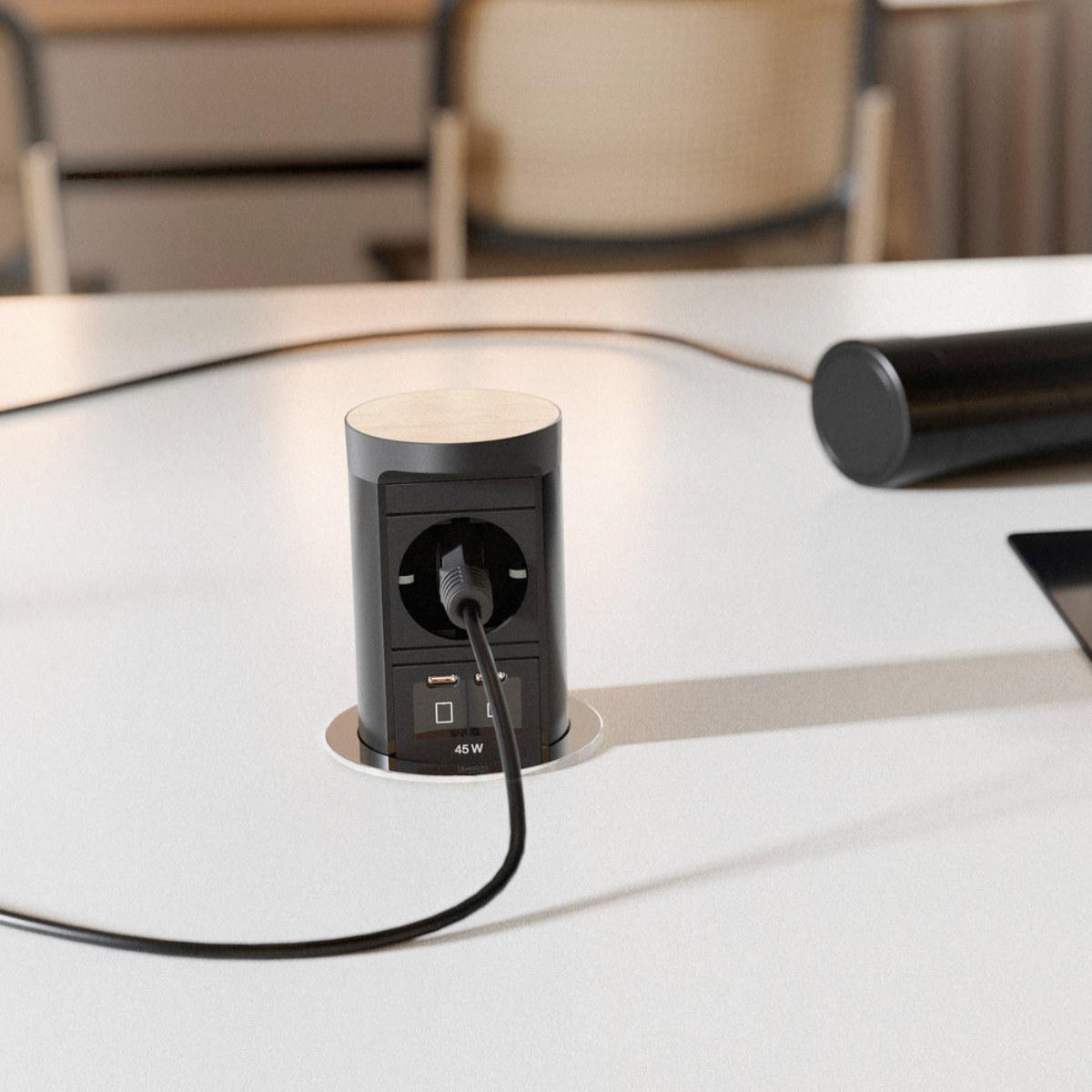

- Soft opening mechanism for smooth, low-noise extension
- Two USB-C ports for fast charging directly on the worktop

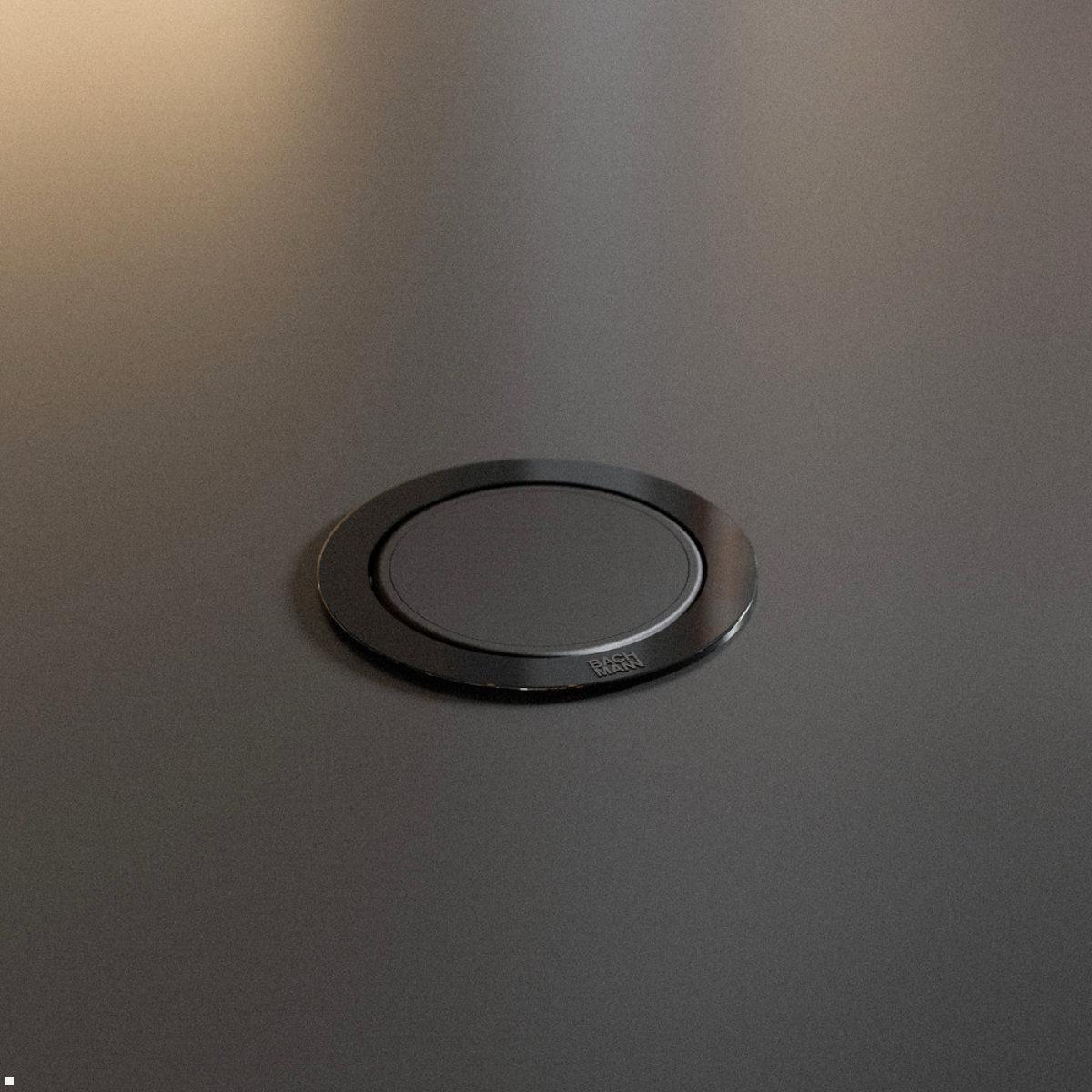

- IP44 splash protection for safe use in the kitchen
- Fits standard 80 mm cut-out, only 180 mm installation depth
Bachmann ELEVATOR 2 – retractable 3-way power outlet with 2x USB-C for the modern kitchen
The Bachmann ELEVATOR 2 built-in power unit (BM00205145) combines a protective contact socket CEE 7/3 with two USB-C charging ports in a compact, retractable housing. With a fingertip press the retractable outlet smoothly and quietly rises from the worktop thanks to the Soft Opening mechanism and retracts just as discreetly back into it. The two USB-C ports allow simultaneous charging of smartphones, tablets and other USB-C devices directly on the kitchen worktop – without additional chargers.
With a protective contact socket CEE 7/3 and two USB-C ports, the ELEVATOR 2 provides future-proof power supply for modern everyday life. The certified IP44 splash protection ensures safe operation even in damp environments. Thanks to the compact mounting dimensions of only 80 mm diameter and 180 mm installation depth, the built-in outlet can be mounted space-savingly – even retrofitted into worktops, cabinets and kitchen islands.
Technical Details Bachmann ELEVATOR 2 retractable outlet with USB-C ports
- Configuration: 1x protective contact socket CEE 7/3 (Type F) + 2x USB-C
- Protection rating: IP44 (splash protection)
- Rated voltage: 250 V
- Rated current: 16 A
- Connection cable: 2.0 m with AEH plug

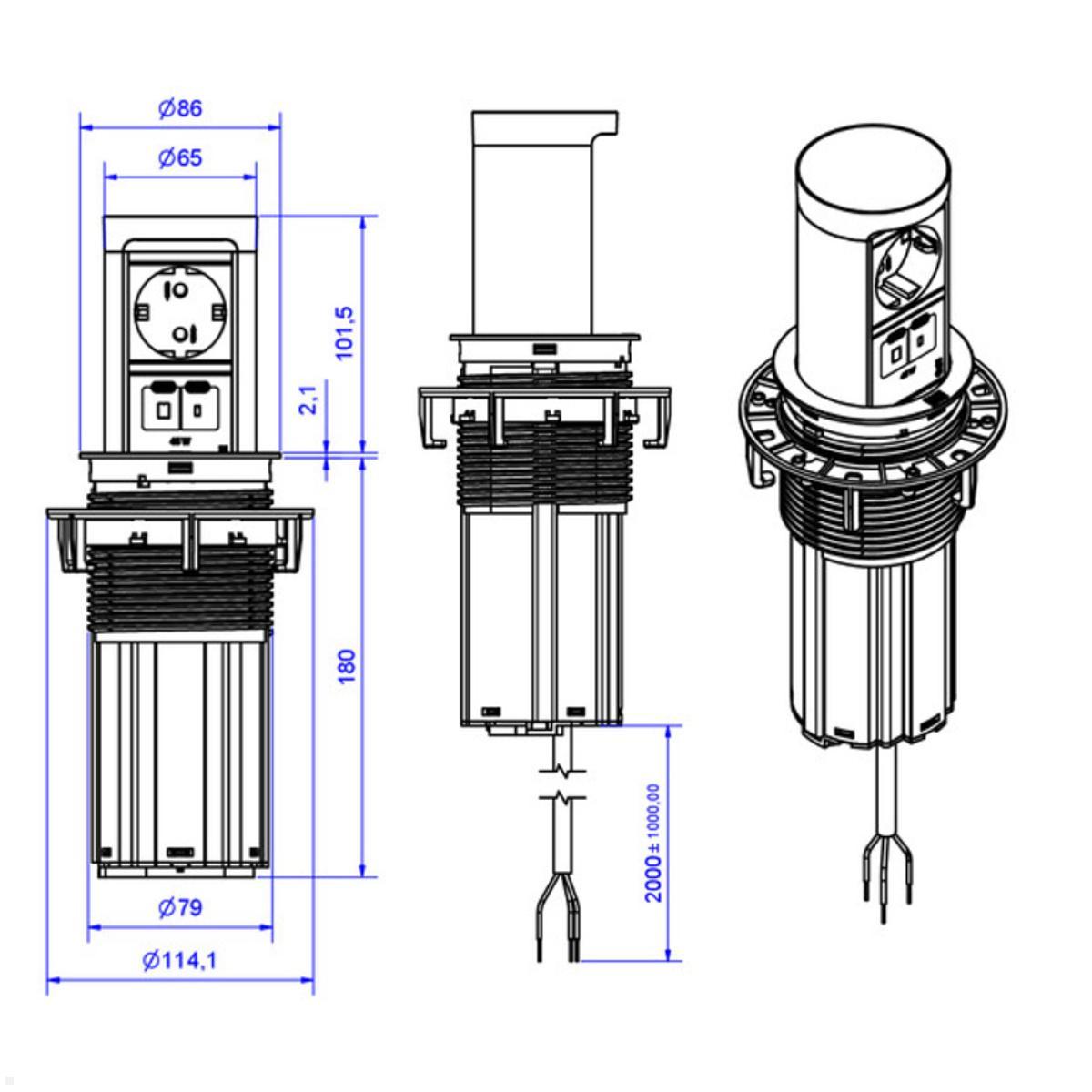

- Cut-out diameter: 80 mm (standard cut-out)
- Installation depth: 180 mm
- Mechanism: Soft Opening by fingertip press
- Mounting: built-in to worktops, cabinets, kitchen islands
- Retrofitable: Yes
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What makes the Bachmann ELEVATOR 2 with 2x USB-C the ideal retractable socket for the kitchen?
The Bachmann ELEVATOR 2 built-in socket with 2x USB-C was specifically designed for modern kitchens and workspaces where USB-C devices increasingly dominate everyday life. Unlike conventional power strips, the retractable socket disappears completely into the worktop and only appears at the touch of a finger. The soft opening mechanism ensures a smooth, quiet extension—without any jerky upward motion. The combination of a protective-earth socket CEE 7/3 and two USB-C ports makes the ELEVATOR 2 a versatile power hub: while the protective-earth socket supplies high-power kitchen appliances like blenders or kettles, the two USB-C ports simultaneously charge smartphones, tablets, headphones and other USB-C devices quickly and conveniently directly on the worktop. When retracted, only an unobtrusive surface remains visible, which blends seamlessly into any kitchen architecture.
What advantages do the two USB-C ports offer in daily use?
The Bachmann ELEVATOR 2 (BM00205145) with two USB-C ports replaces several chargers on the worktop and thus creates significantly more order. Both USB-C ports allow simultaneous fast charging of one device each—ideal for households and offices where multiple devices need to be charged daily. Smartphones, tablets, Bluetooth headphones, smartwatches and compact laptops are charged via USB-C directly on the kitchen worktop or desk. Since the socket is retractable with a fingertip, neither cables nor plugs disrupt the kitchen design when the charging station is not needed. The 2.0 m long connection cable provides sufficient flexibility for positioning.
How safe is the retractable built-in socket with USB-C in the kitchen?
In the kitchen, water and electricity regularly meet—especially on the worktop during cooking, washing and cleaning. The Bachmann ELEVATOR 2 is equipped with certified IP44-rated splash protection for this purpose. This reliably protects both the protective-earth socket and the USB-C ports from water splashes from all directions and enables safe use even in close proximity to the sink, hob and faucet. In the retracted state all connections are additionally protected from dirt, dust and moisture. The robust construction from high-quality materials ensures that the soft opening mechanism continues to operate reliably even after thousands of activations.
For which applications is the ELEVATOR 2 with 2x USB-C particularly well suited?
The Bachmann ELEVATOR 2 with 2x USB-C can be flexibly integrated into worktops, kitchen islands, desks, conference tables and reception counters. In the kitchen it provides a central charging station for all household USB-C devices—from the smartphone to the tablet. In the home office it replaces multiple chargers and creates a tidy desk. In conference rooms, participants can charge their devices during meetings. Installation in the common 80 mm standard cutout with only 180 mm installation depth also allows easy retrofitting in existing furniture. The Bachmann ELEVATOR 2 is thus the future-proof solution for anyone who prefers a modern, cable-free workspace with an integrated USB-C charging station.
