Bachmann MINI PIX Socket outlet with 4K HDMI 2.0 jack/jack module
The Bachmann MINI PIX socket with 4K HDMI 2.0 socket/socket module is an optimal solution for individual Clean Desk uses. The built-in version combined with a 4K HDMI 2.0 socket is practical and compact for video and network connections.

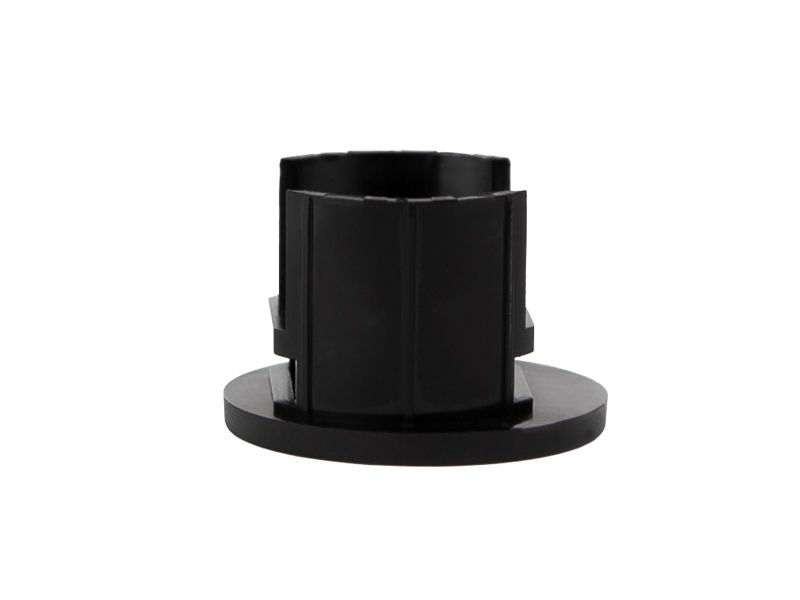

Bachmann MINI PIX Socket outlet with 4K HDMI 2.0 module
Bachmann MINI PIX is a real highlight not only for offices with a Clean Desk concept! The small installation solution provides connections in a discreet manner. The built-in solution is particularly suitable for offices, recording studios, at home or in lounges to unobtrusive to lead media or data connections on the desk and cable can easily plug in because of the compact installation dimension. The installation itself is child's play because the MINI PIX can be easily inserted into any 28 mm borehole.
MINI PIX combined with HDMI 2.0
Brilliantly easy connection: The HDMI 2.0 Keystone module offers many improvements to today's standard. The digital 4K picture and sound transmission make the HDMI 2.0 in the consumer electronics particularly. The 4K HDMI module is ideally suited for bringing office workstations, conference rooms, entrance areas, trade fair halls, hotels or private desks to a high technical level.
Key features Bachmann built-in socket

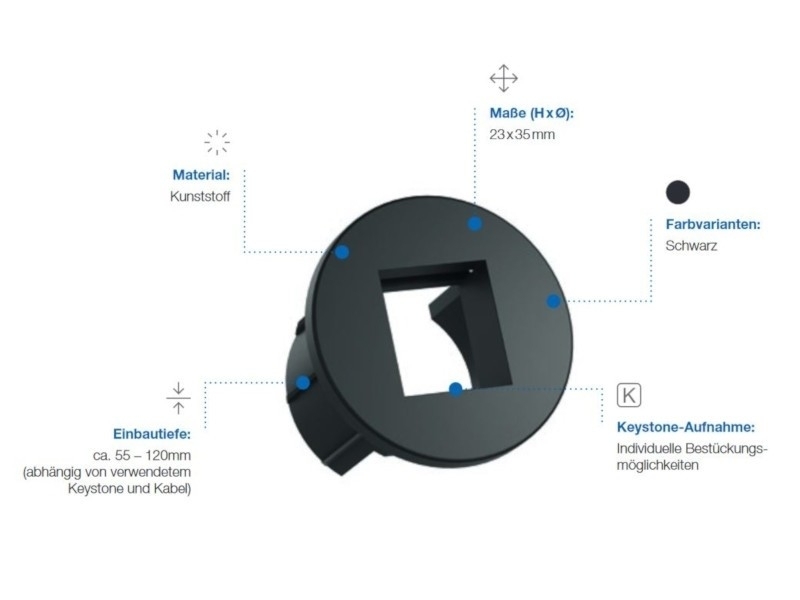

- Dimensions (HxØ): 23x35 mm
- Installation depth: approx. 30 mm
- Material MINI PIX: plastic

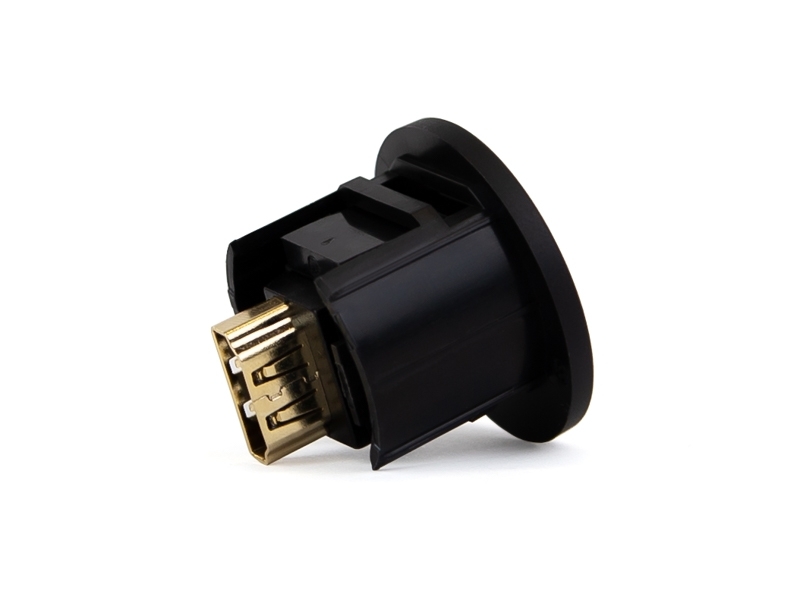

- Front: Socket HDMI 2.0
- Rear: Socket HDMI 2.0, without cable
- Transmission: up to a resolution of 3840x216 (UHD/4K) possible
- Data, video and audio connections
- Article consists of:
Bachmann MINI PIX 1x Custom Module (942.000)
Bachmann Keystone Custom Module HDMI 2.0 4K Female/Female (918.041)
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 149 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 382 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
