Bachmann MINI PIX Socket outlet with USB 3.0 A/A module
The Bachmann MINI PIX socket with USB 3.0 A/A module is an optimal solution for individual Clean Desk uses. The built-in version combined with a USB 3.0 socket is practical and compact for the desk.
Bachmann MINI PIX Socket outlet with USB 3.0 module
Bachmann MINI PIX is a real highlight not only for offices with Clean Desk concept! The small installation solution provides connections in a discreet manner. The built-in solution is particularly suitable for offices, recording studios, at home or in lounges to unobtrusive to lead media or data connections on the table and cable can easily plug in because of the compact installation dimension. The installation itself is child's play because the MINI PIX can be easily inserted into any 28 mm borehole.
MINI PIX combined with USB 3.0 A/A
Brilliantly easy to connect: The USB 3.0 A/A Keystone module offers many enhancements to today's standards. The USB 3.0 is a central component for video, audio and network connections. The module is ideally suited for bringing office workstations, conference rooms, entrance areas, trade fair halls, hotels or private desks to a high technical level.
Key features Bachmann built-in socket

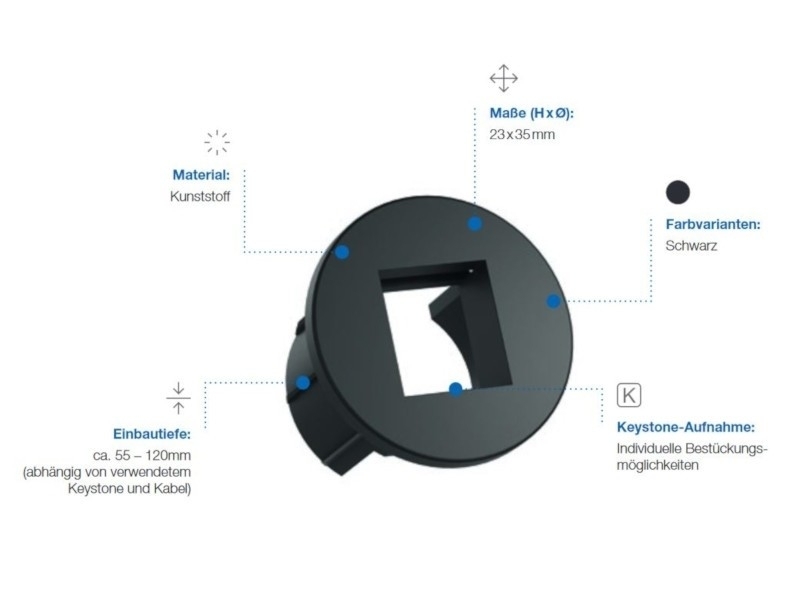

- Dimensions (HxØ): 23x35 mm
- Installation depth: approx. 41 mm
- Material MINI PIX: plastic

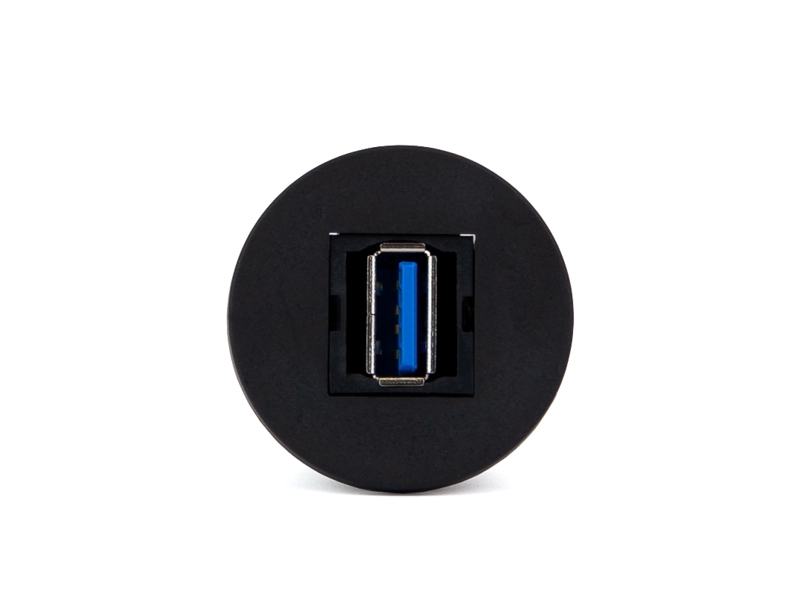

- Front: Socket USB A
- Rear: Socket USB A
- Article consists of:
Bachmann MINI PIX 1x Custom Module (942.000)
Bachmann Custom Module 1 x USB 3.0 A/A Keystone (917.120)
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 230 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 382 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| USB-Charger: | USB A/A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
