Bachmann PIX built-in socket with cover and GST18 cable (926.000D) black
The Bachmann PIX round furniture built-in socket black with cover (926.000D) has a 0.2m GST18 supply line and, with its low installation depth of approx. 45 mm, enables space-saving installation directly from above or from the front, which also is possible at a later date. Whether on the desk in the office, in the kitchen, in the bathroom or other living room scenarios - PIX offers a world of connections that can be individually designed.
Furniture built-in socket with black cover
The Bachmann PIX socket in the trend color black stands for exclusivity, distinctive design and timeless elegance. The Furniture built-in socket with cover 926.000D is part of the Bachmann PIX collection, which consists of filigree, round built-in socket and connection units that can be built into furniture and kitchen counters as desired. call Whether on the desk in the office or home office, in the kitchen, in the bathroom, as a lounge element, in the wall or other living room scenarios, Bachmann offers PIX with its Furniture built-in socket black a world of connections that can be designed individually.
The compact design (HxØ: approx. 50 x 68 mm) and low installation depth (approx. 45 mm) ensure space-saving installation directly from above or .at the front, which is also possible at a later date. With its round, flat shape and the minimalist exterior, Bachmann PIX with cover 926.000D gets to the heart of the requirements in terms of design.
Key features Bachmann PIX built-in socket 926.000D:
- Can be integrated individually or combined individually

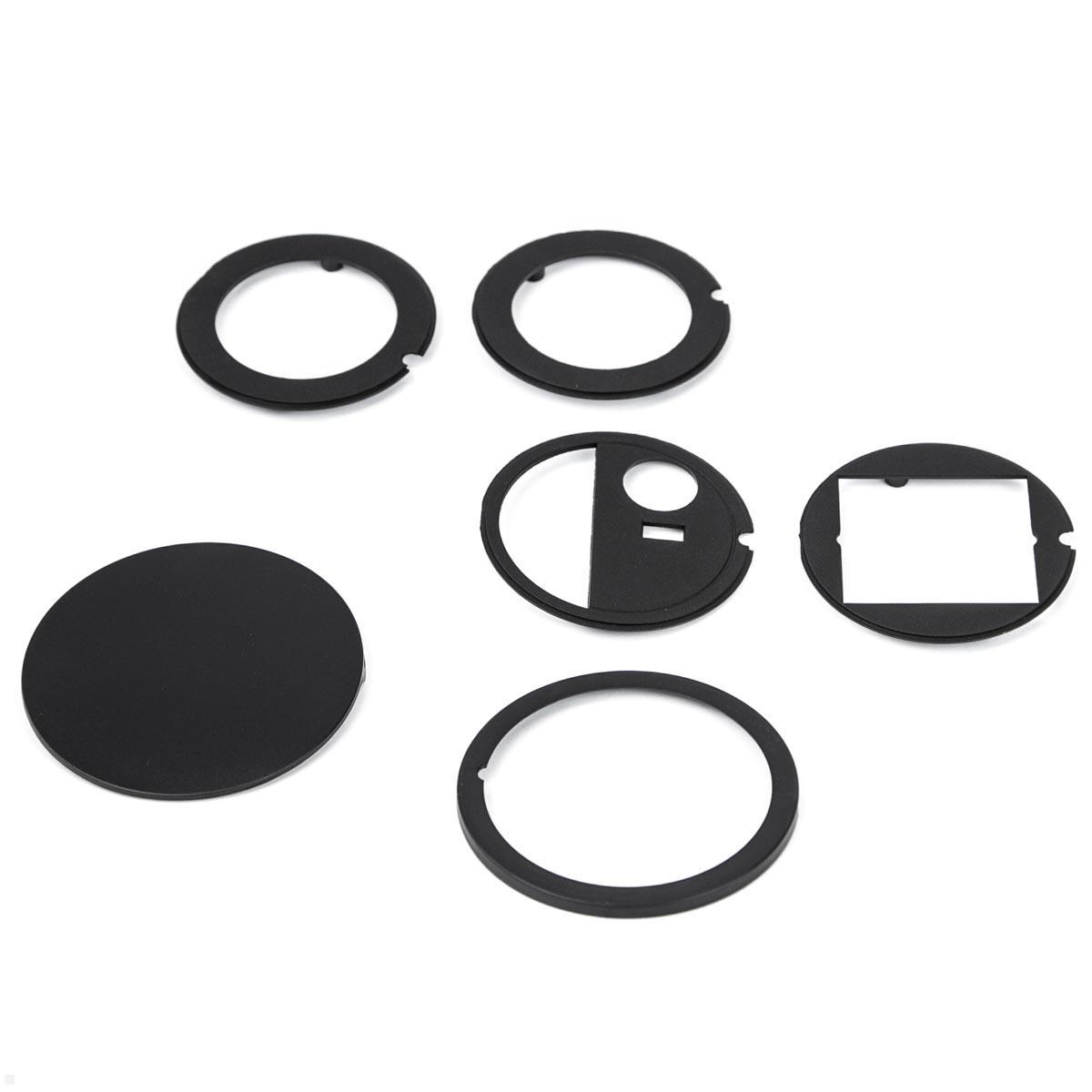

- Interchangeable decorative rings in black and white;
- Small installation diameter of 56 mm
- Easy installation from above, also subsequent installation

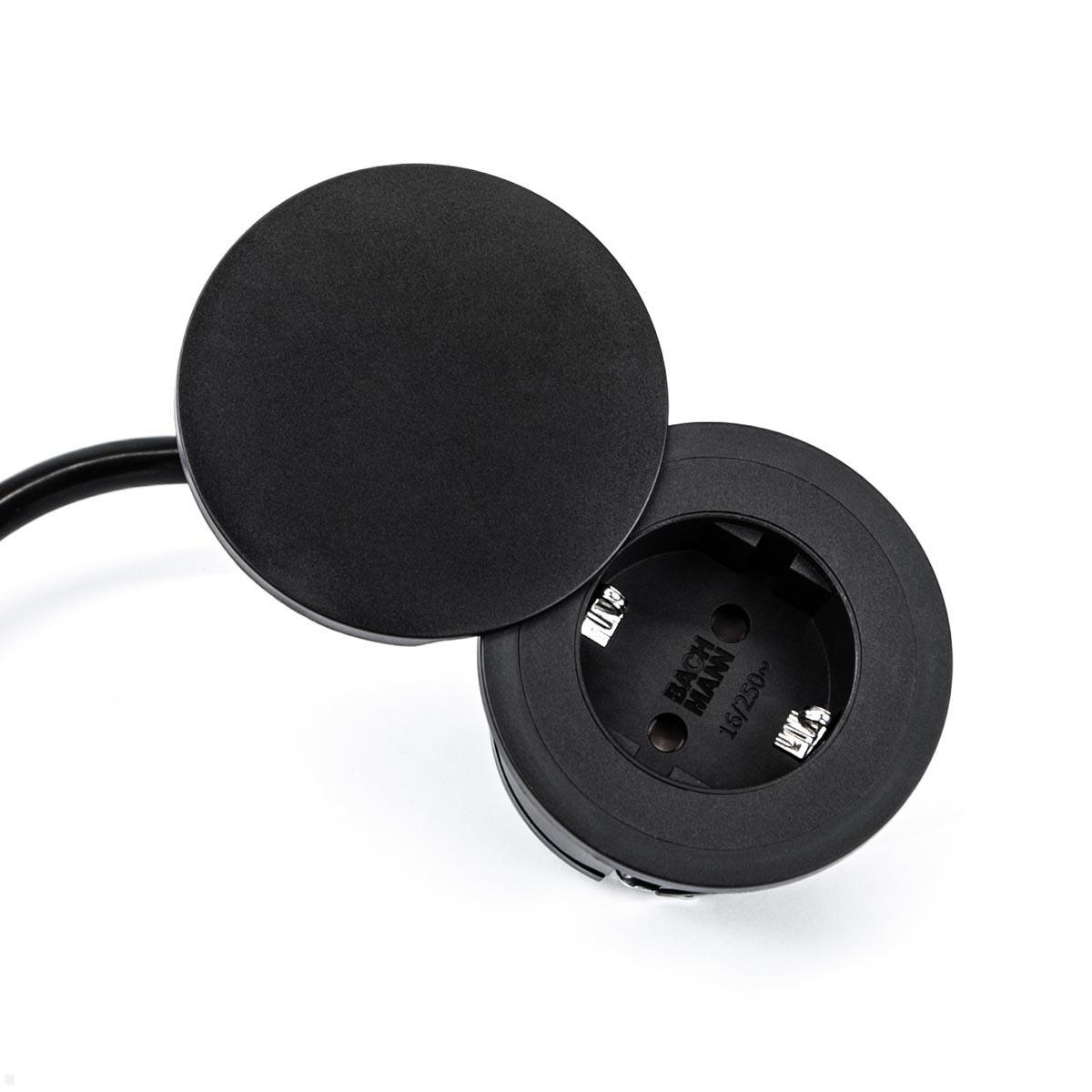

- 1x Socket socket with earthing contact, with child protection, black
- Housing black plastic , similar to RAL 9005
- Installation depth without cable of approx. 45 mm
- Plate thickness: 10 - 40 mm

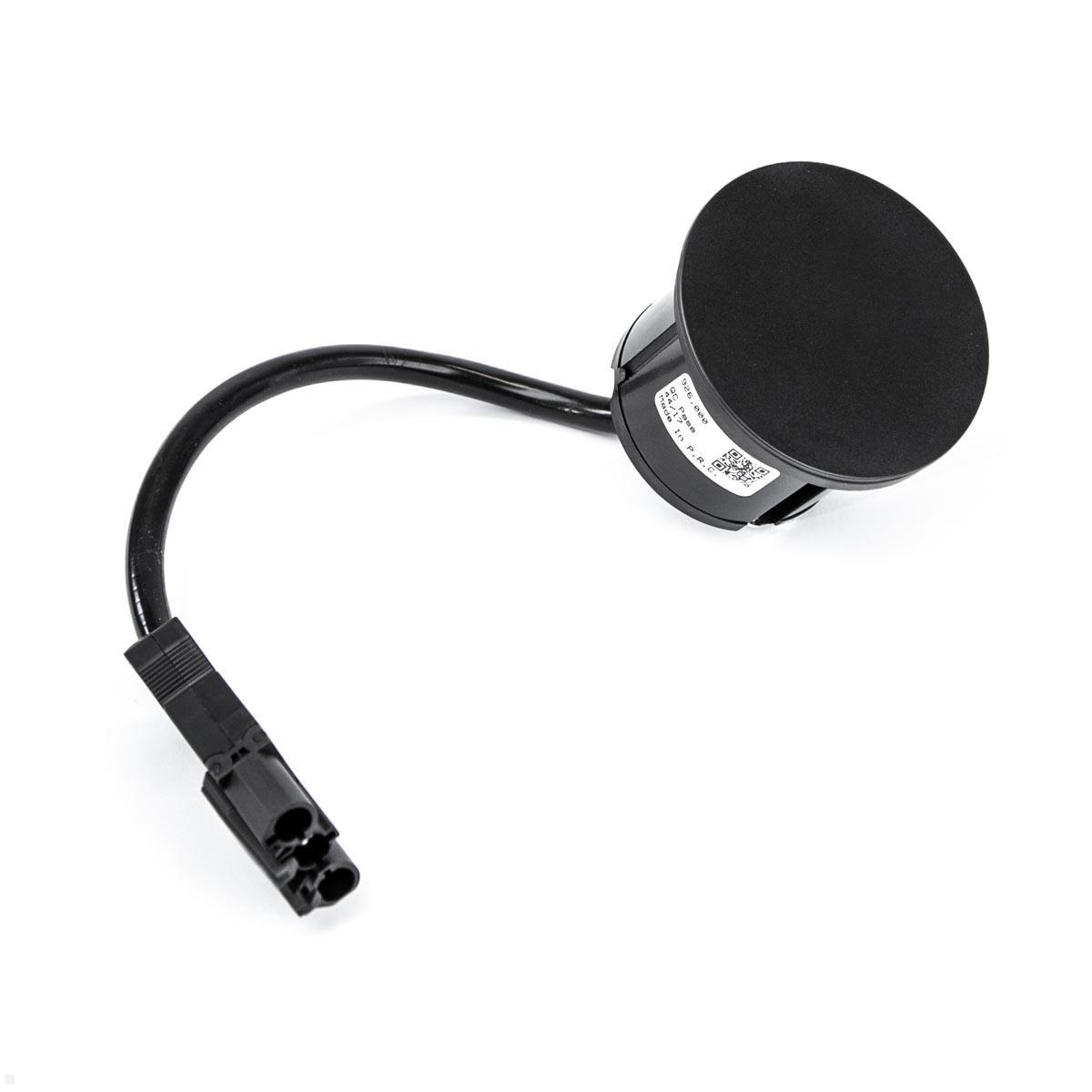

- Power input 0.2m cable with GST18i3 plug
- Mounted decorative ring black similar to RAL 9005
- With enclosed white decorative ring similar to RAL 9010
- Including deck elset with covers 926.101 in black
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

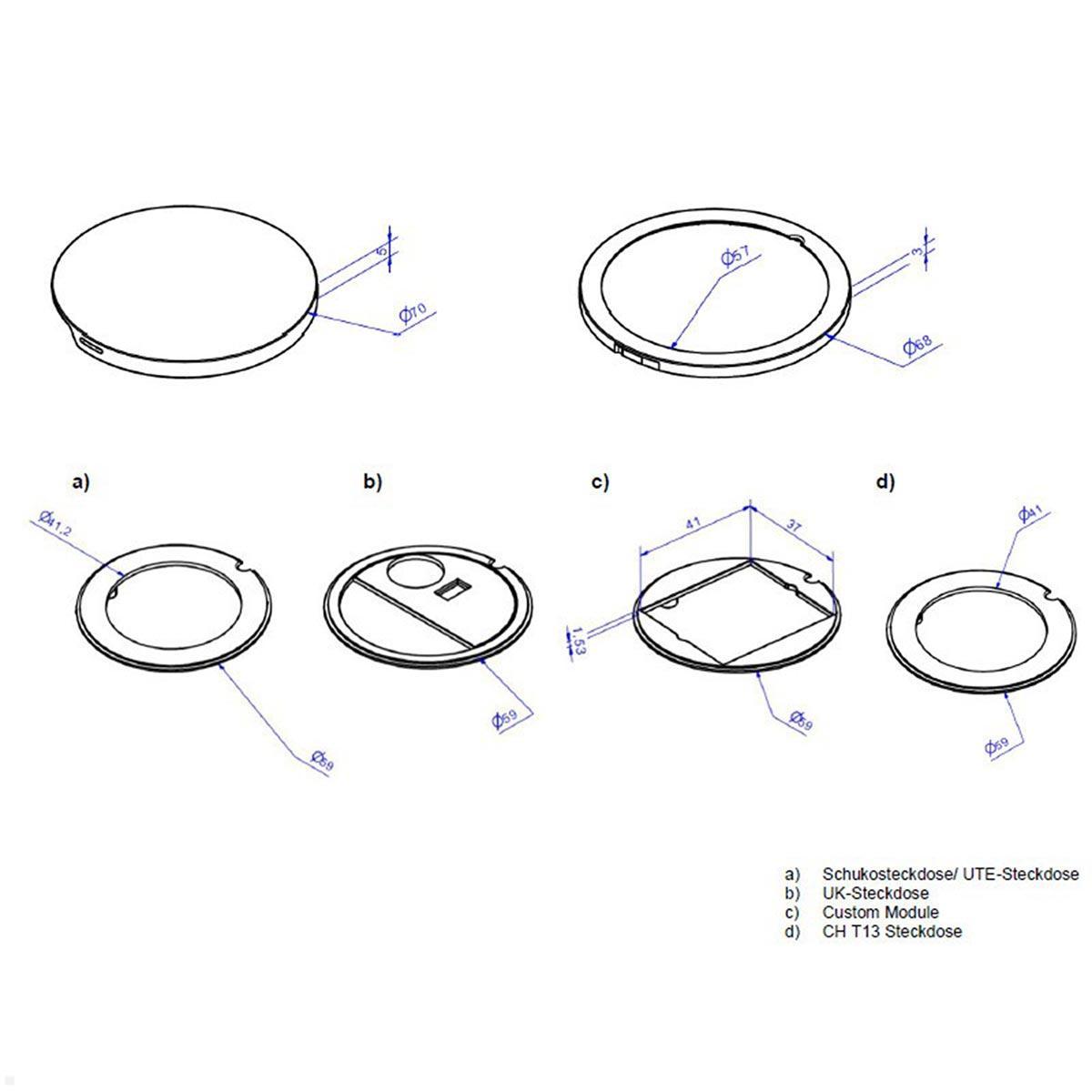

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | PIX accessories decorative rings colored (926.200) |
| Packaging dimensions (LxWxH in mm): | 126 x 126 x 116 |
| Scope of delivery: | 1x PIX built-in socket 926.000 with 0.2m cable GST18 | 1x decorative ring black (installed) | 1x decorative ring white | 1x cable clip screw attachment | 1x cover set black 926.101 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
