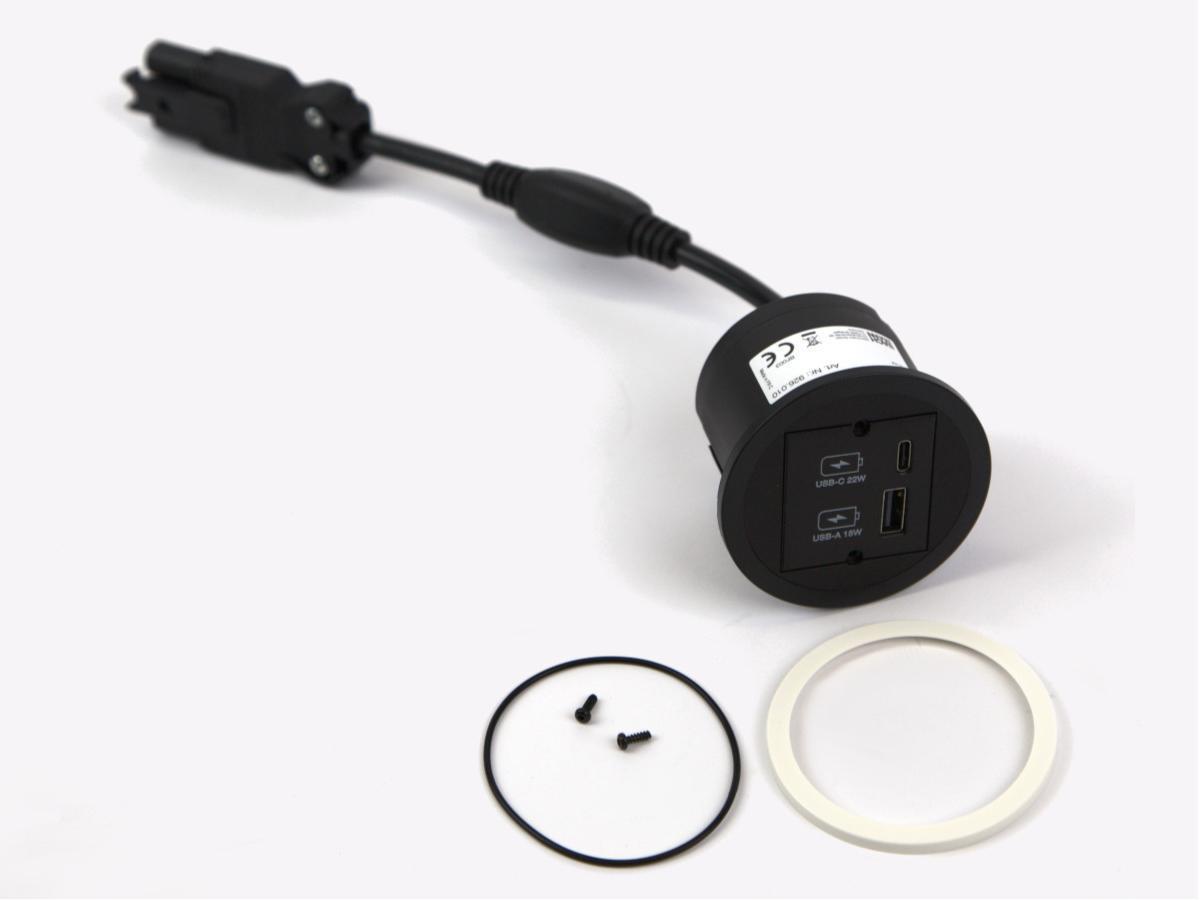

Bachmann PIX built-in plug with USB-A and USB-C charger (926.030)
The Bachmann 926.030 PIX USB-A and USB-C charger with 0.2m GST18 cable as a flush-mounted charging station with its low installation depth of approx. 45 mm allows space-saving installation directly from above or in front, which can also be retrofitted. With the practical USB charger installation solution for the wall or in furniture, e.g. smartphones or tablets can be charged very easily and quickly without any annoying power supply units.
Built-in USB-A and USB-C charger

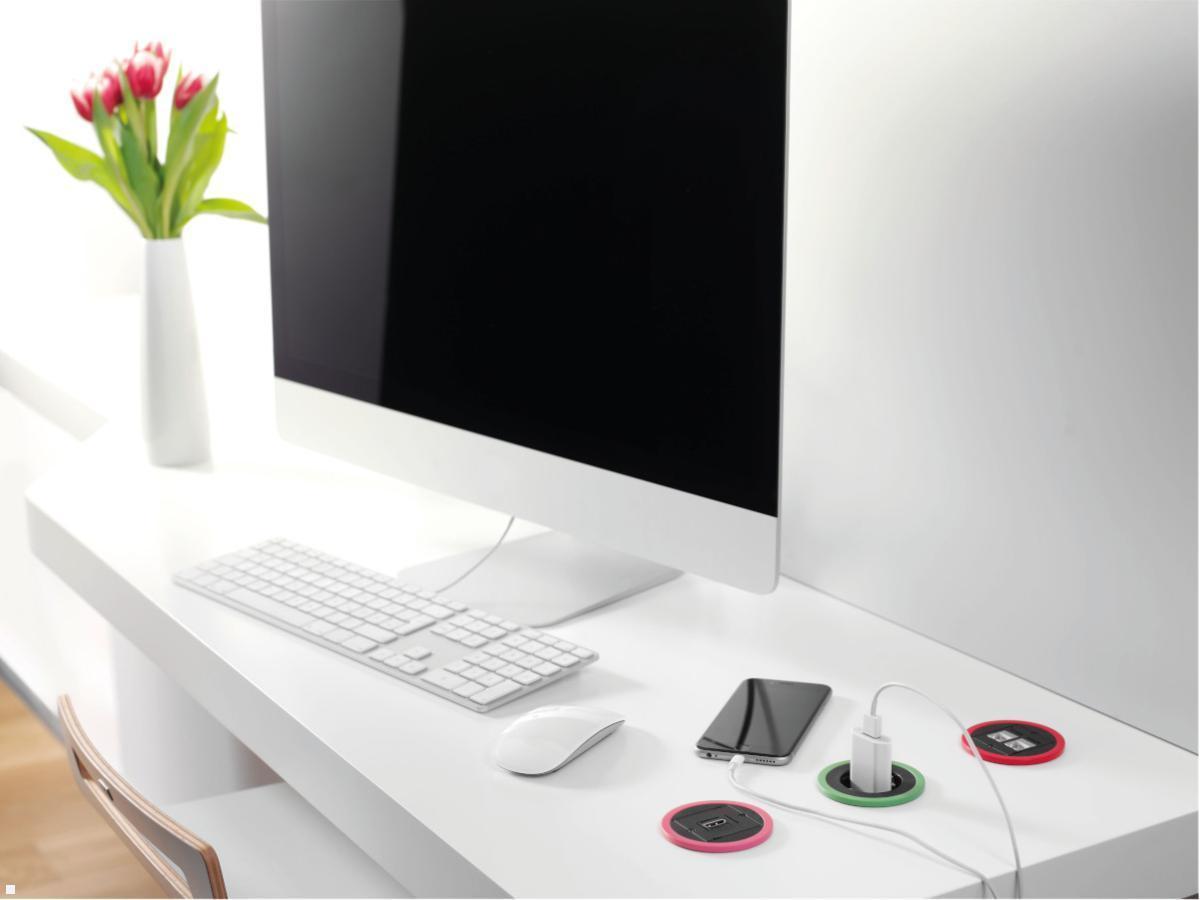

The PIX design series comprises a collection of filigree, round socket and connection units that can be used as desired. Whether on the desk in the office, in the kitchen, bathroom or wall, the Bachmann PIX built-in USB-A and USB-C charger connection unit offers a USB-A and USB-C charger with the latest USB-C charging technology in one. With the PIX 926.030 built-in charger, charging common smartphones and tablets and many other electronic devices with USB-A or the latest USB-C technology is child's play.

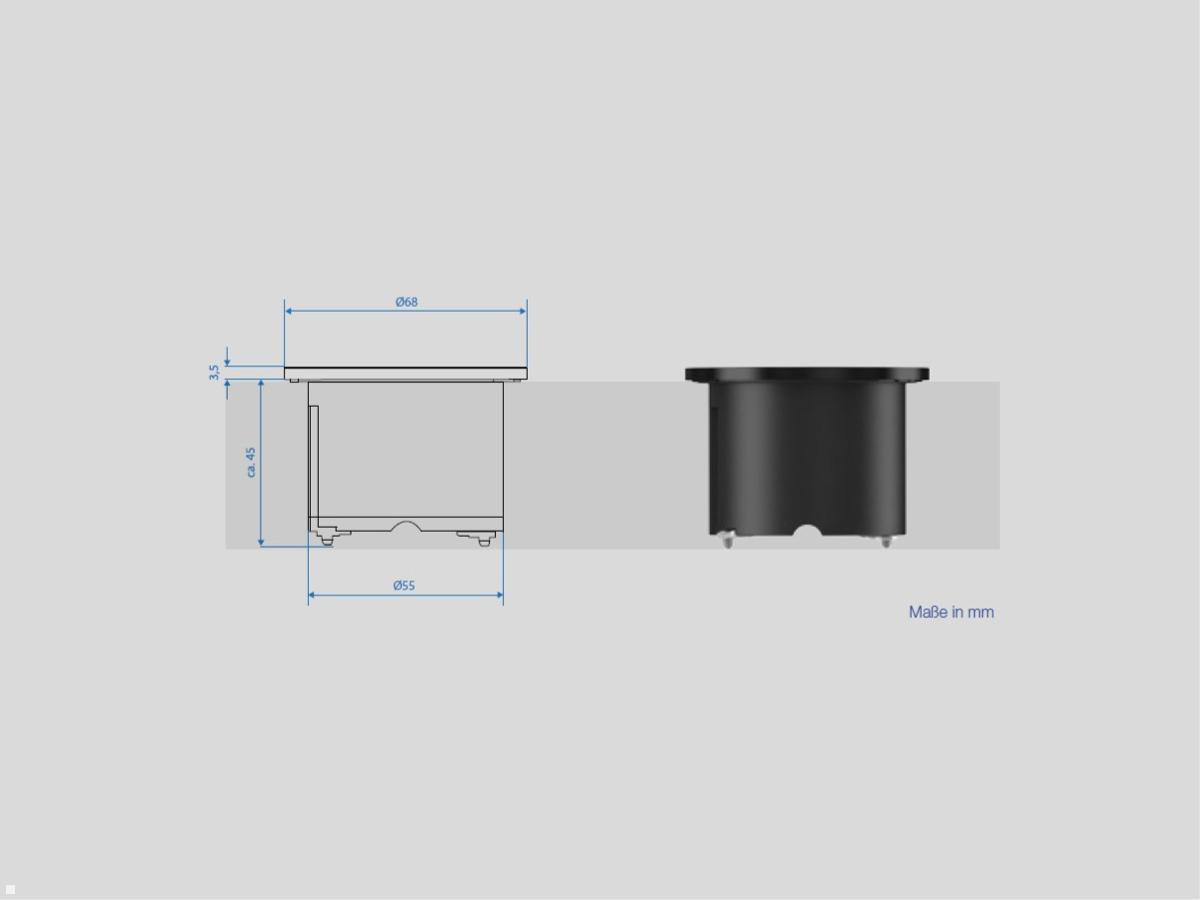

As an option a clever swivel lid that protects against dust and dirt is available for the Bachmann PIX 926.030 USB charging station and can also be added later. The compact design (HxØ: approx. 50 x 68 mm) and low installation depth (approx. 45 mm) of the PIX connection unit ensure space-saving installation directly from above or in front, which can also be added at a later date. Usable individually or in combination, the optionally available decorative rings in different colours can also be selected and exchanged.
Key features 1x USB-A, 1x USB-C charger flush-mounted
- USB-A and USB-C charger in one
- Input voltage: 250V
- Output C+A socket: 5V/3.5A
- Front: 1x USB C charger 22W, 1x USB A charger 18W
- Rear: GST18i3 plug with approx. 0.2m cable
- Charging standards: Power Delivery USB 3.1 PD, Qualcomm Quick Charge USB QC 3.0
- Black plastic case
- Mounted decorative ring black similar to RAL9005
- With enclosed decorative ring white similar to RAL9010
- Scope of delivery: Only installation unit, cover sets and coloured decorative rings can be ordered separately!
Advantages Bachmann PIX connection unit at a glance:
- Can be integrated individually or combined individually
- Exchangeable coloured decorative rings
- Small installation diameter of 56 mm
- Table thickness: 10 - 40 mm
- Optionally with a swivelling lid
- Simple, even subsequent installation from above

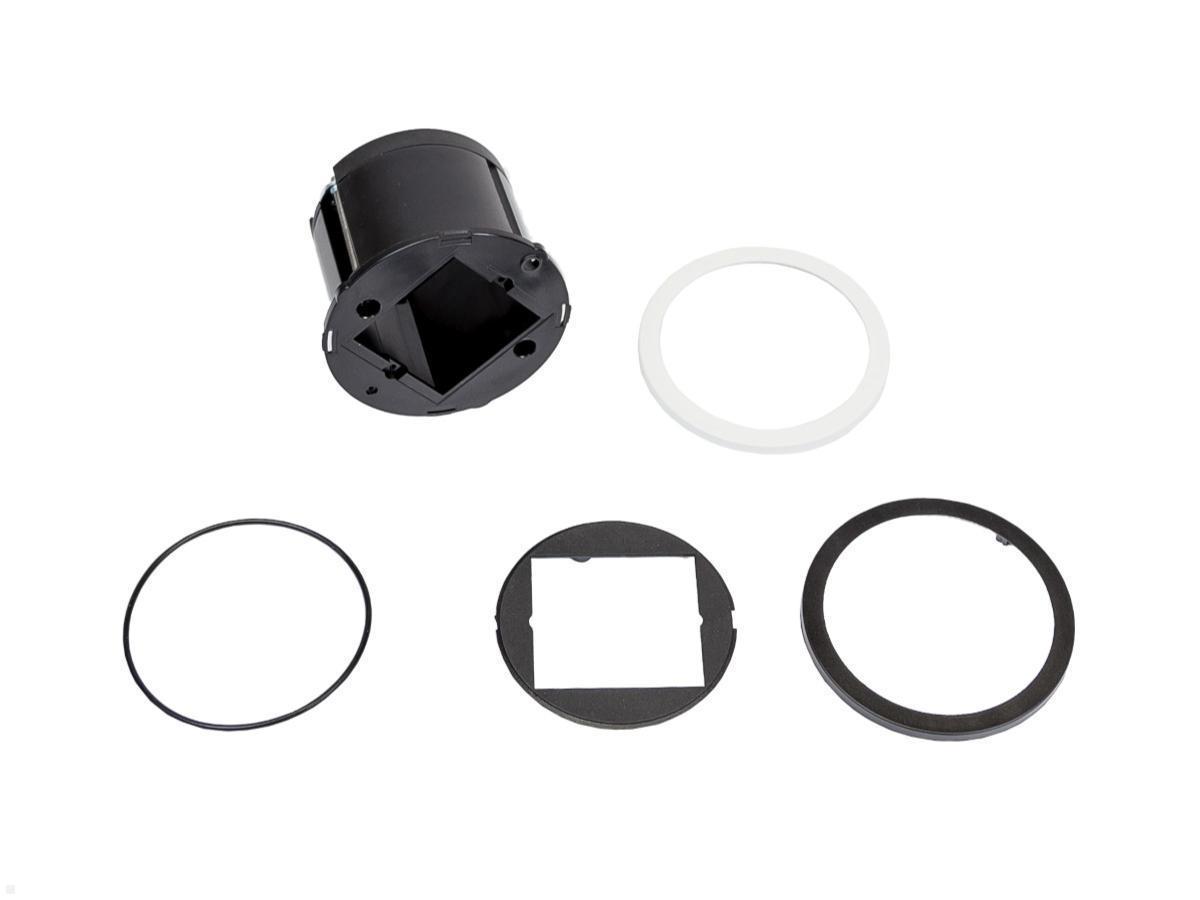

Scope of delivery Bachmann PIX connection unit 926.030:
- Bachmann PIX with custom module (926.010)
- Bachmann Custom Module USB A&C Charger (917.227)
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 50 kb] |
|---|---|
| Technical drawing: | [pdf, 103 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 126 x 126 x 116 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
