Bachmann PIX HOLDER SINGLE socket for furniture with 1x CEE7/3, 0.2m supply cable (BM0020084)
Highlights

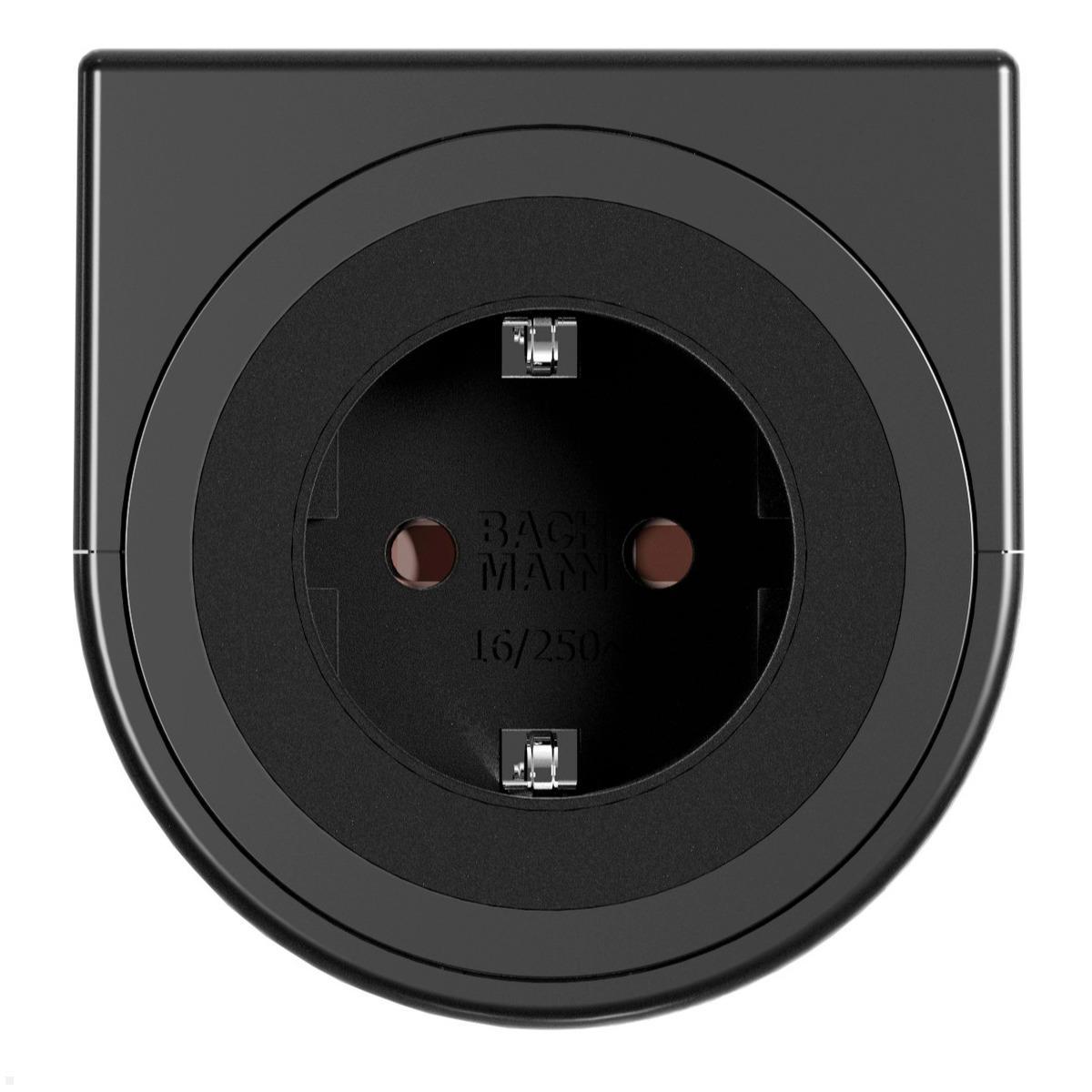

- 1x socket CEE7/3 with touch protection
- 0.2 m installation connector
- Metal bracket 926.501 required separately
- Compact black plastic housing
- Dimensions: 75 x 59 x 78 mm
Compact outlet unit with installation connector
The Bachmann PIX HOLDER SINGLE outlet for furniture with 1x CEE7/3, 0.2 m cable (BM0020084) is an outlet unit in a plastic housing for professional furniture electrification. The integrated protective contact socket CEE7/3 with enhanced touch protection ensures a safe power connection. The closed plastic housing in black blends discreetly into any furniture design.

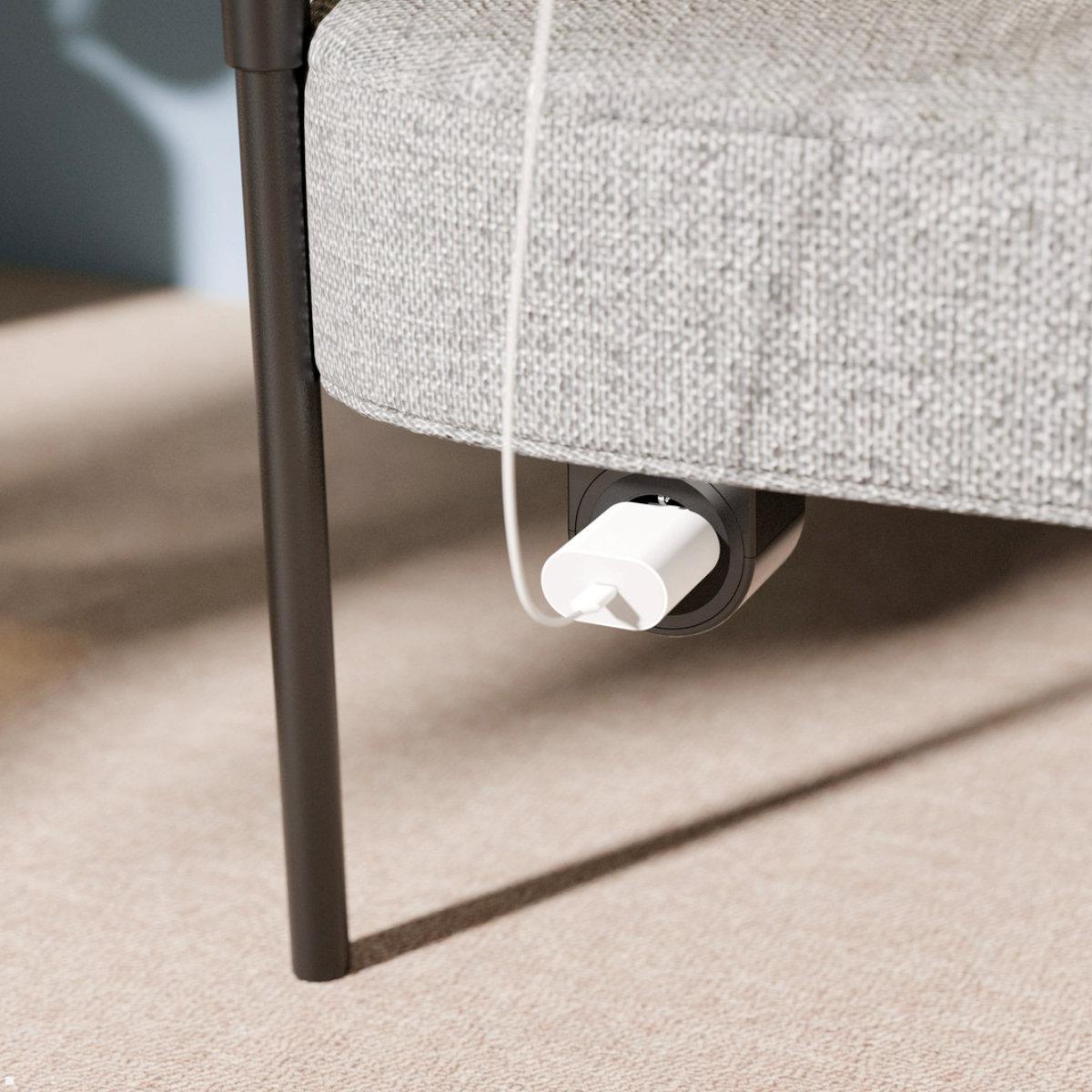

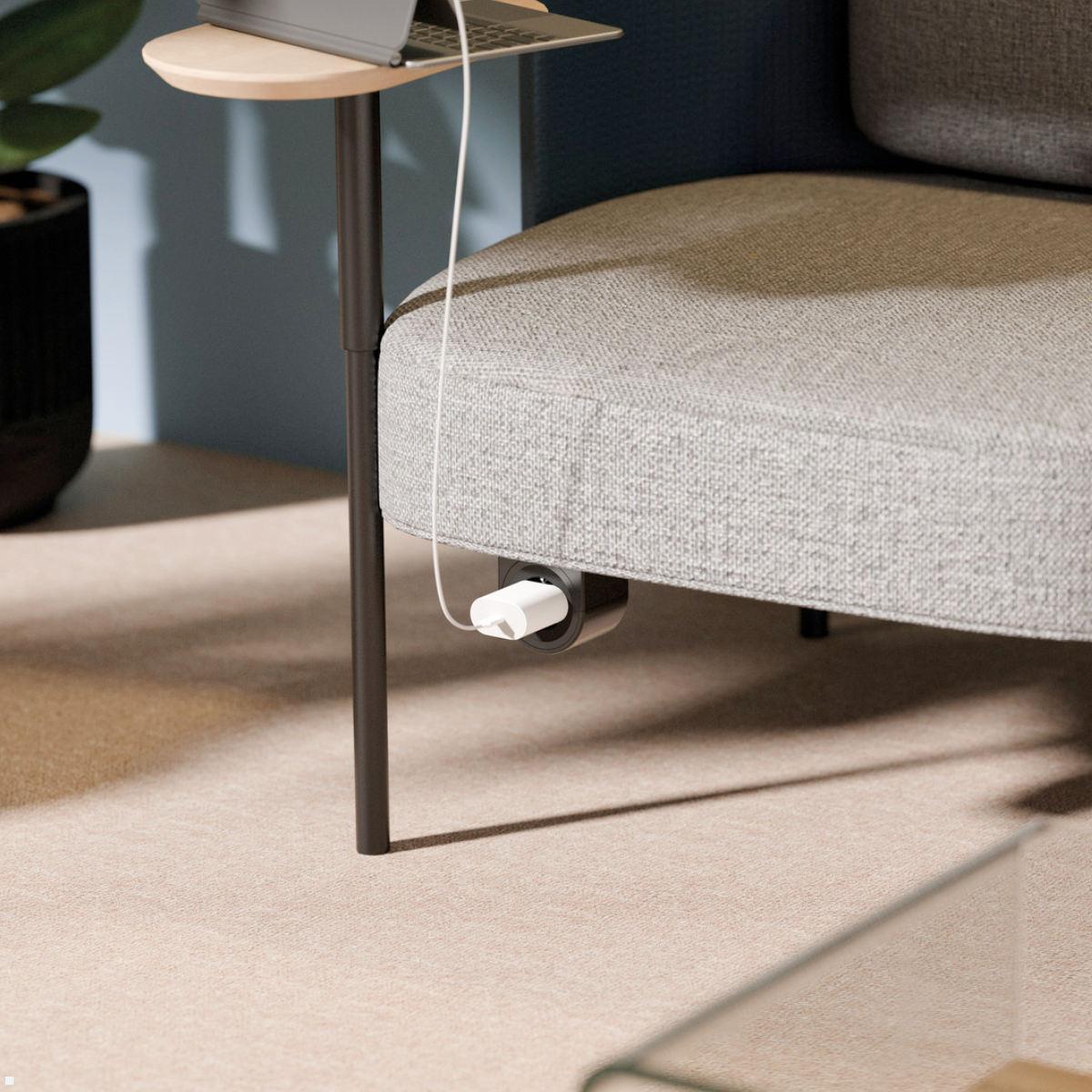

The power input is via a 0.2 m installation connector, which enables professional wiring inside the furniture. For fastening to the underside of the furniture, the separately available PIX HOLDER metal bracket (926.501) is required. Together they form an elegant solution for lounge areas, waiting areas, libraries, hotels and the living area – all without a cutout in the furniture.
Technical details Bachmann PIX HOLDER socket installation connector
- Connection: 1x protective contact socket (CEE7/3)
- Enhanced touch protection
- Power input: 0.2 m with installation connector
- Housing material: plastic
- Color: black with trim ring similar to RAL9005
- For mounting the PIX HOLDER metal bracket 926.501 is required (sold separately)

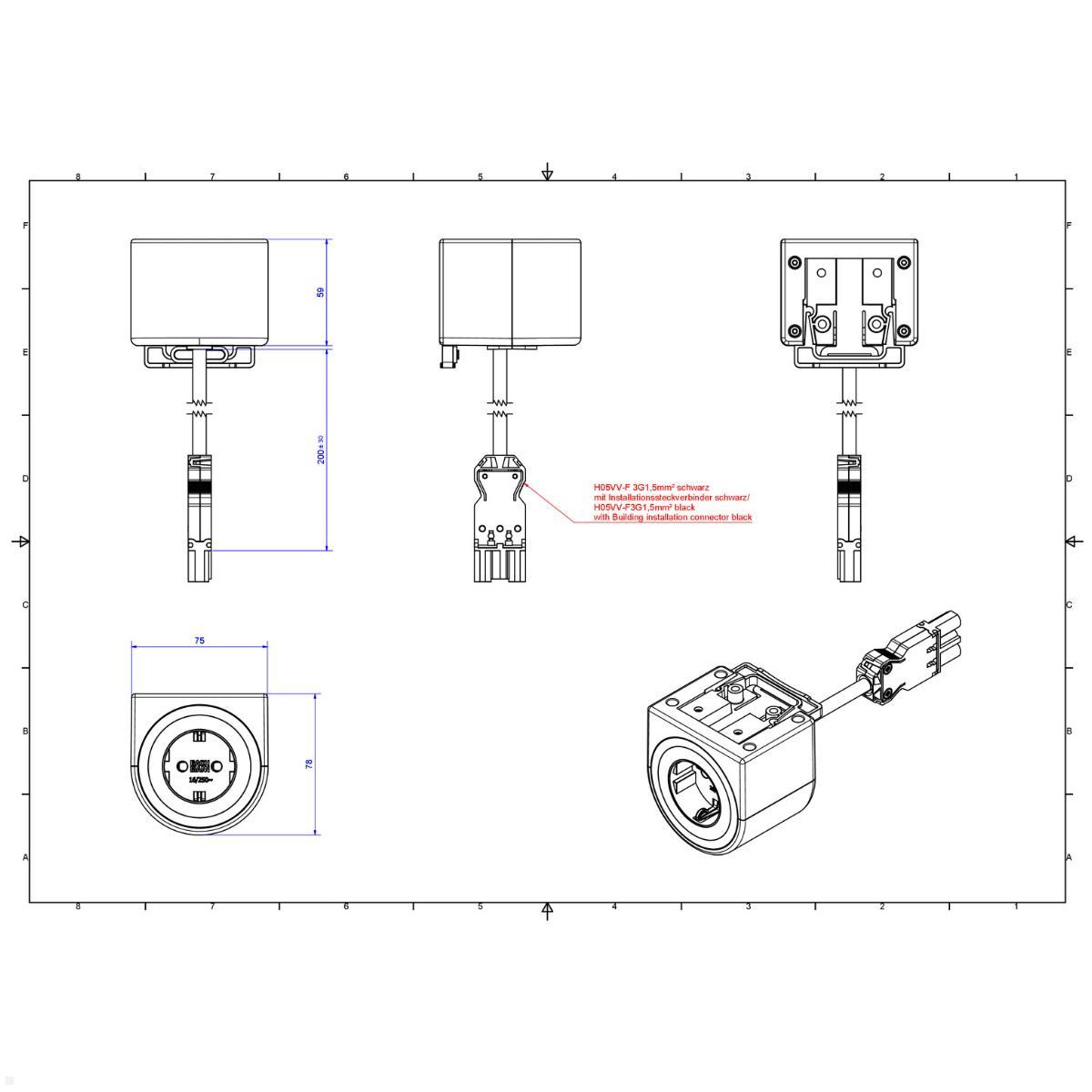

- Dimensions (L×W×H): 75 x 59 x 78 mm
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | 51102578 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What does the Bachmann PIX HOLDER SINGLE socket for furniture include?
A compact socket unit in a plastic housing with 1x CEE7/3 protective-contact socket and a 0.2 m installation lead; the housing is black. The PIX HOLDER metal bracket 926.501 is sold separately for mounting to the underside of furniture.
-
What is it used for?
It is designed for professional furniture electrification and provides a safe power connection without requiring a cutout in the furniture.
-
What socket type is provided?
It provides 1x CEE7/3 protective-contact socket with increased touch protection.
-
How is it mounted?

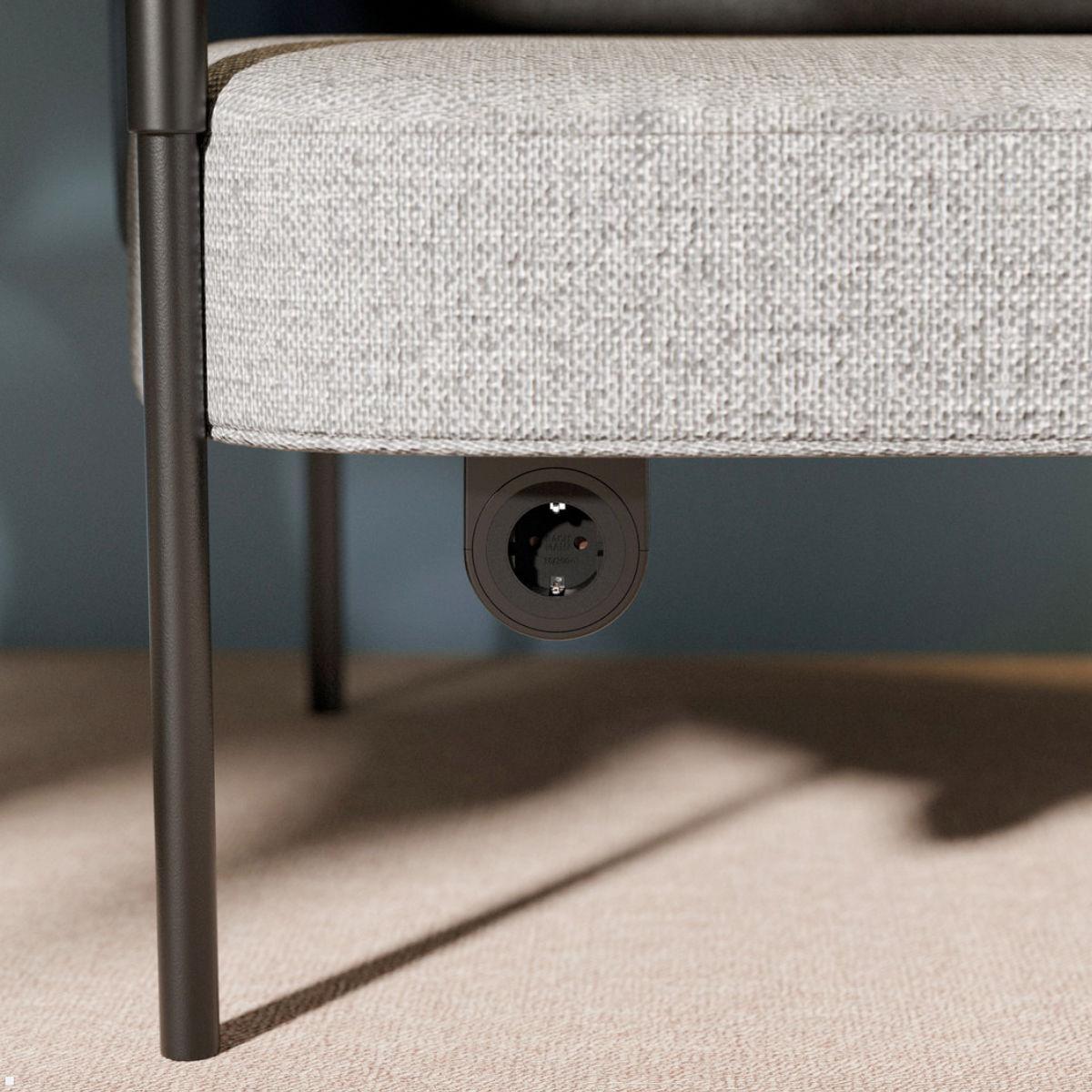

Mounting is done under the furniture using the PIX HOLDER metal bracket 926.501 (sold separately).
-
What are the dimensions?
Dimensions are 75 x 59 x 78 mm.
-
What color is the housing?
The housing is black with a ring similar to RAL 9005.
-
Are there any accessories sold separately?
The PIX HOLDER metal bracket 926.501 is sold separately.
-
Where can it be used?
Suitable for lounges, waiting areas, libraries, hotels and living areas.
What is the PIX HOLDER socket with installation connector suitable for?
The Bachmann PIX HOLDER SINGLE socket unit BM0020084 with a 0.2 m installation connector is specially designed for professional installation in furniture systems. While the variant with a 2 m supply cable can be plugged directly into a wall socket, this version is aimed at furniture manufacturers and professional installers. The short installation connector enables neat wiring inside the furniture and can be connected to existing electrical installations. The protective contact socket CEE7/3 with increased touch protection meets all common safety standards. The compact plastic housing in black fits almost any furniture design. To fasten to furniture, the PIX HOLDER metal holder (926.501) is required, which is available separately. The CEE7/3 socket 0.2 m black - Bachmann PIX HOLDER is thus the suitable choice for a variety of use scenarios.
For which installation scenarios is the short connection intended?
The PIX HOLDER with installation connector is mainly used where furniture already has an internal electrical infrastructure or where a fixed installation is planned. In lounge areas of hotels and airports, seating furniture is often supplied via floor boxes or cable ducts. The short connector fits perfectly into such installation concepts. The socket unit can also be seamlessly integrated into existing electrification solutions in conference rooms, co-working spaces and libraries. The metal holder is fixed to the underside of the furniture with four screws and the socket unit is then inserted.
How does this variant differ from the version with a 2 m cable?
The essential difference lies in the power inlet. While the BM0020082 variant is connected directly to a wall socket via a 2.0 m lead, the BM0020084 version uses a 0.2 m installation connector. This is suitable for furniture with existing internal wiring or for installation by qualified personnel. Both variants use the same plastic housing with a trim ring in black similar to RAL9005 and require the PIX HOLDER metal holder for attachment to the furniture. The compact dimensions of 75 x 59 x 78 mm are identical for both versions.
