Bachmann PIX HOLDER SINGLE socket for furniture with 1x CEE7/3, 2m supply cable (BM0020082)
Highlights

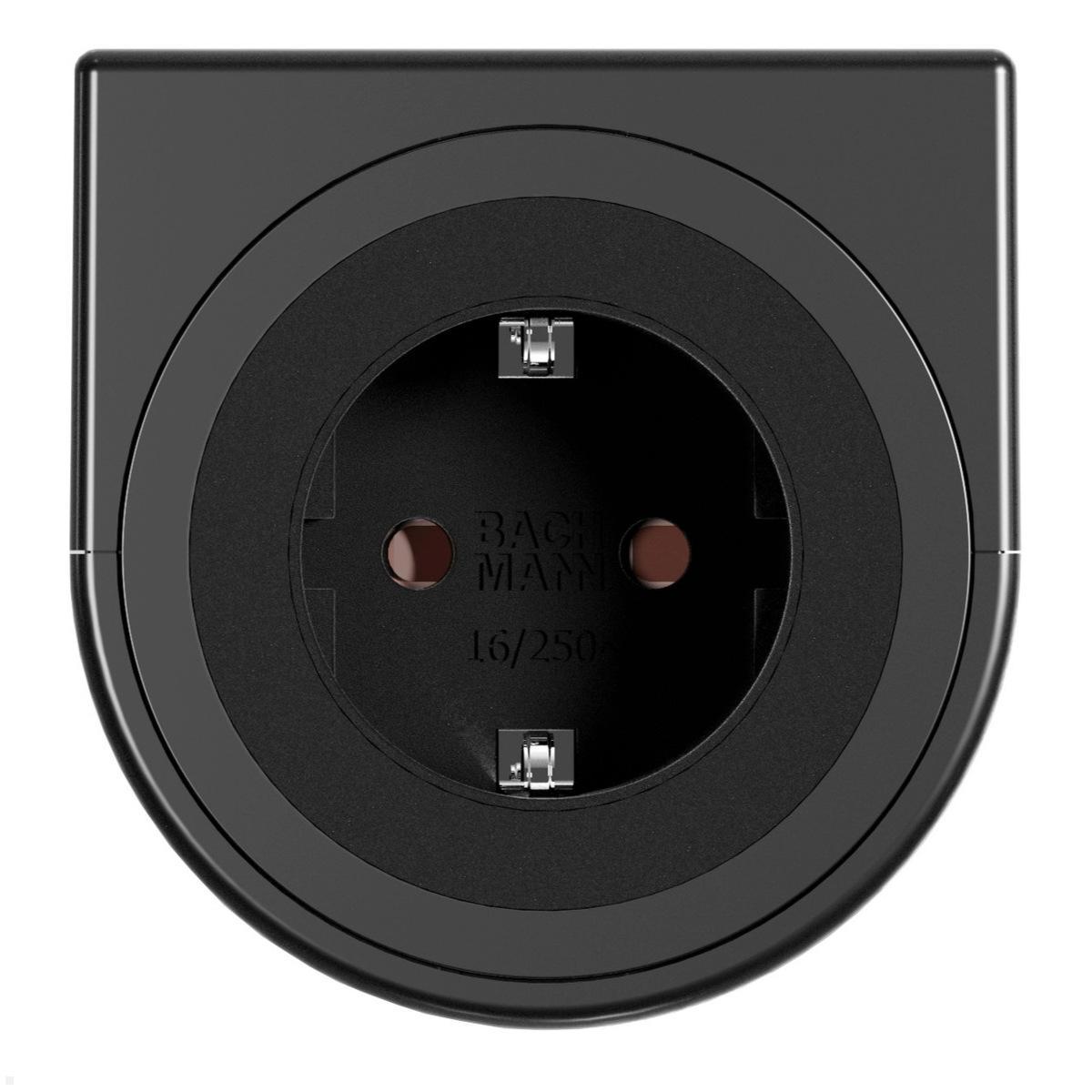

- 1x CEE7/3 socket with touch protection
- 2.0 m supply cable with mounting plug
- Metal bracket 926.501 required separately
- Compact black plastic housing
- Dimensions: 75 x 59 x 78 mm
Furniture socket for PIX HOLDER mounting on furniture
The Bachmann PIX HOLDER SINGLE socket for furniture with 1x CEE7/3, 2 m supply lead (BM0020082) is a compact furniture socket in a plastic housing that is mounted on furniture together with the separately available PIX HOLDER metal bracket (926.501). The integrated protective-contact socket CEE7/3 with enhanced touch protection provides a safe power connection directly at the seating position. The closed plastic housing in black blends discreetly into any design.

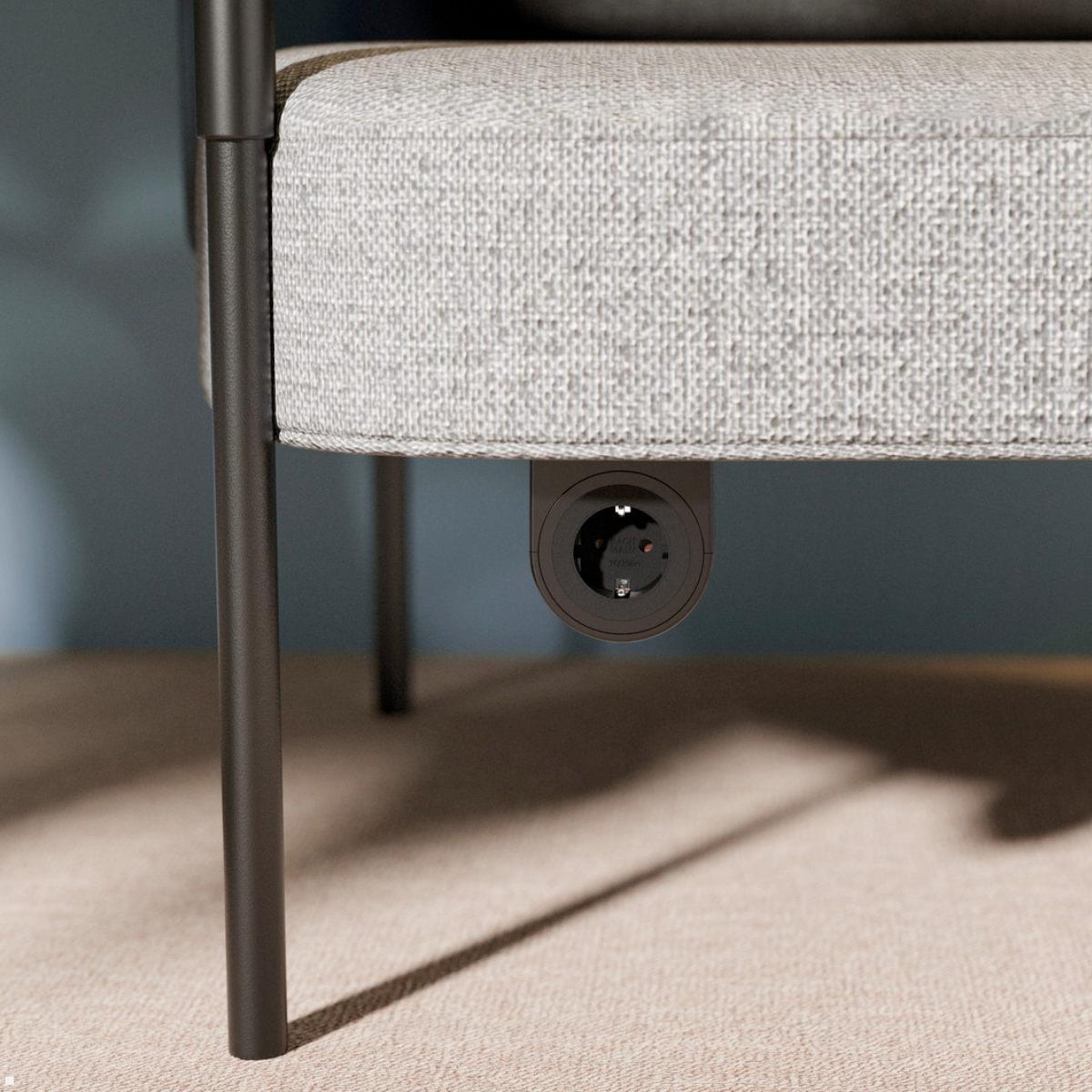

The power input is via a 2.0 m cable with ferrules and the supplied mounting plug, so connection to an existing outlet is possible directly. In combination with the PIX HOLDER metal bracket, the furniture socket is attached without a cut-out to the underside of sofas, seating furniture or tabletops. This creates charging points in lounge areas, waiting areas, libraries, hotels and residential spaces.
Technical details Bachmann PIX HOLDER socket CEE7/3
- Connection: 1x protective-contact socket CEE7/3
- Enhanced touch protection
- Power input: 2.0 m cable with ferrules and supplied mounting plug
- Housing material: Plastic
- Color: Black with trim ring similar to RAL9005
- The PIX HOLDER metal bracket 926.501 is required for mounting (available separately)

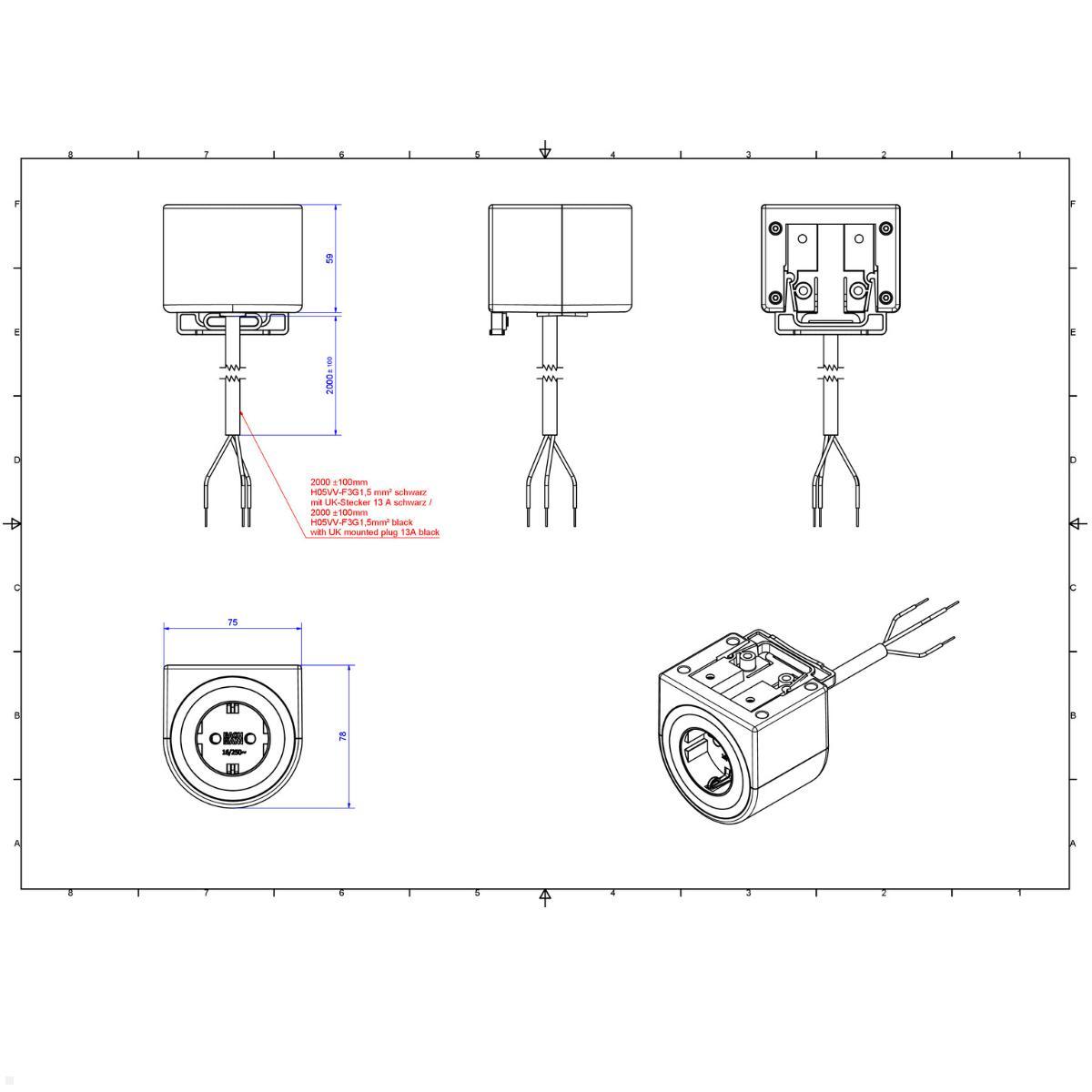

- Dimensions (L×W×H): 75 x 59 x 78 mm
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | 51102578 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX HOLDER SINGLE socket for furniture?
A compact socket unit in a plastic housing designed to be mounted to furniture with the separately available PIX HOLDER metal bracket (926.501).
-
What type of socket does it provide?
It provides 1x protective-contact socket CEE7/3 with enhanced touch protection.
-
How long is the power lead?
A 2.0 m lead with ferrules and an included mounting plug.
-
How is it mounted?
Mounting is via the PIX HOLDER metal bracket 926.501 (sold separately) and the unit is installed without an underside cutout in furniture.
-
What are the dimensions?
75 x 59 x 78 mm.
-
What material and colour is the housing?
Plastic housing; black with a bezel similar to RAL9005.
-
Where can it be used?
It creates charging points at seating areas such as lounges, waiting areas, libraries, hotels and living spaces.
-
What is included with the unit?
A 2.0 m lead with ferrules and an included mounting plug.
What is the Bachmann PIX HOLDER SINGLE socket unit?
The Bachmann PIX HOLDER SINGLE socket unit BM0020082 is the core component of the PIX HOLDER solution for retrofitting furniture with power. It consists of a compact plastic housing with an integrated protective contact socket CEE7/3 and enhanced touch protection. Power is supplied via a 2.0 m cable with ferrules and an included installation plug. To attach the socket unit to a piece of furniture, the PIX HOLDER metal bracket (926.501) is additionally required and is available separately. The metal bracket is fixed to the underside of the furniture with four screws, and the socket unit is then simply inserted. This creates a secure power connection without cutting into the furniture. The furniture socket CEE7/3 2m black - Bachmann PIX HOLDER is therefore the suitable choice for a variety of applications.
Where is the PIX HOLDER socket unit used?

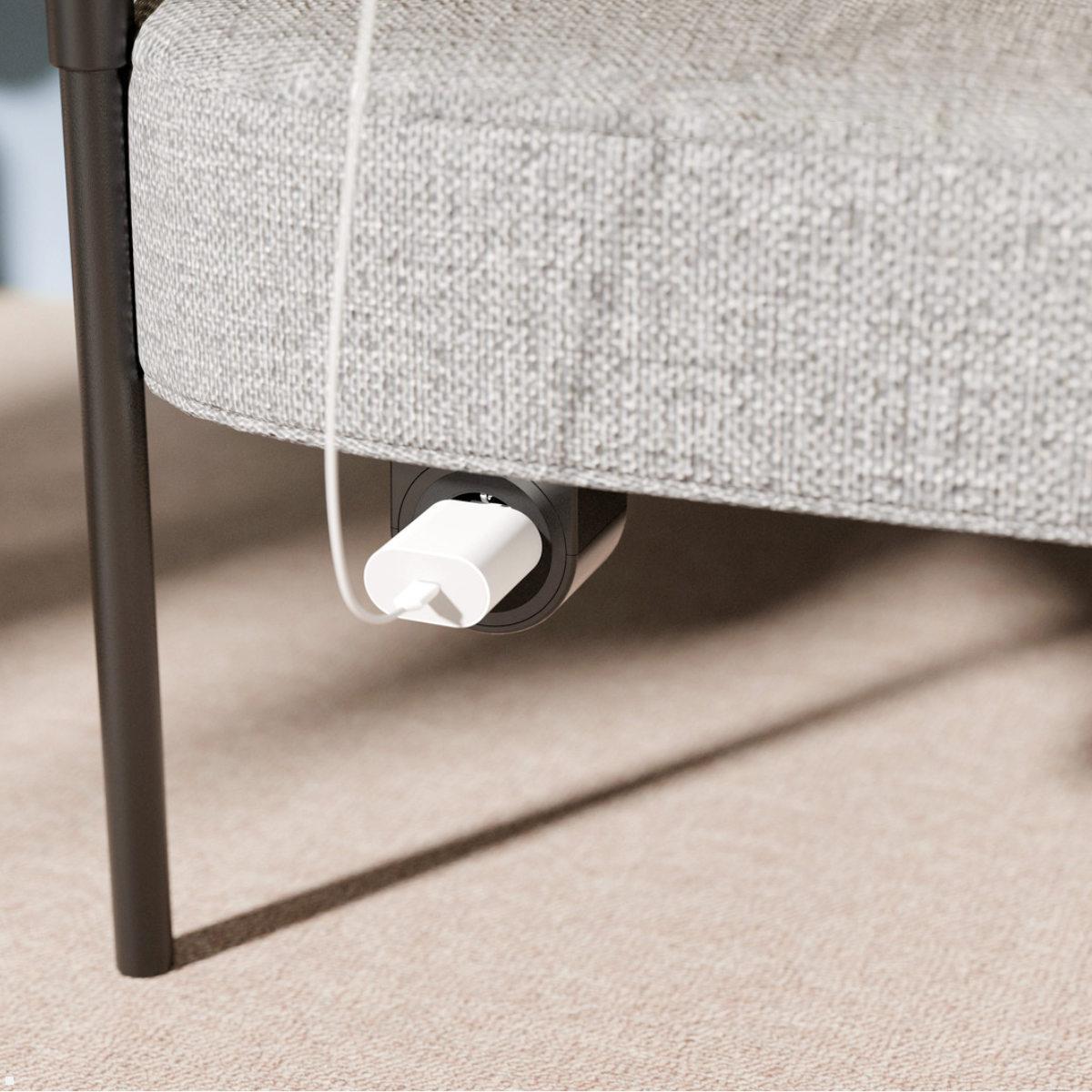

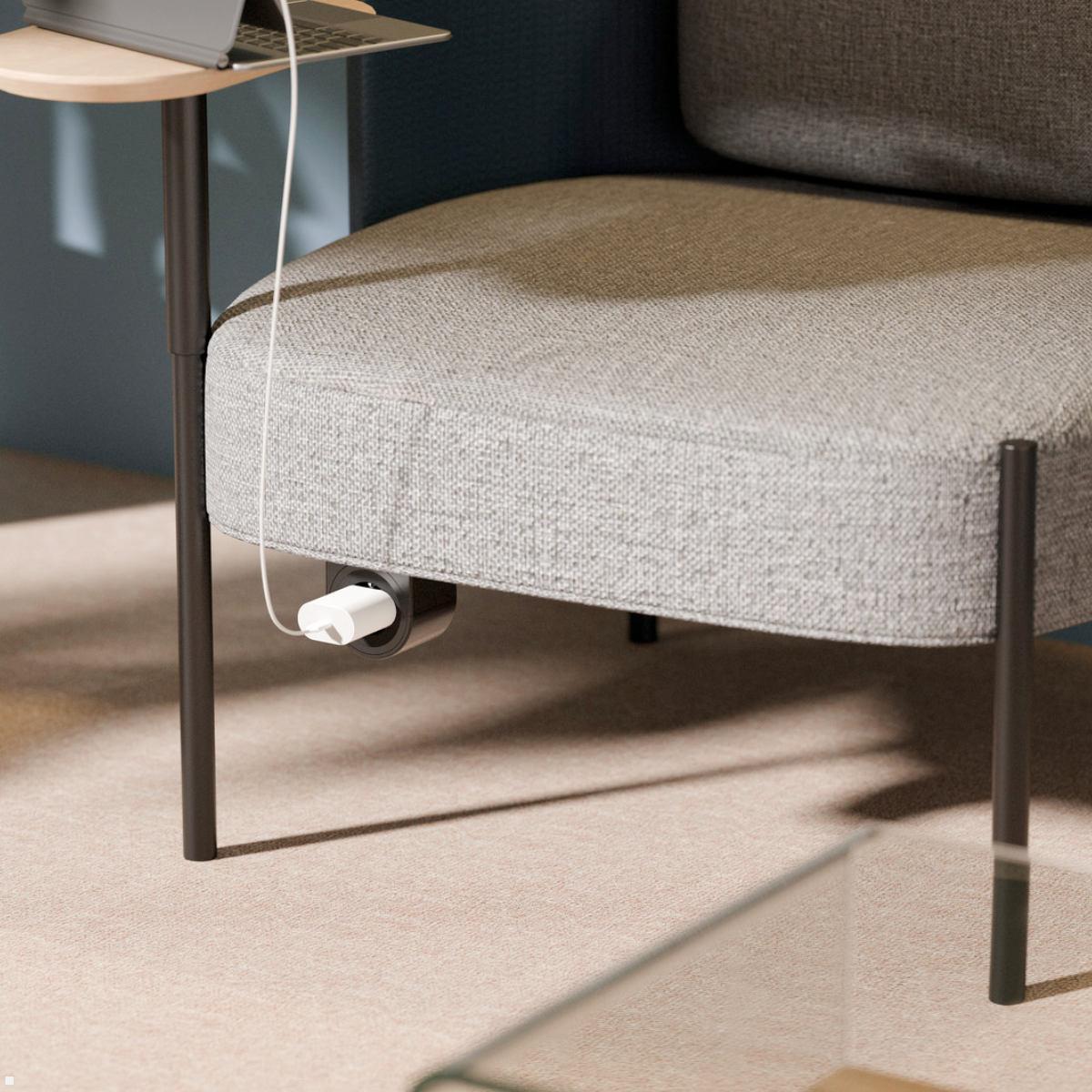

The combination of socket unit and metal bracket is suitable wherever power outlets need to be flexibly retrofitted to furniture. In lounge areas and waiting zones of airports, hotels or companies, comfortable charging points are created directly at the seating. Employees and guests can charge their devices without having to look for distant sockets. In libraries and touchdown areas, connections for laptops and mobile devices are quickly available. In private homes, the solution also offers an elegant way to equip sofas or armchairs with power outlets without permanently altering the furniture.
What are the advantages of the 2 m connection cable?
The 2.0 m cable with ferrules and the included installation plug enables direct connection to an existing wall socket. Unlike the version with a short installation connector, no electrician or existing electrical infrastructure inside the furniture is required. This makes this version particularly suitable for private homes and wherever a quick and uncomplicated installation is desired. The cable length provides sufficient leeway for positioning the furniture in the room. The compact plastic housing with a trim ring in black similar to RAL9005 blends discreetly into virtually any furniture design and appears like an integral part of the piece of furniture.
