Bachmann PIX UP retractable built-in socket outlet, 19 mm installation depth, 2 m, black (BM0031090)
Highlights
- Retractable built-in socket for furniture
- Only 19 mm installation depth
- 90° rotation mechanism, flush-mounted
- Suitable from 1 mm material thickness
- Awarded the German Design Award
Retractable built-in socket with 19 mm installation depth for furniture integration

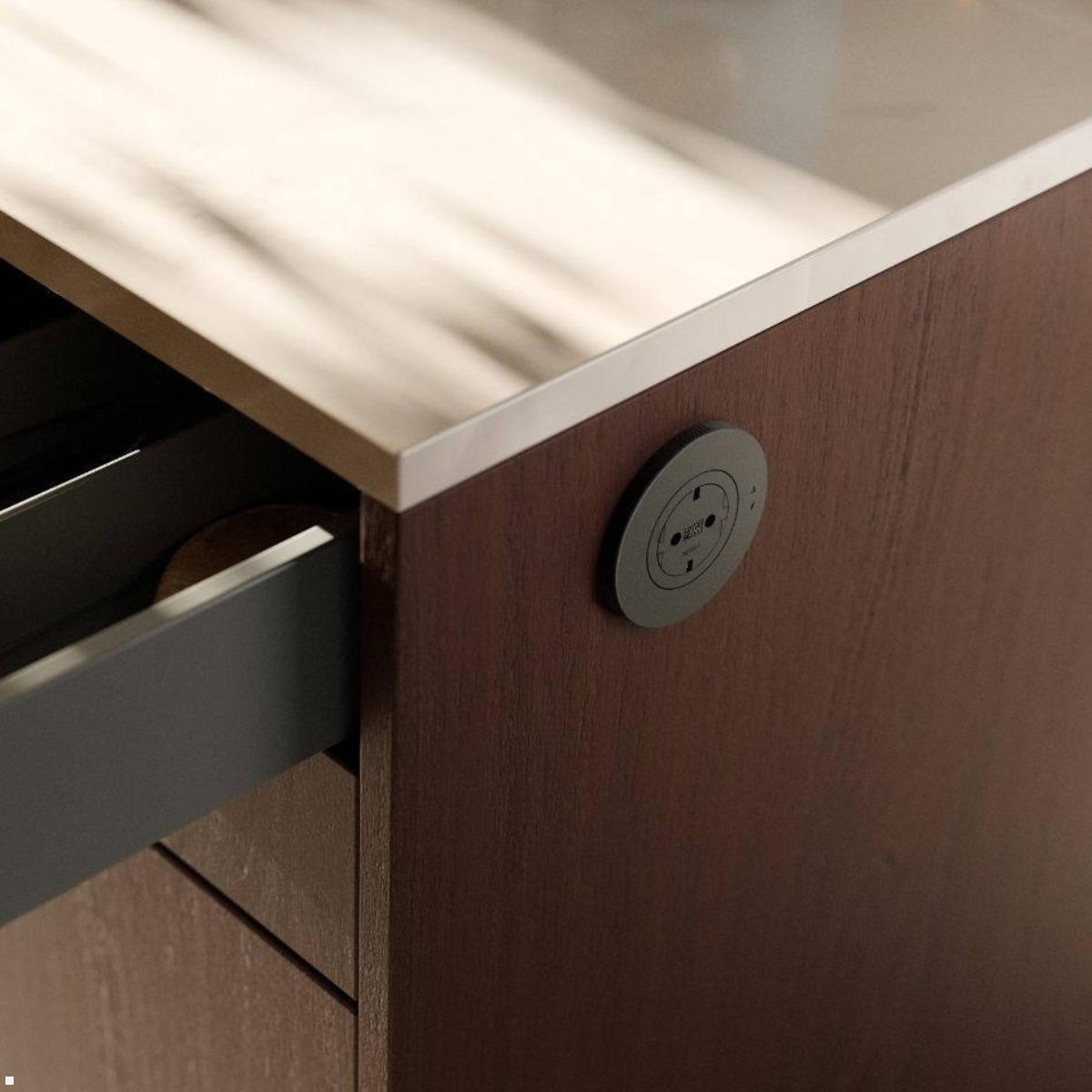

The Bachmann PIX UP retractable built-in socket, 19 mm installation depth, 2.0 m, black (BM0031090) is an extremely flat solution for power supply in furniture and tight installation situations. With only 19 mm installation depth, the PIX UP built-in socket is among the flattest available solutions and has been awarded the German Design Award for its innovative design. It is suitable for placement in side panels, worktops, drawers or gaps—anywhere classic sockets cannot be used due to their depth.

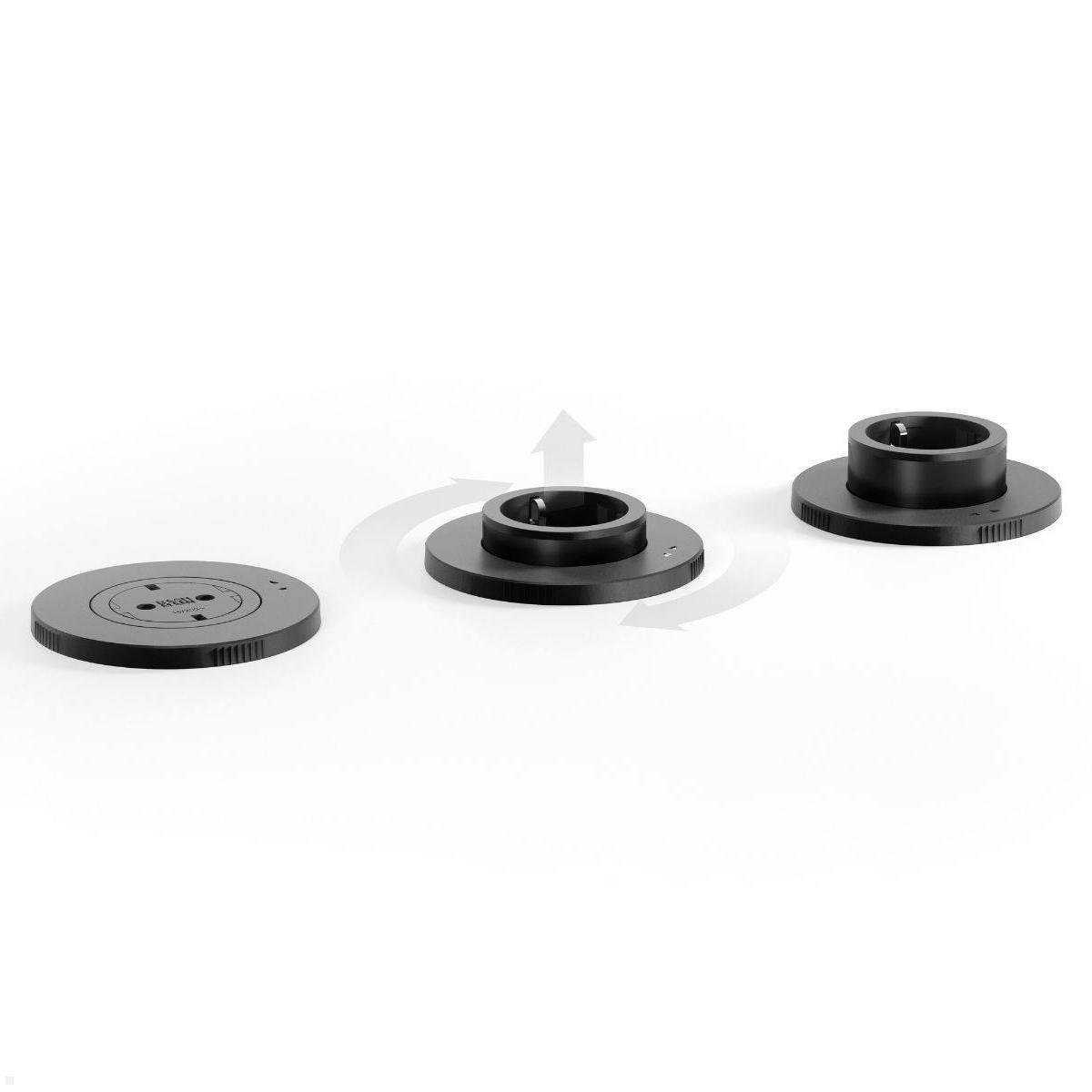

A precise 90° rotary mechanism allows the socket to be extended by rotating the ring and to be recessed flush with the surface again after use. Thanks to its innovative construction, the PIX UP can be integrated with a material thickness starting from 1 mm—ideal for delicate structures and slim furniture designs. Installation is performed via a standard 80 mm diameter hole; the side cable routing supports the minimal installation depth and simplifies installation in confined conditions. Application areas include kitchen islands, room-in-room systems, office partitions and slim tabletops.
Technical details retractable built-in socket Bachmann PIX UP
- Cover plate: plastic
- Socket: plastic
- Profile: metal
- Installation depth: 19 mm
- Mounting hole: 80 mm diameter
- Material thickness: from 1 mm
- Cable routing: side
- Supply cable: 2.0 m with ferrules and supplied installation plug
- Color: matte black
- Dimensions (L×W×H): 85 x 85 x 44 mm
| Contains installation material: | + |
|---|---|
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX UP retractable recessed socket?
It is a retractable recessed socket with a 19 mm mounting depth, 2 m lead, in black matt, designed to be ultra-thin for furniture and tight installation spaces.
-
How deep is the installation depth?
The installation depth is 19 mm.
-
How long is the lead?
The lead is 2.0 m long and comes with ferrules and an included mounting plug.
-
How does the pull-out mechanism work?
A precise 90-degree turning mechanism lets you pull out the socket by a ring turn and retract it flush with the surface when not in use.
-
What materials are used?
Cover plate: plastic; socket: plastic; profile: metal. Color: black matt.
-
Where can it be installed?

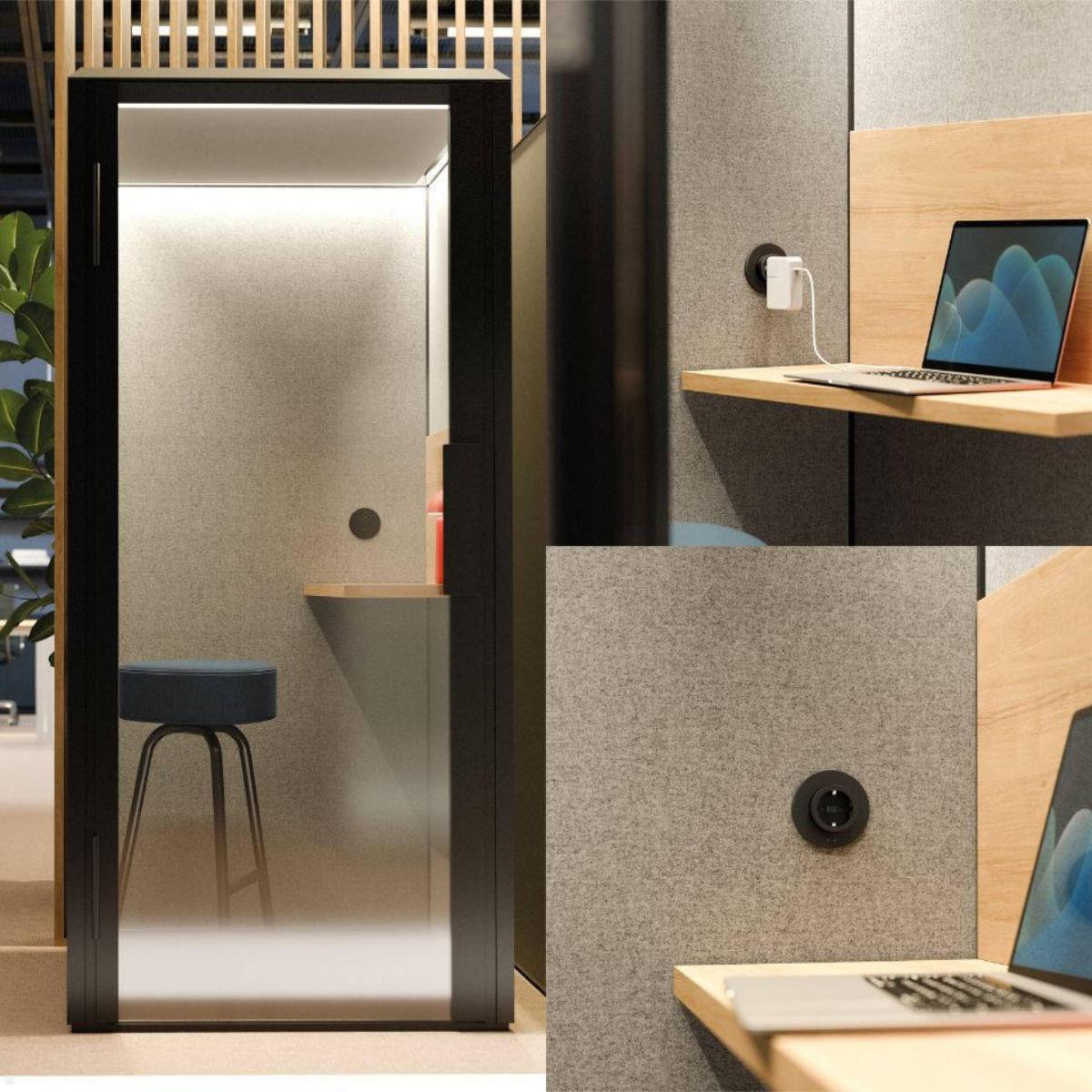

Use cases include kitchen islands, room-in-room systems, office partitions and slim tabletops.
-
Has it won any awards?
Yes, it was awarded the German Design Award for its innovative design.
Why is the Bachmann PIX UP recessed outlet ideal for furniture integration?
Modern furniture concepts place high demands on integrated power supply solutions. The Bachmann PIX UP recessed outlet was developed specifically for these requirements: with an installation depth of just 19 mm, it enables integration into side panels, worktops and drawers where conventional sockets do not fit. Due to the precise 90° rotation mechanism, the retractable outlet extends with a knob turn and can be returned flush with the surface after use. This keeps the furniture surface calm and tidy—a decisive advantage for upscale interiors and high-quality office environments. For its innovative design PIX UP was awarded the German Design Award. The combination of minimal installation depth, elegant rotating mechanism and high-quality materials makes the PIX UP the first choice for planners, carpenters and furnishers who want to combine functionality and aesthetics.
For which material thicknesses and installation situations is the PIX UP suitable?
The Bachmann PIX UP retractable outlet for furniture is designed for thin material thicknesses and can be used from 1 mm material thickness. This makes it ideal for delicate panel materials, slim tabletops and thin-walled furniture constructions where conventional recessed sockets are simply too deep. Installation is uncomplicated via a standard 80 mm diameter hole — a dimension that is widely used in the furniture industry and significantly simplifies planning. The lateral cable guide supports the extremely flat design and makes installation much easier even in confined cavities. Thanks to the supplied fastening system, the PIX UP can be secured permanently and safely. This recessed outlet for tight installation situations thus convinces both in planning and in practical implementation through its well-thought-out design and ease of use.
In which areas is the Bachmann PIX UP used?
The PIX UP outlet from Bachmann is versatile: in the kitchen area for kitchen islands, work surfaces and side walls, in the office for room-in-room systems, partitions and slim tabletops, as well as in the living area for sideboards, shelving systems or media furniture. Wherever lack of space, aesthetics and functionality must be reconciled, the Bachmann PIX UP offers the right solution as a retractable recessed outlet for furniture. Also suitable for use in public areas such as hotel lobbies, lounges or conference rooms — it blends seamlessly into high-quality interiors while still providing a reliable power connection at any time. With the PIX UP Bachmann sets a new standard for invisible yet always available power supply in furniture construction.
The Bachmann PIX UP retractable recessed outlet is the result of consistent engineering and was specifically developed for the requirements of modern furniture and interior design. Those who have worked with the PIX UP appreciate the smooth installation, the precise rotating mechanism and the high-quality workmanship in plastic and metal. As an outlet for furniture it addresses where other solutions fail: in flat, space-critical installation situations where compromises in design or function are unacceptable. Bachmann offers with the PIX UP a future-proof solution for all who want to give their furniture a permanently functional and aesthetically convincing power supply.
