Bachmann power strip DESK 2 + STEP BASE incl. GST18 cable
The Bachmann power strip set consists of a DESK 2 desktop socket outlet and a 6-way STEP BASE power strip including a GST18 device extension / connection cable and device supply cable. The combination of power, USB / USB-C charging station and protective contact sockets forms a solid unit at the desk.
Desk power outlet / USB charger
The practically assembled power strip set from Bachmann offers a perfect desk unit of power and USB connections at the workplace. The STEP Base power strip is attached under the desk and connected to the power. The DESK 2 desktop socket outlet is connected to the STEP Base multiple socket outlet from Bachmann, which has coding and plug latching in accordance with EN 6153, via a GST18 supply cable. The DESK 2 desktop mounted socket outlet with two earthed sockets and 1x USB-C and 1x USB-A charger charging station is mounted directly on the desk with the supplied mounting brackets / desk clamps. Notebooks, tablets, smartphones and other mobile devices can be connected and removed from the workstation with easy access.
Printers, fax machines, PCs or monitors mainly remain permanently connected to the power socket. The STEP BASE (906.1264) socket strip can be installed under tabletops, in cable ducts or on table partitions and offers 6 sockets for conventional office equipment. In addition, the BASE multiple socket outlet is equipped as standard with a Wieland GST18/3 device supply cable and supplies the DESK 2 with power via the device extension GST18 cable. The stationary Bachmann Step Base multiple strip outlet can / may be cascaded or plugged in series with the DESK 2.Bachmann socket strip set
The set includes the following Bachmann articles:
- Bachmann DESK 2 socket strip with USB charger (902.932)
- Bachmann STEP BASE 6-way socket strip with GST18 (906.1264)
- Bachmann device extension cable GST18 1 m (375.053)
- Bachmann power supply cable GST18 3 m (375.003)

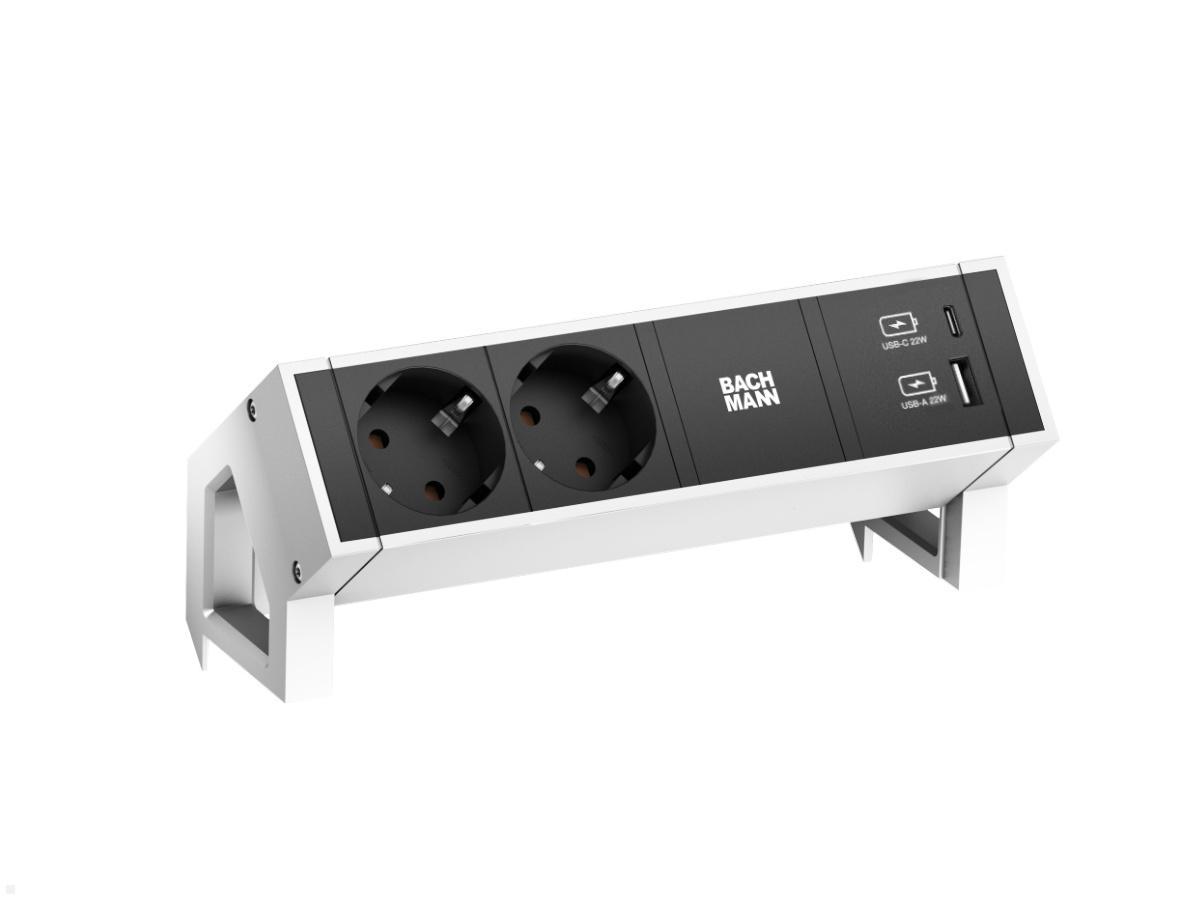

Bachmann DESK 2 multiple socket outlet with USB charger (902.932)
- 1x USB-C / USB-A charger 22W
- 2x black socket outlet with earthing contact, rotated 35°
- Supply cable: 0.2 m H05VV-F3G1.5 mm² black with GST18i3 plug
- Including bracket set, clampable
- Construction: tabletop thickness 10 - 40 mm
- Finish: white (available in 200 RAL colours on request)
Bachmann STEP BASE 6-way socket strip with GST18 (906.1264)
- 6 x protective contact sockets
- Socket outlets: 16A/3680W, AC250V, 2-pin with child-proof lock, 35° rotated
- IP20 protection class (contact protection, dust, water)
- Power input: plug GST18/3 plug, black
- Power output: socket GST18/3 socket, black
- Dimensions (WxHxD): 347.8 x 52 x 44 mm
- Incl. end caps
- Locking tab inserted on both Wieland connectors
- Finish: black

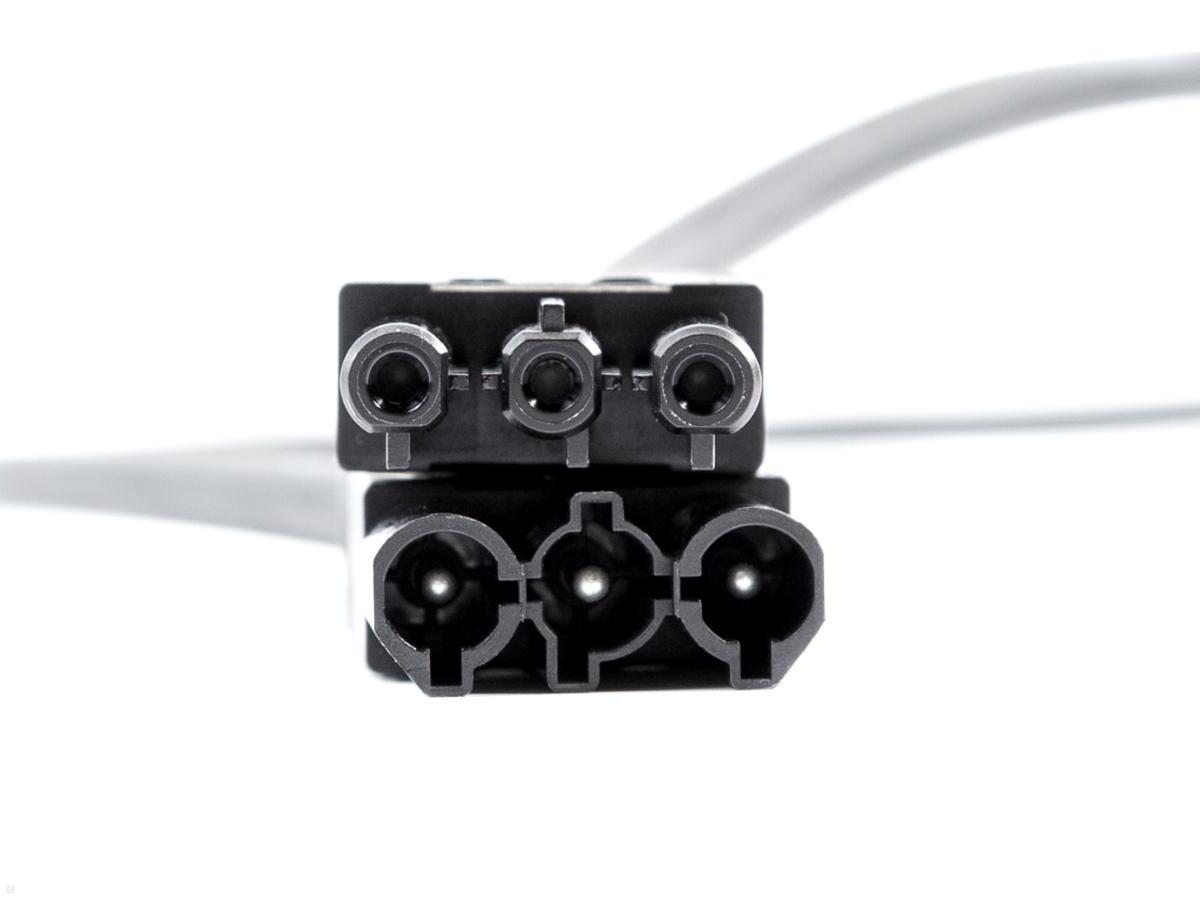

Bachmann device extension cable GST18 1m (375.053)
- Length: 1 m
- Cable: H05VV-F 3G 1.5 mm²
- Side 1: Wieland GST18i3 plug
- End 2: Wieland GST18i3 socket
- Finish: black

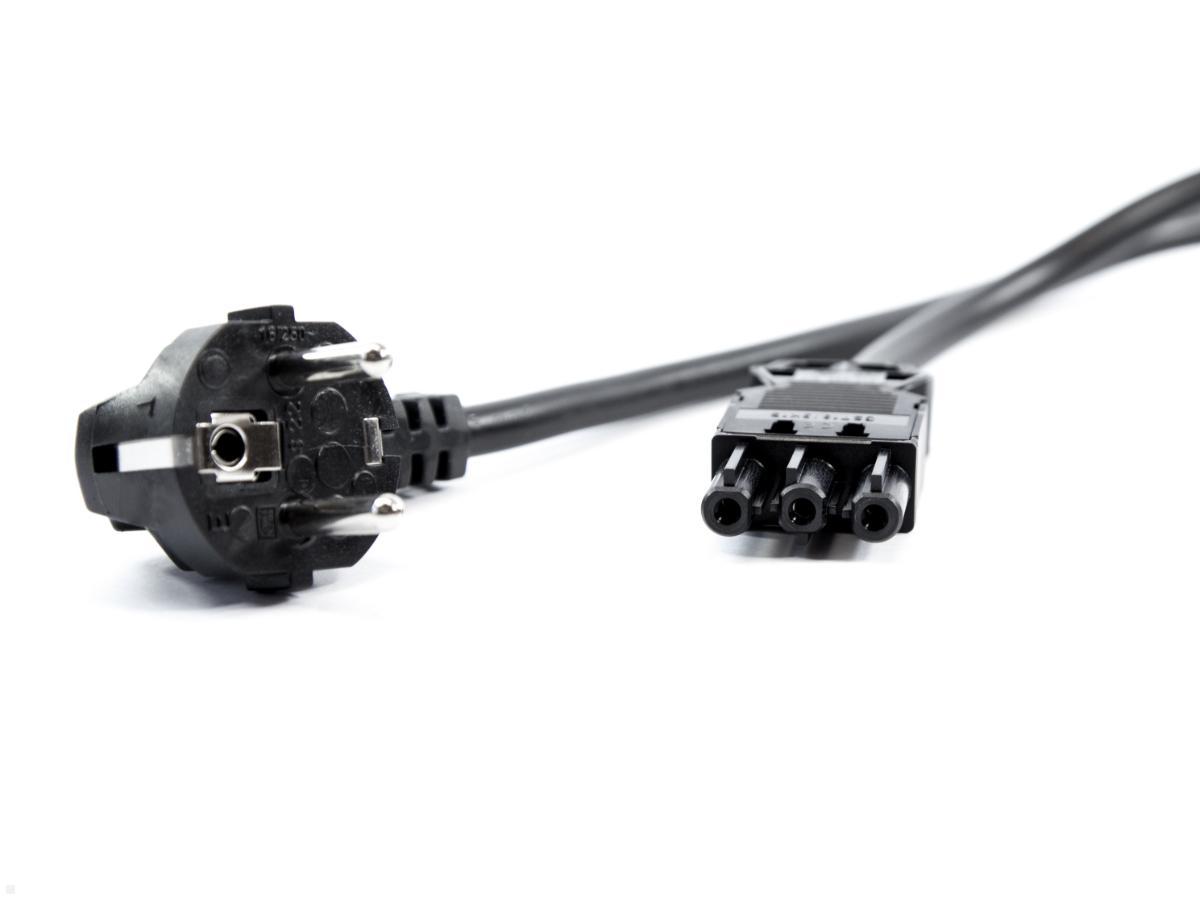

Bachmann device supply cable GST18 3m (375.003)
- Length: 3 m
- Cable: H05VV-F 3G 1.5 mm²
- Side 1: Right-angle plug with earthing contact
- End 2: Wieland GST18i3 socket
- Finish: black
Bachmann STEP power strips connect / cascade
The modular power strips STEP BASE with GST18 336.604 from Bachmann have the corresponding coding and plug latching in accordance with EN 61535 and can therefore be mounted in a fixed position and connected to each other. Bachmann uses gesis and GST18 from Wieland Electric as standard. Information on cascading multiple socket outlets.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
