Bachmann STEP BASE 4-way power strip with GST18 (906.18819)
Multiple power strip

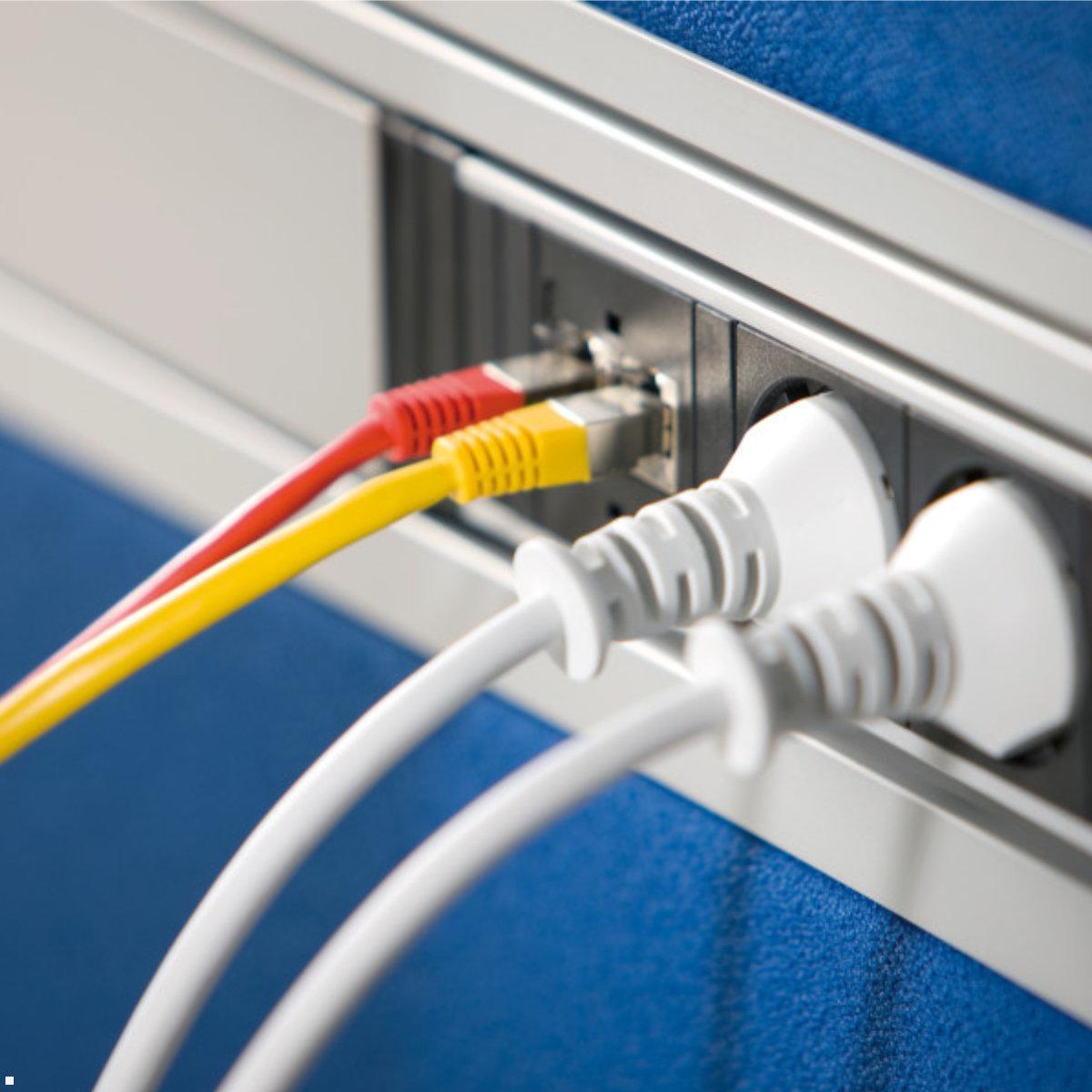

Bachmann STEP BASE (906.18819) is equipped with Wieland GST18 for the power supply as standard and can therefore be fed in with different cable entries. The multiple socket is equipped with 4 safety sockets 35° turned STEP socket units can be used in a variety of ways, for example for installation under table tops, in cable ducts and partitions. Various attachments are available for this.
Key features Bachmann socket
- 4x socket outlets with earthing contact
- 2-pole with child safety device, 35°; twisted
- 16A, 250V
- IP20 protection (protection against contact, dust, water)

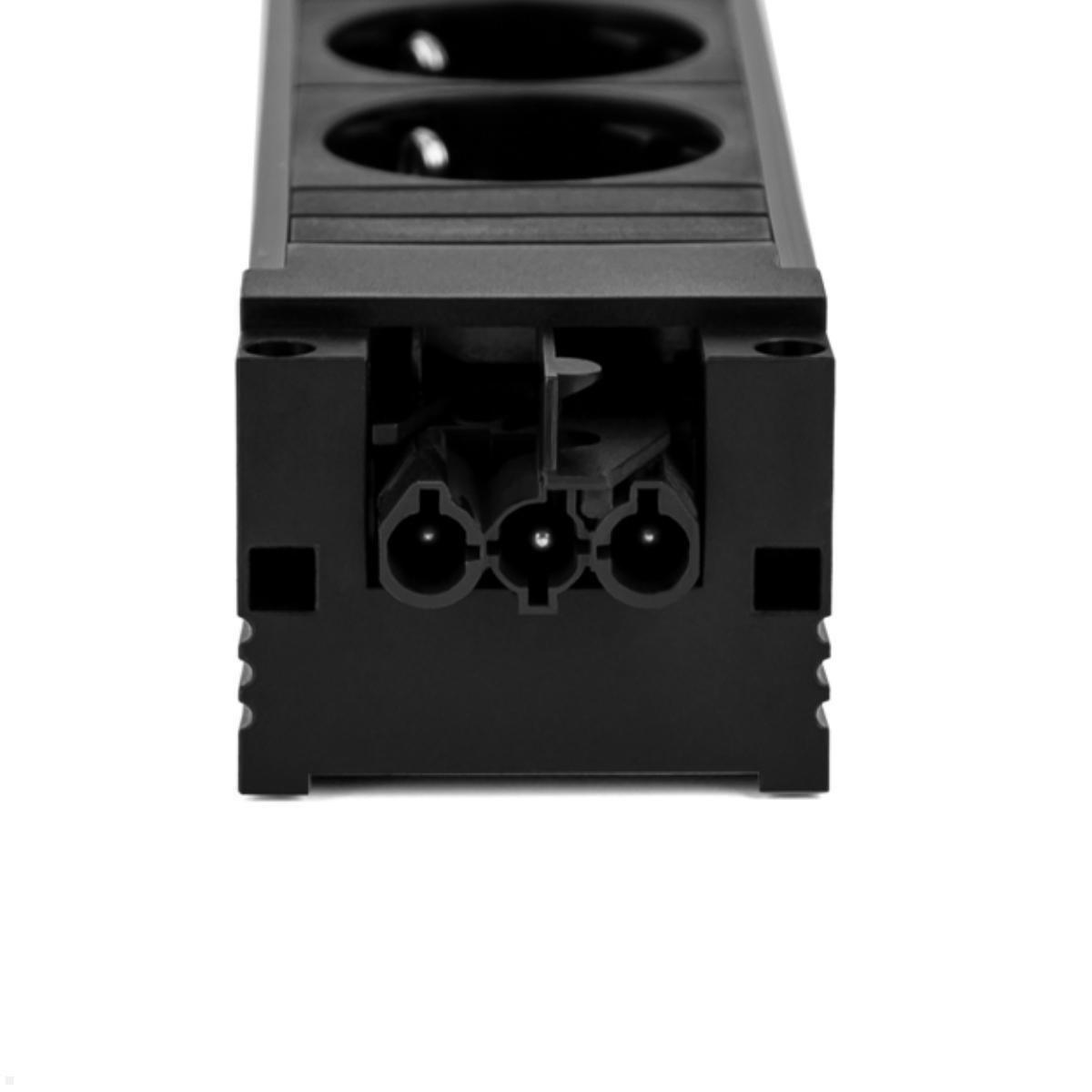

- Power input: GST18i3 plug black

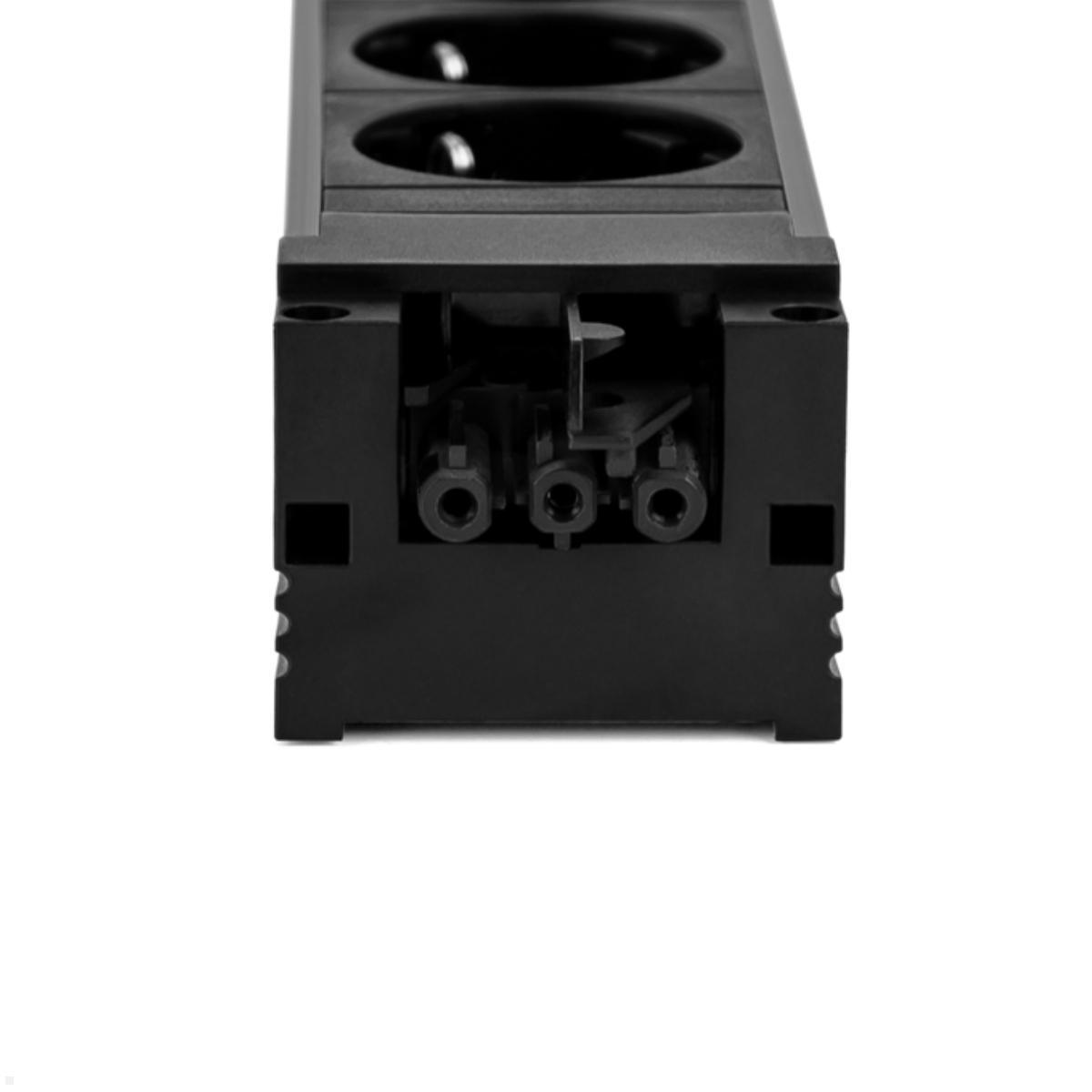

- Power output: GST18i3 socket black

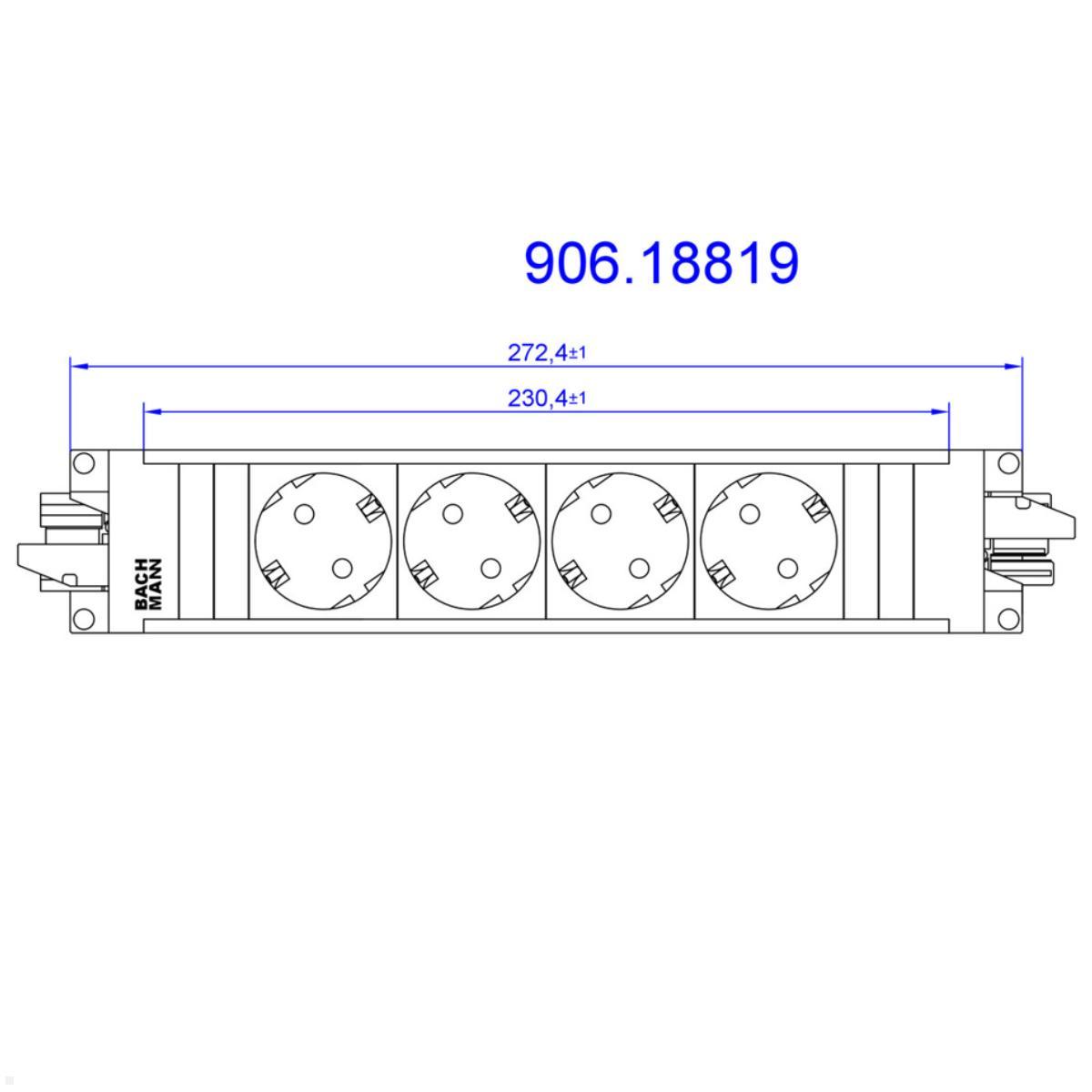

- Dimensions (W x H x D): 272 mm x 52 x 44 mm
- Incl. end caps + locking tabs
- Light gray plastic profile, black sockets
- Incl. Connector latching
- Mounting on T-slot profiles and stand profiles is possible
- Linking of the power strips to one another using device extensions
- Successor to 336.604

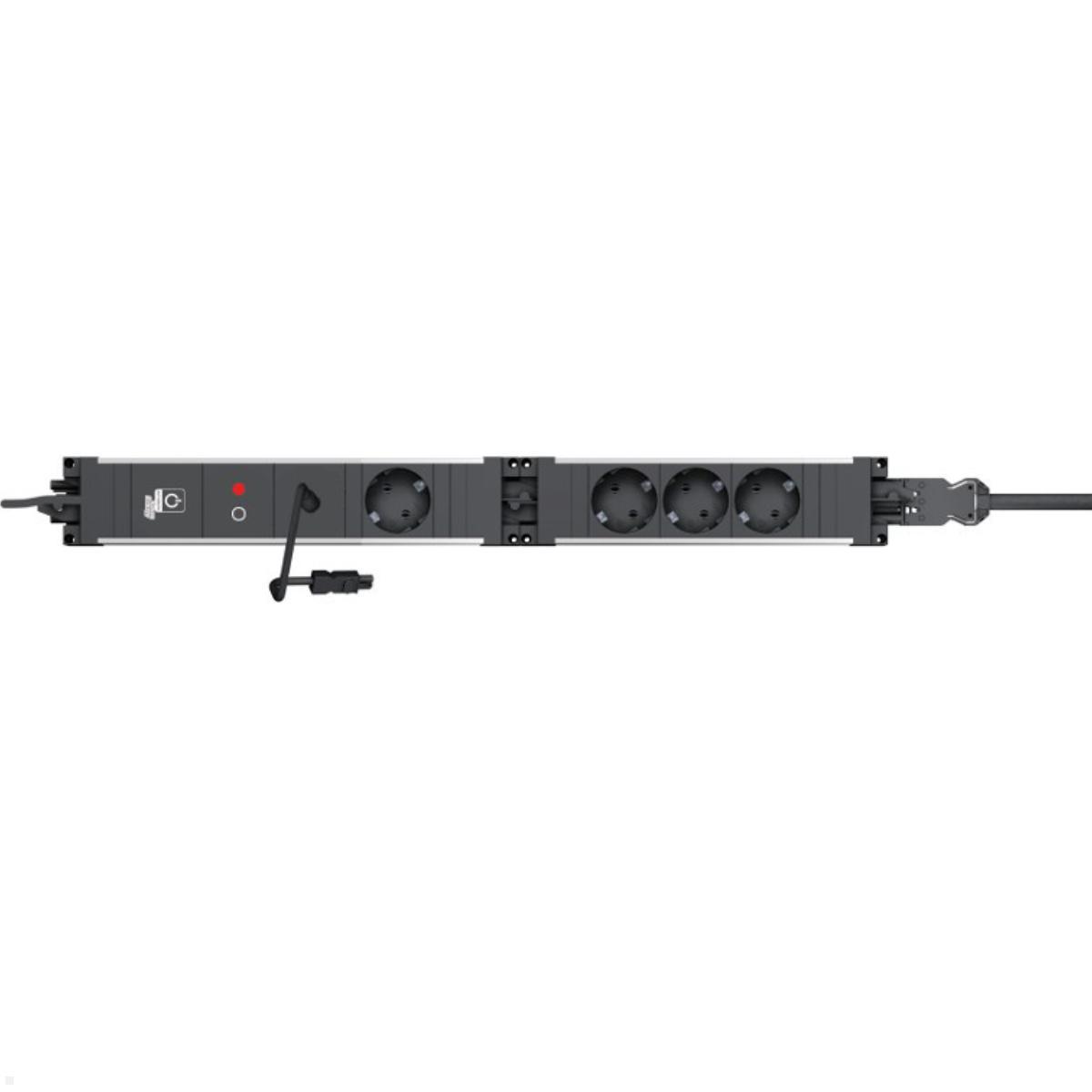

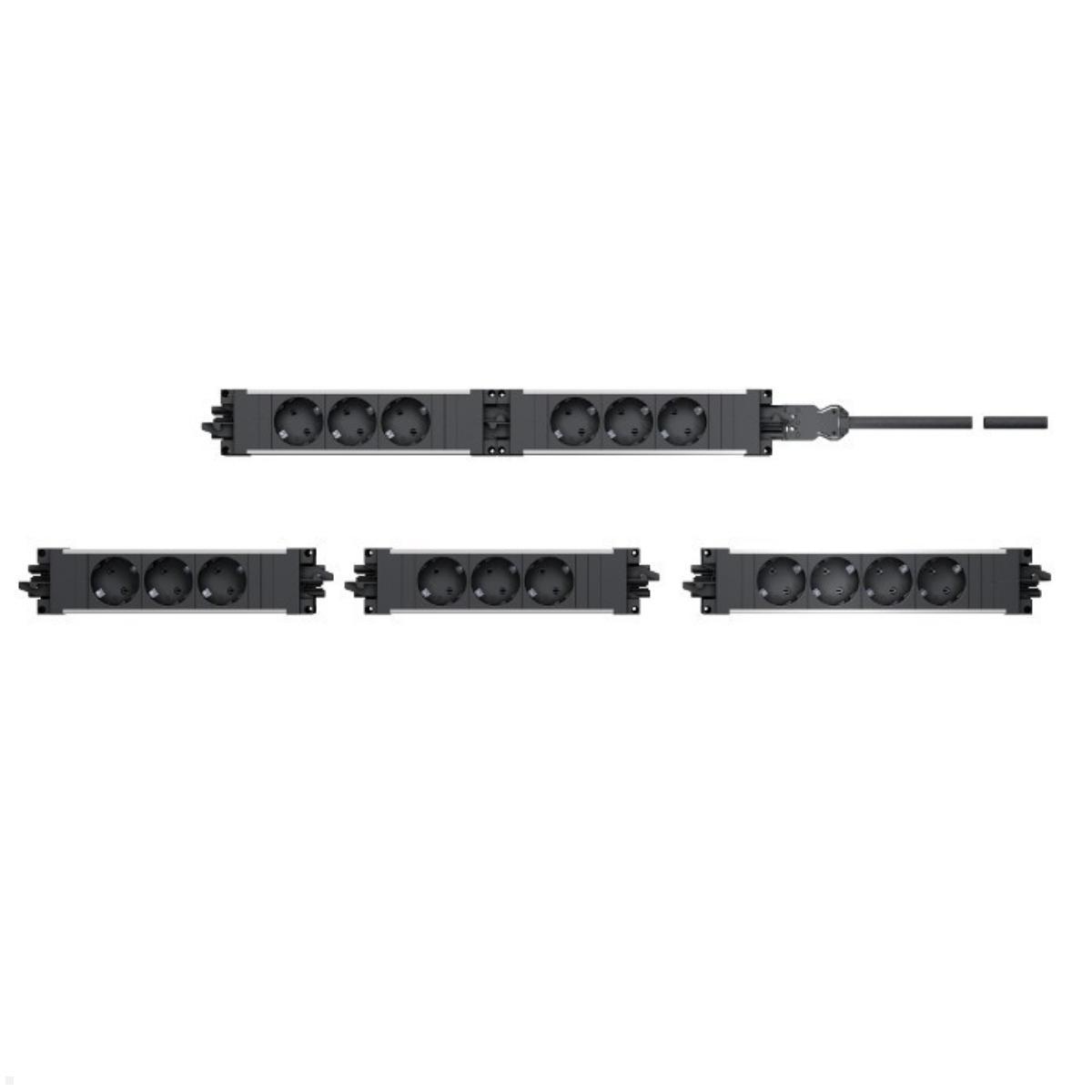

Connect / cascade Bachmann STEP socket strips
The modular socket units STEP from Bachmann have the appropriate coding and plug locking according to EN 61535 and can be installed in a fixed location and connected to each other. Bachmann uses gesis and GST18 from Wieland Electric as standard. Information on cascading multiple sockets
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 336.604 |
| Packaging dimensions (LxWxH in mm): | 272 x 52 x 44 |
| Scope of delivery: | 1 x Bachmann STEP BASE socket strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 4 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
