Barco ClickShare CSE-800 wireless presentation system for conference rooms
The Barco ClickShare CSE-800 presentation system is a stand-alone wireless presentation system for boardrooms, high-end meeting rooms and meeting rooms. Up to 64 users can connect to the Base Unit simultaneously, with 8 sharing their content wirelessly from their laptop to two screens simultaneously. In combination with the ClickShare app, content can also be shared by the tablet or smartphone.
Barco ClickShare CSE-800 wireless presentation system for conference rooms
Barco has been introducing one of the most innovative meeting room products in years: ClickShare CSE-800, a wireless presentation system. With the know-how and organization of Barco and in support of ClickShare technology, this new product will change meetings forever.
The CSE-800 presentation system is designed to bring the best of ClickShare experience to executive boardrooms, high-end conference rooms and meeting rooms. The many new and unique features, as well as the ability for up to eight people to share content simultaneously, the automatic and manual moderation features, and whiteboarding and annotation features make the CSE-800 the most powerful system in the ClickShare palette.

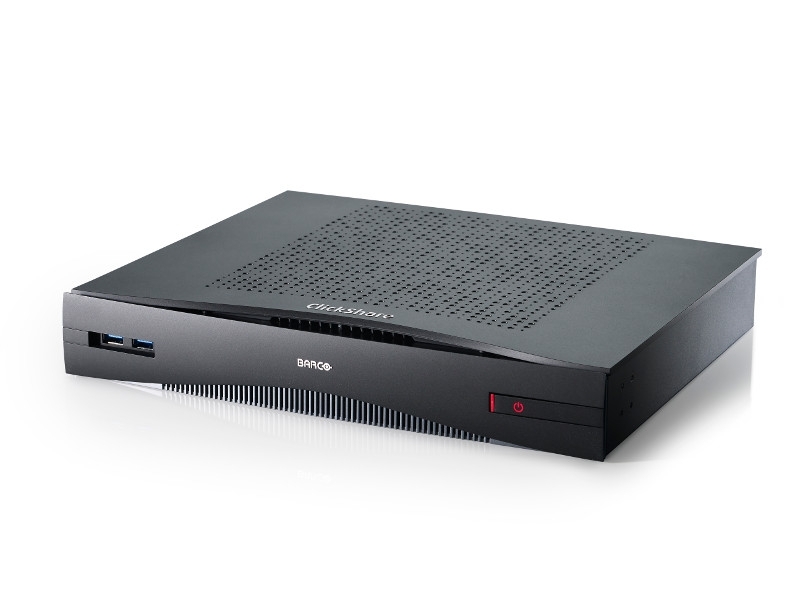

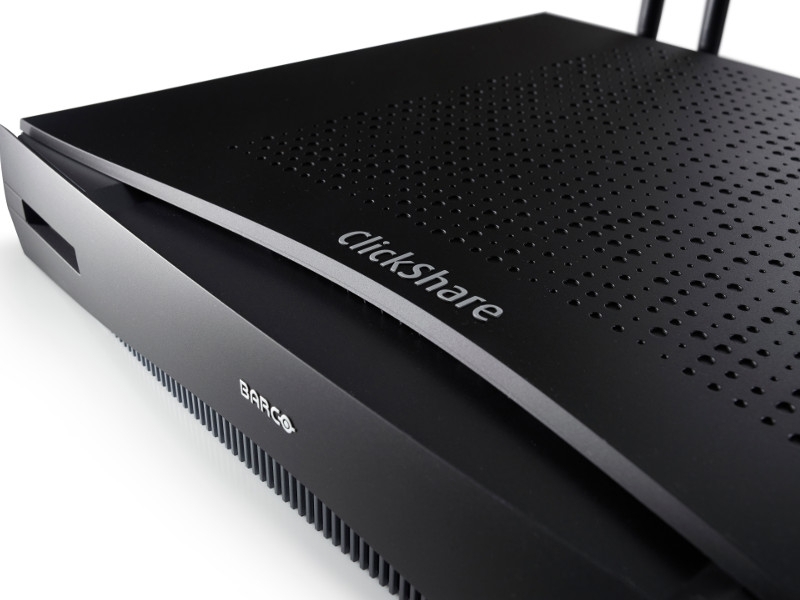

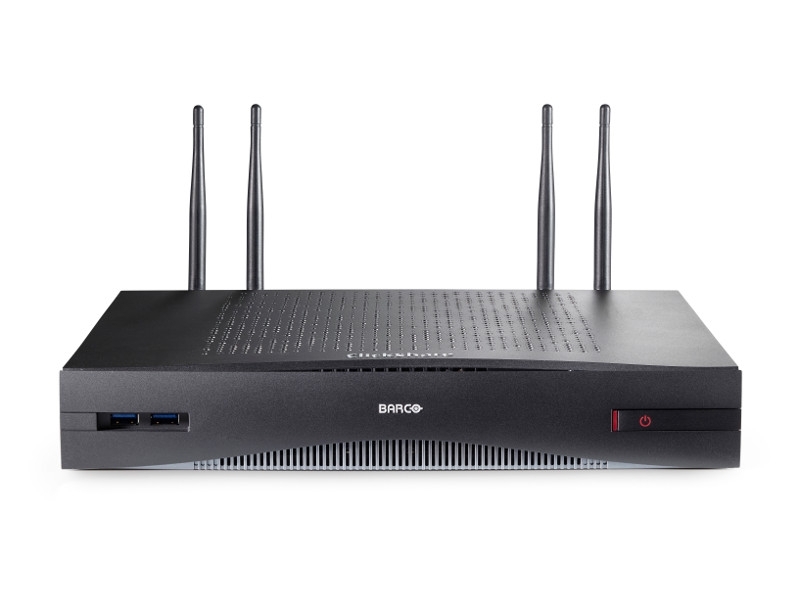

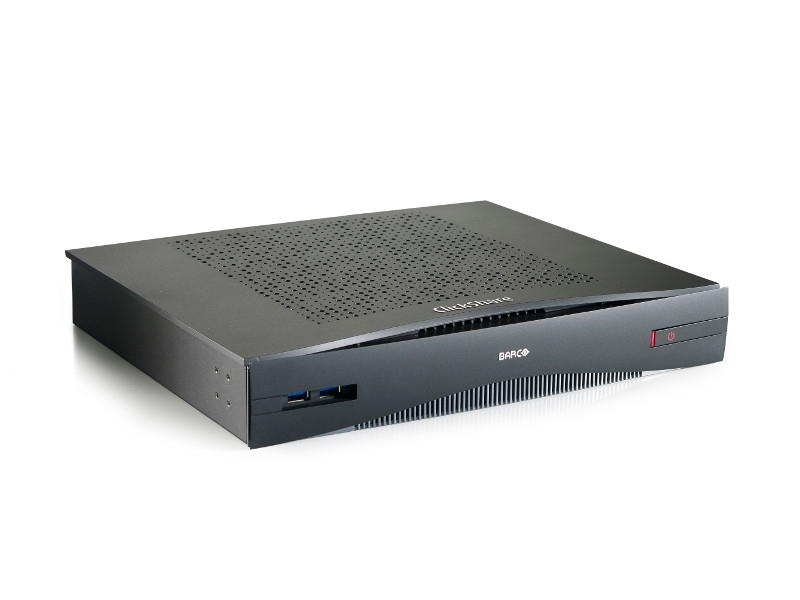

The ClickShare CSE-800 Base Unit has two HDMI inputs and outputs. This allows a direct connection to legacy systems and it can be easily integrated into conferencing systems. In addition, two 4K-quality UHD displays can be controlled by one base unit. With the CSE-800, up to eight people can be transferred directly to the central screen. To prevent too fast switching between the screens, a moderator can manually select which content to transmit at what time to facilitate content tracking.
Key features Barco ClickShare CSE-800 wireless presentation system
- Wireless stand-alone presentation system for boardrooms, conference & meeting rooms
- Wireless connection to the central screen
- Share content from laptop, tablet or smartphone
- Operating systems:
Windows 7/8/8.1/10 32 & 64 Bit
Mac OSX 10.10/10.11/10.12 (Sierra)
Android v5 & v6 (ClickShare App)
iOS 8, 9 & 10 (ClickShare-App) - AirPlay support: iOS mirroring (AirPlay) from iOS 9.0 to iOS 10.3
Mac OS 10.11 El Capitan or higher - Number of concurrent sources: 8 (4 per screen)
- Number of concurrent connections: 64
- Range: max. 30 meters (100 feet) between ClickShare Button and ClickShare Base Unit
- Frame rate:
Up to 60 fps with an input at 4K
Up to 30 fps with two inputs at 4K - Output resolution: 4K DCI (4,096 x 2,160) at 60 Hz
- Connections: 2x Ethernet LAN
- 2x USB 2.0; 2x USB 3.0 (back); 2x USB 3.0 (front)
- Audio: Via HDMI, analog via audio jack 3.5 mm, S / PDIF
- Video outputs: 2x HDMI
- Video inputs: 2x HDMI
- Delivery incl. 4 ClickShare Button
- Theft protection by Kensington lock
- Delivery incl. 4 ClickShare Button
- Dimensions ClickShare basic unit (HxWxD): 46.2 x 282.3 x 206.5 mm (without antennas)

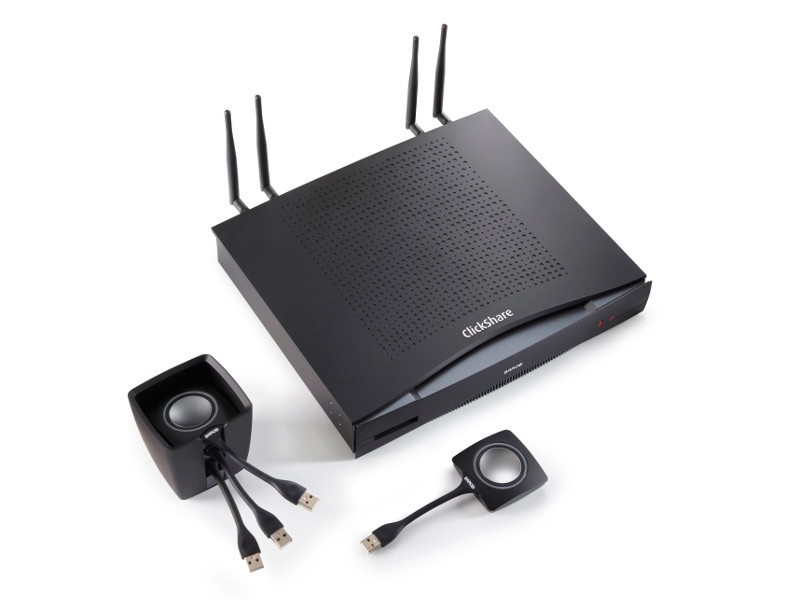

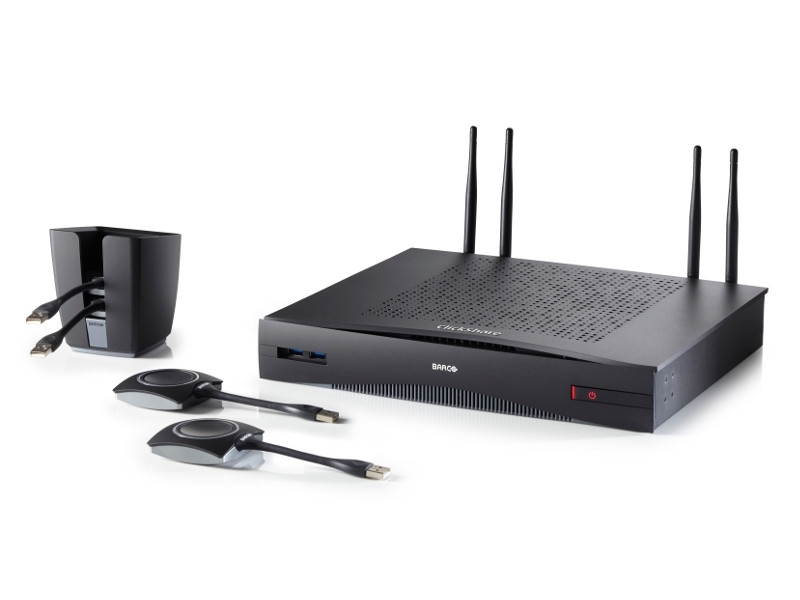

Delivery content Barco ClickShare CSE-800 wireless presentation system
- 1x base unit

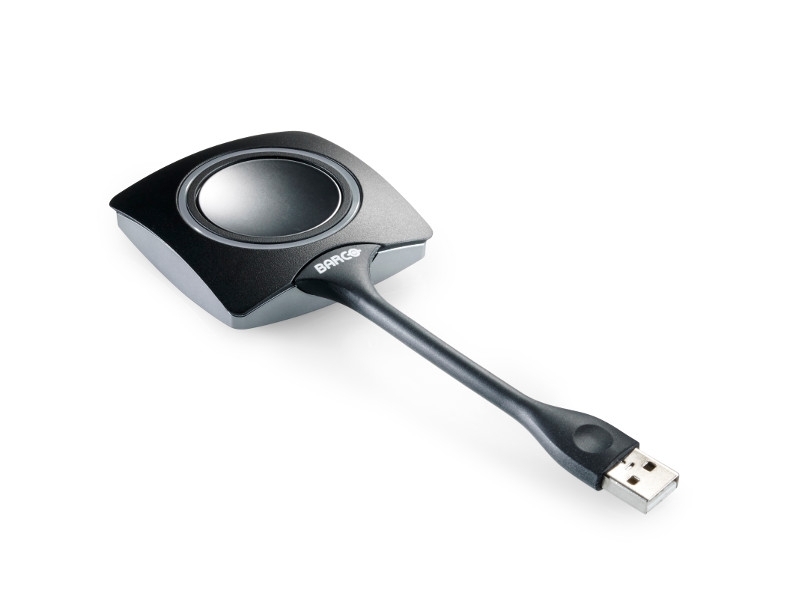

- 4x ClickShare button
- 1x ClickShare button storage container
- Wall mount
