Dataflex Addit TV wall mount tilt up to 90kg (54.362)

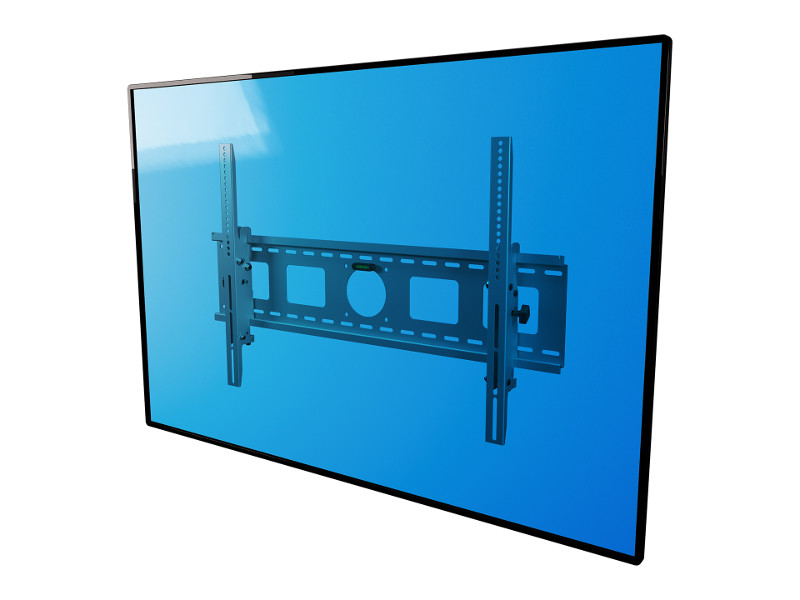

The Dataflex Addit TV wall mount tiltable for flatscreens up to 90kg (54.362) allows you to position your TV in the best possible viewing angle.
Dataflex Addit display mount tilt up to 90kg (54.362)

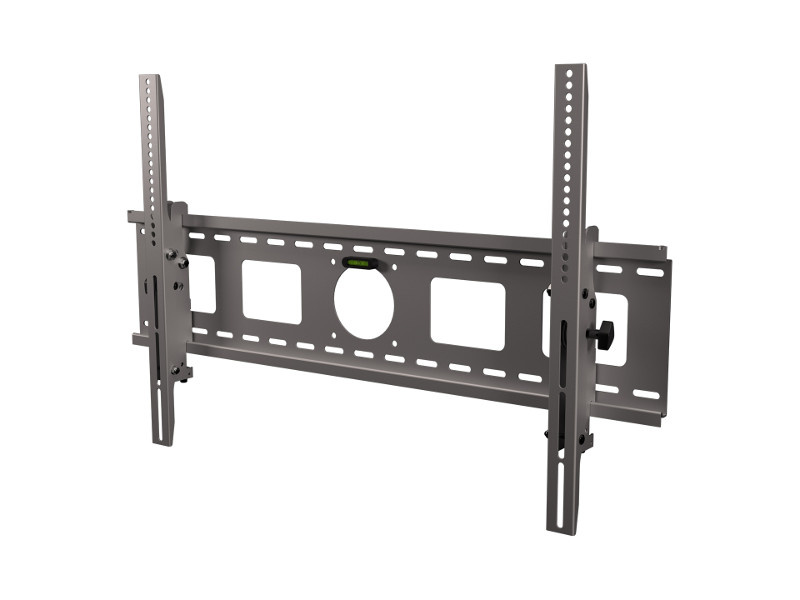

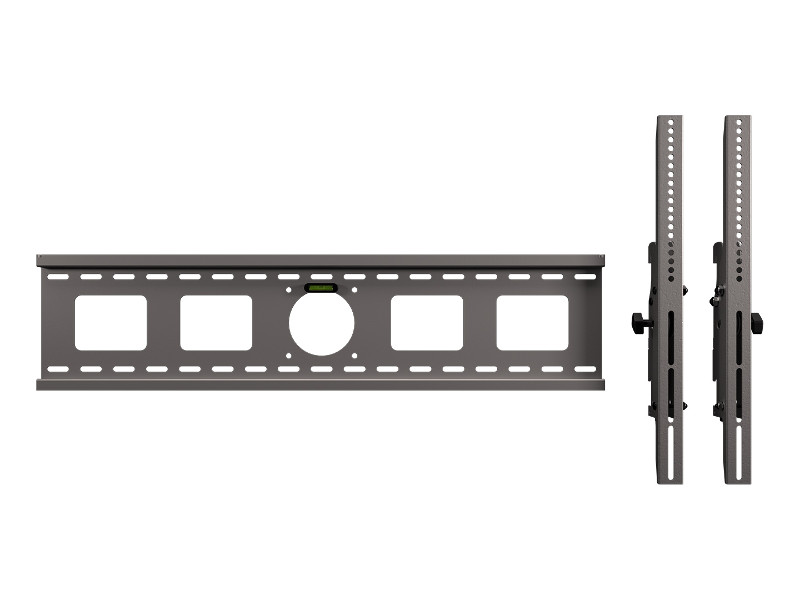

This professional Dataflex Addit display mount is TÜV/GS certified and perfect for attaching a flat screen TV or display to a wall. The tilt mounting brackets allow you to position your TV in the best possible viewing angle. The built-in level helps to correctly install the bracket with the greatest of ease. All necessary fasteners are included.
Key features Dataflex Addit flatscreen bracket 54362
- LCD/Plasma wall mount bracket
- Suitable for 1 display up to 90 kg
- Maximum VESA size 800 x 400 mm
- tilt VESA mounting frame tilts +15°/-5°
- Screen to wall distance of 62 mm
- With built in level for easy installment
- Comes with all necessary fasteners
- TÜV/GS tested, approved and certified
- Dimensions (w x d x h): 850 x 630 x 62 mm
- Finish: Silver
Does your monitor or display match?
We will gladly check if your monitor is suitable for this Dataflex Viewmaster 54.362 bracket. Send us simply at the end of the ordering process in the comment box your model (Manufacturer + model no.). We then check for you whether the monitor or the display to monitor mount fits and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf] |
|---|---|

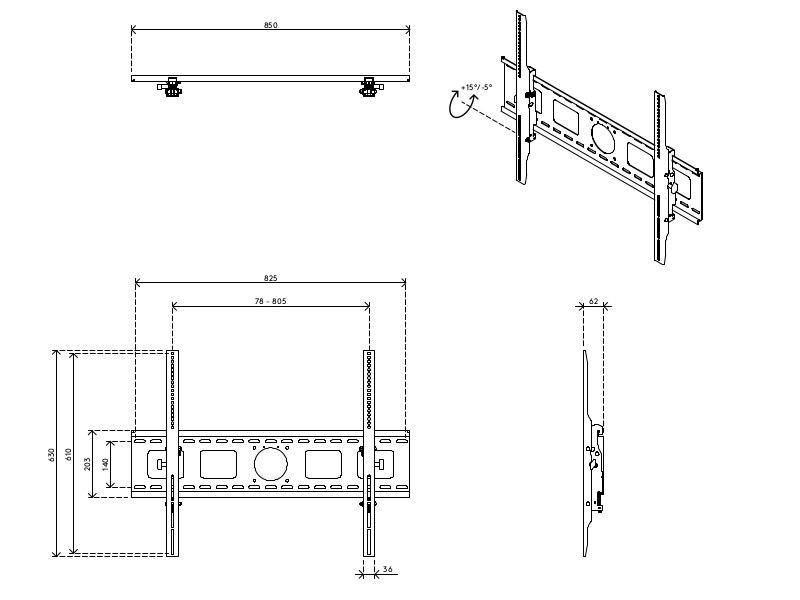

| Technical drawing: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 90 kg |
| Tilt: | +15°/-5° |
| Screen size: | 32 - 60 " |

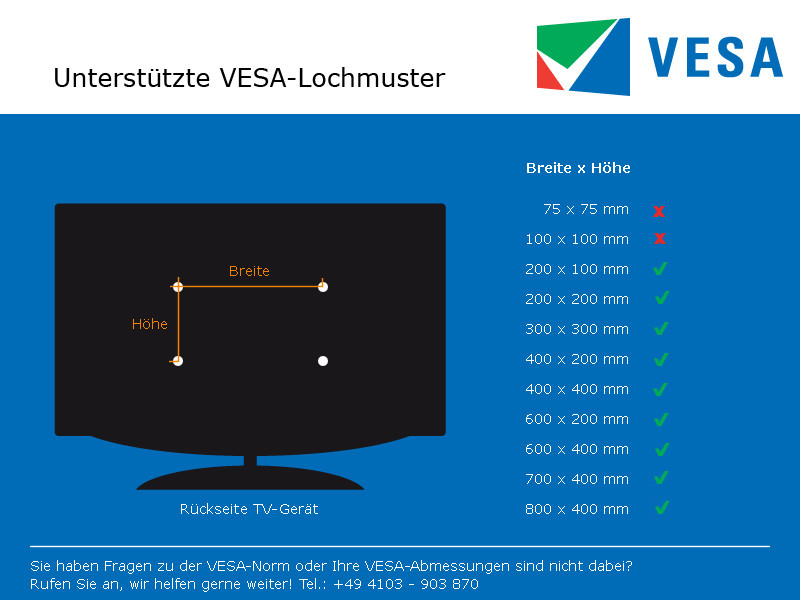

| VESA Standard: | 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400, 800x400, 800x600 mm (www.vesa-standard.de) |
| Accessories: | Dataflex AV Solutions LCD/Plasma Ceiling Mount (54232)Dataflex AV Solutions LCD/Plasma Design Trolley (78402)Dataflex AV Solutions LCD/Plasma Vertical Stand Single Screen (78413)Dataflex AV Solutions LCD/Plasma Vertical Stand Double Screen 2x1 (78423) |
| Packaging dimensions (LxWxH in mm): | 900 x 225 x 90 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch |
| Mounting type: | wall mount |
| color: | Silber |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
