Dataflex Viewgo modular monitor mount for 6 monitors up to 32 inches
Highlights
- 6-monitor mount for maximum overview in panorama setup
- 2x3 arrangement for structured presentation of large amounts of data
- Modular system for flexible expansion and customization
- Ergonomic positioning with tilt, swivel, and height adjustment
- Space-saving solution with integrated cable management
Dataflex Viewgo modular monitor arm for 6 monitors
The Dataflex Viewgo modular monitor arm – Desk 260 is a professional solution for workstations with six monitors. The 2x3 panorama configuration enables a clear, structured display of large amounts of information and is particularly suitable for demanding applications such as control rooms, monitoring centers, or trading environments.

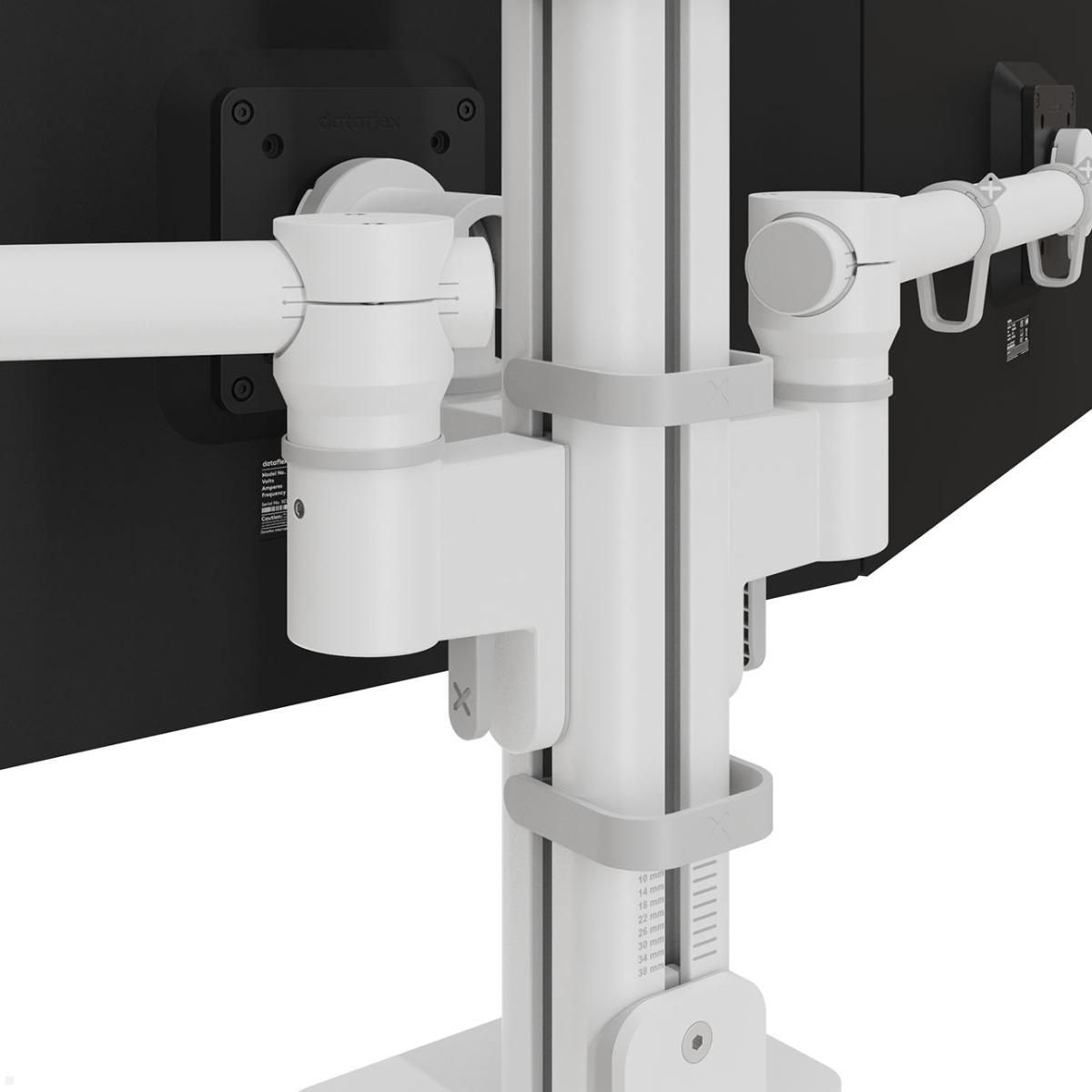

Thanks to the modular design, the system can be flexibly adapted to individual requirements and expanded if necessary. The stable column construction with multiple mounting slots allows precise positioning of all monitors and ensures even alignment.
Ergonomic adjustment is achieved through versatile adjustment options. Each monitor can be individually tilted, rotated and swiveled, ensuring an optimal view of all content. The tool-free height adjustment along the column also allows quick adaptation to different users and working positions. By positioning the screens higher, valuable desk space is freed up. At the same time, the integrated cable management ensures a neat and organized workspace.
Technical details 6-way monitor desk mount:
- Monitor mount for 6 monitors
- Screen size: 21 to 32 inch
- Load capacity: up to 9 kg per monitor
- Tilt: approx. +25°/−25°
- Rotation +90°/−90°
- Swivel range: +90° / -90°
- Arm rotation: up to 360°
- Height adjustment: tool-free along the column
- Static height adjustment of 645 mm
- Depth adjustment: flexibly positionable (depending on arm configuration)
- Vesa quick-release as standard
- Compatible with VESA mount MIS-D 75x75 and 100x100 mm
- Desk clamp mounting for desk thicknesses from 5 to 40mm
- Through-desk mounting for desk thicknesses up to 50 mm
- Maximum width 760 mm per screen
- Maximum height 530 mm per screen
- Warranty up to 15 years after registration

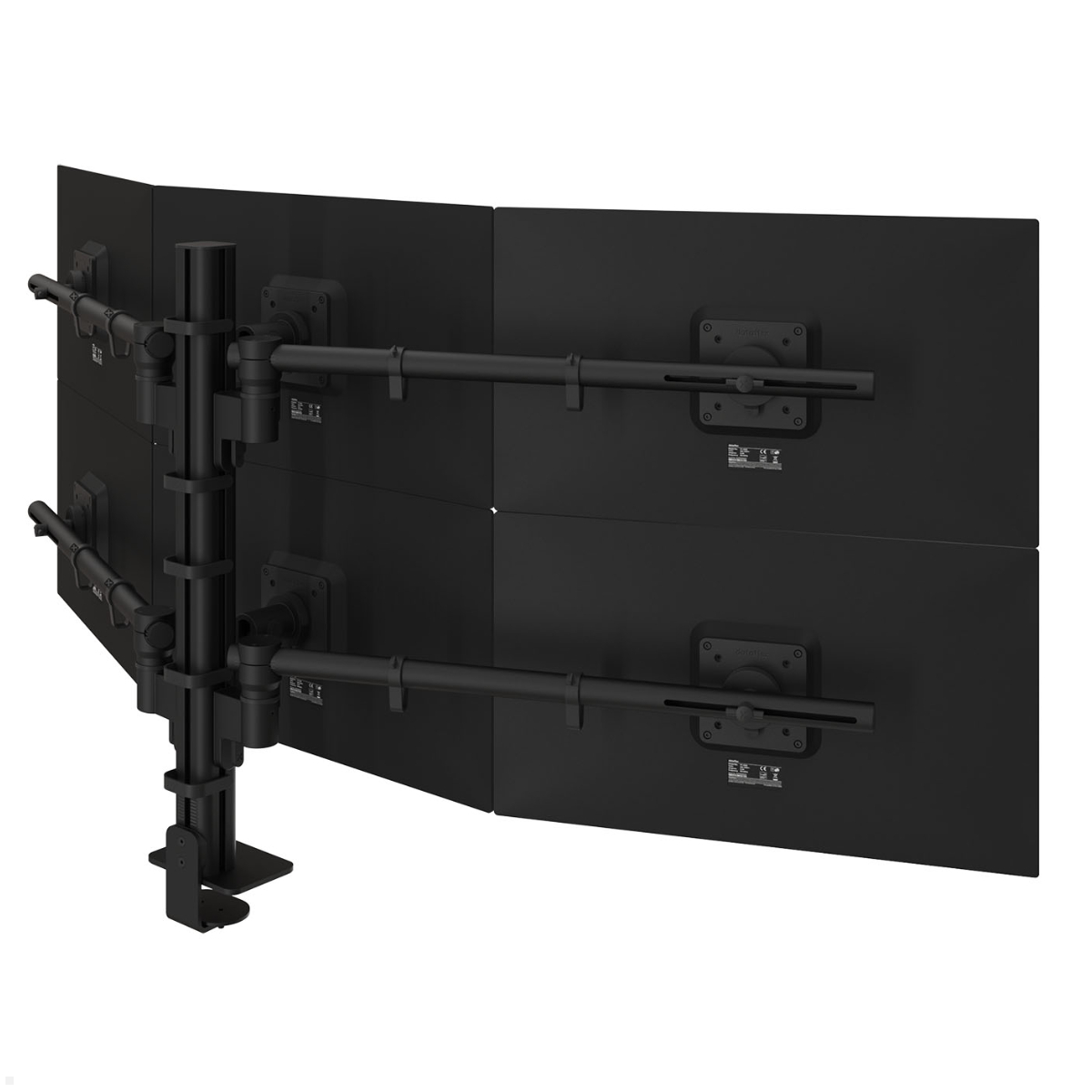

- Available in black (48.263) and white (48.260)
Does your monitor or display fit the monitor mount?
We will be happy to check whether your monitor is suitable for this Dataflex Viewgo modular monitor mount. Simply provide your model (manufacturer + model number) at the end of the ordering process in the comments field. We will then check for you whether the monitor or display fits the mount and if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

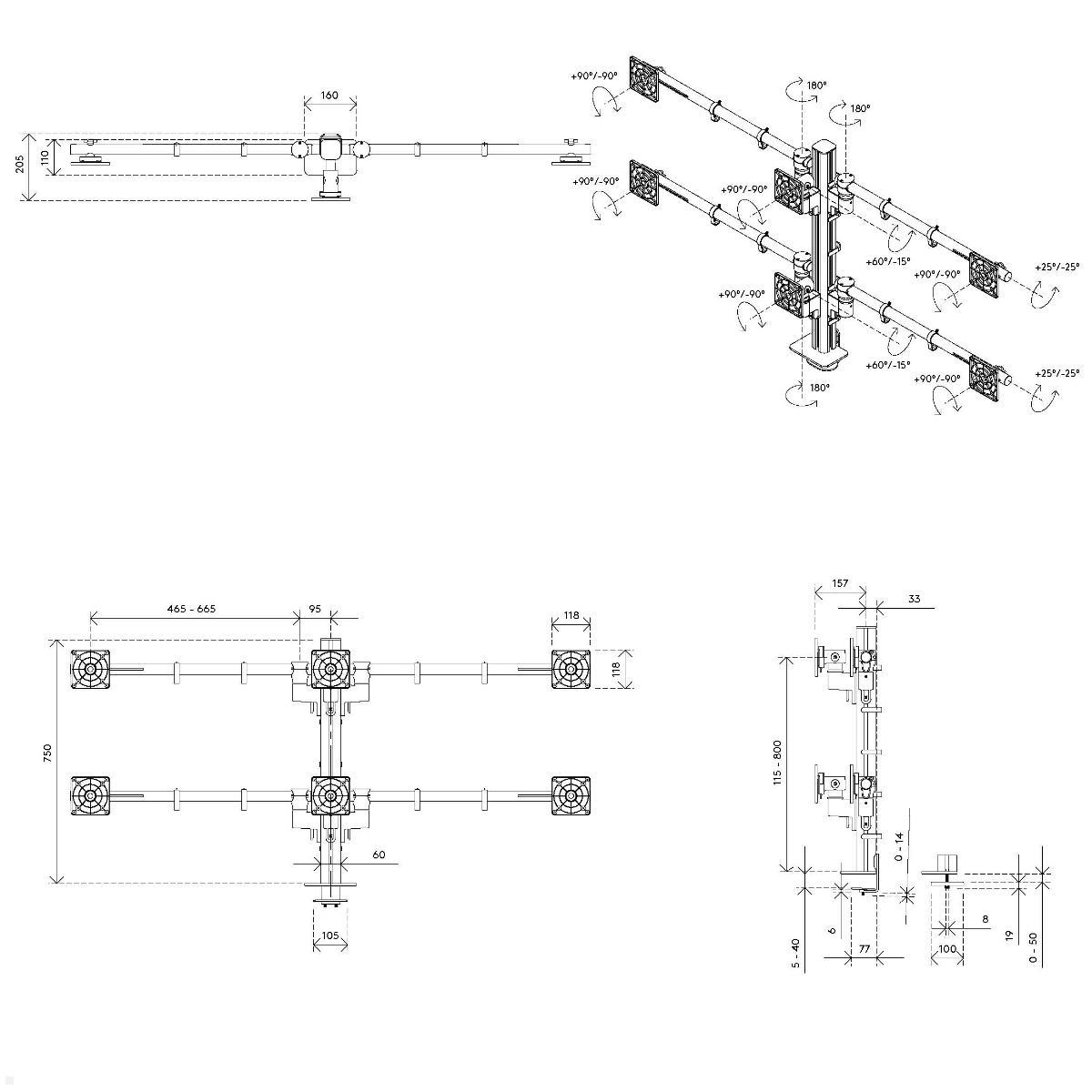

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 9 kg pro Monitor |
| Tilt: | +25°/−25° |
| Rotate: | 90° |
| Height range (mm): | 645 |
| Pivot: | 90° |
| Swivelling range: | +90°/-90° |
| Screen size: | 21 bis 32'' |
| Thickness of table (mm): | Klemme: 5 - 40 mm, Durchtisch: 50 mm |
| Material: | Aluminium, Stahl |
| Special features: | Inklusive Tischklemme und Durchsteck-Befestigungssatz |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 840x340x310 |
| Scope of delivery: | 1 x Dataflex Viewgo modular 6-way monitor mount | desk clamp | grommet mount | installation material |
| Contains installation material: | + |
| Warranty: | 15 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | Solution for 6 |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
How many monitors does the Dataflex Viewgo mount support?
It supports 6 monitors up to 32 inches in a 2x3 panorama configuration.
-
What screen sizes are supported?
21 to 32 inches.
-
What is the weight capacity per monitor?
Up to 9 kg per monitor.
-
What adjustment options does it offer?
Each monitor can be tilted +/-25°, rotated +/-90°, and swiveled +/-90°; height adjustment is tool-free along the column.
-
Which VESA standards are supported?
VESA MIS-D 75x75 and 100x100 mm.
-
What mounting options are available?
Desk clamping for desks 5–40 mm thick and through-desk mounting for up to 50 mm; includes VESA quick-release standard.
-
What colors are available and what is the warranty?
Available in black (part no 48.263) and white (48.260); warranty up to 15 years after registration.
-
How can I check if my monitor fits?
Please provide the monitor’s manufacturer and model at the end of the checkout process in the comments; we will check compatibility and contact you if it does not fit.
When is a 6-monitor arm the right choice?
A monitor arm for six monitors is the optimal solution for workstations with very high information demands. The Dataflex Viewgo modular monitor arm – Desk 260 enables a structured display in a 2x3 arrangement and provides maximum overview.
Especially in command centers, control rooms, trading environments or technical applications, a 6-monitor mount is indispensable for monitoring large amounts of data simultaneously.
What advantages does a 2x3 monitor arrangement offer?
The 2x3 arrangement is a particularly efficient way of displaying multiple screens. Compared to purely horizontal setups, the available space is used optimally.
A monitor arm for 6 monitors in a 2x3 layout ensures that all screens remain within an ergonomic field of view. This makes it easier to quickly capture information and improves work speed.
How does a 6-monitor arm increase productivity?
By simultaneously displaying multiple applications, the workflow is significantly improved. Users maintain an overview of all relevant content at all times without having to switch between windows.
A multi-monitor setup with six screens enables a clear structuring of complex tasks and ensures efficient working.
Which ergonomic requirements are met with multiple monitors?
An ergonomic monitor arm for six monitors allows precise alignment of all displays. Each monitor can be adjusted individually so that an optimal viewing position is achieved.
The even arrangement reduces unnecessary movements and supports a comfortable working posture. This is particularly important during intensive use over longer periods.
For which professional application areas is the monitor arm suitable?
A 6-monitor mount is mainly used in professional environments where a lot of information needs to be processed simultaneously. These include command centers, surveillance workstations, finance and analytics environments, and technical workplaces.
Through the combination of high capacity, ergonomic adjustability, and modular design, the monitor arm is a powerful solution for demanding applications.
