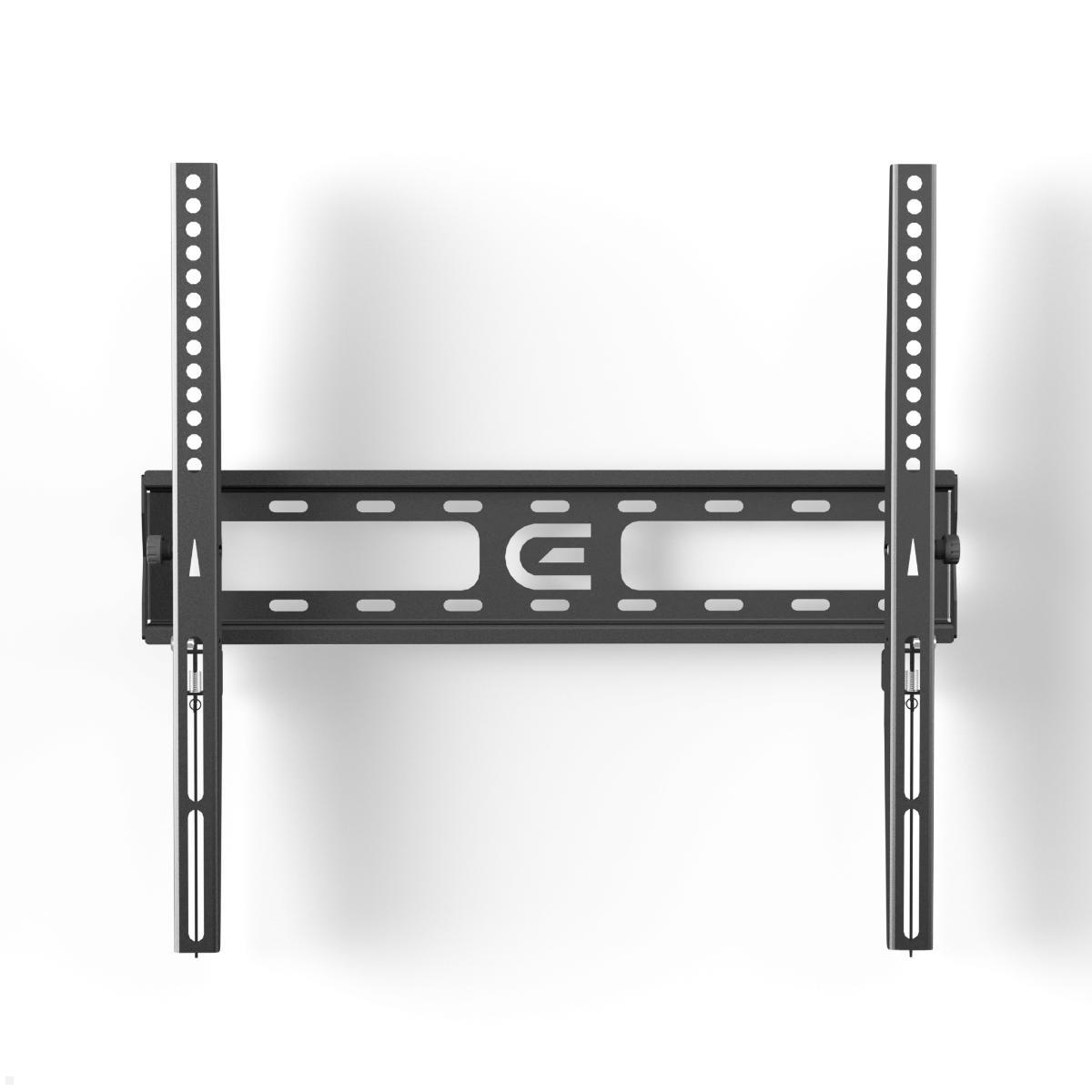

Edbak FSM4040-T tilting TV wall mount 32 to 75 inches, black
Highlights
- Tiltable by 8°, reduces reflections
- For screens 32"–75", up to 30 kg
- VESA 100×100 to 400×400 mm
- Side fine adjustment after installation
- Robust steel construction, integrated fall protection
Tilting TV Wall Mount for Screens up to 75 inches – 8° Tilt
The Edbak FSM4040-T tilting TV wall mount 32 to 75 inches, black combines a sturdy steel construction with a sleek, minimalist design. The integrated tilt mechanism allows an 8° tilt to optimally adjust the viewing angle – reducing distracting reflections and significantly increasing viewing comfort. With a load capacity of up to 30 kg and VESA compatibility from 100×100 to 400×400 mm, the FSM4040-T is compatible with a wide range of TVs and monitors.
The integrated fall protection reliably protects the screen from unintentional falling, while the side fine adjustment after mounting allows precise alignment even after hanging. The FSM4040-T is ideal for professional environments such as conference rooms, offices, waiting areas and educational institutions as well as for private home use.
Technical Details – Edbak FSM4040-T tilting TV wall mount, VESA 100–400 mm
- Suitable screen size: 32" to 75"
- Load capacity: 30 kg
- Tilt: 8°
- VESA mounting: 100×100 to 400×400 mm
- Dimensions (W×D×H): 441 × 23 × 420 mm
- Net weight: 1.0 kg
- Material: Steel
- Color: Black
- Side fine adjustment: Yes
- Fall protection: integrated
- Packaging dimensions: 455 × 130 × 50 mm
- Packaging weight: 1.2 kg
- Warranty: 5 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Capacity: | 30 kg |
| Tilt: | -8° / 0° |
| Screen size: | 32 - 75" |

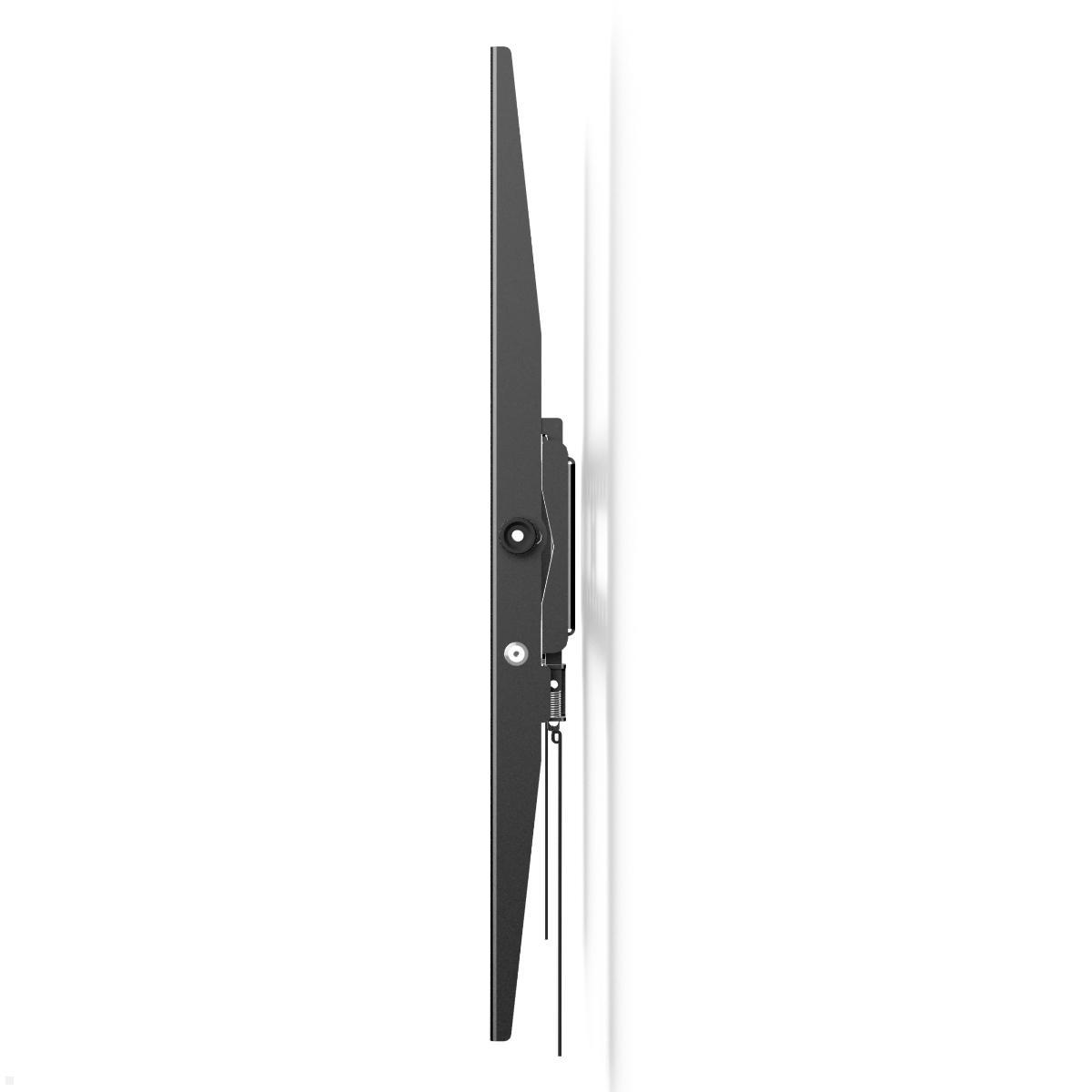

| Depth of the bracket: | 23 mm |
| VESA Standard: | VESA 100x100|VESA 200x200|VESA 300x200|VESA 300x300|VESA 400x200|VESA 400x300|VESA 400x400 |
| Packaging dimensions (LxWxH in mm): | 455 x 130 x 50 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Inch size: | 32 inch, 37 inch, 40 inch, 43 inch, 49 inch, 50 inch, 55 inch, 65 inch, 70 inch, 75 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is the Edbak FSM4040-T the ideal tilting TV wall mount for conference rooms and offices?
The Edbak FSM4040-T is a universal tilting wall mount for TVs and monitors with a screen diagonal of 32 to 75 inches. The integrated tilt mechanism allows a tilt of 8°, enabling optimal adjustment of the viewing angle — especially in rooms with unfavorable lighting conditions or elevated screen installations, a decisive advantage because disturbing reflections are effectively reduced and viewing comfort for all viewers is significantly increased. The robust steel construction of the FSM4040-T supports screens up to 30 kg reliably and durably, so even heavy TVs and large monitors can be safely and stably mounted on the wall. The slim depth profile of just 23 mm ensures a flush, aesthetic installation despite the tilt mechanism and creates a modern, tidy appearance in any room. Thanks to the wide VESA range from 100×100 to 400×400 mm, the FSM4040-T is compatible with almost all commercially available TVs and monitors. The integrated safety lock protects the screen from accidental falling, while the side fine adjustment allows precise alignment even after hanging — without having to remove the screen. With a weight of only 1.0 kg, the FSM4040-T is easy to transport and install. The intuitive mounting system enables fast and uncomplicated installation on concrete, brick, and wooden walls. The Edbak FSM4040-T tilting TV wall mount is finished in black and blends aesthetically into any interior.
For which applications is the tilting wall mount Edbak FSM4040-T suitable?
The Edbak FSM4040-T is suitable for a variety of applications where flexible adjustment of the viewing angle is important. In professional environments it proves itself in conference rooms, offices, waiting areas, educational institutions, hotels, and public spaces — anywhere screens need to be visible to larger groups and mounted free of reflections. In private settings — in the living room, bedroom, or home office — the tilting FSM4040-T also provides flexible and comfortable screen orientation that can be adapted to the respective seating position. Especially for elevated screen installations, for example above a fireplace surround or in training rooms, the 8° tilt function is a decisive advantage over fixed wall mounts. The intuitive mounting system allows quick and uncomplicated installation without much effort, making the FSM4040-T the ideal choice for both home users and professional installers.
What technical features does the Edbak FSM4040-T tilting TV wall mount offer?
The Edbak FSM4040-T tilting TV wall mount features an 8° tilt angle, a maximum load capacity of 30 kg, and VESA compatibility from 100×100 to 400×400 mm. The compact dimensions of 441 × 23 × 420 mm and a weight of only 1.0 kg greatly simplify transport and installation. The 23 mm depth profile provides a wall-close mounting despite the integrated tilt mechanism. The side fine adjustment enables precise post-alignment of the screen after installation, while the integrated safety lock provides permanent protection for the screen. The mount is finished in black and fits aesthetically into any environment — from modern offices to private living rooms. With a manufacturer's warranty of 5 years, Edbak stands for durable quality and reliability — the FSM4040-T is a sustainable investment for any installation.
