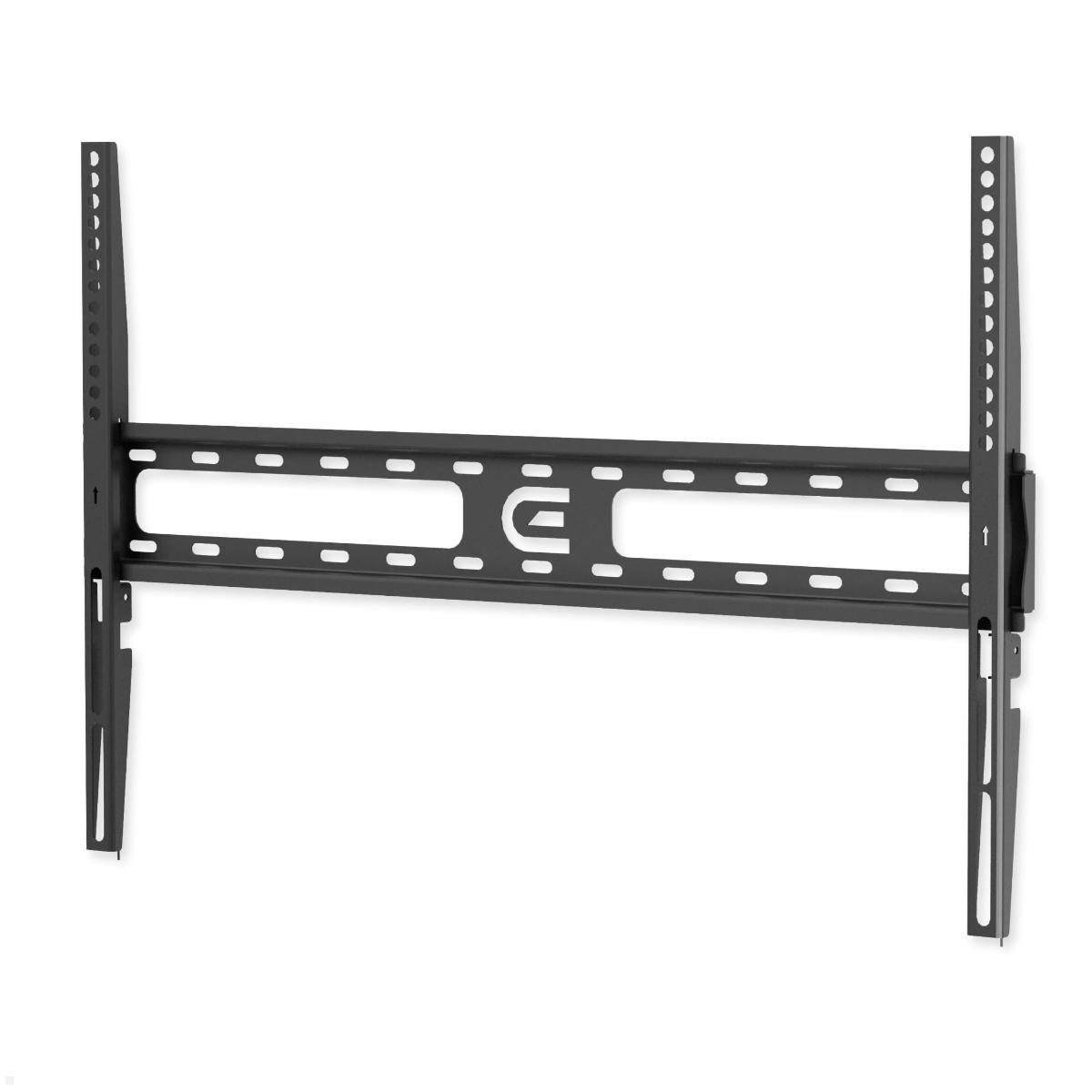

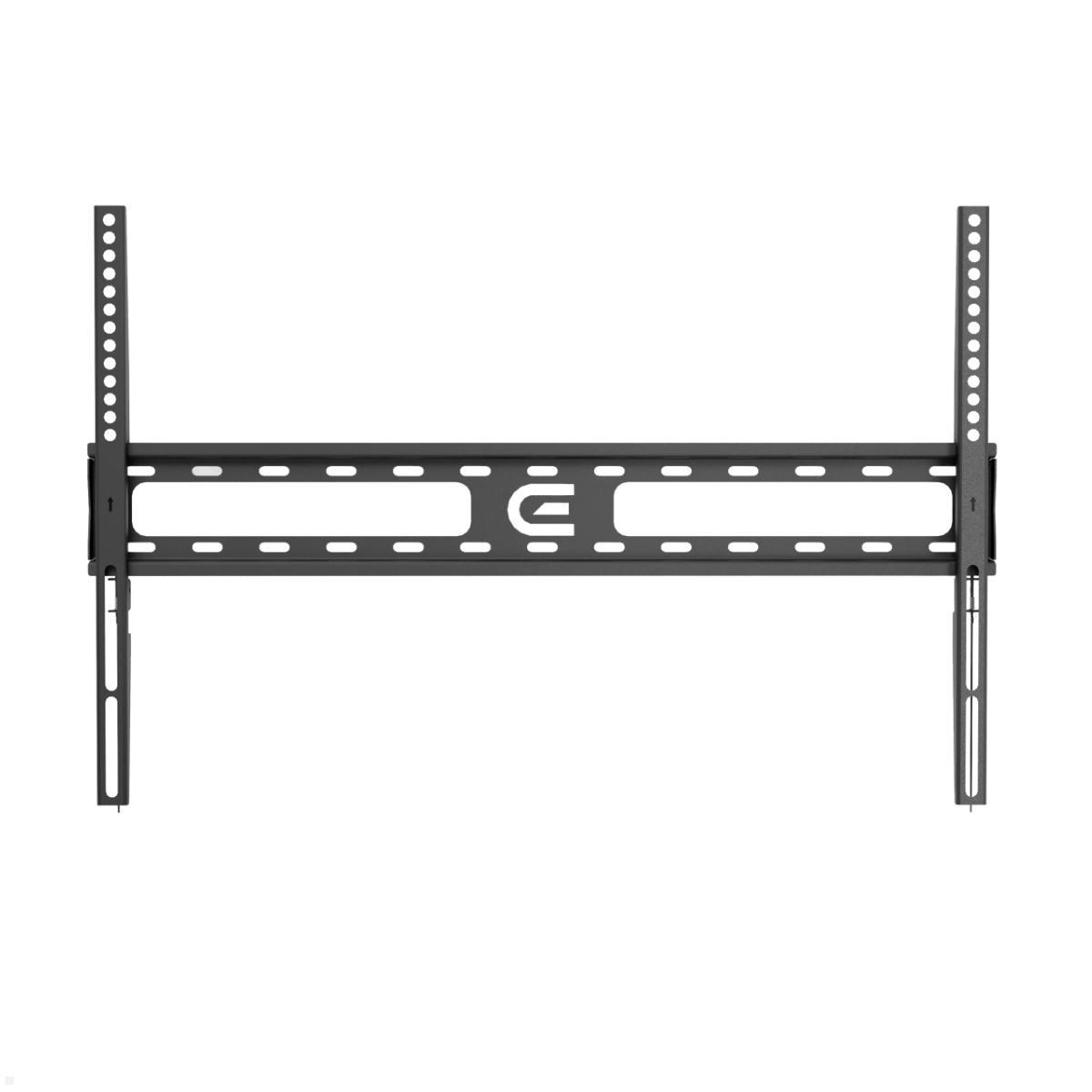

Edbak FSM6040-F rigid TV wall mount 32 to 75 inches, black
Highlights
- Rigid flat mount, slim design
- For screens 32"–75", up to 30 kg
- VESA 100×100 to 600×400 mm
- Side fine adjustment after installation
- Integrated fall protection, robust steel
Rigid TV Wall Mount for Screens up to 75 inches – VESA up to 600×400
The Edbak FSM6040-F rigid TV wall mount 32 to 75 inches (32–75"), black is a minimalist and durable mount for TVs and monitors with a screen diagonal of 32" to 75". The robust steel construction holds screens up to 30 kg reliably and safely. With a depth profile of only 23 mm it blends unobtrusively into any environment. Thanks to universal VESA compatibility from 100×100 to 600×400 mm the FSM6040-F supports a wide selection of displays, offering maximum flexibility.
The integrated safety lock protects the screen reliably from accidental falling, while the lateral fine adjustment after installation allows precise alignment. The intuitive mounting system ensures quick and uncomplicated installation. The FSM6040-F is ideal for use in offices, conference rooms, waiting areas, hotels and public facilities.
Technical details – Edbak FSM6040-F rigid TV wall mount, VESA 100–600 mm
- Suitable screen size: 32" to 75"
- Load capacity: 30 kg
- VESA mounting: 100×100 to 600×400 mm
- Dimensions (W×D×H): 641 × 23 × 420 mm
- Net weight: 1.0 kg
- Material: Steel
- Color: Black
- Lateral fine adjustment: Yes
- Safety lock: integrated
- Package dimensions: 655 × 130 × 30 mm
- Package weight: 1.2 kg
- Warranty: 5 years
| Product sheet: |  [pdf] |
|---|---|
| Capacity: | 30 kg |
| Screen size: | 32 - 75" |

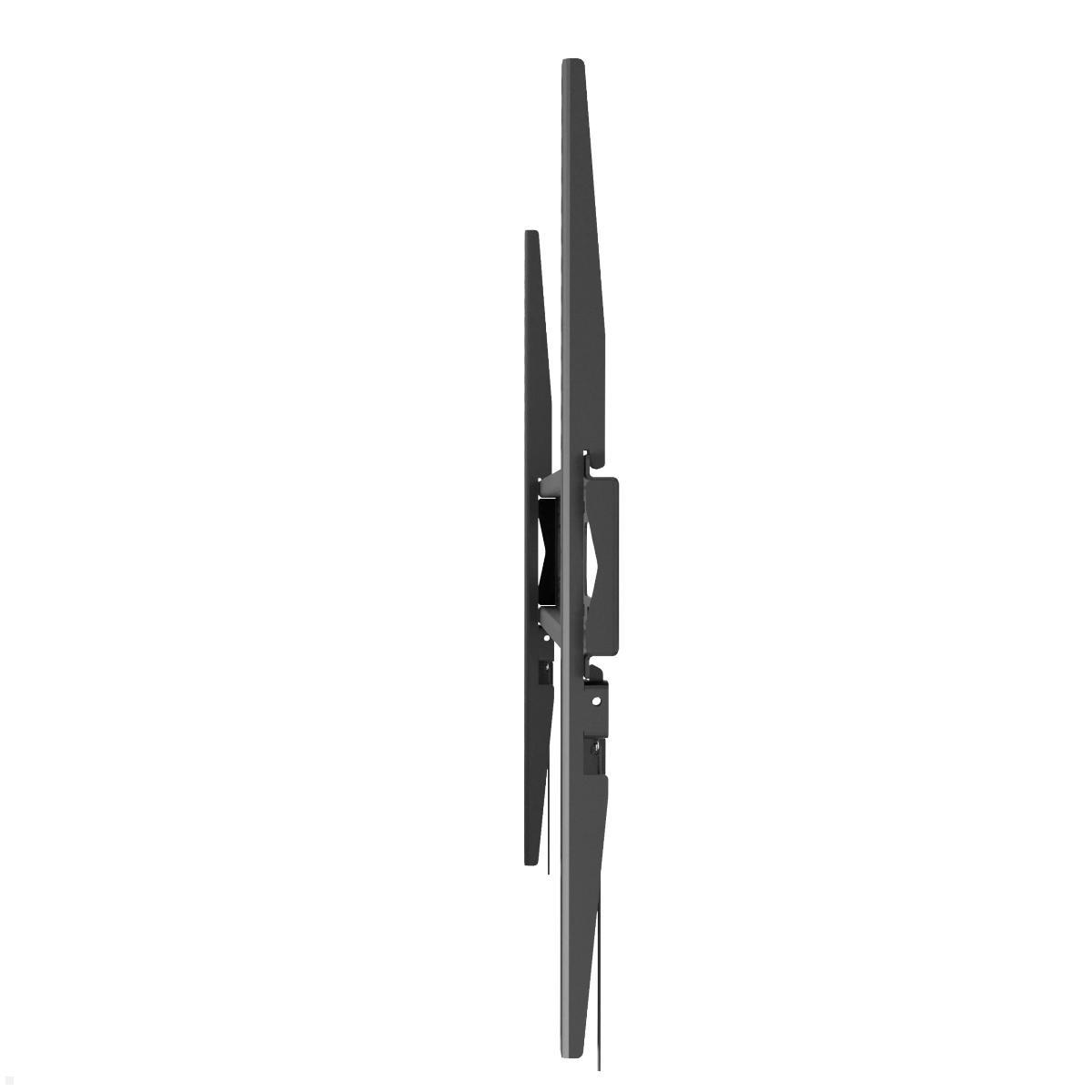

| Depth of the bracket: | 23 mm |

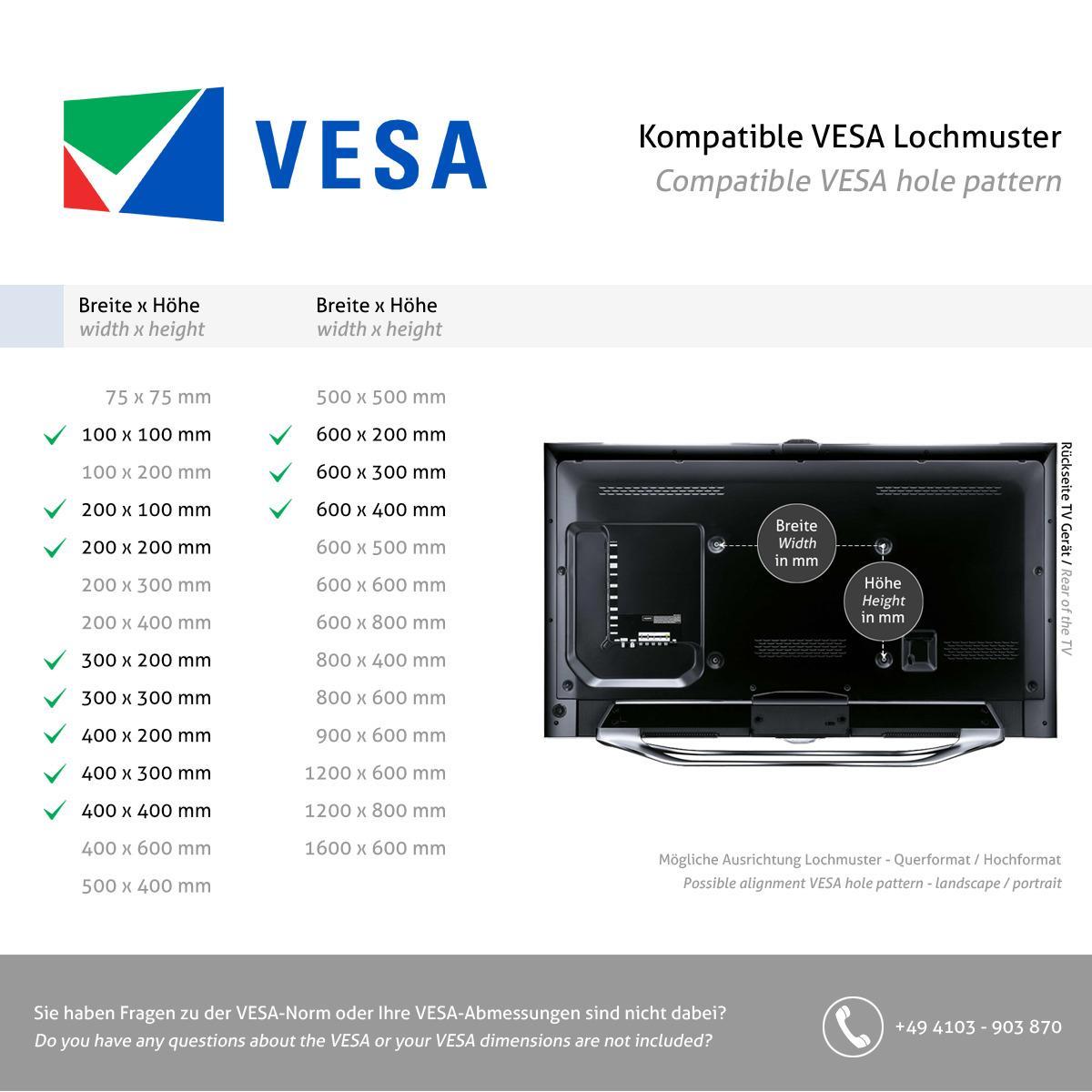

| VESA Standard: | VESA 100x100|VESA 200x200|VESA 300x200|VESA 300x300|VESA 400x200|VESA 400x300|VESA 400x400|VESA 600x400 |
| Packaging dimensions (LxWxH in mm): | 655 x 130 x 30 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Inch size: | 32 inch, 37 inch, 40 inch, 43 inch, 49 inch, 50 inch, 55 inch, 65 inch, 70 inch, 75 inch |
| Mobility: | fixed |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x300, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is the Edbak FSM6040-F the ideal fixed TV wall mount for professional environments?
The Edbak FSM6040-F is a universal fixed flat wall mount for TVs and monitors with screen sizes from 32 to 75 inches. With a depth profile of only 23 mm, it provides a low-profile, aesthetic mounting in any room and blends unobtrusively into any environment thanks to its minimalist design. The FSM6040-F's robust steel construction supports screens up to 30 kg and ensures long-term safe use—even under demanding continuous operation in commercial settings. With an extended VESA range of 100×100 to 600×400 mm, the FSM6040-F is compatible with a significantly broader selection of displays than many comparable mounts. This makes it particularly versatile in use—from compact 32-inch screens to large 75-inch displays. The integrated fall protection reliably prevents the screen from accidentally falling and increases safety in daily operation. The lateral fine adjustment allows precise alignment of the screen even after hanging, so optimal positioning is always possible without much effort. The Edbak FSM6040-F's intuitive mounting system ensures quick and straightforward installation—ideal for installs where time and efficiency matter. The mount is finished in black and fits aesthetically into both modern and classic interior styles. With a net weight of only 1.0 kg, the FSM6040-F is easy to transport and install.
For which environments and use cases is the Edbak FSM6040-F suitable?
The Edbak FSM6040-F is designed for functionality, durability and ease of use and is suitable for a wide range of applications. In commercial environments it performs well in offices, conference rooms, waiting areas, hotels, restaurants, schools and public institutions. Especially where screens need to be permanently and reliably wall-mounted without requiring extensive maintenance or readjustment, the fixed FSM6040-F is the ideal choice. But also in the private sector—living room, bedroom or home office—the FSM6040-F is a reliable and aesthetic solution for wall mounting TVs and monitors. The intuitive mounting system enables quick installation without much effort, and thanks to universal VESA compatibility from 100×100 to 600×400 mm the mount can be combined with a wide variety of displays from different manufacturers.
What technical advantages does the Edbak FSM6040-F wall mount offer in comparison?
The Edbak FSM6040-F flat fixed TV wall mount features an extended VESA range of 100×100 to 600×400 mm, a maximum load capacity of 30 kg and compact dimensions of 641 × 23 × 420 mm. The depth profile of only 23 mm provides a low-profile, space-saving installation and a tidy appearance. The lateral fine adjustment allows precise post-installation alignment of the screen, while the integrated fall protection permanently safeguards the screen. The net weight of only 1.0 kg significantly eases transport and installation. In black, the FSM6040-F suits both modern and classic interior styles. With a 5-year manufacturer’s warranty, Edbak stands for durable quality and lasting reliability—a solid investment for both private and professional installations alike.
