Edbak RMSA2 swivel TV wall mount up to 120 kg, pivot, VESA max. 800x600
The Edbak RMSA2 TV wall mount is the ideal solution for large and heavy TVs up to 120 kg. It offers maximum flexibility with swivel, tilt, and pivot functions, as well as a variable wall distance of 150 to 700 mm.
TV Wall Mount with Pivot Function
The Edbak RMSA2 TV Wall Mount is the perfect solution for particularly large and heavy TVs and monitors up to 120 kg. Despite its enormous load capacity, the mount impresses with its high flexibility: Even after installation, large displays can be easily swiveled, tilted, and extended to achieve the ideal viewing angle. A special highlight is the pivot function, which allows the screen to be effortlessly rotated from landscape to portrait format. Ideal for presentations, digital signage, or a flexible home entertainment experience.
TV wall mount with swivel and tilt function
The flexible TV wall mount impresses with its innovative design and enormous stability: It supports even particularly large screens safely and reliably. The variable wall distance offers maximum flexibility – from a space-saving 150 mm to a fully extended swivel arm with an impressive 700 mm. This allows the TV to be optimally adapted to any room situation. This clever design makes the RMSA1 one of the most compact yet strongest wall mounts for large and heavy displays.
Sturdy wall mount for TVs

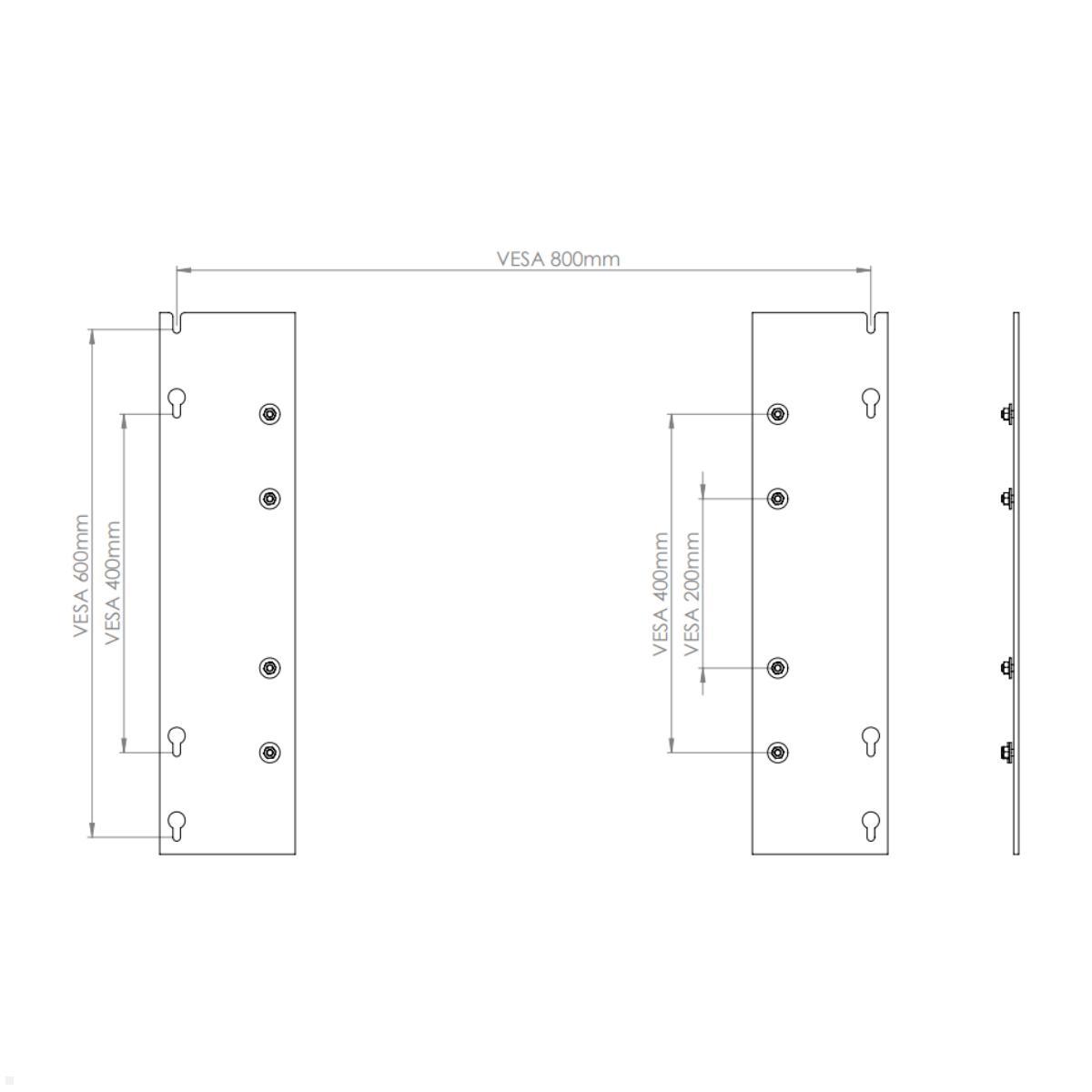

Thanks to the combination with the MonLines V080 VESA adapter, the RMSA2 wall mount can be used even more flexibly. In addition to the standard dimensions, the mount is also compatible with VESA 600x400, 800x400, and 800x600 mm. This allows even particularly large TVs and monitors that meet an extended VESA standard to be securely mounted. This extension makes the RMSA2 the ideal choice for anyone looking for a universal TV wall mount for large screens.
Key features TV Wall Mount with Tilt, Swivel, and Rotatable Bracket
- TV Mount Load Capacity: 120 kg
- VESA Standard: 600x400, 800x400, 800x600 mm
- TV Mount Distance from Wall: 150 - 700 mm
- TV Orientation: Portrait or Landscape
- Pivot Function: 90 degrees
- Tilt: +/- 10°
- Pivot: 90 degrees
- Height Adjustable: 240 mm
- Item consists of:
- Edbak RMSA1 swivel TV wall mount up to 120 kg, pivot, VESA max. 600x400
- MonLines V080 VESA adapter from 400x400, 600x400 to 600x600, 800x400, and 800x600
Does your TV fit the TV mount?
We would be happy to check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this swiveling Edbak TV mount. Simply provide us with your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the TV fits, and if not, we will contact you.
VESA Standard - Learn more about the VESA Standard for monitor mounts!
| Product sheet: |  [pdf - Englisch] |
|---|---|

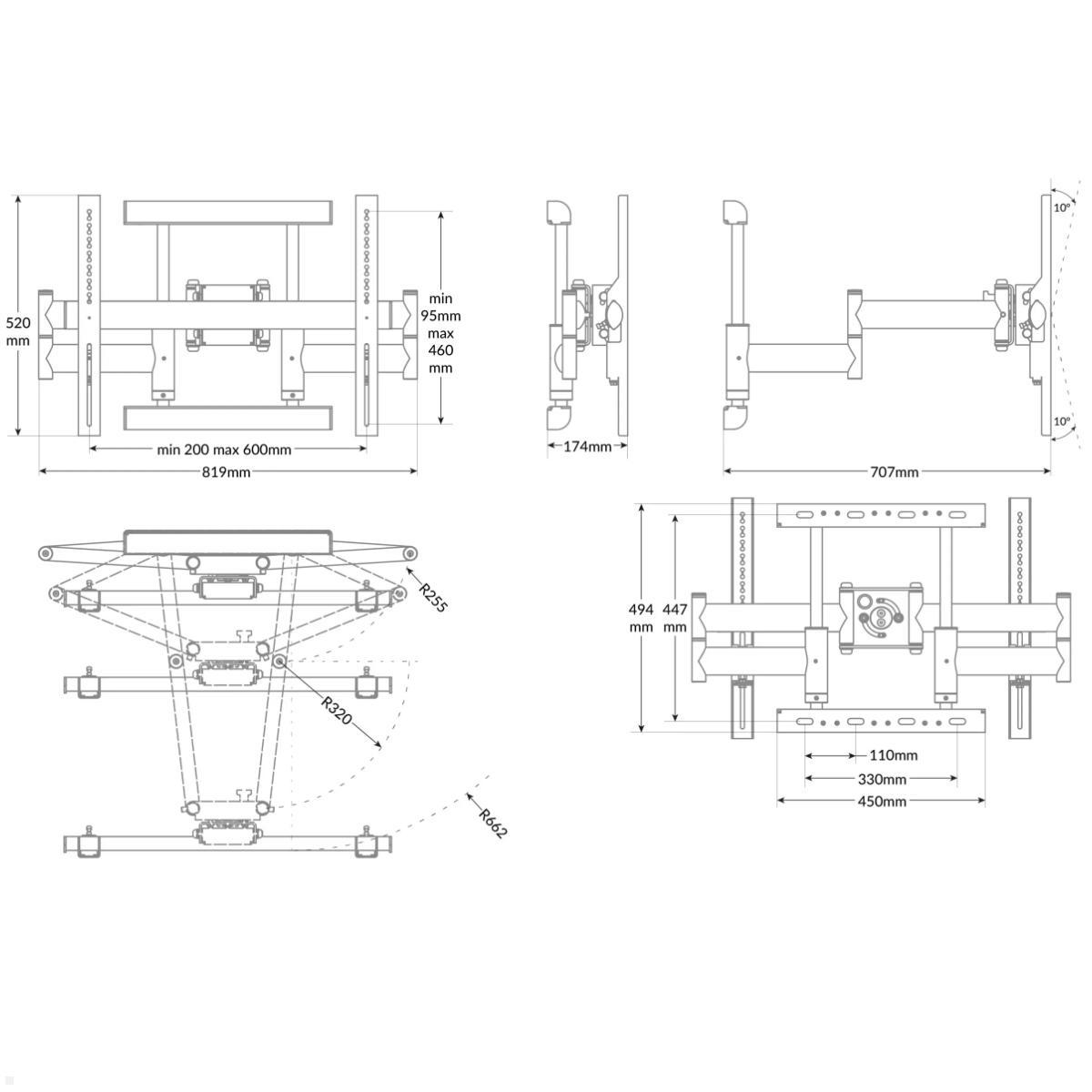

| Technical drawing: | [pdf] |
| Installation manual: | [pdf - Englisch] |
| Capacity: | 120 kg |
| Tilt: | +/- 10° |
| Rotate: | 90° |
| Height range (mm): | 240 mm |
| Pivot: | 90° |
| Swivelling range: | 90° |
| Length of the swivel arm: | 700 |
| Screen size: | 42 - 90 Zoll |
| VESA Standard: | 600x400, 800x400, 800x600 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Inch size: | 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch, 90 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| color: | Black |
| VESA (in mm): | VESA 600x400, VESA 800x400, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Edbak RMSA2 - Stable TV Wall Mount for Large TVs up to 120 kg
The Edbak RMSA2 TV wall mount is the ideal solution for anyone who wants to securely mount a particularly large and heavy TV to the wall. Thanks to the combination of the proven Edbak RMSA1 heavy-duty wall mount and the MonLines V080 VESA adapter, the RMSA2 offers maximum stability, maximum flexibility, and extended VESA compatibility up to 800x600 mm. This makes it perfect for large TVs and monitors in living rooms, conference rooms, or digital signage applications.
Sturdy wall mount for large TVs
The RMSA2 supports TVs and monitors weighing up to 120 kg. This makes it one of the strongest and most reliable TV wall mounts on the market. Even extra-large devices with a screen diagonal of 42 to 98 inches can be mounted securely and stably. Thanks to its robust steel construction with high-quality powder coating, the mount not only impresses with its load-bearing capacity, but also with its long service life.
Pivoting and Tilting TV Wall Mount
Despite its enormous load-bearing capacity, users of the RMSA2 don't have to forgo flexibility. The mount offers a variable wall distance of 150 mm to 700 mm. This allows the TV to be pushed close to the wall to save space or pulled out far to achieve the perfect viewing angle. Additionally, it can be tilted by ±10° to avoid reflections. Rotation of up to 180° is also possible – Ideal for living rooms or meeting rooms where different seating positions need to be accommodated.

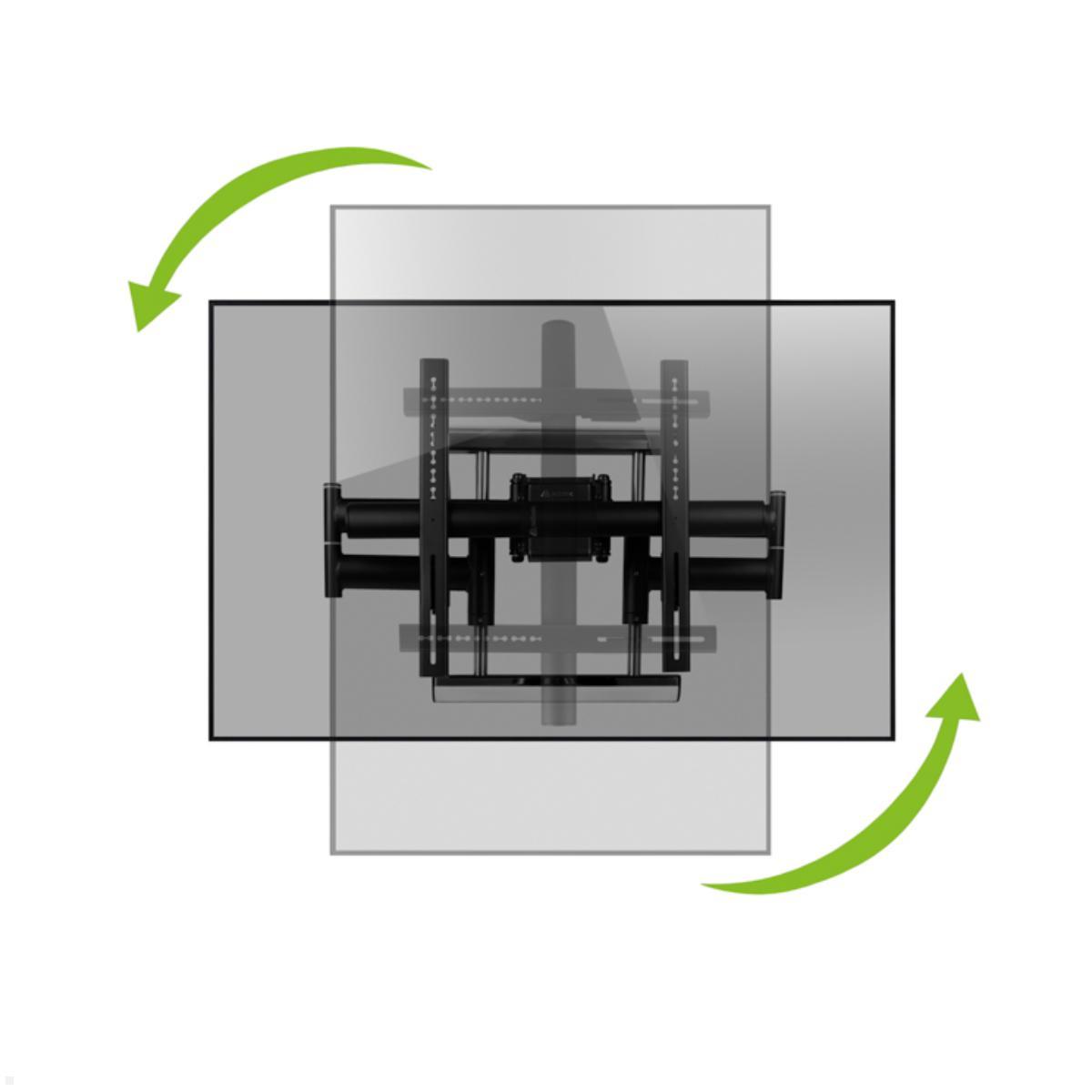

Pivot function – from landscape to portrait format
A special highlight is the RMSA2's pivot function. It allows the TV or monitor to be easily rotated from landscape to portrait format. This function is particularly interesting for presentations, digital signage applications, or creative home theater solutions. It allows flexible adjustment of the display to the desired content, thus significantly increasing its application possibilities. The RMSA2 supports VESA standards up to 600x400 mm as standard. The included MonLines V080 VESA adapter extends compatibility to 600x600, 800x400, and 800x600 mm. This makes the wall mount suitable for particularly large televisions and professional monitors, which often have an extended VESA grid. This extension makes the RMSA2 a universal TV wall mount for virtually all display sizes. The RMSA2 was developed for straightforward installation. Thanks to its sophisticated design and the included assembly instructions, installation is quick and easy. At the same time, the solid powder-coated steel construction ensures an elegant appearance and particularly high stability. This makes the RMSA2 not only functional but also a visual asset for any room. With the Edbak RMSA2, you get an extremely stable TV wall mount that effortlessly supports even the heaviest TVs up to 120 kg. It combines pan, tilt, and pivot functions with a variable wall distance and extension to VESA 800x600 mm. Whether for private use in a home theater, for conference rooms, or in professional digital signage, the RMSA2 is the perfect choice for anyone looking for a durable, flexible, and universal TV wall mount.
