Edbak RMSA1 swivel TV wall mount up to 120 kg, pivot, VESA max. 600x400
Der Edbak RMSA1 schwenkbare TV Wandhalter in schwarz besticht durch seine extrem hohe Tragkraft von 120kg, Zuverlässigkeit und Flexibilität in den Einstellungen. Mit dieser TV Fernsehhalterung von Edbak holen Sie sich Ihr ganz persönliches Kinoerlebnis nach Hause.
Edbak RMSA1 heavy duty swiveling TV wall mount, black
You want to mount your heavy, duty TV on a wall? The Edbak RMSA1 wall mount with swing arm in black is the perfect solution for you!
Enjoy your daily TV Series on-screen with this heavy duty swing arm. Turn your living room in a entertainment center! The Edbak RMSA 1 wall bracket can hold screens up to 120kg and a size between 42" and 90" save and secure.
Even after the installation, you can still adjust your TV in every way - tilt, swivel, rotate, there are no limits.
Key Features Edbak RMSA 1 Swing Arm Wall Bracket
- Finish: Black
- Monitor size: 42" - 90"
- Weight capacity: 120 kg
- VESA Standard 100x100, 200x100, 200x200, 300x300, 400x400, 600x200, 600x400mm, VESA MIS-F (max. 600x450 mm)
- Wall distance of the TV bracket: 150 - 700 mm
- Tilt: +/- 10°
- Pivot: 90°
- Height adjustable: 240 mm
- swivel range
Does your TV fit the wall mount?
We will gladly check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this TV mount. Simply send us your model (manufacturer + model no.) at the end of the ordering process. We then check for you whether the TV fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf - Englisch] |
|---|---|

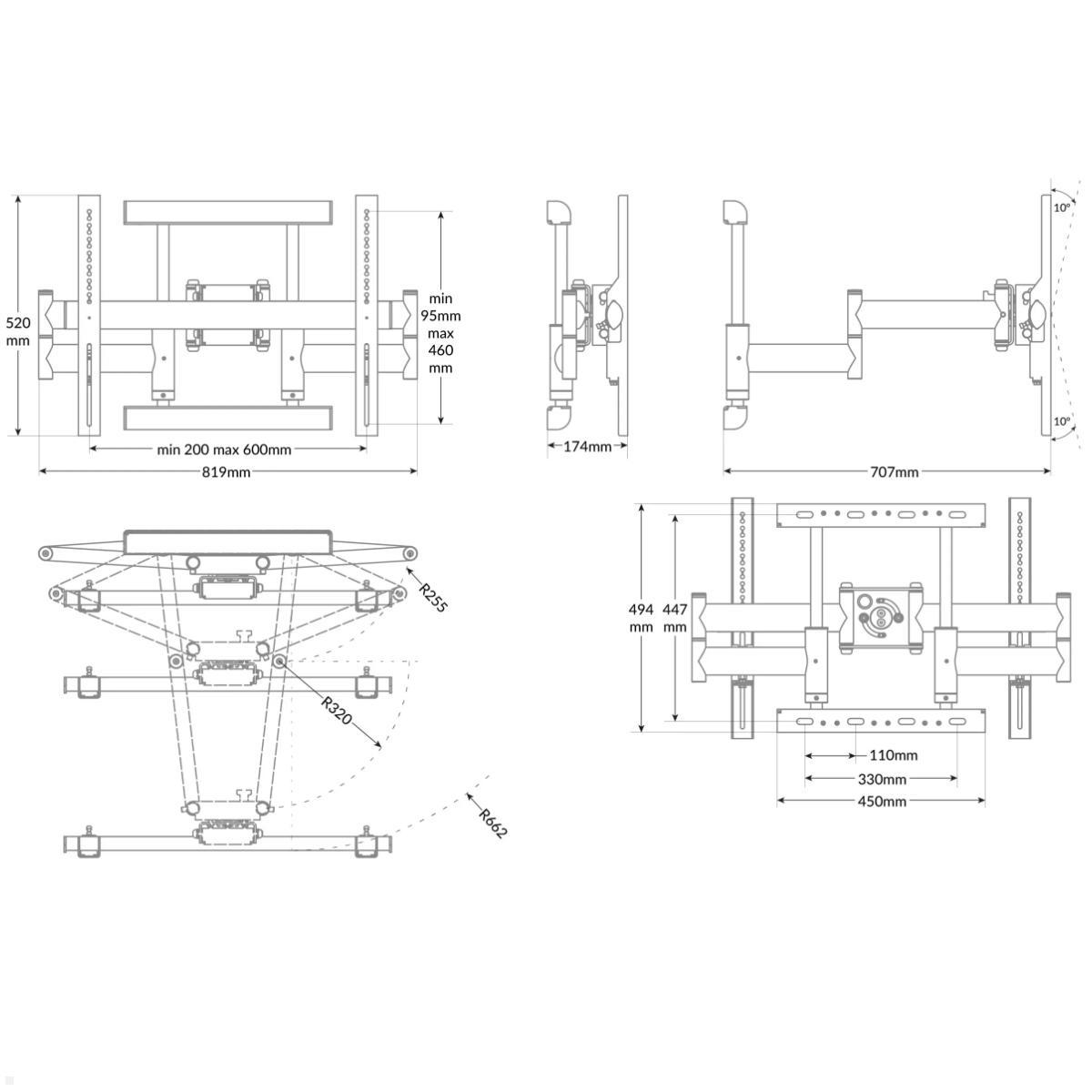

| Technical drawing: | [pdf] |
| Installation manual: | [pdf - Englisch] |
| Capacity: | 120 kg |
| Tilt: | +/- 10° |
| Rotate: | 90° |
| Height range (mm): | 240 mm |
| Pivot: | 90° |
| Swivelling range: | 90° |
| Length of the swivel arm: | 700 |
| Screen size: | 42 - 90 Zoll |
| VESA Standard: | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.de) |
| Contains installation material: | + |
| Manufacturer/Importer: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Inch size: | 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch, 90 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200, VESA 200x300, VESA 300x200, VESA 300x300, VESA 300x400, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x300, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
