Erard Movik 600TW Double V2 Flatscreen Wall mount, 30-65"

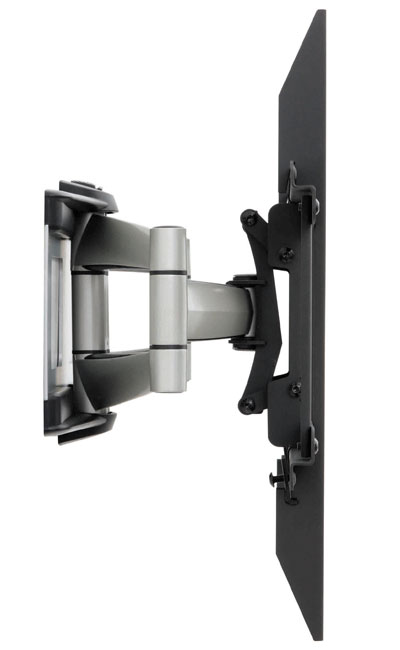

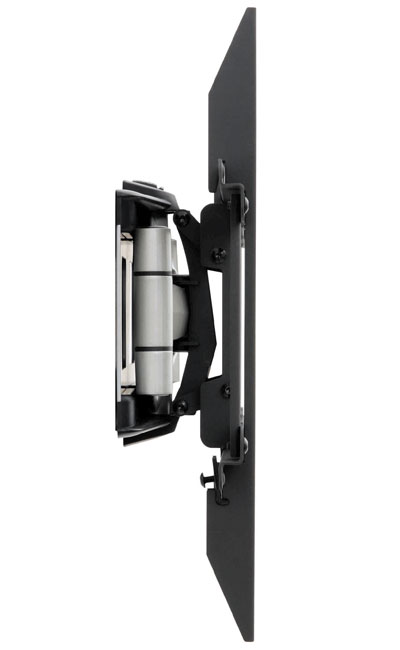

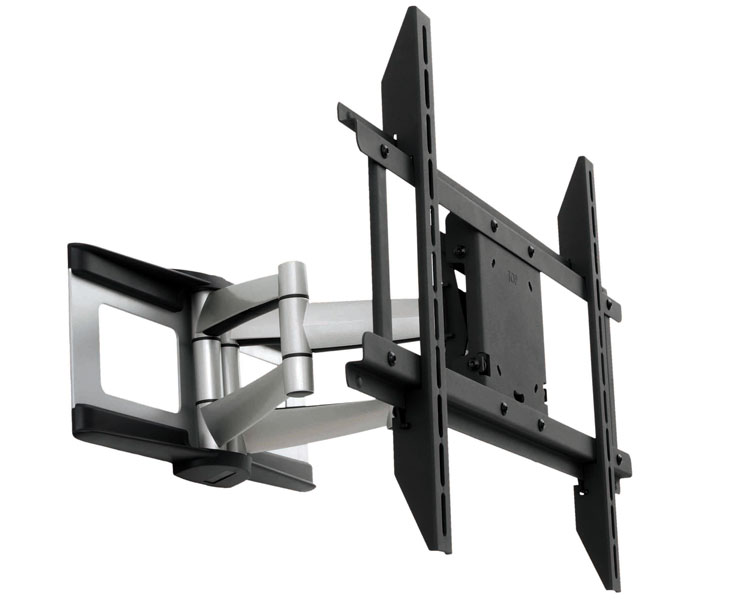

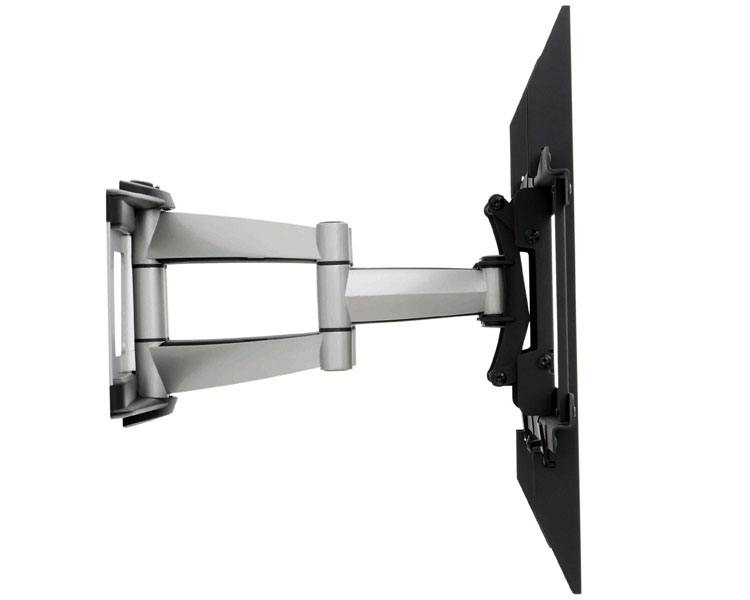

Erard Movik 600TW Double V2 Flatscreen Wall mount, 30-65" - MOVIK® Double is a swivelling wall mount for screens up to 35 kg and 65 ”. With a wide offset capability of 358 mm, it is nevertheless very thin when folded back (88 mm). Smooth operation make it very pleasant to use.
Erard Movik 600TW Double V2 LCD-Display Wall mount
MOVIK® is a range of tilt and swivel, made out of steel and aluminium wall mounts optimised for user-friendliness. Handling throughout the range has increased in smoothness, which makes its use particularly easy. The addition of a handle behind the screen on the simple MOVIK® (an ERARD patent) is a significant innovation in this range. It means the screen can be moved without touching it. It also provides increased safety with the screen automatically locking into position as soon as the handle is released.
Erard Movik Double V2 - Wall mount, 30-65"
In addition, it can be attached to a wall or a beam using its safe wall plate with 4 anchor points in either a square or line. A drilling template is also provided and the cables pass directly through the wall plate openings to the wall for easier installation.

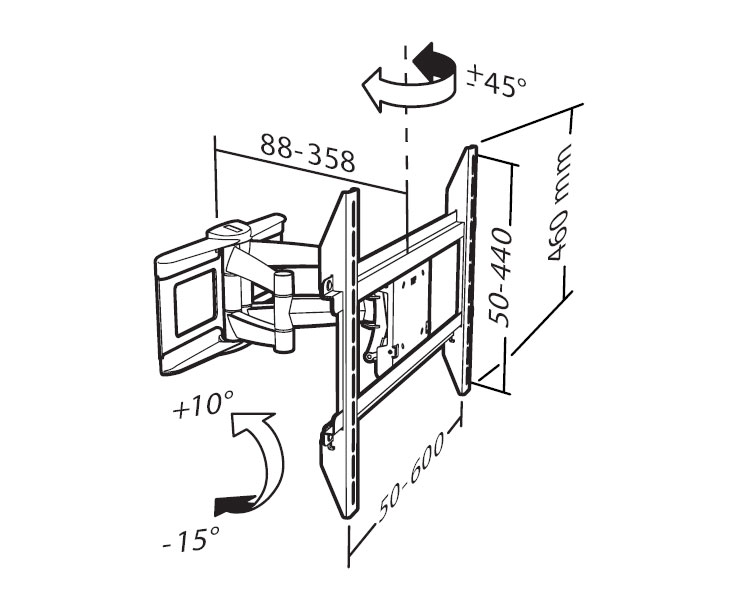

Made out of steel and aluminium, it also comprises a security system preventing falls for increased safety. Vertical point to-point distances: 50 mm min., 600 mm max., vertical point-to-point distances: 50 mm min., 440 mm max. A spirit level and complete set of nuts and bolts are included in the standard package.
Key Features Erard MOVIK 600TW Double TV Wall Mount:
- LCD-size: 30-65"
- weight capacity mounting: 35kg

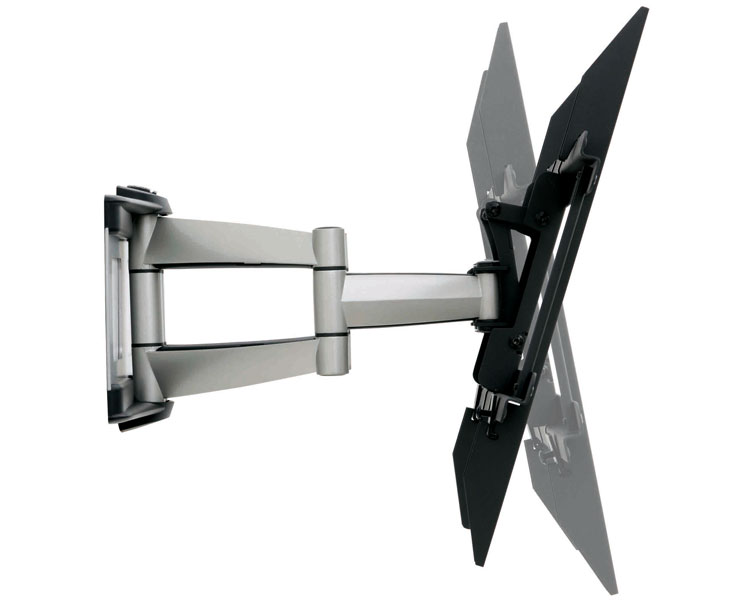

- Tilt: -15°/+10°
- Swivel: +/- 45°
- VESA-Standard: 100x100, 200x200 - 600x400
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 539 kb] |
|---|---|
| Technical drawing: | [pdf, 74 kb] |
| Installation manual: | [pdf,1 MB] |
| Capacity: | 35 kg |
| Tilt: | -15°/+10° |
| Swivelling range: | +/- 45° |
| Length of the swivel arm: | 358 |
| Screen size: | 40 - 65 " |
| VESA Standard: | 100x100, 200x200 - 600x400 (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | ERARD, ZI de Chavanoz - 4, route de la plaine, 38230 CHAVANOZ - FRANCE, info@erard.com |
| Inch size: | 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
