Ergotron LX Pro monitor desk mount with keyboard tray
Highlights
- Complete set for monitor, keyboard & mouse
- Monitor weight capacity from 1.8 to 10 kg
- 33 cm height adjustment each
- Flexible Constant Force™ technology
- Available in black, white & gray

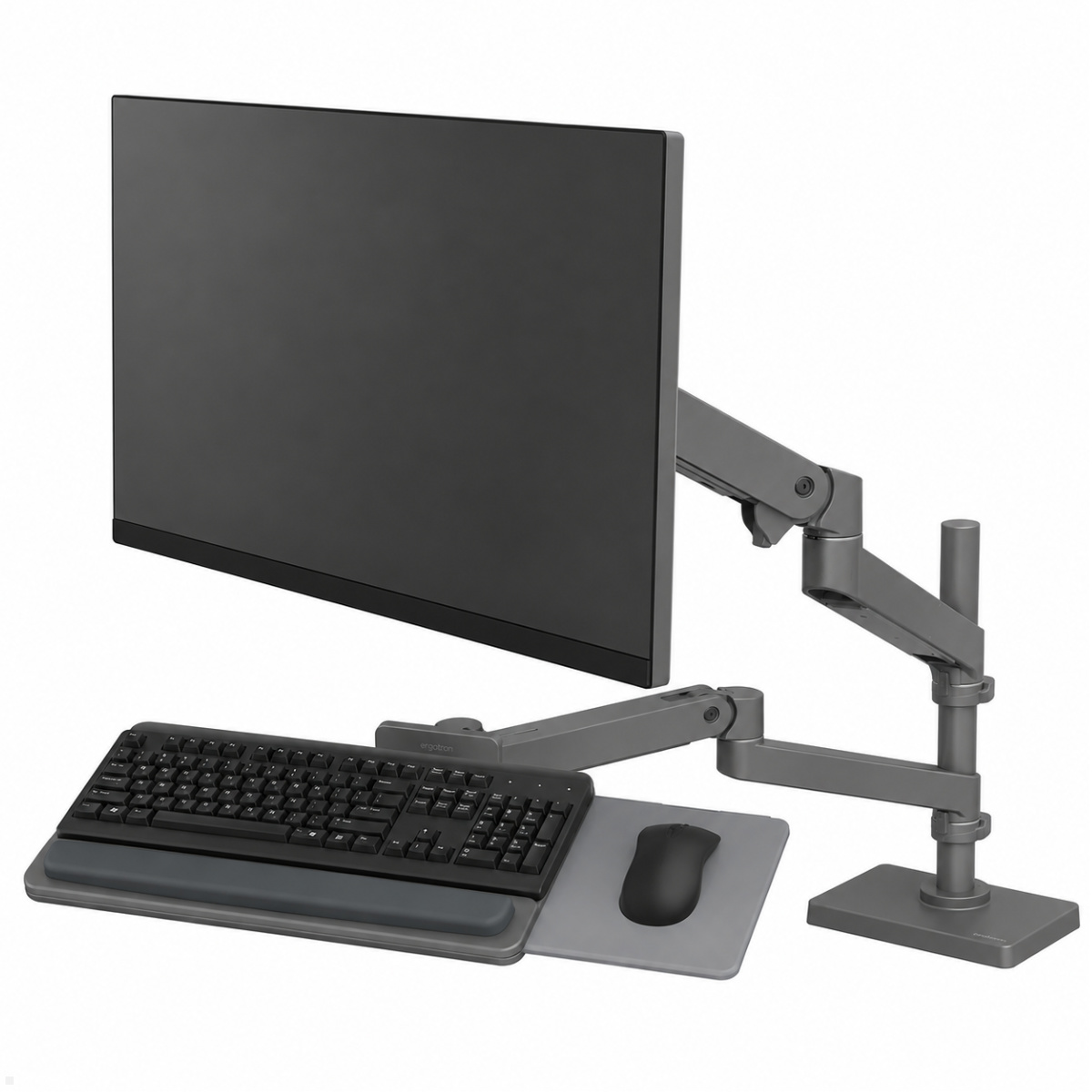

Ergotron LX Pro Monitor Arm with Keyboard Tray
The Ergotron LX Pro Monitor Arm with Keyboard Tray combines a flexibly adjustable monitor arm with a separate keyboard and mouse tray into an ergonomic workstation solution. The set consists of the LX Pro monitor arm with a high column and desk mount, an LX Pro column ring, and the LX Pro keyboard arm, enabling comfortable positioning of the screen, keyboard, and mouse.

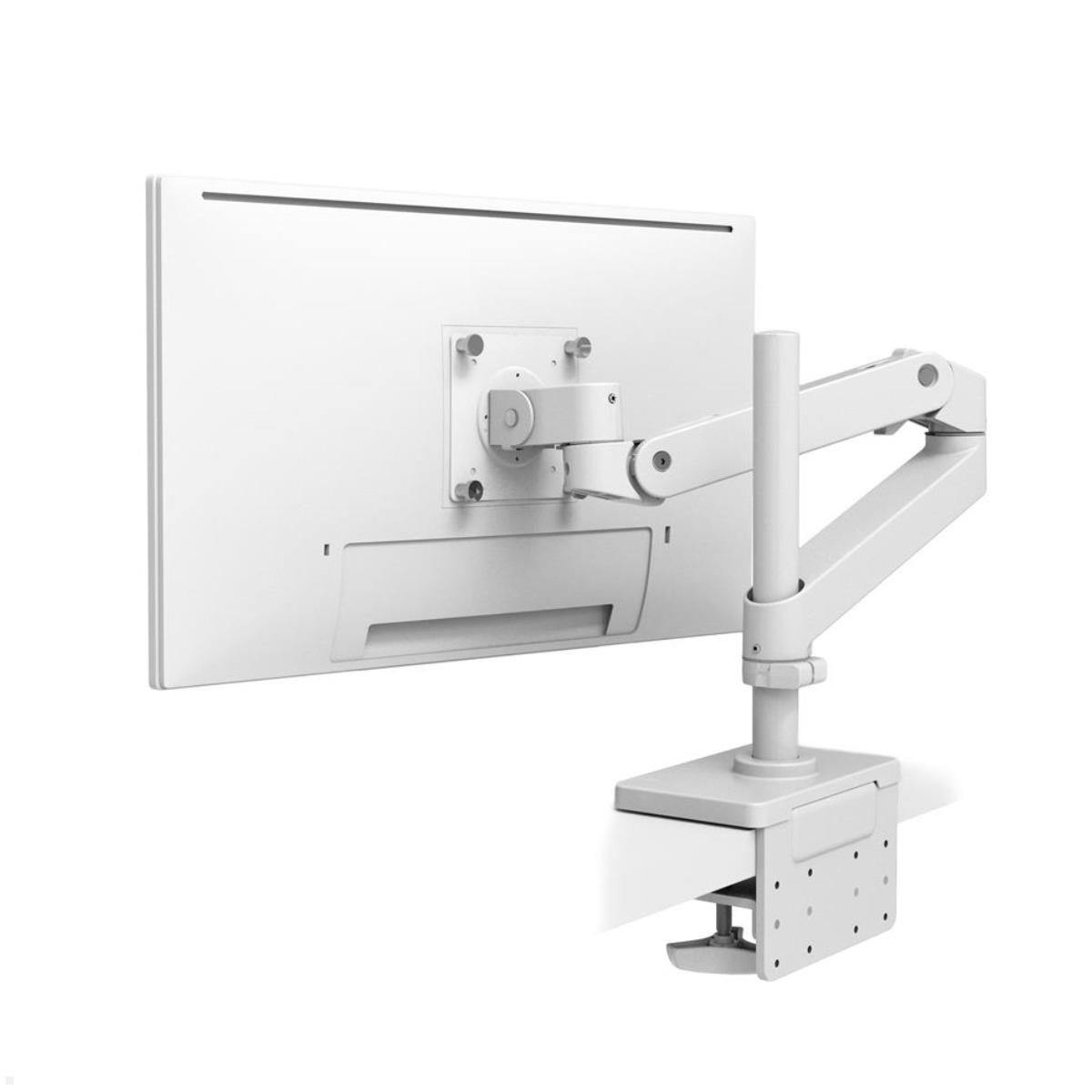

The monitor arm is attached to the desk via the table clamp. The high column provides sufficient space to accommodate the additional keyboard arm. Using the column ring, the position of the additional bracket is fixed to the column. This creates a compact solution in which the monitor and input devices can be mounted on a common system.
Thanks to the Constant Force™ technology, the monitor can be moved with little force and individually adjusted to the desired working position. The monitor arm offers 33 cm of height adjustment and supports monitors weighing 1.8 to 10 kg. The VESA mounting is designed for 75 x 75 and 100 x 100 mm.

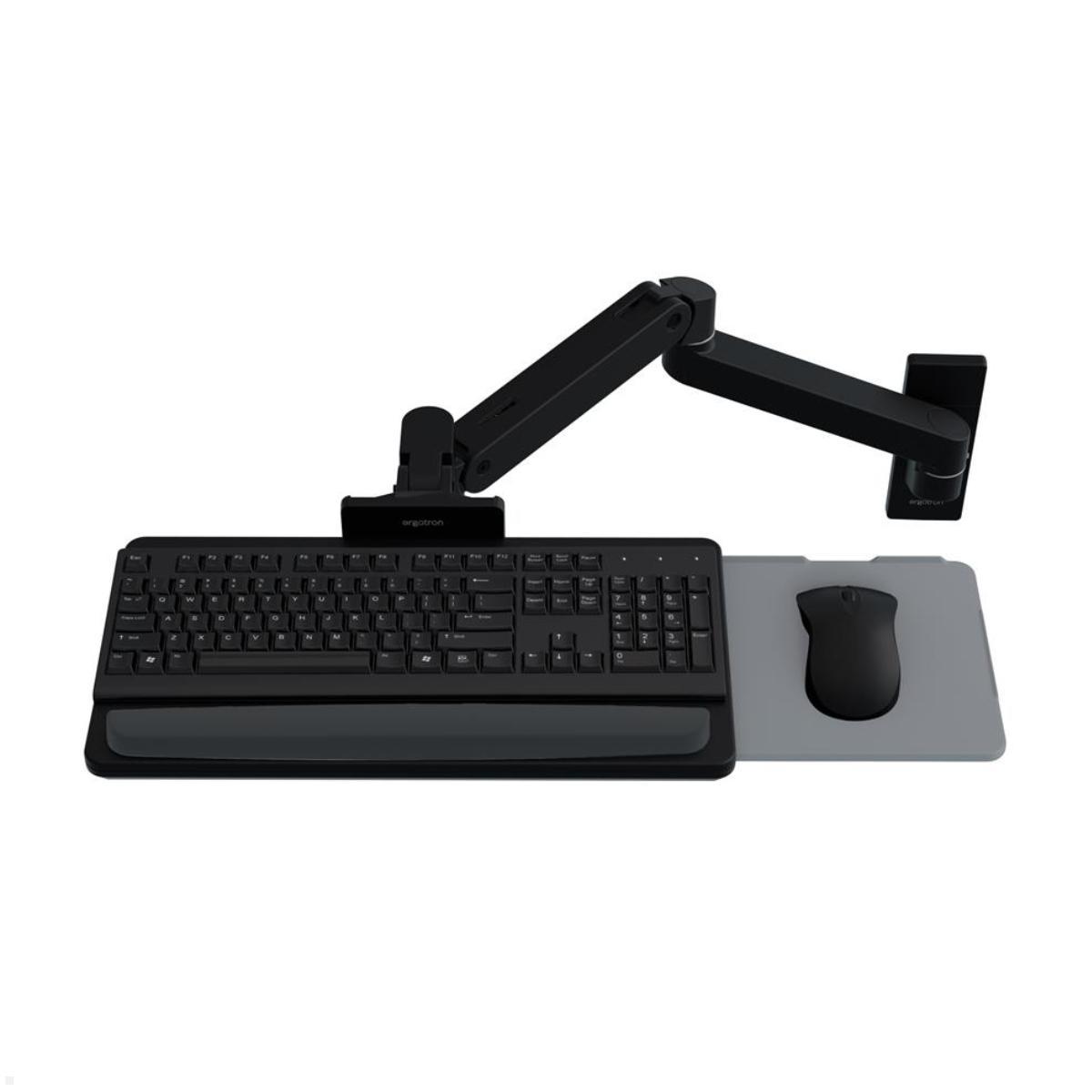

The keyboard arm can also be adjusted by 33 cm in height. The generous tray accommodates keyboards up to 44.6 x 24 cm and is complemented by a mouse tray and a wrist rest. Thus, screen, keyboard, and mouse can be positioned to suit the task at hand.
The modular LX Pro system is particularly suitable for ergonomic office workstations, flexible workspaces, and applications where the screen and input devices need to be repositioned regularly. The set is available in black, white, and gray.
Technical Details Monitor Arm and Keyboard Holder with Column Ring
- General:
- Product type: Monitor mount with keyboard and mouse tray

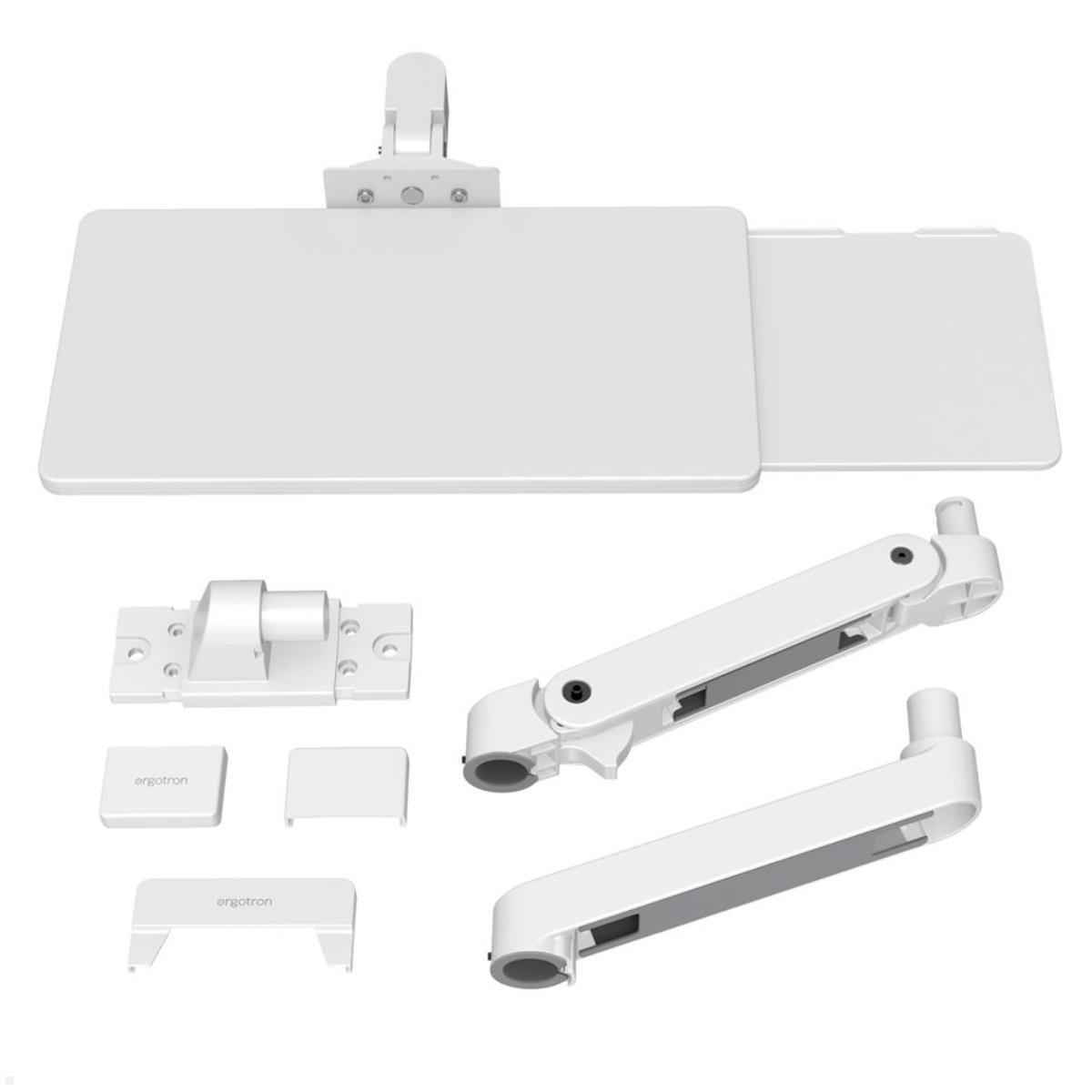

- Configuration: Complete set consisting of monitor arm with high column, column ring, and keyboard arm
- Mounting: Desk attachment
- Colors: Black, White, or Gray
- Technology: Ergotron Constant Force™
- Cable management: integrated
- Warranty: 10 years
- Monitor Arm:
- Applications: Office, home office, control room, workstation, and flexible display workstations
- Configuration: LX Pro monitor arm with high column and desk clamp
- Recommended monitor size: up to approx. 34 inches
- Load capacity: 1.8–10 kg
- VESA: 75 x 75 mm / 100 x 100 mm
- Height adjustment: 33 cm
- Tilt: 85° (+70° / -15°)
- Monitor swivel: 180°
- Monitor rotation: 360°
- Base arm swivel: up to 360° / 180° with rotation lock engaged
- Max. reach: up to 65.6 cm
- Column height: 30.4 cm
- Integrated rotation stop: yes
- Keyboard Holder:
- Configuration: LX Pro keyboard arm with keyboard and mouse tray
- Load capacity: up to 2.3 kg
- Max. keyboard size: 44.6 x 24 cm
- Height adjustment: 33 cm
- Max. reach: approx. 89 cm
- Tilt of keyboard tray: in the lower position up to 5° backward
- Storage position: tray folds up to 90° upward
- Features: keyboard tray, mouse tray, and wrist rest
- Positioning: flexibly height-adjustable and swiveling
- Connection and Mounting:
- High column: serves as a common mount for the monitor arm and the additional keyboard holder

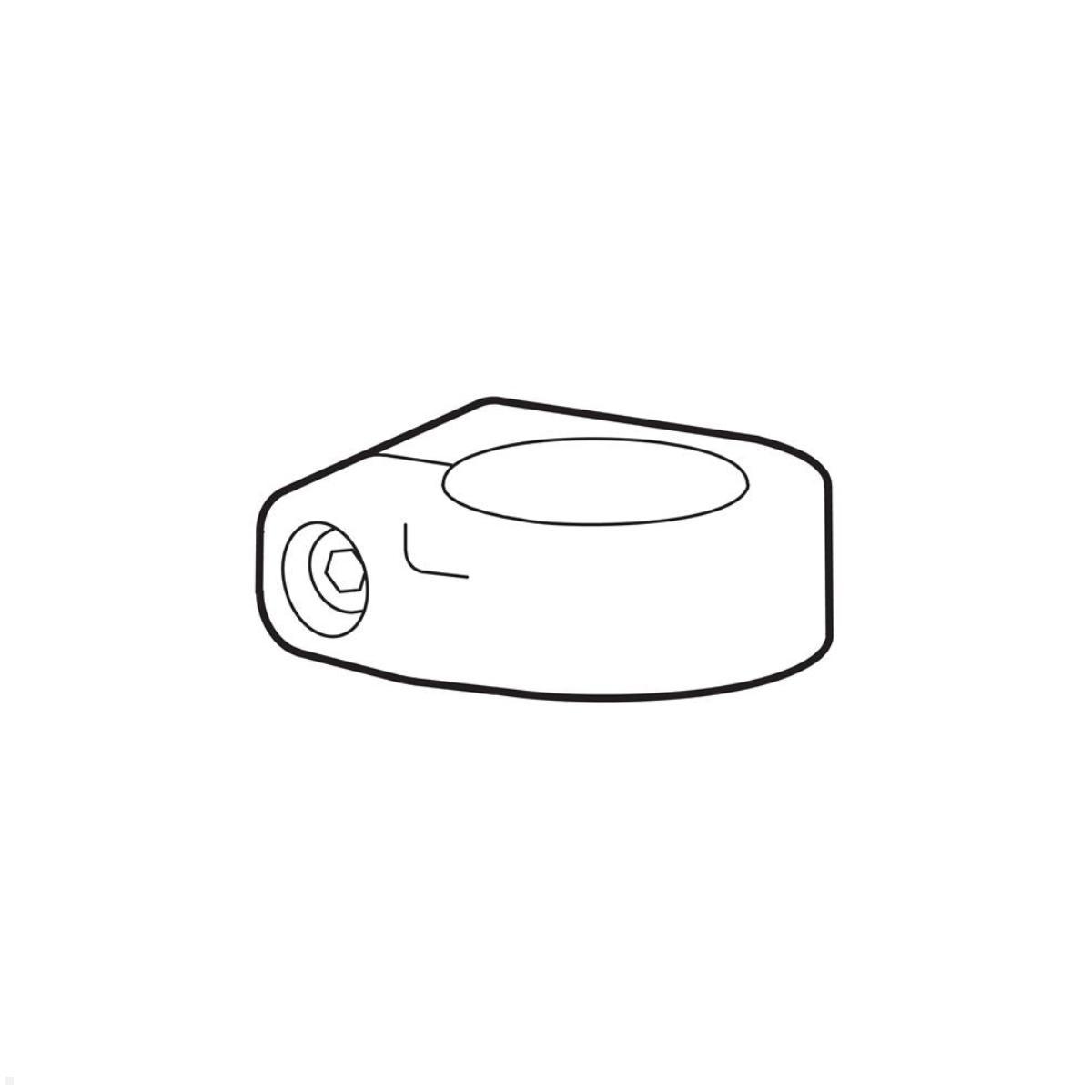

- LX Pro column ring: for fixing the additional holder to the column
- Desk mounting: space-saving attachment directly to the desk
- Modular system: monitor and input devices can be positioned independently of each other
Does your screen or display fit the VESA mount?
We will be happy to check whether your monitor is suitable for this mount. Simply provide your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the mount and contact you if it does not.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | LX Pro Arm 1,8 - 10 kg / Tastaturschwenkarm 2,3 kg |
| Tilt: | Neigung Monitor: 85° (+70° / -15°) |
| Rotate: | 360° |
| Height range (mm): | je 330 |
| Swivelling range: | Schwenkung Basisarm: bis 360° / 180° bei aktiviertem Drehstopp |
| Screen size: | bis 34'' |
| Thickness of table (mm): | 10–60 mm |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Scope of delivery: | 1x monitor desk mount, 1x keyboard holder, 1x column ring |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch |
| Mobility: | Drehbar, height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Ergotron LX Pro Monitor Arm with Keyboard Arm?
An ergonomic workspace solution that combines a flexible monitor arm with a separate keyboard and mouse tray in a complete modular set.
-
How is the set mounted?
The monitor arm is desk-mounted via a desk clamp; the set includes a tall column, a column ring and a keyboard arm to position the monitor and input devices together.
-
How adjustable is it?
The monitor arm offers 33 cm of height adjustment and uses Constant Force technology; tilt up to 85° (±70°/−15°), swivel 180°, and rotation 360°; the keyboard arm also adjusts 33 cm in height.
-
What are the monitor compatibility and weight limits?
Recommended monitors up to about 34 inches; weight capacity 1.8–10 kg; VESA 75 x 75 or 100 x 100.
-
How big can the keyboard tray be?
Keyboard tray supports up to 2.3 kg; max keyboard size 44.6 x 24 cm; height adjustment 33 cm; max reach around 89 cm; tray tilts up to 5° backwards in the lower position; storage position tilts up to 90°.
-
What does the set include and how is it modular?

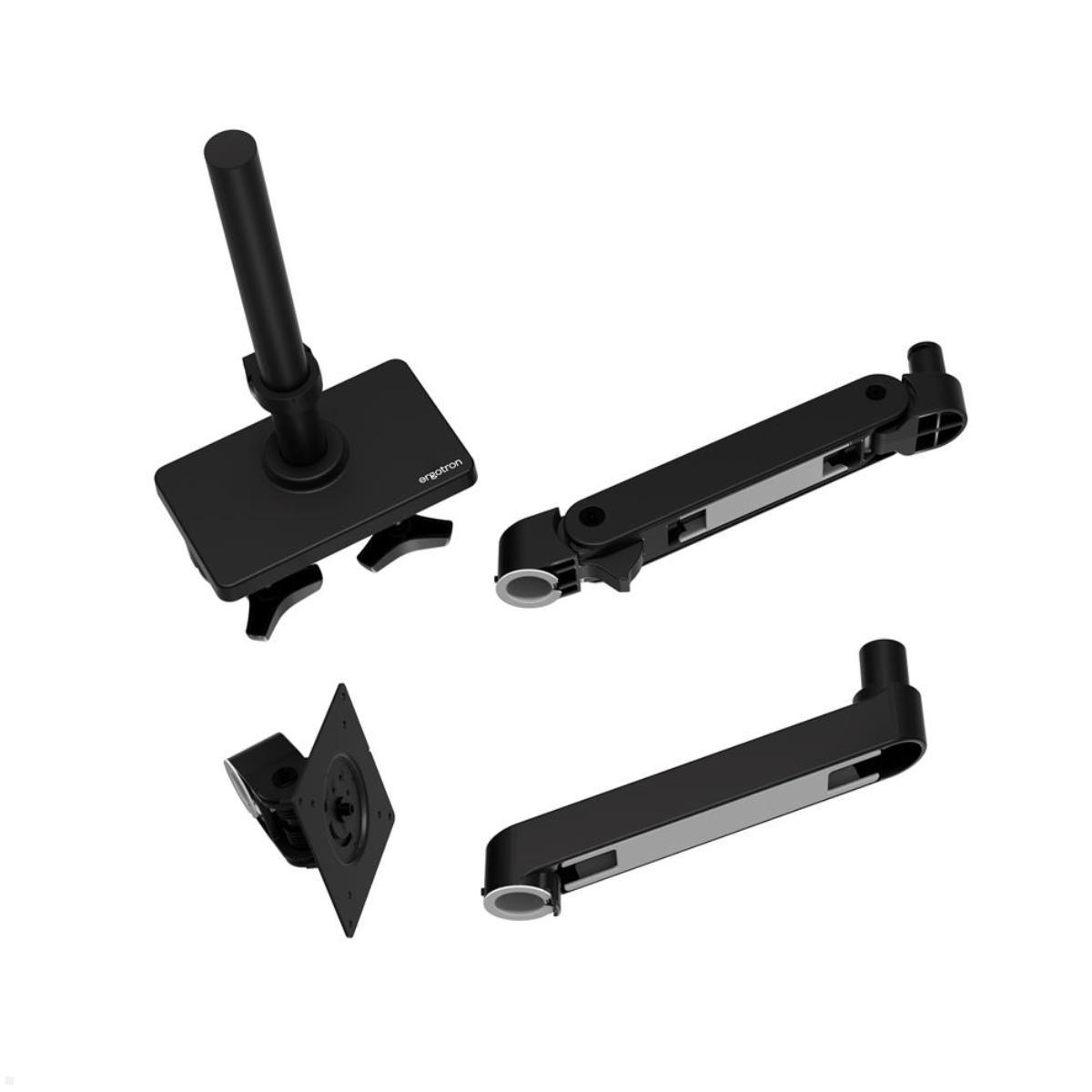

Complete set includes the LX Pro monitor arm with tall column, the column ring, and the LX Pro keyboard arm; desk mounting and integrated cable management; modular system allows monitor and input devices to be positioned independently.
-
What colors and warranty are available?
Available in black, white or gray; 10-year warranty.
-
How can I check if my monitor fits?
We can check for you—provide the manufacturer and model at the end of the order in the comments field; we will verify and contact you if needed.
How does the Ergotron LX Pro monitor mount combine monitor and keyboard?
The Ergotron LX Pro monitor arm with keyboard tray offers a flexible solution for workstations where not only the monitor but also the keyboard and mouse need to be positioned ergonomically. The complete set combines the LX Pro monitor arm with a tall pole and desk clamp with an LX Pro keyboard arm and the matching pole collar.
Thanks to the tall pole, the monitor arm and keyboard arm can be used space-efficiently on a common desk clamp. The pole collar is used to position and secure the additional arm. In this way, a tidy workstation solution is created that takes up significantly less footprint than separate mounts.
The LX Pro series was developed for high flexibility. Ergotron's Constant Force™ motion technology enables smooth adjustment of the monitor arm. The screen can be raised, lowered, swiveled and tilted with little effort. At the same time, the position of the keyboard and mouse can be individually adapted to the specific work situation.
Which monitors can be used with the LX Pro monitor arm?

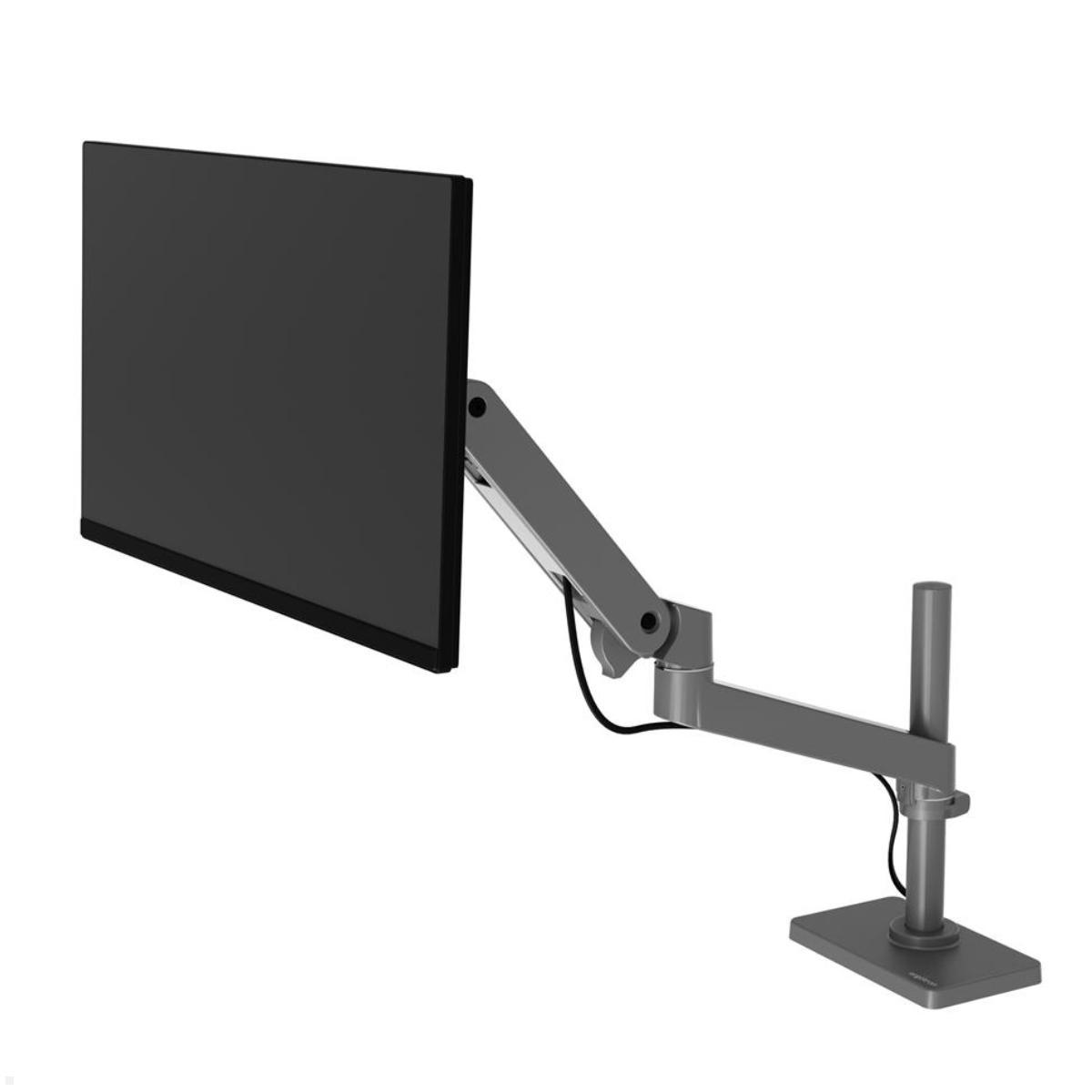

The included LX Pro monitor arm with tall pole is designed for monitors weighing from 1.8 to 10 kg. As a typical screen size, Ergotron specifies monitors up to about 34 inches. In addition to the VESA mount, the actual monitor weight is decisive for compatibility.

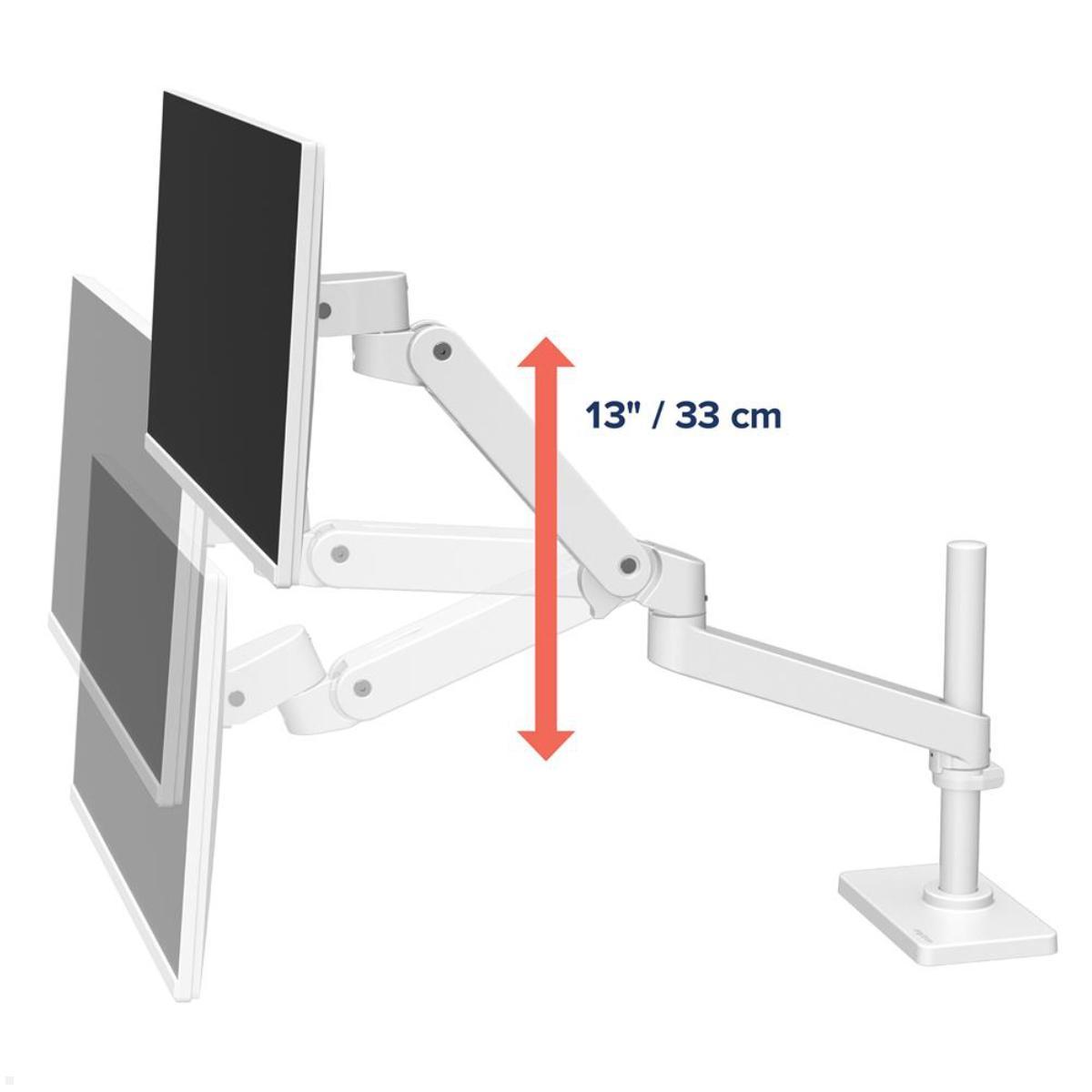

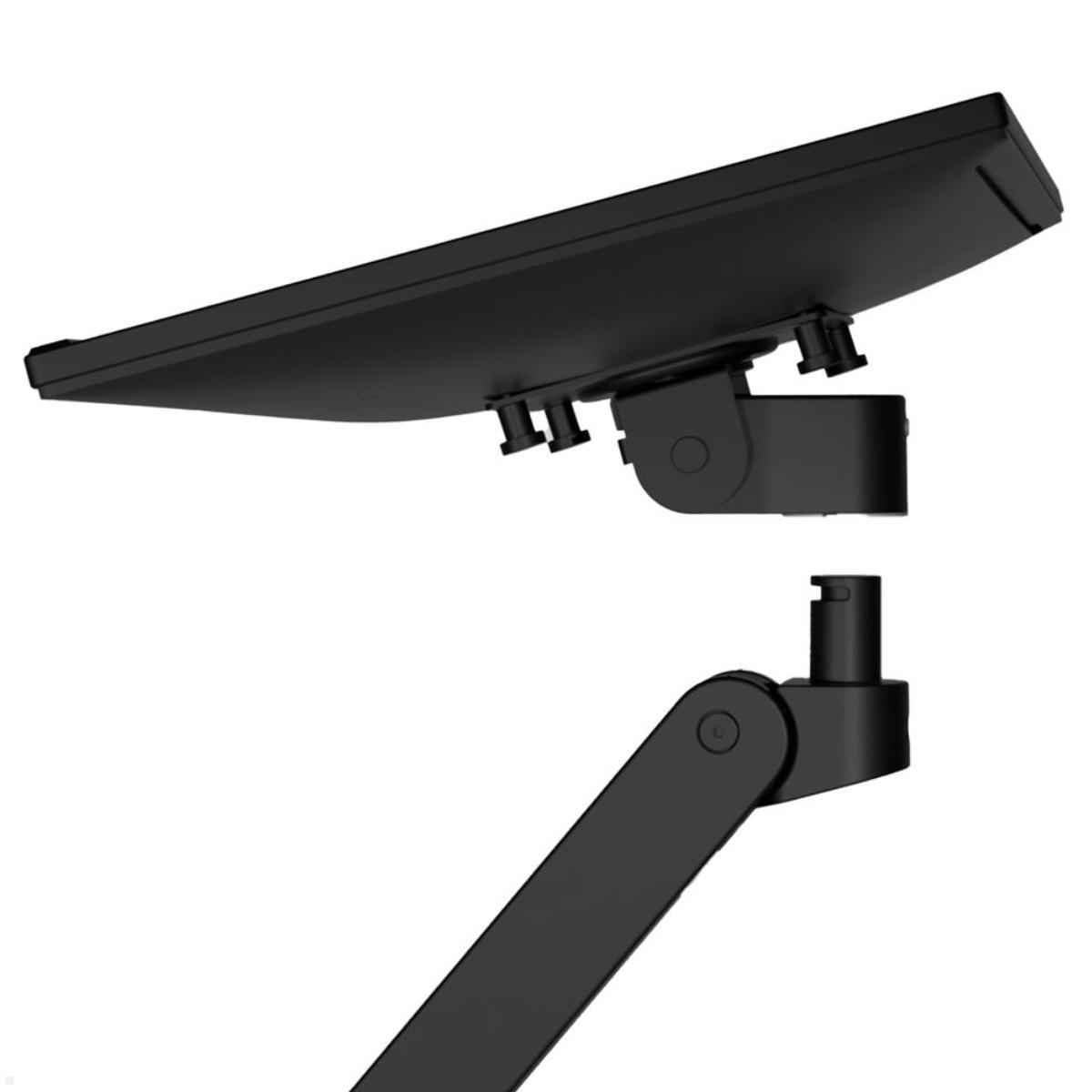

The common VESA sizes 75 x 75 and 100 x 100 mm are supported. The monitor can be adjusted 33 cm in height and swiveled up to 180°. A 360° rotation also allows easy switching between landscape and portrait orientation. With a reach of up to 65.6 cm, the screen can be pulled closer or moved further back depending on the task.

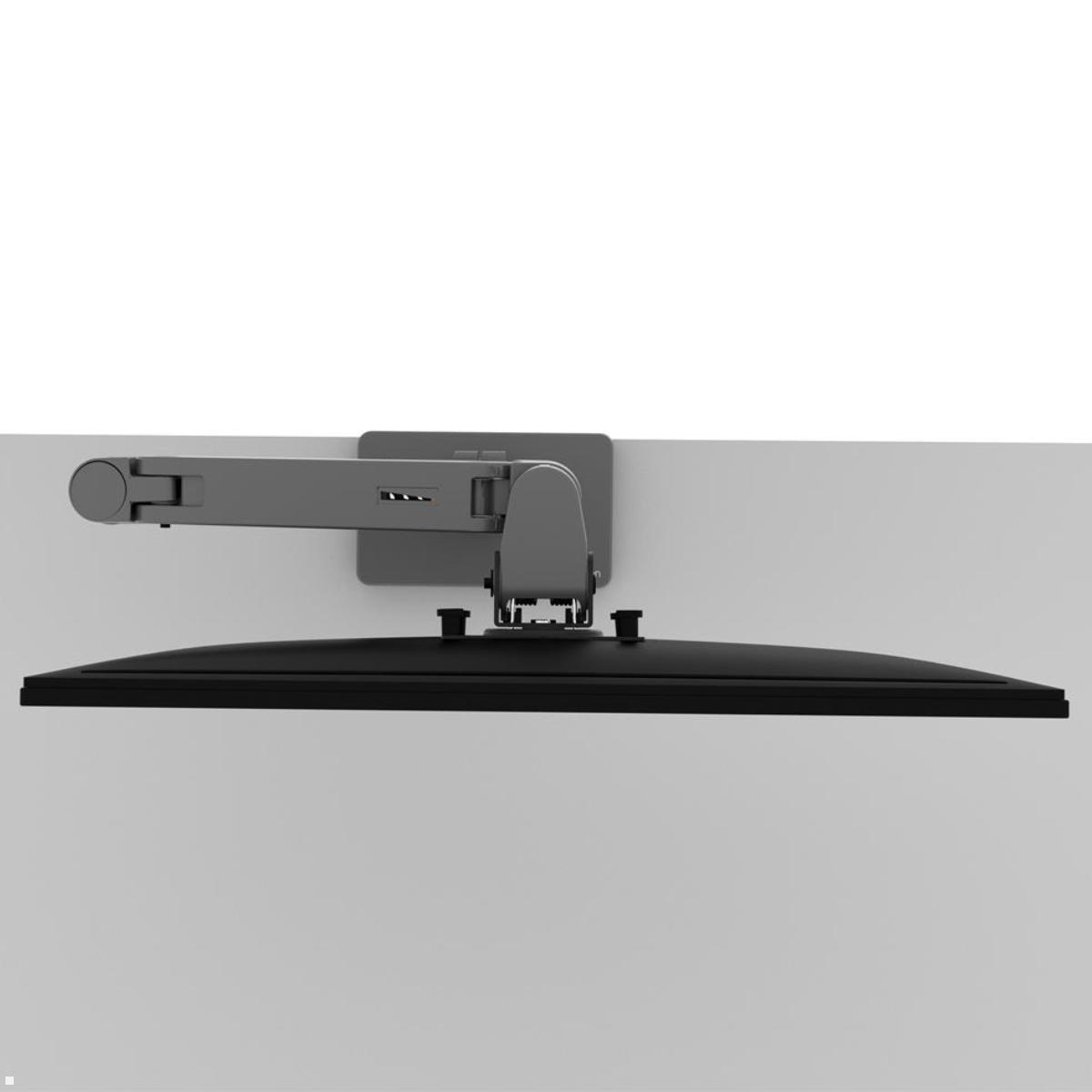

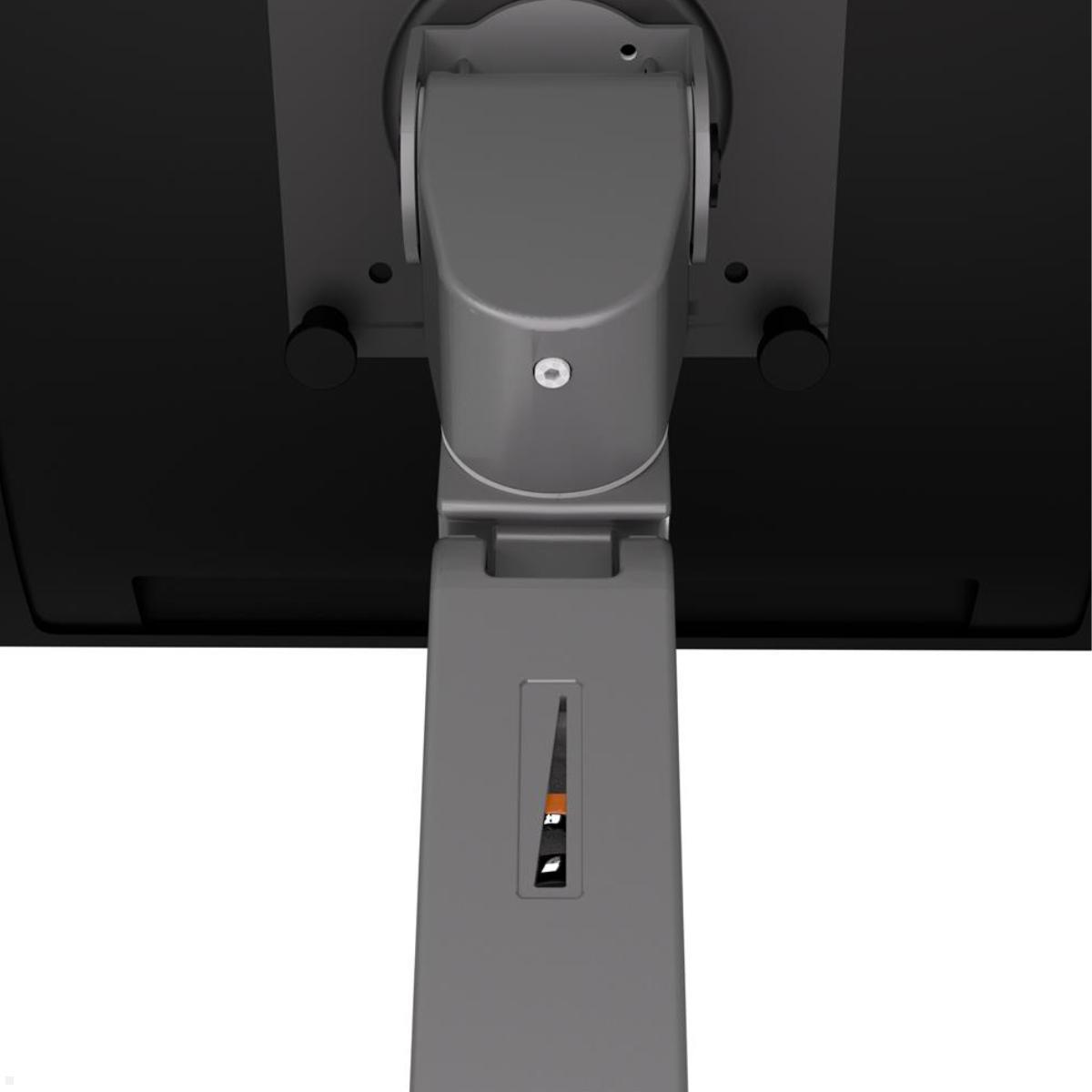

An integrated rotation stop can limit the lateral movement of the arm. This can, for example, prevent the monitor arm from swinging into adjacent walls or partitions.
How flexibly can the keyboard tray be adjusted?

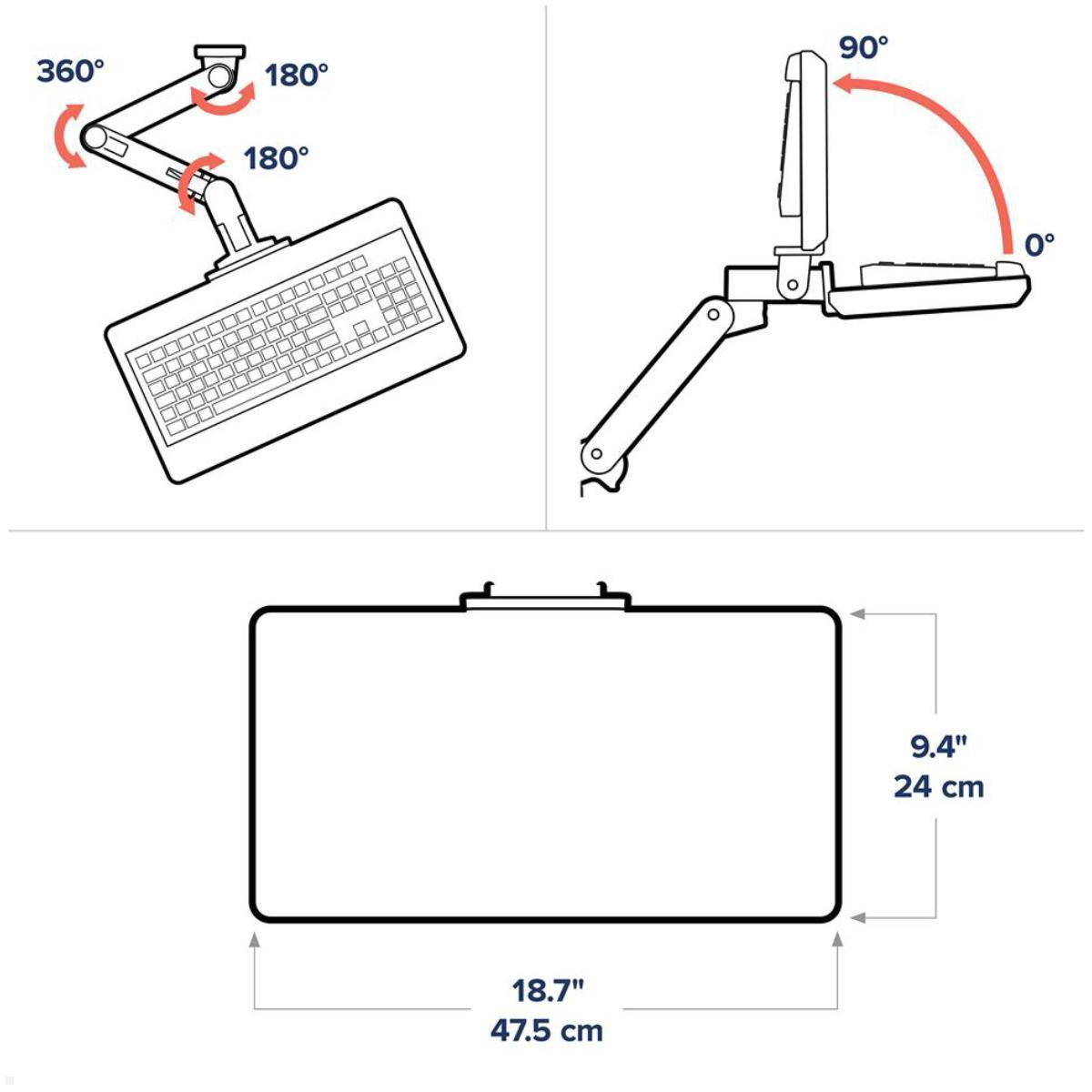

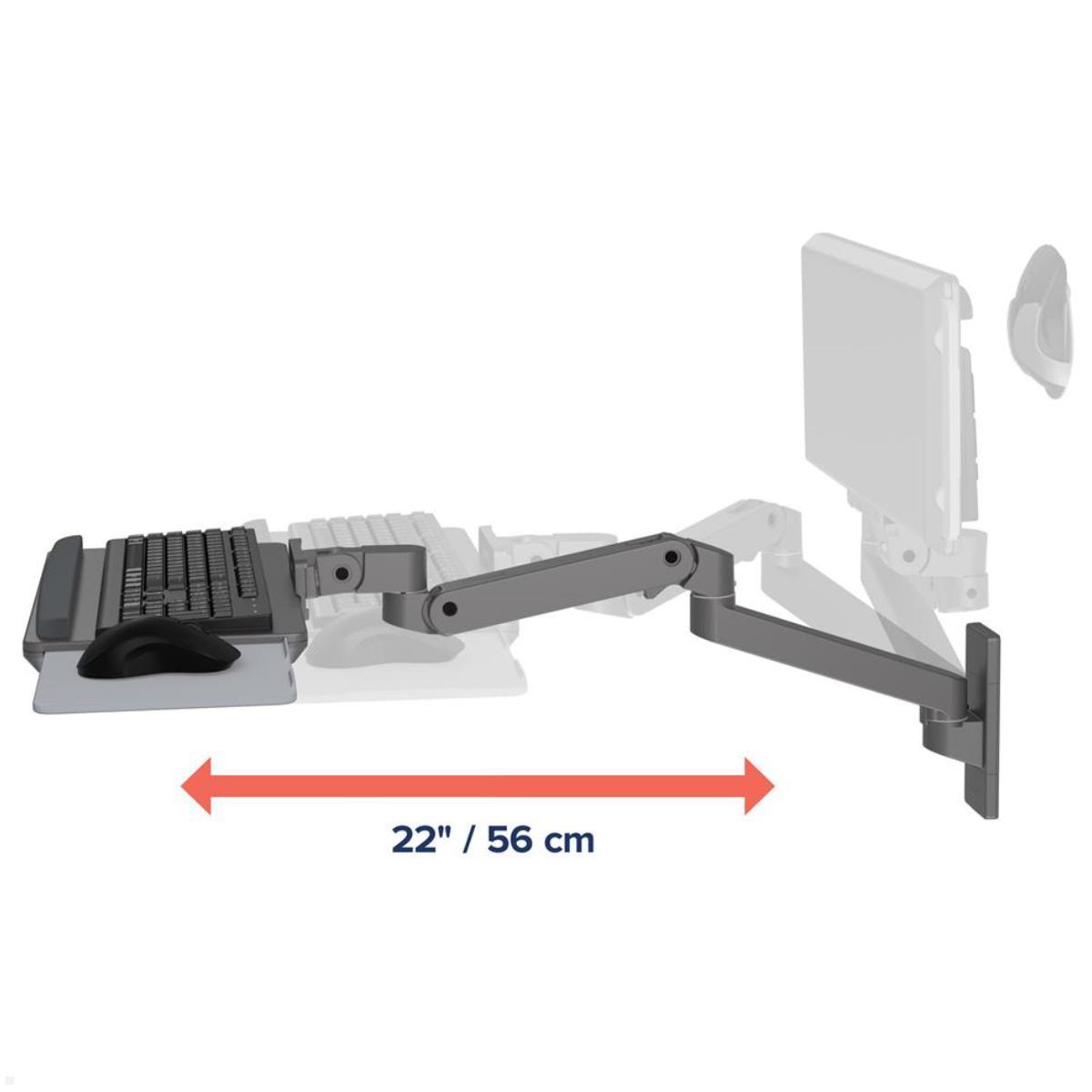

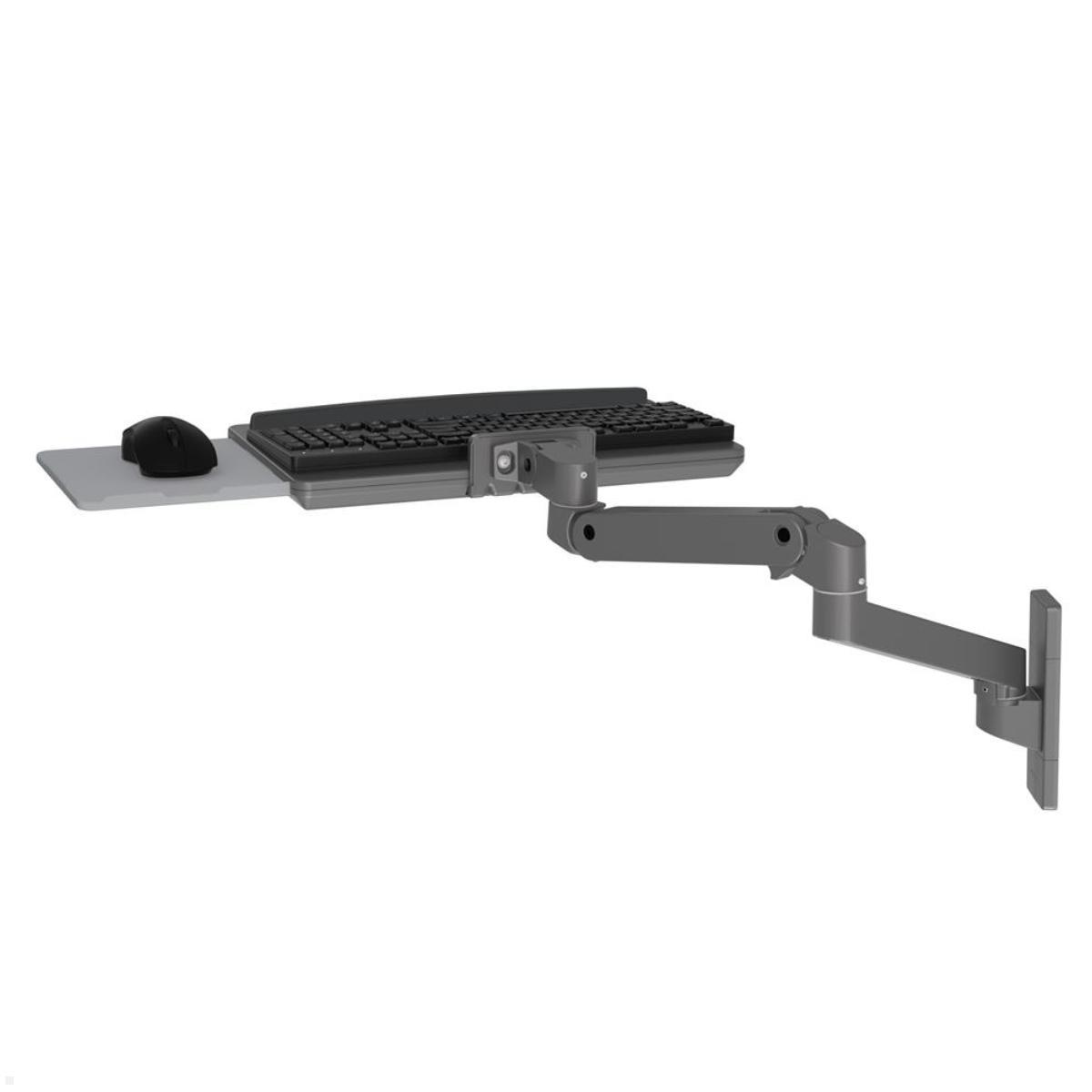

The LX Pro keyboard arm complements the monitor arm with a separately movable area for keyboard and mouse. The keyboard tray supports keyboards with dimensions of up to 44.6 x 24 cm and a load of up to 2.3 kg.

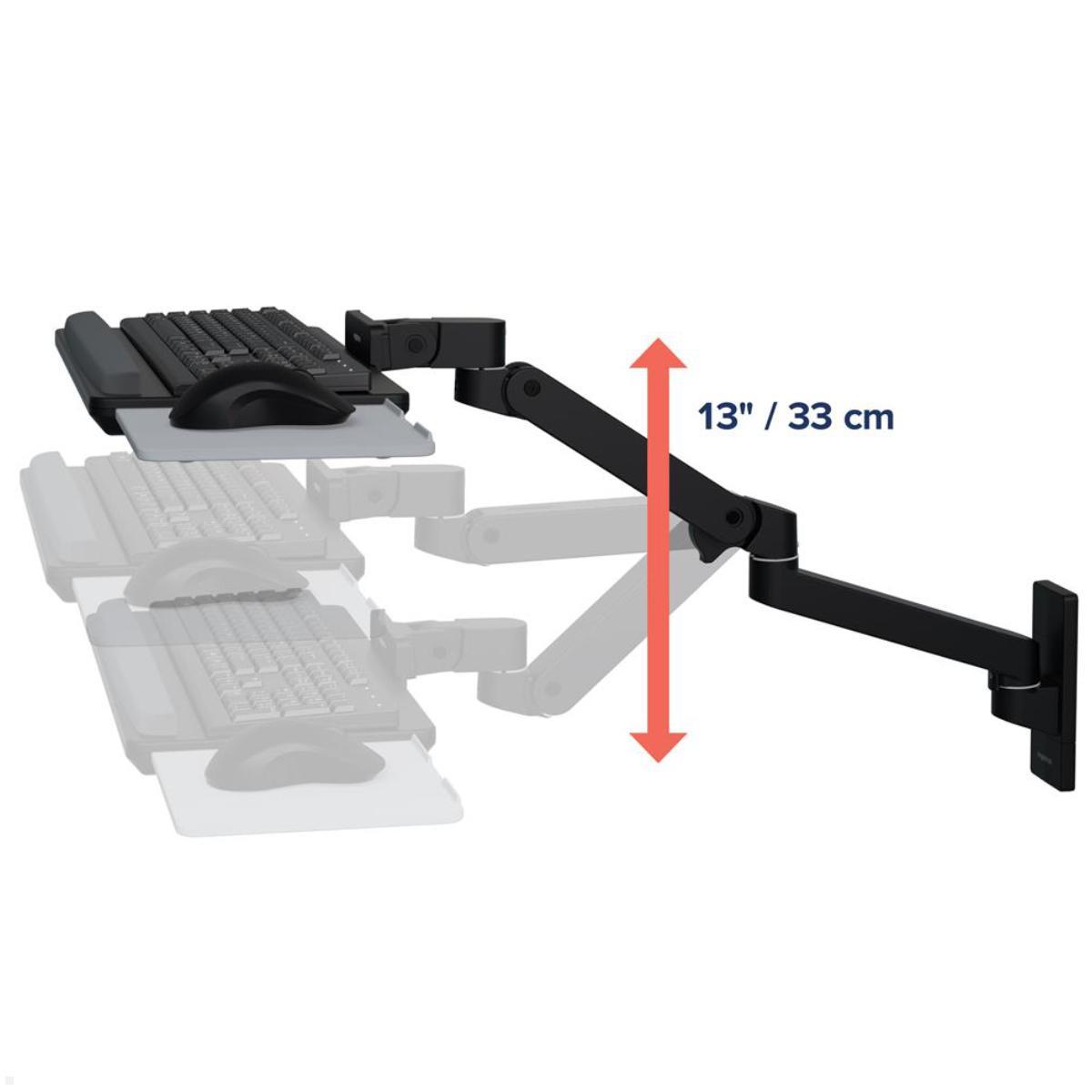

Like the monitor arm, the keyboard arm also offers 33 cm of height adjustment. This allows the input position to be adapted to different body sizes, seating positions and workflows. In the lower working position, the tray can tilt backward by up to 5°. When not in use, it can be folded up by up to 90°.
The keyboard area also includes a mouse tray and a wrist rest. Keyboard and mouse thus remain accessible together and can be repositioned together with the arm. Especially at workplaces with changing users or different working positions, this design offers a clear advantage over a keyboard fixed on the desk.
Why is the LX Pro set suitable for ergonomic workstations?
An ergonomic workstation requires more than the correct monitor height. The distance to the screen as well as the position of the keyboard and mouse also influence working posture. The Ergotron LX Pro complete set with monitor and keyboard arm therefore enables independent adjustment of the most important work tools.
At the same time, the desktop surface remains largely free. Monitor and input devices are carried by movable arms and can be moved out of the immediate work area when necessary. The LX Pro monitor arm's integrated cable management supports neat cable routing and contributes to a tidy workstation.
Ergotron relies on a modular design and mechanics designed for long-term use in the LX Pro series. The monitor arms undergo a 10,000-cycle motion test and come with a 10-year manufacturer’s warranty.
With three color options — black, white and gray — the Ergotron LX Pro monitor arm with keyboard tray can also be selected to match the existing office furnishings. This makes the set suitable for both traditional individual workstations and modern office environments, shared-desk concepts and flexibly arranged workstations.
