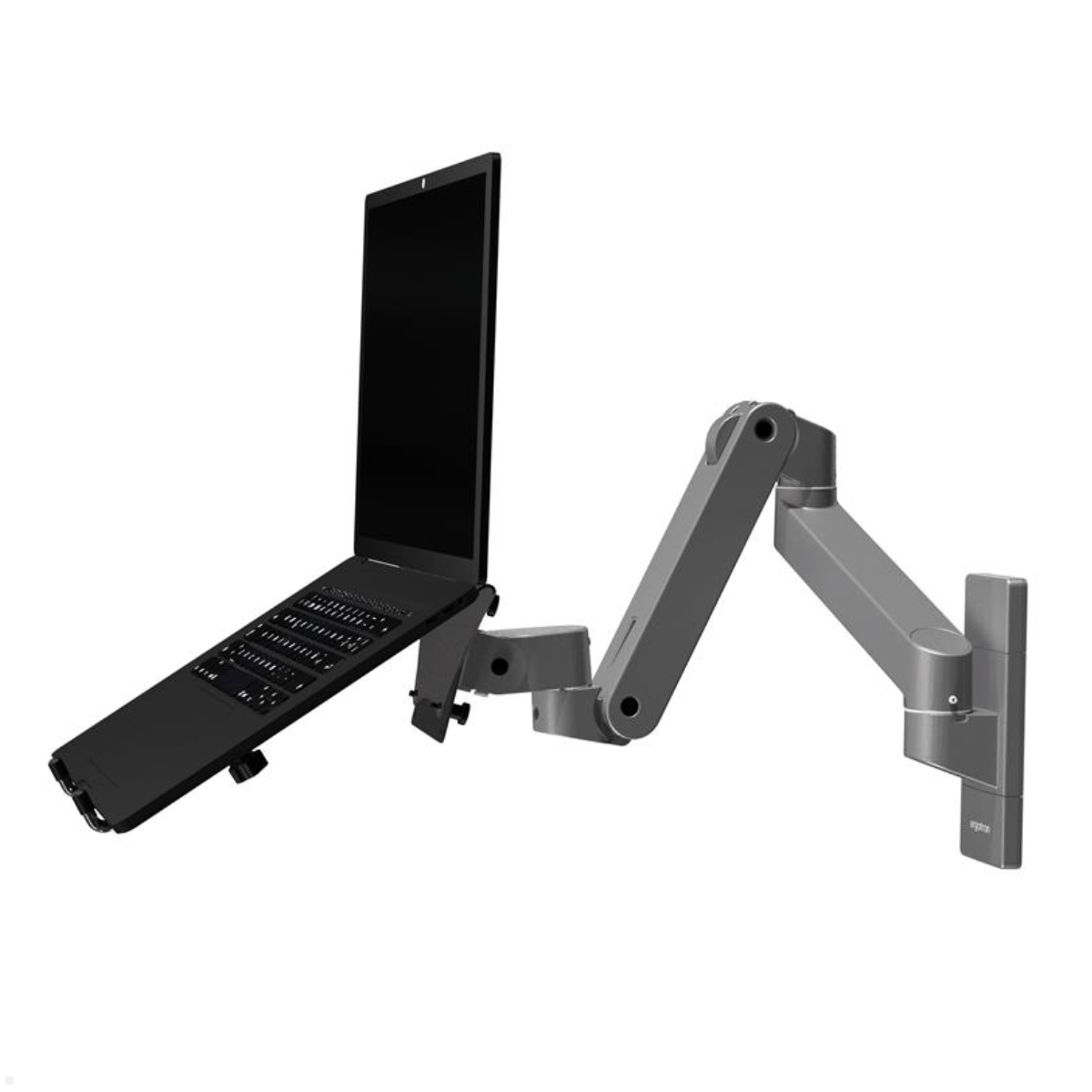

Ergotron LX Pro Swivel Wall Mount for Notebook/Laptop
Highlights
- Height adjustable
- Space-saving wall mounting
- Universal and stable
- Maximum flexibility
- Tidy workspace
Swivel Laptop Wall Mount
The Ergotron LX Pro Laptop Wall Mount features a highly flexible articulated arm that can be individually adjusted. The stepless height adjustment allows you to effortlessly raise your notebook to eye level, ensuring an ergonomic and comfortable working position. Thanks to tilt and swivel functions, you can optimally align your laptop and thus the screen, effectively preventing back and posture pain. Additionally, wall mounting creates more free workspace on the desk. The universally applicable holder is suitable for almost all notebook sizes and is equipped with a non-slip pad. It supports devices weighing up to 10 kg and is stabilized by non-slip adhesive strips on the mounting plate. Integrated cable management ensures tidy cable routing. Detailed assembly instructions are included for quick setup.
Technical Details Ergotron LX Pro Arm Laptop Wall Mount
- Type: Wall Mount
- Load Capacity: 1.8 - 11.3 kg
- Dimensions of Notebook Shelf (W x D): 229 mm x 236-401 mm
- Swivel: 180°
- Tilt: 85°
- Height Adjustable: 330° mm
- Depth of mount: 125 mm (folded)
- Monitor arm reach: up to 654 mm

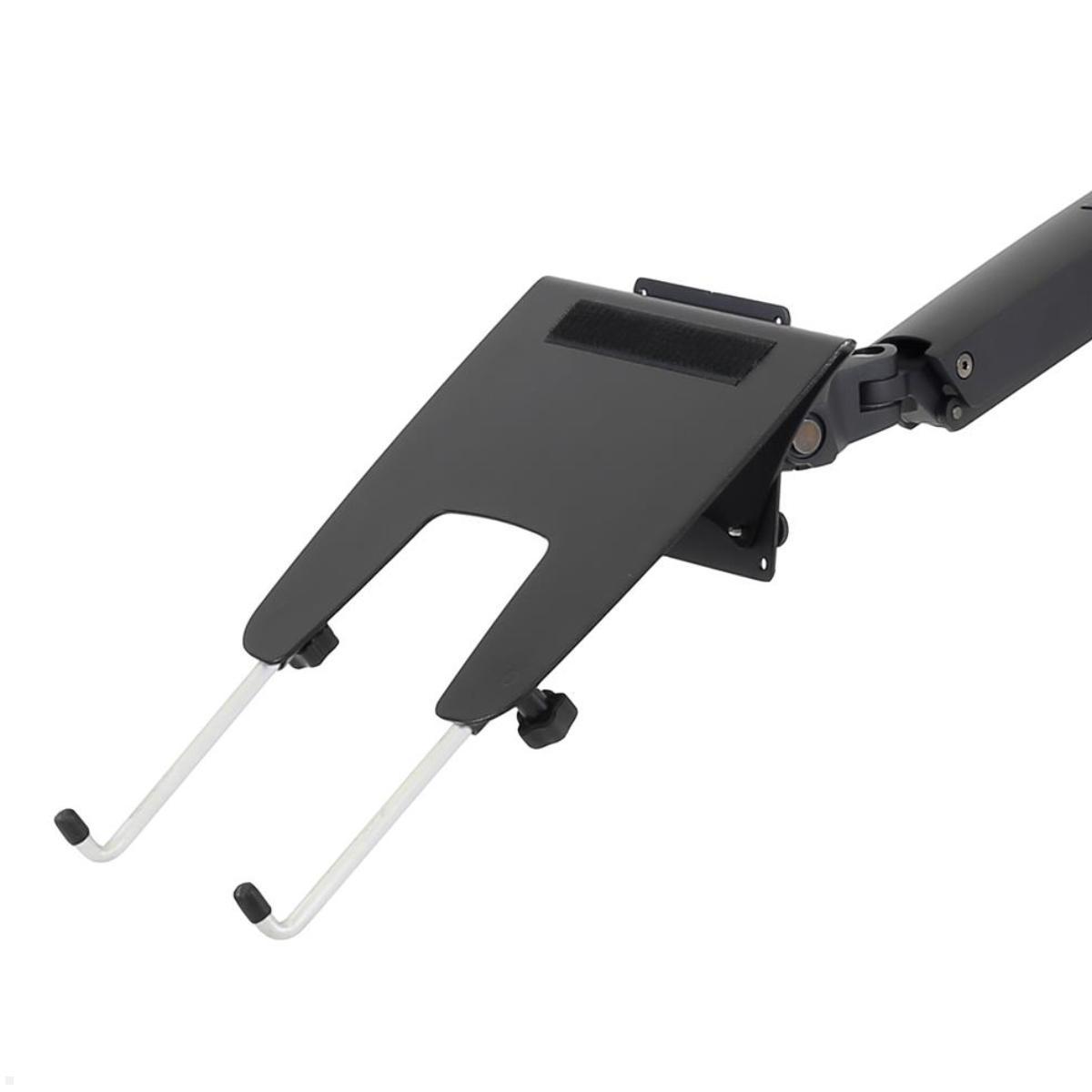

- Adjustable, open-sided mounting plate accommodates almost all notebooks and laptops
- Including cable management
- Arm can be retracted and folded over the base plate
Will your notebook or laptop fit?
We would be happy to check if your notebook is suitable for this Ergotron LX Pro Arm notebook/laptop wall mount. Simply provide us with your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the notebook or laptop is compatible and contact you if not.
| Product sheet: |  [pdf] |
|---|---|

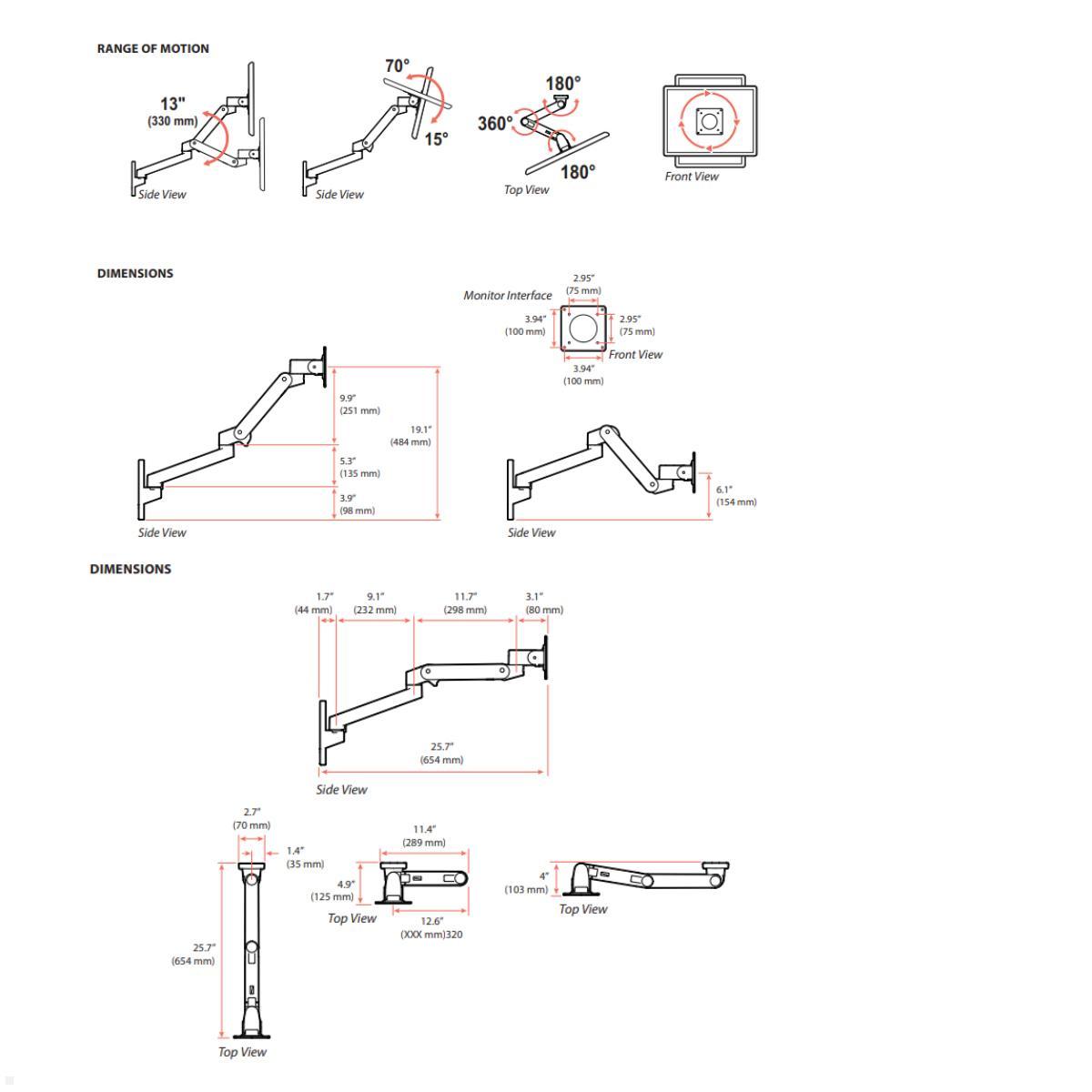

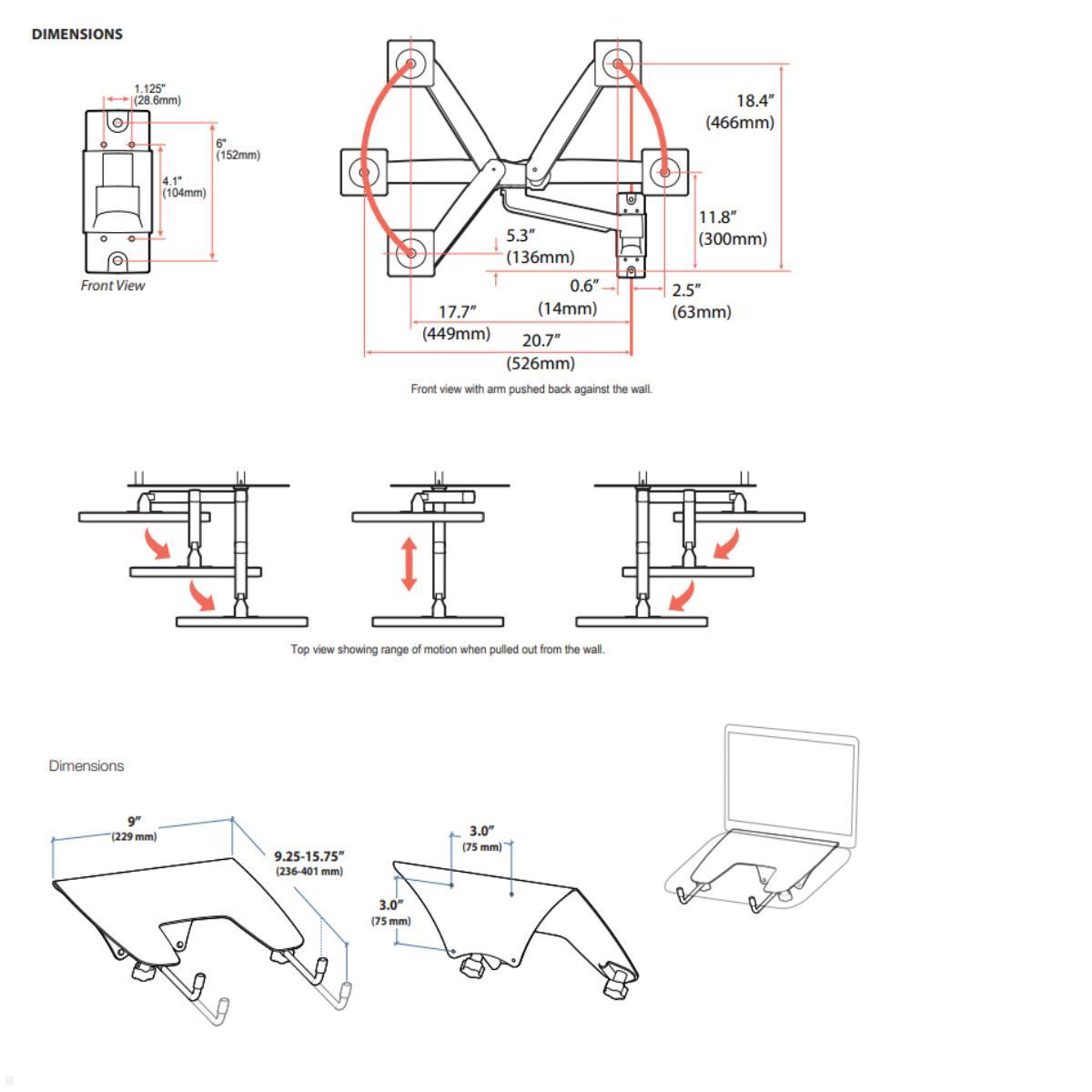

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1.8 kg |
| Capacity: | 10 kg |
| Tilt: | +70°/-15° |
| Height range (mm): | 330 mm |
| Swivelling range: | 180° |
| Length of the swivel arm: | 610 |
| Suitable for: | For almost all laptop sizes |
| Scope of delivery: | 1x Ergotron LX Pro Arm Notebook Wall Mount | 1x Notebook Shelf + Installation Material |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | wall mount |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
1 February 2026 12:26
Begeisternde Support – gerne wieder
Viel besser als vergleichbare Produkte. Qualität hat mich voll überzeugt.
Questions & Answers
-
What makes the Ergotron LX Pro Notebook/Laptop Wall Mount so special?
It features a particularly movable joint arm that can be adjusted. The infinite height adjustment lets you raise the notebook to eye level for an ergonomic working position, and tilt and swivel functions allow you to align the laptop and screen, helping prevent back and posture issues.
-
How adjustable is the arm?
The arm is highly adjustable: swivel 180°, tilt 85°, and height-adjustable 330 mm.
-
What is the weight capacity?
The description lists a weight capacity of up to 10 kg; the technical details specify 1.8–11.3 kg.
-
Is it suitable for nearly all notebook sizes?
Yes, it is universally suitable for nearly all notebook sizes and features a non-slip base.
-
What extra features does it have?
It includes cable management, an adjustable, side-opening mounting plate, and the arm can be retracted and folded back over the mounting base.
-
How is it mounted?
Wall-mounted to free desk space, with a detailed mounting guide included.
-
How can I check if my notebook fits?
We’re happy to check; just provide the Manufacturer + Model number at the end of the order in the comments field, and we’ll confirm; if it doesn’t fit, we’ll contact you.
-
What is included?
Includes cable management; detailed mounting instructions are included.
Why mount a laptop wall mount with a swivel function?
A swiveling laptop wall mount allows for maximum flexibility while working and simultaneously creates valuable desk space. The Ergotron LX Pro laptop wall mount combines ergonomic design with high functionality, making it a perfect fit for home offices, offices, or coworking spaces. The flexible articulated arm allows the laptop to be effortlessly adjusted in height, pulled forward, or folded back against the wall. This creates a tidy workspace that not only looks more professional but can also increase productivity.
Thanks to the stepless height adjustment, it is possible to position the notebook at eye level. This ensures that working at the screen is significantly more relaxed, as it relieves strain on the neck and back. An ergonomic working position is now considered an important factor in modern offices and home offices, as it can prevent postural damage and back pain in the long term.
How flexible and ergonomic is the Ergotron LX Pro notebook wall mount?
The Ergotron LX Pro impresses with its excellent mobility. The laptop holder is swivel, tilt, and height-adjustable and can be individually adapted. Tilt and swivel functions allow the screen to be optimally aligned – ideal for ergonomic work or presentations directly at the workplace. The wall arm can also be retracted and folded compactly when not in use. Another advantage is the universally usable notebook shelf. It offers space for almost all common laptop models and ensures a secure hold thanks to non-slip surfaces and adhesive strips. With a load capacity of up to 10–11.3 kg, the wall mount is also suitable for high-performance business laptops or gaming notebooks. The integrated cable management neatly routes power cables, HDMI and USB connections along the arm. This prevents cable clutter and makes the workspace appear significantly tidier. A plus in terms of appearance and safety.
Who is a swiveling wall mount for laptops suitable for?

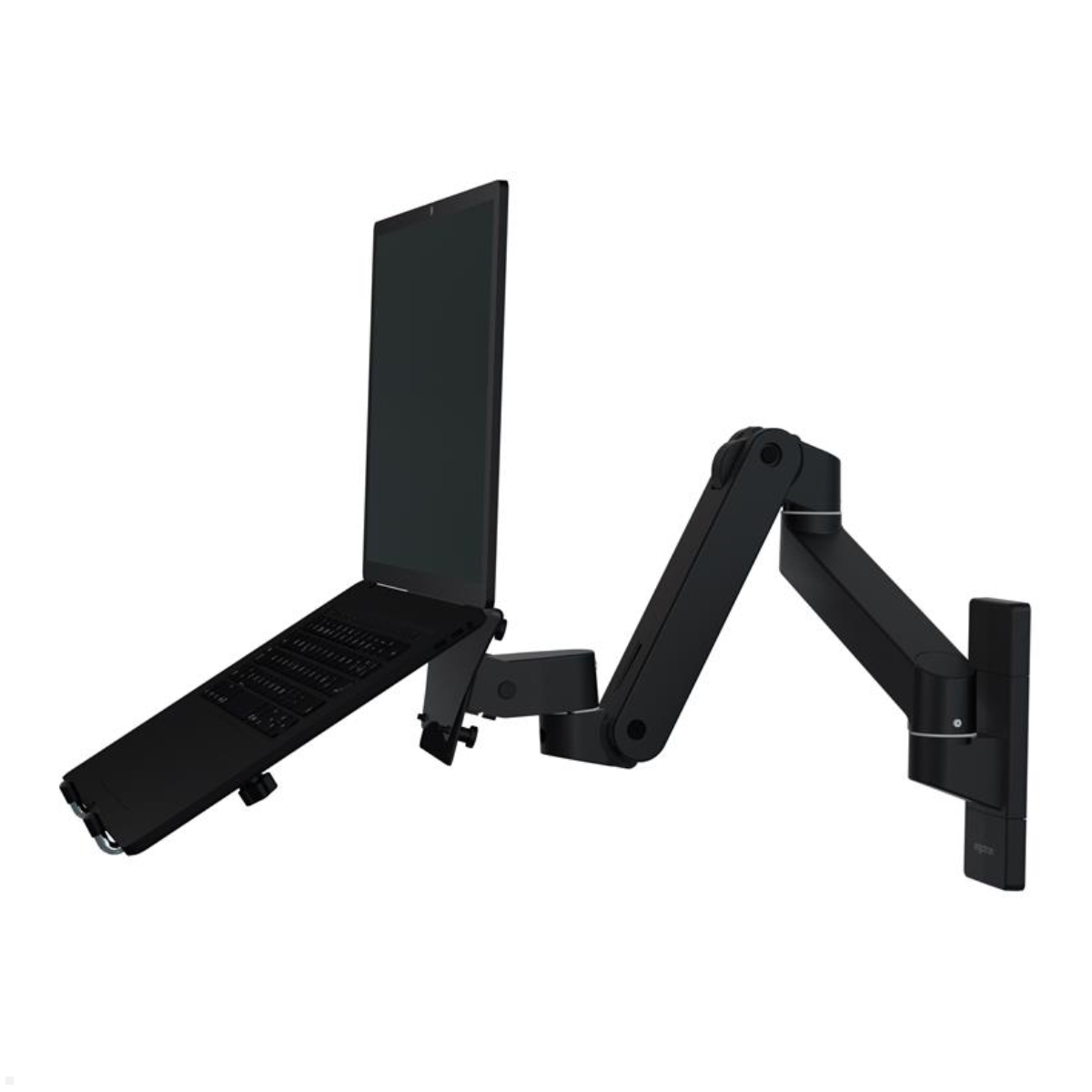

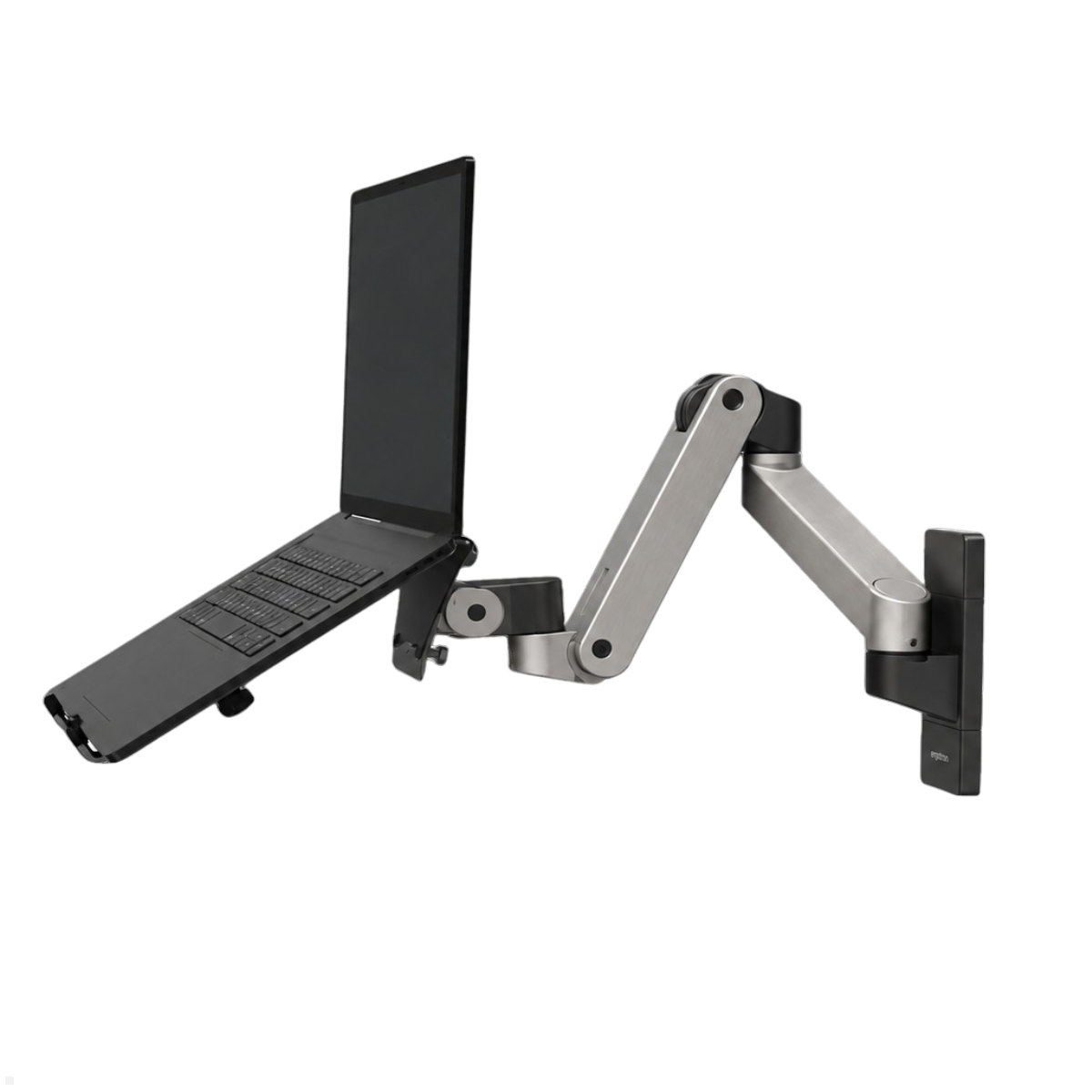

A swiveling laptop wall mount is particularly worthwhile for people who frequently switch between sitting and standing or want to use their workspace flexibly. Small desks or workstations also benefit enormously from the space-saving wall mounting. Since the laptop is suspended freely, more workspace remains for documents, graphics tablets, keyboards, or accessories. The mount is ideal for home offices, office workstations, creative studios, and workshops where a robust and ergonomic setup is required. The Ergotron LX Pro also meets high quality and safety standards, is durable, and designed for long-term use. For those who value ergonomics, organization, and flexibility, this laptop wall arm offers a well-designed and professional solution. Available in black, white, and gray.
