Ergotron LX Pro Accessory Monitor Arm Conversion Kit for Multi-Monitor Solution
High-quality extension kit for the Ergotron LX Pro monitor arm. Enables the ergonomic attachment of a second monitor up to 34 inches with integrated cable management and flexible positioning. Ideal for professional dual-monitor setups.
Ergotron LX Pro Monitor Arm Expansion Kit - Multiple Monitor Mount
The Ergotron LX Pro Monitor Arm conversion kit is the perfect addition for anyone who wants to add a second monitor to their existing LX Pro monitor arm. Whether in a modern office, professional studio, or ergonomically designed home office, this kit impresses with its high-quality workmanship, maximum flexibility, and elegant design. The expansion kit allows two monitors to be mounted side by side in an ergonomic and space-saving manner, which not only increases productivity but also significantly improves posture. The fully articulated joints allow for individual adjustment of the position – both in height and depth. and allow for comfortable tilt and rotation of the monitors. This ensures you always have the optimal viewing angle, regardless of whether you're working sitting or standing.
Made of robust aluminum, the kit's finish blends harmoniously into modern work environments. Thanks to the integrated cable management, all cables remain invisible and neatly tucked away – for a tidy and professional appearance of your workspace. The VESA-compatible mounts support monitors up to 34 inches in size and weighing up to 10 kg, thus meeting the needs of even the most demanding users.
Key features Extension Arm for Monitor Mount / Multi-Monitor Solution
- Material: Aluminum
- Extension Kit for LX Pro Monitor Arms
- Compatible Models: Ergotron LX Pro Monitor Arms
- Monitor Sizes: Monitors up to 34 inches
- Max. Load capacity: Up to 10 kg per monitor
- Height adjustment: Up to 330 mm
- Tilt: ±85°
- Pivot: 360°
- Rotation (Pivot): 360° (portrait/landscape)
- VESA mount: 75x75, 100x100 mm
- Cable management: Integrated cable routing along the arm
- Mounting: Tool-free connection to existing LX Pro monitor arm
- Warranty: 10 years

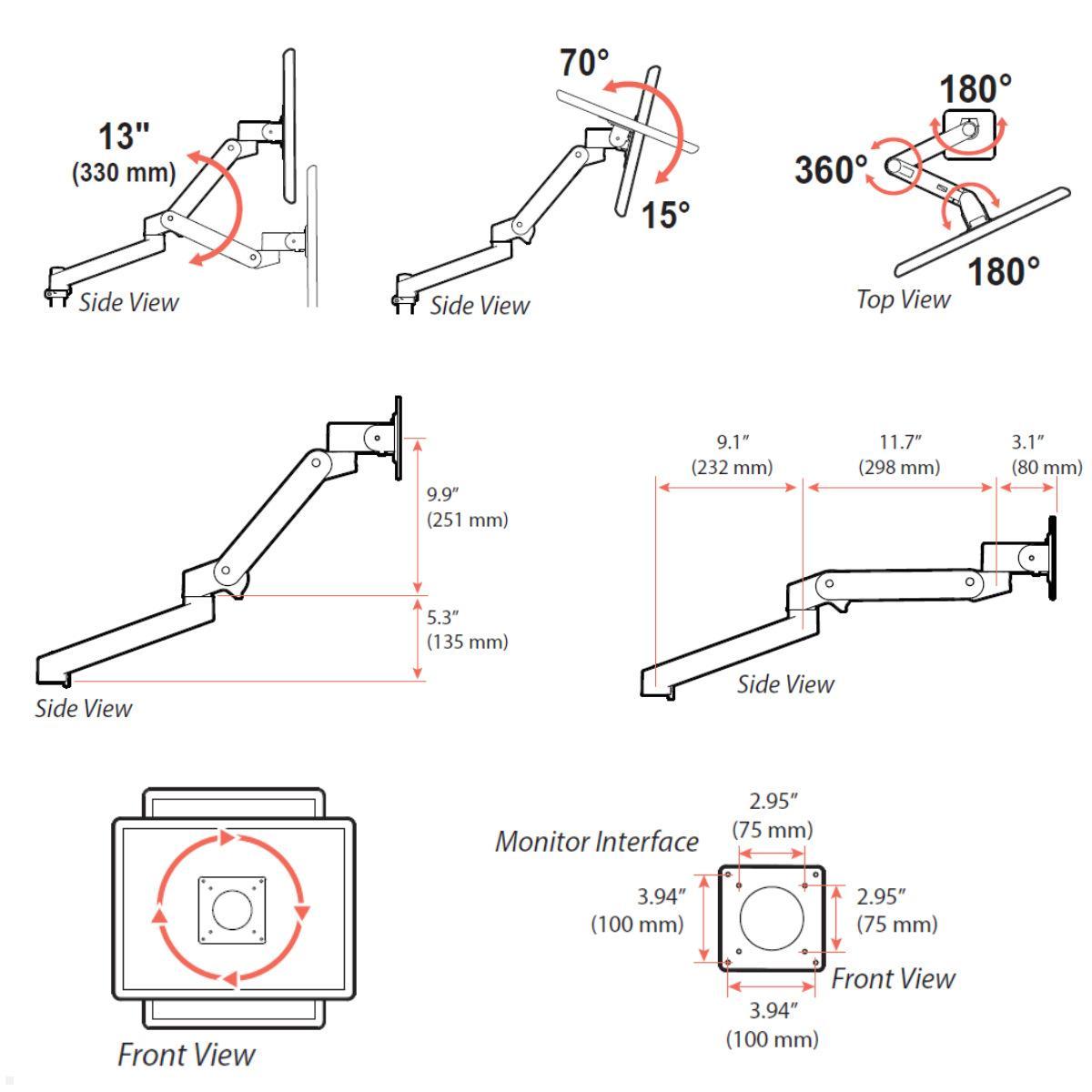

| Technical drawing: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Warning/safety instructions: | https://www.monitorhalterung.de/pdf/de/ergotron/ergotron-lx-pro-zubehoer-monitorarm-umbausatz-fuer-multi-monitor-loesung-mounting.pdf |
| Minimum weight: | 1,8 kg |
| Capacity: | 10 kg |
| Tilt: | 85° |
| Rotate: | 360° |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Screen size: | ≤34" |
| Material: | Aluminium |
| Special features: | Accessories for LX Pro Series |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 415 x 350 x 165 |
| Scope of delivery: | 1x LX Pro monitor arm conversion kit |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |

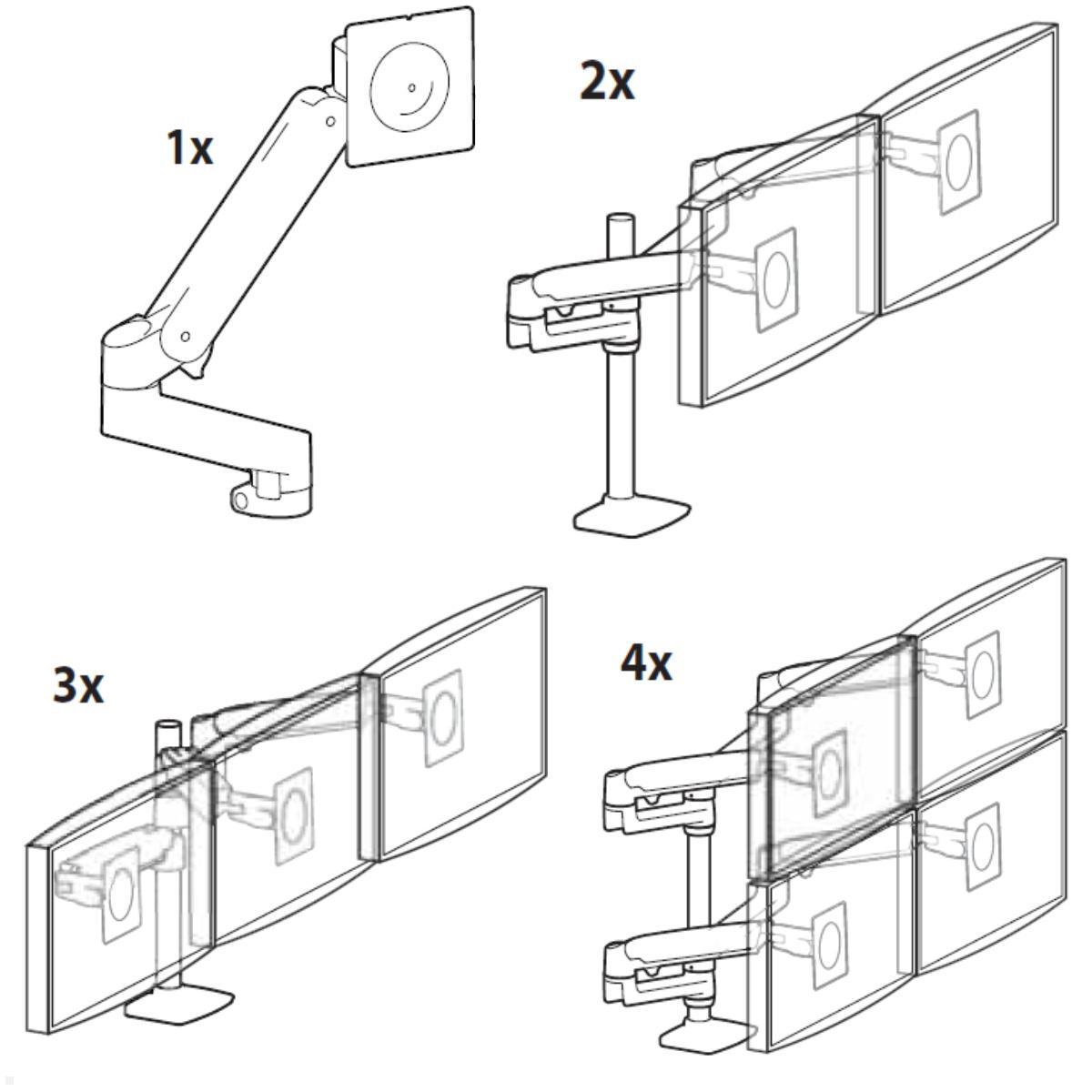

| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
Ergotron LX Pro Monitor Arm Extension Kit
A well-thought-out monitor setup is more important today than ever. Especially in offices, home offices, or creative work environments, an ergonomic workstation not only provides greater comfort but also increases productivity. The Ergotron LX Pro Monitor Arm Extension Kit is the ideal solution for functionally expanding an existing Ergotron LX Pro monitor arm and professionally integrating a second monitor.
Extension for ergonomic dual-monitor solutions
Optimal positioning for maximum comfort
The extension kit allows you to securely mount an additional monitor up to 34 inches and weighing up to 10 kg. The flexible design allows both screens to be aligned exactly as required. Whether in portrait or landscape format, side by side, or at different heights – the positioning options are virtually unlimited. Height adjustment of up to 33 cm, tilt of up to ±85°, and full 360° rotation ensure maximum mobility in the workplace.
Modern design with high-quality workmanship
Aluminum for stylish integration
The monitor arm's housing is made of durable aluminum with an elegant finish. This allows the extension kit to fit seamlessly into modern work environments and perfectly complement existing Ergotron components. The high-quality workmanship not only ensures stability and durability, but also makes the extension kit a visual highlight on any desk.
Integrated cable management for order and efficiency
Tidy work surfaces made easy
Another practical feature is the sophisticated cable management system. All cables can be routed directly through the arm, ensuring a clean and professional appearance. A tidy workspace looks impressive and professional, especially in open-plan workspaces or during video conferences with clients or partners.
Compatible with VESA and Ergotron LX Pro
Quickly assembled and ready to use
The extension kit is compatible with VESA 75x75 mm and 100x100 mm and can be easily combined with existing Ergotron LX Pro monitor arms. All necessary components are included: an extension arm, a monitor swivel arm, a pole ring, and all mounting hardware. Installation is quick and easy – no special tools required.
