Ergotron LX Pro Dual Monitor Desk Mount with High Column (45-690-290), White
The white Ergotron LX Pro dual monitor desk mount with high column (45-690-290) and 2-part desk clamp supports 2 screens up to 24 inches. The Constant Force™ technology enables effortless height adjustment and integrated cable management also ensures order and a tidy design.
Ergotron LX Pro dual monitor desk mount with high column
The Ergotron LX Pro dual monitor desk mount with high column (45-690-290), white, offers a flexible and ergonomic solution for using two monitors at one workstation. Whether next to each other or one above the other - the mount enables an individual arrangement to suit your respective working style. The particularly high column offers sufficient space for the vertical positioning of two screens, while the proven Constant Force™ Lift technology enables effortless height adjustment with just one touch. Thanks to the large tilt range, each monitor can be perfectly aligned to avoid reflections and set the optimal viewing position. The ergonomic flexibility promotes a healthy posture - both when sitting and standing. The modern, slim design in white blends harmoniously into any work environment. At the same time, the integrated cable management ensures a tidy desk. The practical rotation stop protects walls and partitions from damage, while the quick-release display makes monitor installation and replacement particularly easy. The combination of high flexibility, space-saving design and ergonomic advantages makes this desk mount the ideal solution for professional multi-monitor workstations.
Key features dual monitor desk mount
- Load capacity: 1.8 kg - 10 kg per screen
- Screen size: up to 24 inches per screen
- Height adjustable: 330 mm
- Tiltable: 85°
- Swivelable: 360°
- Rotatable: 90°, pivot function from landscape format to portrait format
- VESA mount standard MIS-D: 75x75, 100x100 mm
- Extra high column for flexible positioning even with stacked monitors
- Space for two monitors - can be arranged either next to or on top of each other
- Color: white
Does your TV, screen or display fit the VESA mount?
We would be happy to check whether your screen is suitable for this Ergotron LX Pro dual monitor desk mount with high column (45-690-290). Simply send us your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the television, monitor or display fits and if not, we will contact you.
VESA Standard - Find out more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

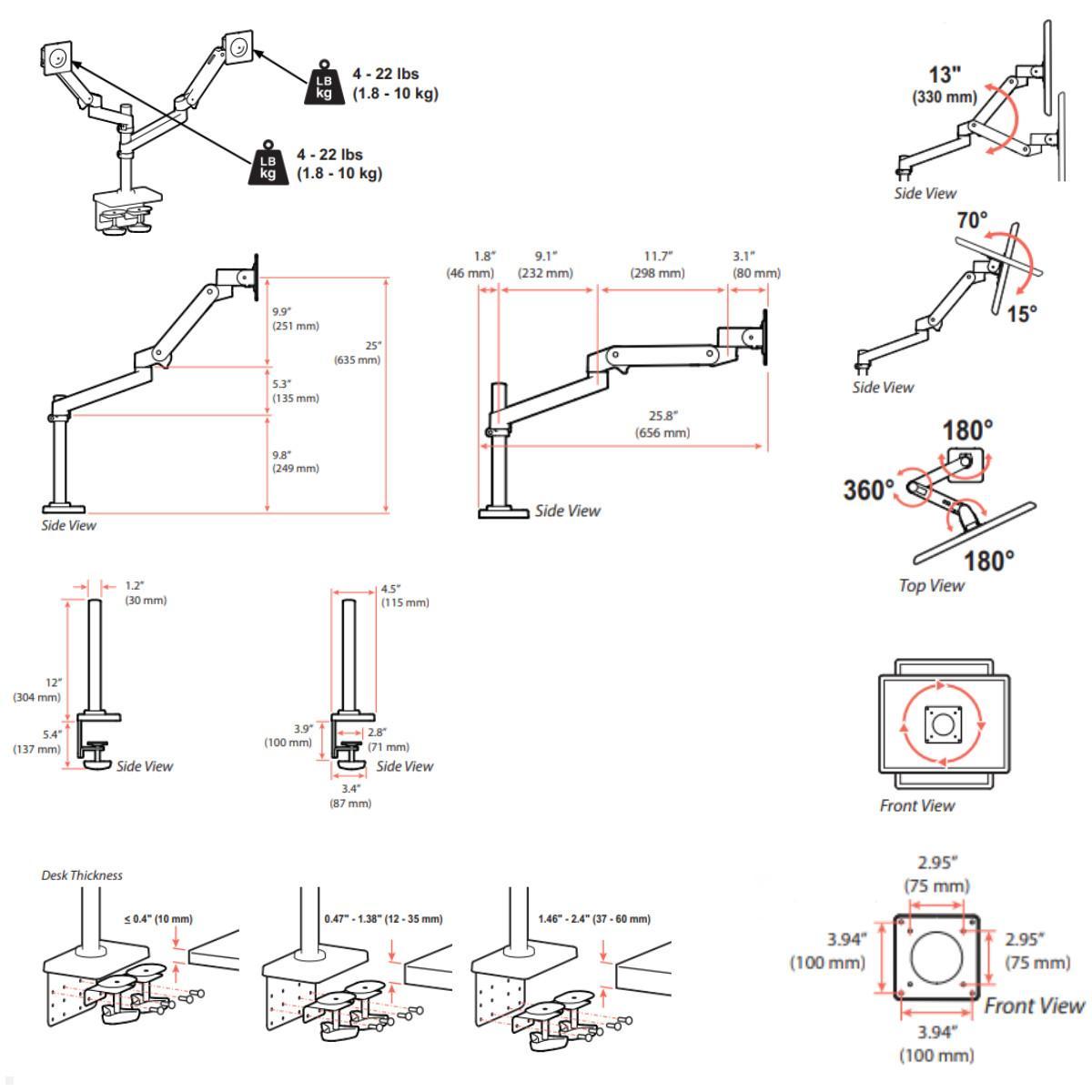

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1,8 kg |
| Capacity: | 10 kg |
| Tilt: | 70°/15° |
| Rotate: | 360° |
| Height range (mm): | 330 |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 610 |
| Screen size: | ≤24" |
| Thickness of table (mm): | desk-clamp (10 - 60 mm) |
| Material: | Aluminium |
| Depth of the bracket: | 656 mm |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 600 x 470 x 170 |
| Scope of delivery: | 2x Ergotron LX Pro monitor arms, 1x desk mount, mounting hardware, assembly instructions |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot) |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 2 monitors one above the other, 2 monitors side by side |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
