TV Mount for Drywall – What Should You Know?
Anyone planning to mount a TV on drywall often wonders whether the wall can safely support the weight of the screen. When choosing a suitable TV mount for drywall, it is important to consider more than just the screen size and the mount's weight capacity. The wall structure, fastening materials and potential leverage forces also play a significant role. Unlike solid concrete or brick walls, drywall partitions typically consist of plasterboard panels attached to a metal or wooden stud framework. With proper planning and a sufficiently strong wall structure, mounting a TV on drywall is possible. This guide explains the requirements, suitable TV wall mounts and common installation mistakes to avoid.
TV Mounts for Drywall – Requirements and Installation Options
Installing a TV wall mount on plasterboard is generally possible. However, it is essential to determine how the wall is constructed and what loads it can support. The load-bearing capacity of a drywall partition depends on several factors, including the thickness and number of plasterboard layers, the supporting framework and the type of fastening system used. A double-layer plasterboard wall may support higher loads than a single-layer construction under suitable conditions. Nevertheless, no universal weight limit can be determined without assessing the entire wall structure and its fixing points.
One particularly important factor is the difference between the weight of the television and the forces generated by the wall mount. A fixed TV bracket positions the screen close to the wall, while a full-motion mount can extend the television significantly further into the room. This creates additional leverage forces, particularly at the upper fixing points. Even if a TV wall mount is rated for a heavy television, this does not automatically mean that the drywall structure can safely withstand the resulting loads.
Why Is the Supporting Framework Important for Drywall Installation?
The supporting framework forms the structural basis of a drywall partition and usually consists of metal profiles or wooden studs. Plasterboard panels are attached to this framework to create the finished wall surface. When installing a TV mount on a plasterboard wall, the framework is particularly important because it may be able to support the load if designed appropriately. Securing the mount to suitable load-bearing structural components often provides better conditions than relying solely on the plasterboard panels.
However, not every metal stud is automatically suitable for supporting a television. Thin-walled metal profiles in particular may require additional reinforcement. When constructing a new drywall partition, it is therefore advisable to determine the future TV position during the planning stage. Suitable wood-based reinforcement panels or specially designed supporting structures can then be integrated into the wall. For existing walls, the position of the framework and the availability of sufficiently strong fixing points must be checked. Construction documents and suitable stud detectors can help identify the supporting elements.
Which Anchors Are Suitable for Mounting a TV on Plasterboard?
Depending on the wall structure, special cavity wall anchors, metal hollow-wall anchors or suitable toggle bolts may be used for fastening components to plasterboard. Unlike conventional anchors designed for solid walls, these systems may secure themselves behind the plasterboard panel and distribute forces over a larger surface area. Whether such a fastening system is suitable for a TV wall mount on drywall depends on several factors, including board thickness, the number of fixing points, wall construction and the forces involved.
Additional reinforcement may be necessary, especially for larger televisions or full-motion TV mounts. Suitable solutions may include reinforcement panels or specially designed supporting structures that are securely connected to the framework. Simply attaching a wooden board to the plasterboard surface does not automatically increase the wall's load-bearing capacity. The reinforcement itself must also be properly secured. The manufacturer's specifications and the suitability of the entire fastening system are therefore essential.
Which TV Wall Mount Is Best for Drywall?
When selecting a suitable TV mount for drywall walls, the weight and size of the television are important, but the distance from the wall and the mount's range of movement also need to be considered. Fixed, tilting and full-motion TV wall mounts are available. These designs differ not only in functionality but also in the forces they transfer to the wall.

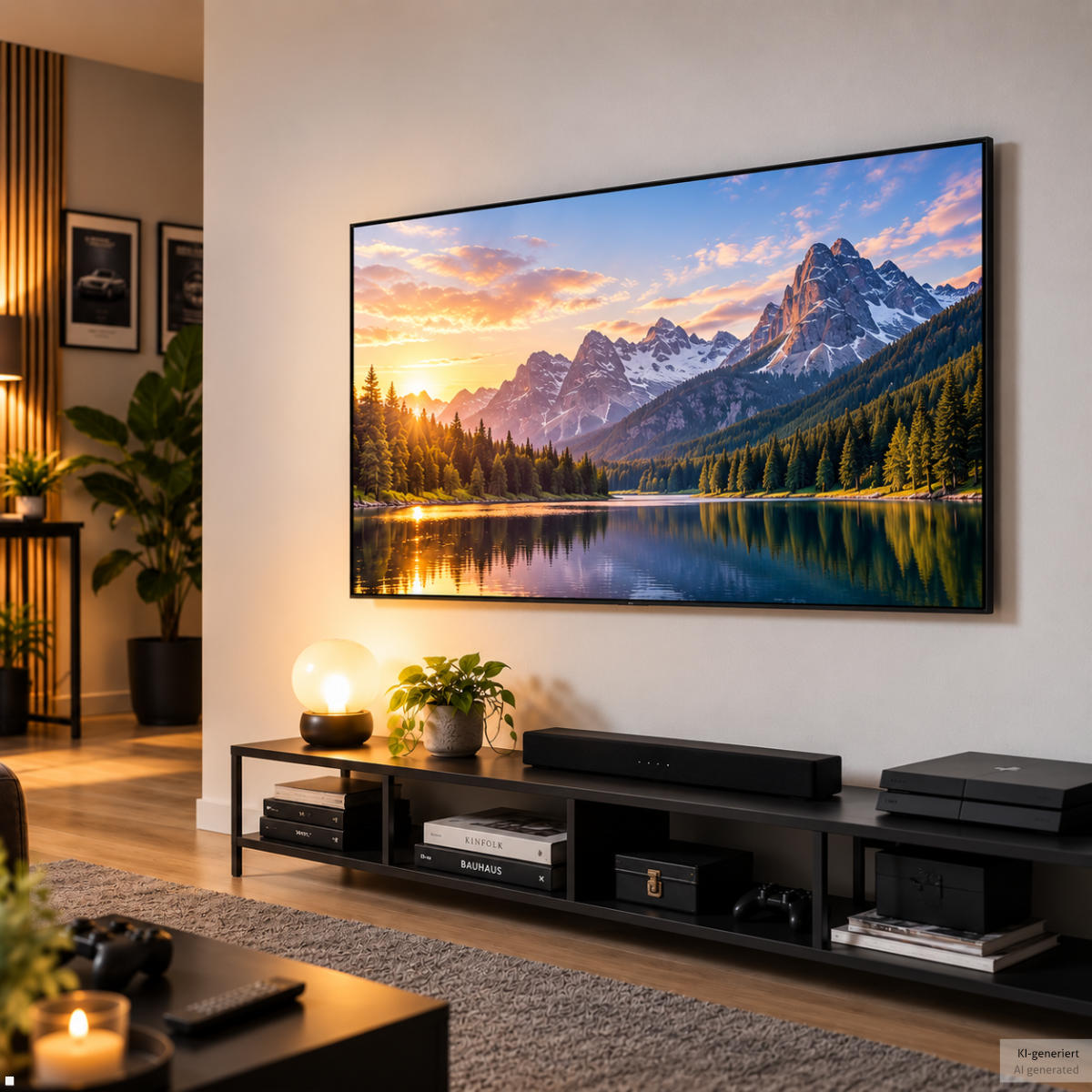

Fixed TV wall mounts provide a particularly space-saving solution because they position the television close to the wall. Compared with fully extended articulating mounts, they generally produce lower leverage forces. A fixed mount may therefore be a suitable option for living rooms, bedrooms or meeting rooms where the television remains in one position. Explore our selection of flat TV wall mounts for compatible screens.

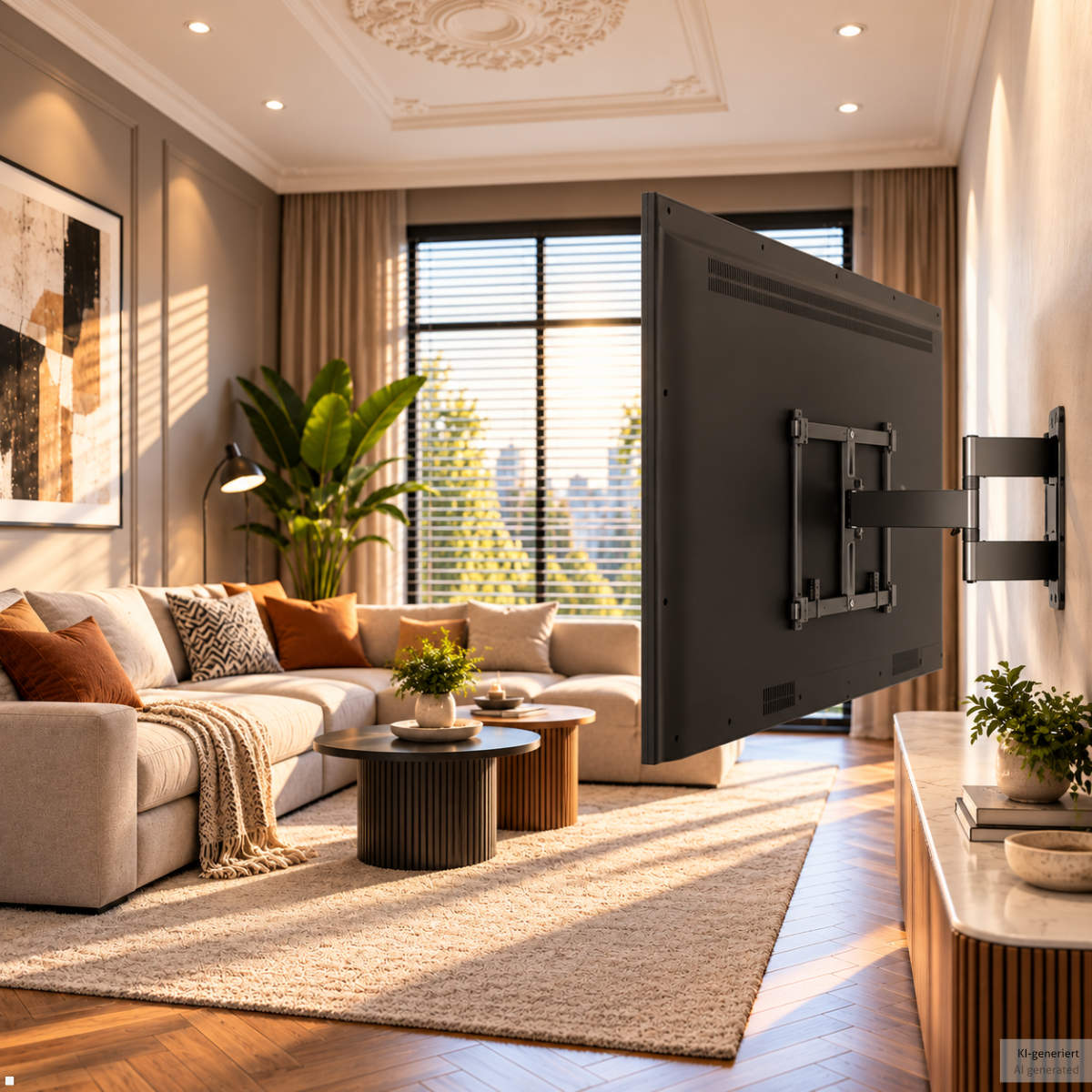

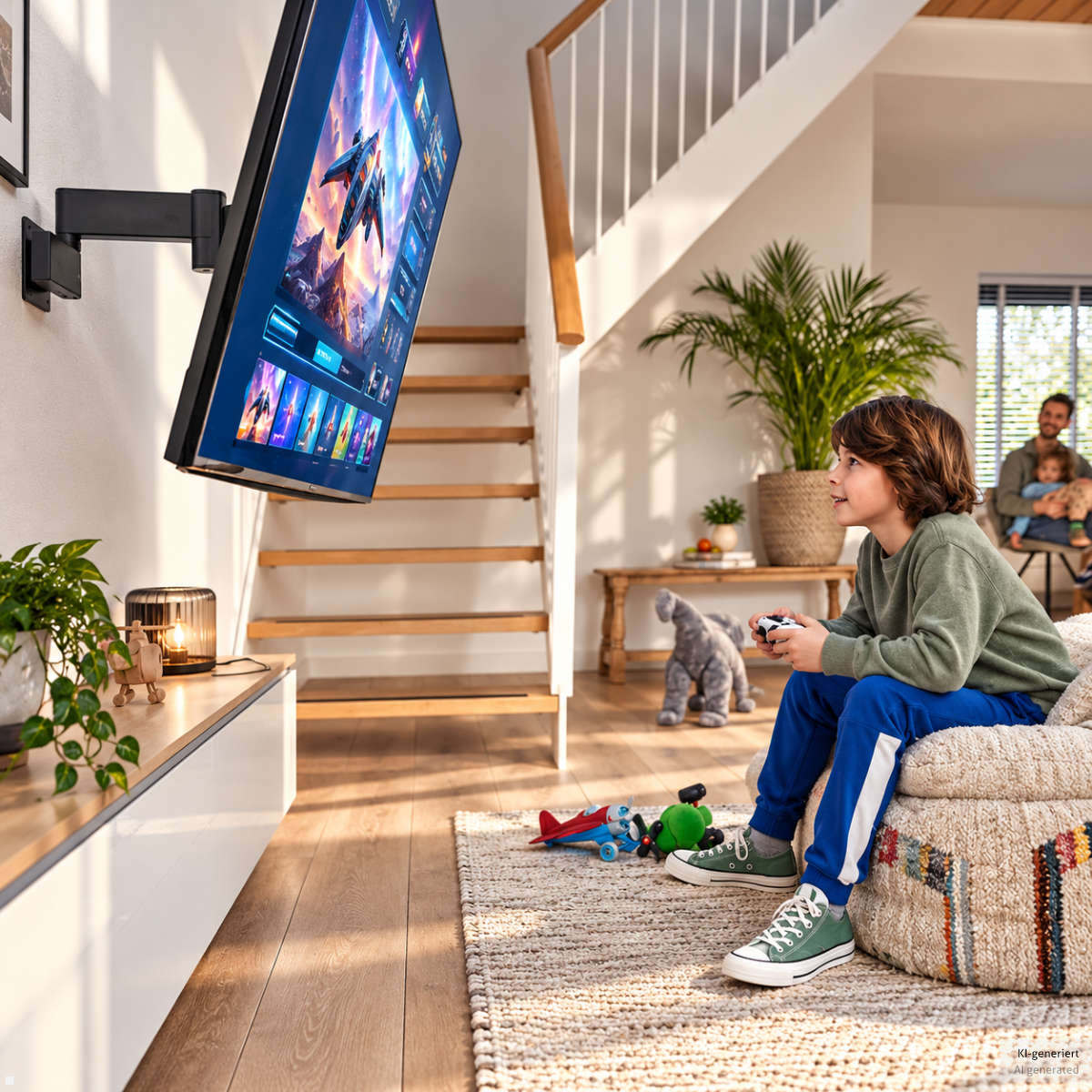

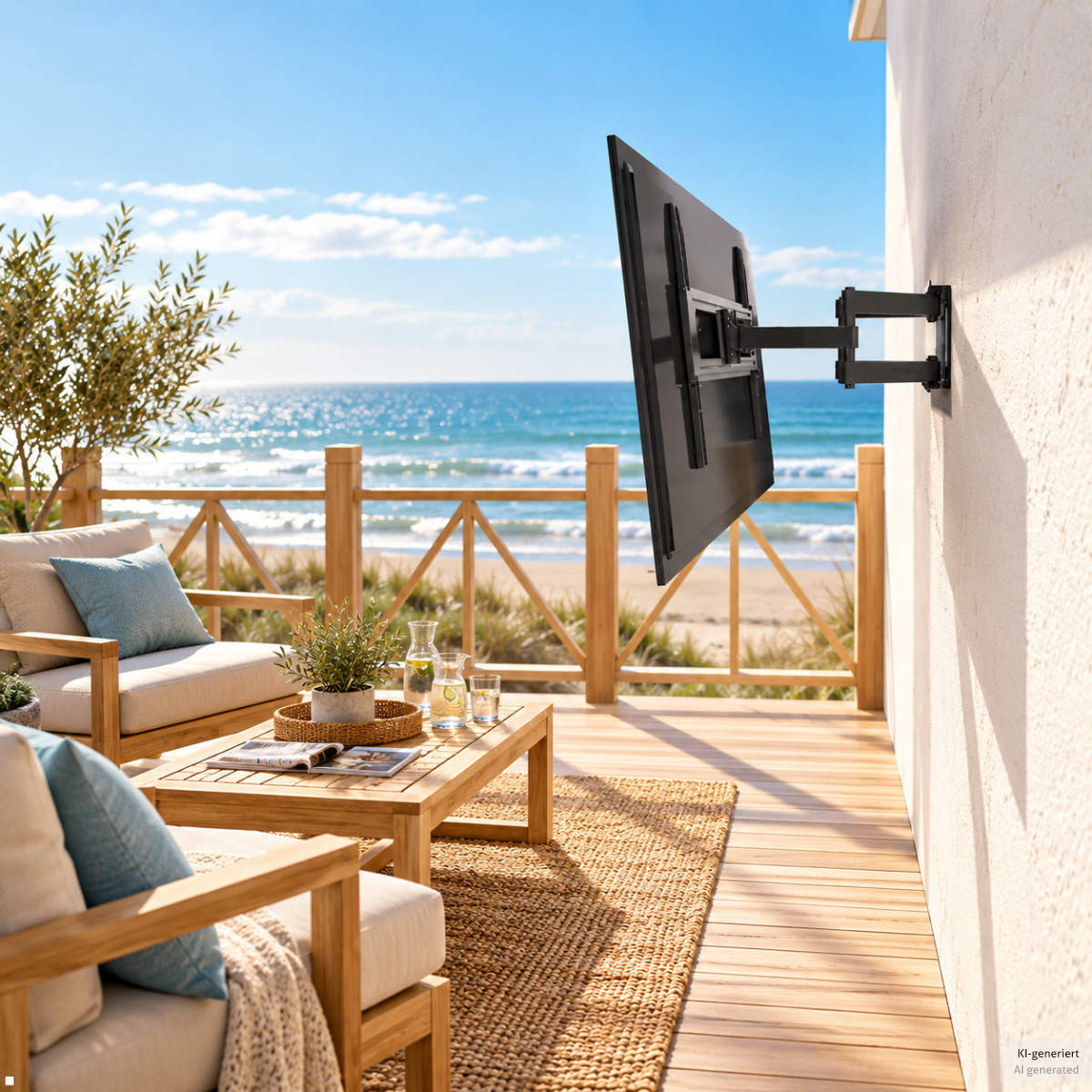

Tilting TV wall mounts offer additional flexibility by allowing the screen to be adjusted vertically. This can be useful when a television is mounted slightly higher or when reflections from lighting need to be reduced. Full-motion TV wall mounts, on the other hand, allow the screen to be adjusted for different viewing positions. When installed on drywall, the additional leverage forces must be taken into account. The further the television extends from the wall, the greater the torque at the fixing points may become. A suitably designed supporting structure is therefore particularly important for articulating mounts.
Regardless of the design, the wall mount must be compatible with the television. The most important selection criteria include maximum weight capacity, screen size and VESA compatibility. The VESA standard defines the spacing of the mounting holes on the back of the television. Learn more in our VESA standard guide or discover useful advice in our TV wall mount buying guide. You can also explore our selection of TV wall mounts for different screen sizes and applications.
How Do You Safely Mount a TV on Drywall?
Before installing a TV on drywall, the wall structure should be carefully examined. Important factors include the thickness and number of plasterboard layers, the position of the supporting framework and any existing reinforcement. The television's weight, the characteristics of the wall mount and the resulting forces must then be considered. Both the television and the mount contribute to the total weight. With adjustable or articulating models, the forces generated when extending and swivelling the screen must also be taken into account.
The following steps provide a useful basis for planning the installation:
- Check the wall structure: Identify the plasterboard thickness, number of layers, supporting framework and any existing reinforcement.
- Choose a suitable TV wall mount: Consider the television's weight, VESA dimensions, wall clearance and required movement.
- Determine the fixing method: Identify suitable mounting points and fastening systems approved for the wall construction.
- Carry out the installation: Follow the manufacturer's instructions, check for concealed cables and pipes, and secure all connections correctly.
The position of the television should also be planned carefully before installation. A comfortable viewing height and suitable viewing distance contribute to a better viewing experience. At the same time, power connections and other devices must remain accessible. With slim TV wall mounts, cable management should be considered early because the limited clearance behind the screen can make connections difficult to reach. Further guidance on selecting a compatible mounting solution is available in our monitor and TV mount selection guide.
Which Mistakes Should Be Avoided When Mounting a TV?
A common mistake when mounting a television on drywall is assessing the wall's load-bearing capacity based solely on the weight of the screen. This overlooks the additional forces that may result from the design of the wall mount. Full-motion mounts in particular can place greater stress on fixing points when the arm is extended. Using unsuitable anchors or screws that are not designed for the existing wall construction is another common problem.
Increasing the number of fixing points does not automatically guarantee sufficient load-bearing capacity if the forces cannot be safely transferred into the supporting structure. A TV wall mount should therefore never be installed at arbitrary positions on plasterboard without first checking the wall construction. The location of the framework and the suitability of the chosen fixing method must be established before drilling. For unknown wall structures, heavy televisions or long-reach articulating mounts, professional assessment is particularly advisable.
What Are the Alternatives to Mounting a TV on Drywall?
Not every drywall partition provides the necessary conditions for safe TV installation. For large televisions, heavy displays or walls without suitable reinforcement, an alternative mounting or positioning solution may be more appropriate. TV floor stands offer a practical option because they allow the television to be positioned independently of the wall. Depending on the model, these stands may be freestanding, height-adjustable or equipped with castors, making them suitable for private living spaces, offices and conference rooms. The manufacturer's specifications regarding weight capacity, screen size and stability must always be followed. Explore different mounting and standing solutions in our TV mounts and stands category.
Another alternative is a ceiling TV mount, which allows the television to be suspended from a suitable load-bearing ceiling structure. This solution can be useful when wall mounting is not possible or when the screen needs to be positioned freely within a room. However, the ceiling structure must also be capable of supporting the load. A suspended plasterboard ceiling is not automatically suitable for mounting a television. Instead, the mount must be secured to an appropriately designed supporting structure. Suitable options for larger screens can be found in our TV ceiling mounts category.
What Else Should You Consider When Choosing a TV Mount for Drywall?
When installing a TV mount on a drywall wall, additional questions often arise, particularly when larger televisions, adjustable wall mounts or different fastening systems are involved. The following information can help you better understand the requirements for safe installation and choose a suitable mounting solution.
Can You Mount a 55-Inch TV on a Plasterboard Wall?
A 55-inch TV can be mounted on a plasterboard wall if the wall structure is sufficiently strong. The decisive factors are the actual weight of the television, the wall mount used and the attachment to suitable load-bearing components. Screen size alone does not determine whether installation is safe. For larger televisions, it is particularly important to check the wall construction and identify any necessary reinforcement beforehand.
Is a Fixed or Full-Motion TV Wall Mount Better for Drywall?
A fixed TV wall mount can be advantageous when the wall construction is suitable because it keeps the television close to the wall and may generate lower leverage forces. Full-motion mounts provide greater flexibility in positioning the screen but can place higher loads on the fixing points due to their extended reach. The most suitable option therefore depends on the wall's load-bearing capacity, the television's weight and the desired functionality.
Can a TV Mount Be Attached Directly to Plasterboard?
Attaching a TV mount directly to plasterboard is only possible if the chosen fastening system and wall construction are suitable for the expected loads. Special cavity wall anchors may be used under certain conditions. For higher loads, however, attachment to a suitable supporting framework or additional reinforcement may be required. Conventional universal anchors designed for solid walls are not automatically suitable.
What Should You Do if the Drywall Is Not Strong Enough?
If the existing wall cannot safely support the television, installation should not proceed without suitable reinforcement. Depending on the building structure, the supporting framework may be professionally reinforced. Alternatively, TV floor stands allow the television to be positioned without wall mounting. Suitable ceiling mounts may also provide an option if an adequately strong ceiling structure is available.
How Can You Find the Right TV Mount for Your Drywall?
Installing a television on drywall requires careful consideration of the wall structure, fastening system and TV wall mount. If the construction is sufficiently strong, various mounting solutions are available, ranging from slim fixed brackets to flexible articulating models. The chosen solution must not only be compatible with the television but must also allow the resulting loads to be safely supported.
