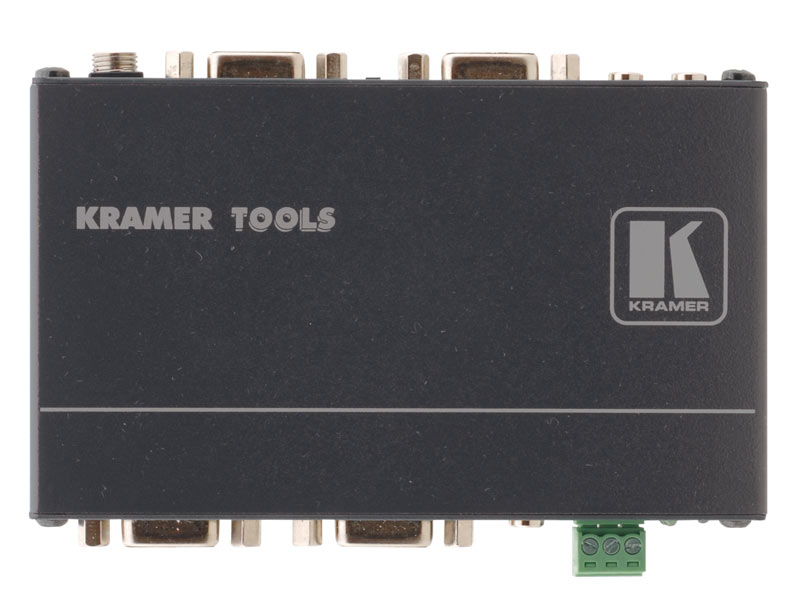

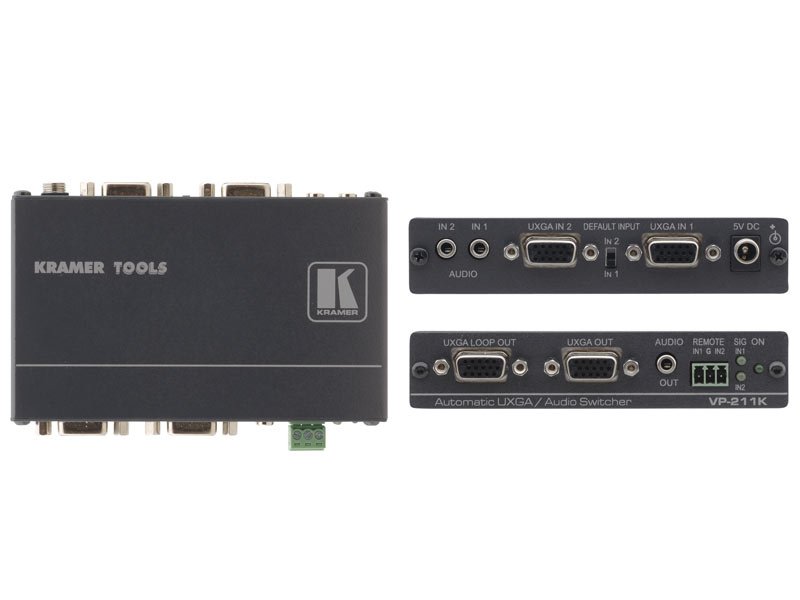

Kramer VP-211K 2:1 VGA & Stereo Audio Standby Switcher
The Kramer VP−211K is a high−performance switcher for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio signals. When configured as a standby switcher, it switches to the secondary input upon loss of the primary input.
Kramer VP-211K 2:1 VGA & Stereo Audio Standby Switcher
- High Bandwidth
- Looping Input - Input 1.
- Automatic Standby Switching - Switches from secondary input to primary input when a signal is detected.
- Control - Automatic or contact closure.
- Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr−isp® advanced sync processing can be enabled or disabled.
- Primary Input - Selectable.
- Active Input LED Indicators.
- Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Spezification Kramer VP-211K 2:1 VGA & Stereo Audio Standby Switcher

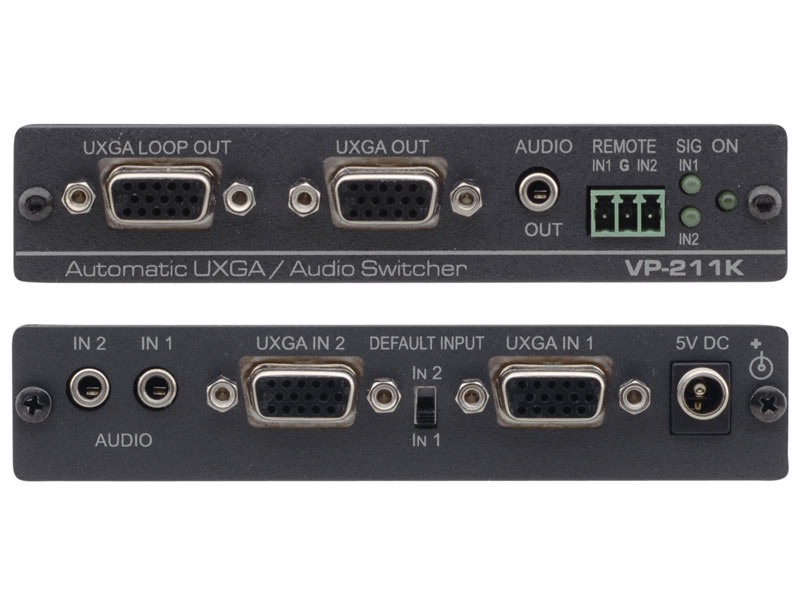

- INPUTS: 2 computer graphics video on 15−pin HD connectors;2 unbalanced stereo audio on 3.5mm mini jacks.
- OUTPUTS: 1 computer graphics video on a 15−pin HD connector; 1 computer graphics video looping on a 15−pin HD connector;1 unbalanced stereo audio on a 3.5mm mini jack.
- MAX. OUTPUT LEVEL: Video: 1.6Vpp; Audio: >10.5Vpp.
- BANDWIDTH (-3dB): Video: 300MHz; Audio: >100kHz.
- DIFF. GAIN: 0.03%.
- DIFF. PHASE: 0.03Deg.
- K-FACTOR: <0.05%.
- S/N RATIO: Video: 71dB; Audio: 71dB weighted.
- CROSSTALK: Video: –59dB @5MHz; Audio: <–66dB @1kHz.
- CONTROLS: Contact closure remote control, input default selection switch.
- COUPLING: DC.
- AUDIO THD + NOISE: <0.032%.
- AUDIO 2nd HARMONIC: <0.004%.
- POWER SOURCE: 5V DC 200mA.
- DIMENSIONS: 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H.
- WEIGHT: 0.3kg (0.66lbs) approx.
- ACCESSORIES: Power supply, mounting bracket.
- OPTIONS: RK−3T 19" rack adapter.
| Product sheet: |  [pdf, 76 kb] |
|---|---|
| Technical drawing: | [pdf, 42 kb] |
| Installation manual: | [pdf, 561 kb] |
| Contains installation material: | + |
| Warranty: | 7 years |
| Manufacturer/Importer: | Kramer Germany GmbH, Gladbacher Str. 17, 52525 Heinsberg, info_de@kramerav.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
