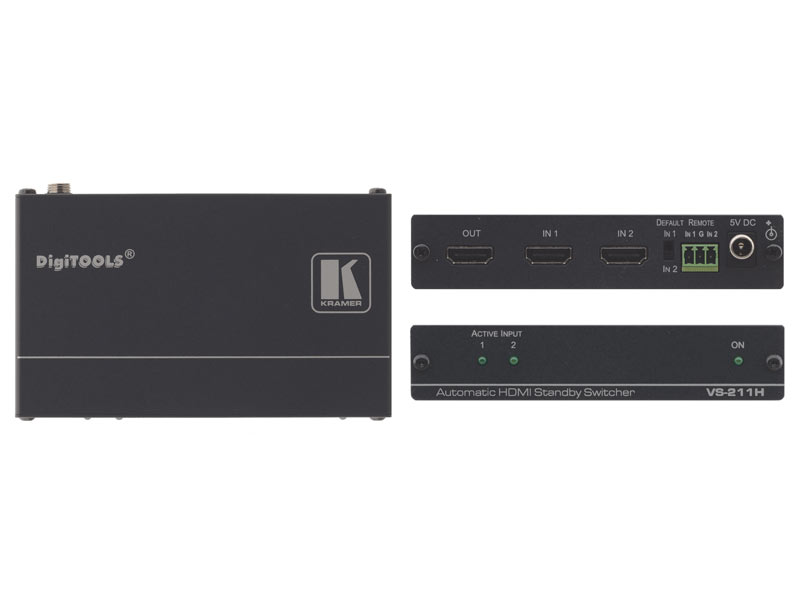

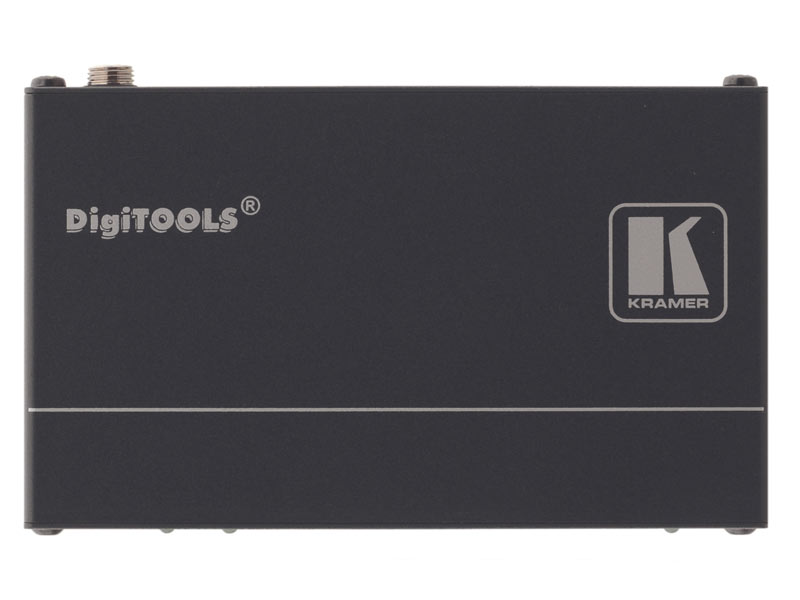

Kramer VS-211H 2x1 Automatic HDMI Standby Switcher
The Kramer VS-211H is a high-performance automatic standby switcher for HDMI video signals. The unit automatically switches to the secondary input whenever the primary video signal is interrupted. If the primary signal reappears, the unit automatically switches back to the primary input.
Kramer VS-211H 2x1 Automatic HDMI Standby Switcher
- Max. Data Rate - Up to 2.25Gbps.
- HDTV Compatible.
- HDCP and HDMI Compliant.
- Active Switching - Automatically switches to the secondary input when the primary is lost, and back to the primary when it is detected.
- Primary Input Selector Switch.
- Contact Closure - For remote manual switching override.
- Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Spezification Kramer VS-211H 2x1 Automatic HDMI Standby Switcher
- INPUTS: 2 HDMI on HDMI connectors.
- OUTPUT: 1 HDMI on an HDMI connector.
- DATA RATE: Supports 2.25Gbps.
- STANDARDS COMPLIANCE: HDCP and HDMI.
- CONTROLS: Contact closure remote control, input default selection switch.
- POWER SOURCE: 5V DC, 510mA.
- DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H.
- WEIGHT: 0.3kg (0.66lbs).
- ACCESSORIES: Power supply, mounting bracket.
- OPTIONS: RK-3T 19" rack adapter.
| Product sheet: |  [pdf, 62 kb] |
|---|---|
| Technical drawing: | [pdf, 41 kb] |
| Installation manual: | [pdf, 366 kb] |
| Contains installation material: | + |
| Manufacturer/Importer: | Kramer Germany GmbH, Gladbacher Str. 17, 52525 Heinsberg, info_de@kramerav.com |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
