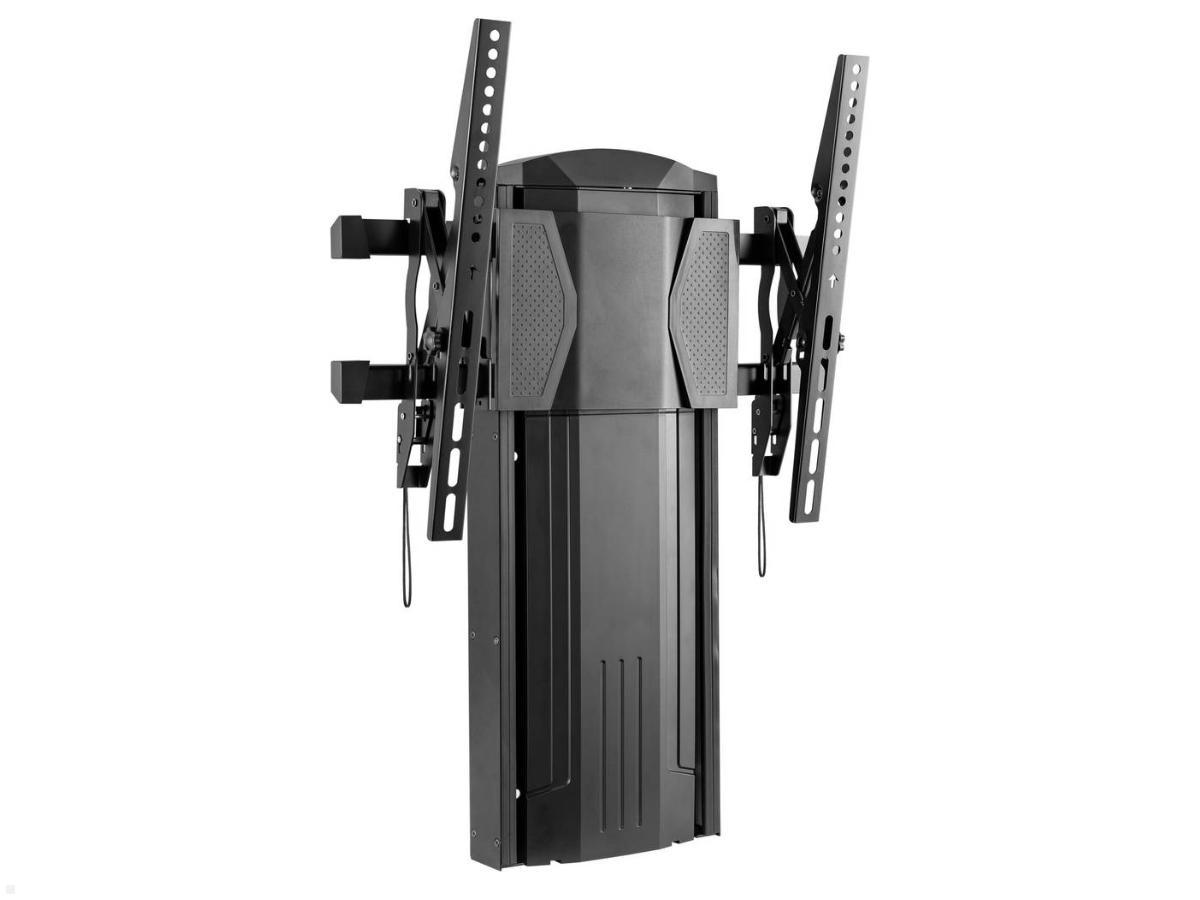

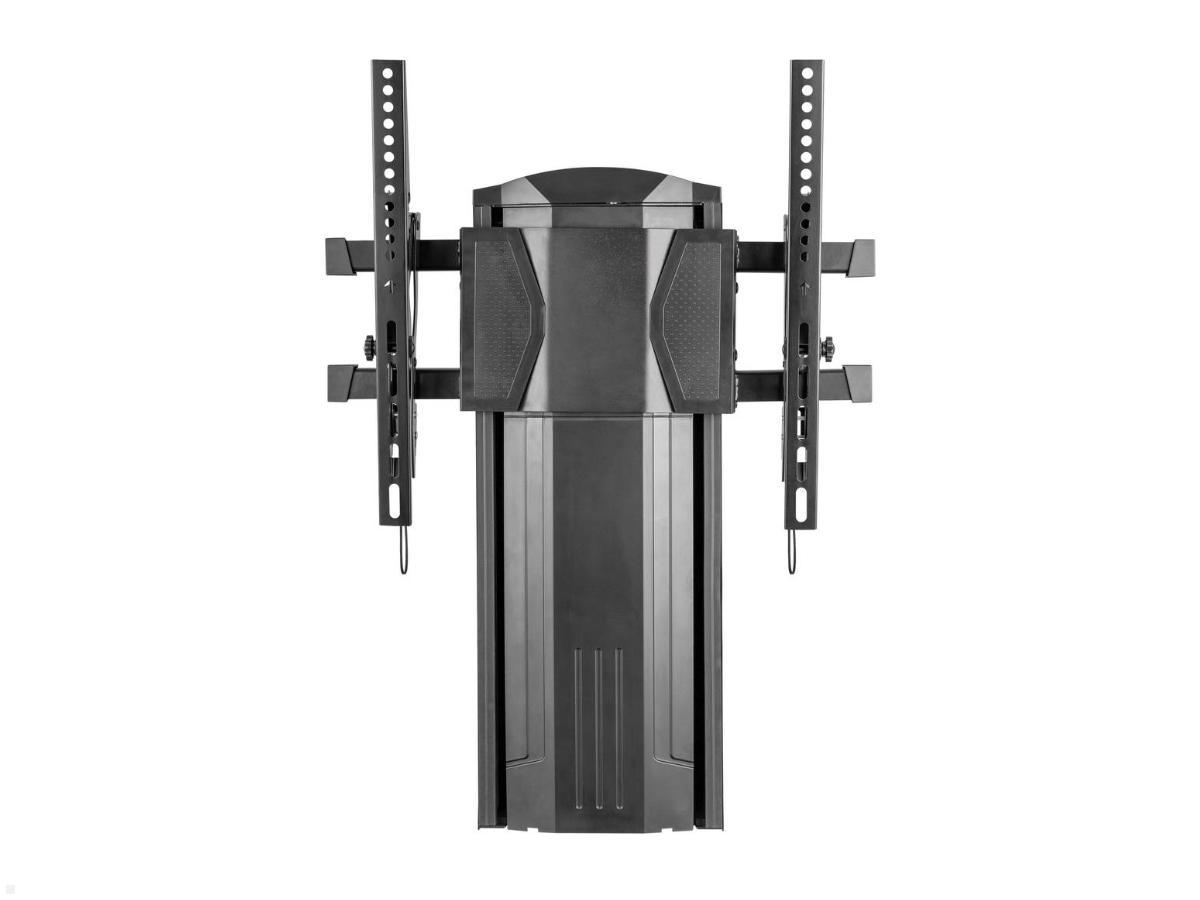

MonLines MWH015B height adjustable LCD TV wall mount up to 60"
With the MonLines MWH015B height adjustable TV wall mount, TV sets / TVs can be easily positioned up to 400 mm in height and tilted up to 10°. Due to the integrated spring system only a light touch is needed to move the monitor / television.
Height-adjustable TV wall bracket

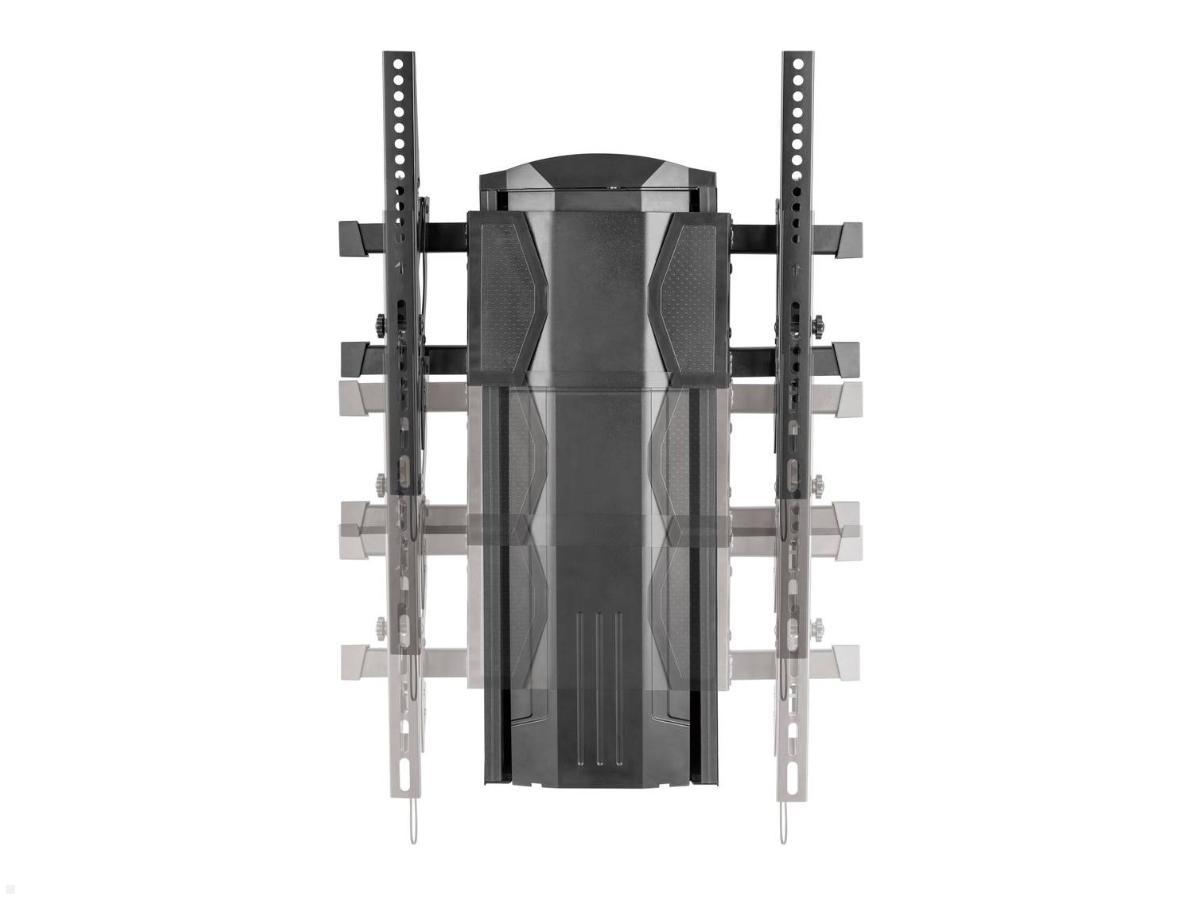

The MonLines MWH015B height-adjustable TV wall bracket mounts up LCD TVs / screens to the desired height. With the integrated spring system a stepless vertical alignment of the screen up to max. 400 mm is possible. The height-adjustable TV wall mount allows the installation of OLED, LED, LCD and plasma TVs and a maximum of individuality.

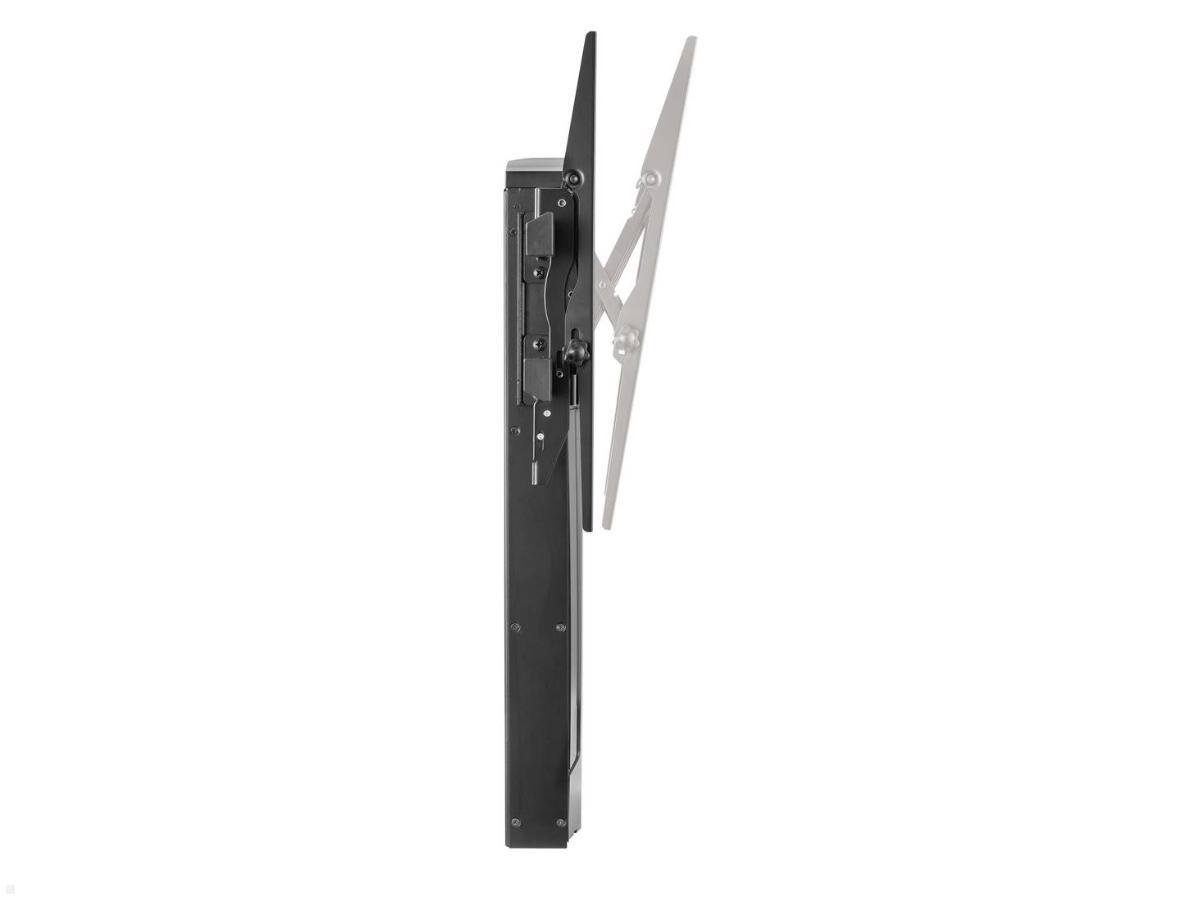

The display can be positioned at any height. The LCD TV wall mount is equipped with a VESA standard from 200x200 to 600x400 mm for mounting different TV manufacturers and sizes. The combination of functionality and innovation characterises this MonLines TV wall mount. Not only in your own four walls at home, but also in schools, technical colleges, universities or conference rooms the monitor wall mount cuts a good figure. The TV can be tilted up to 10° to prevent annoying glare.
Key features MonLines LCD TV wall mount
- Screen sizes: 37", 39", 40", 42", 43", 46", 47", 48", 49", 50", 52", 55", 58", 60 inches
- Load capacity: 7 - 20 kg
- Tilt: -10 degrees
- Mounting type: wall bracket with spring system
- VESA compliant hole patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 400x600, 400x800, 500x400, 500x500, 600x200, 600x300, 600x400 mm
- Dimensions (WxHxD): 527 x 641 x 85 mm
- Wall distance: 85 mm
- Net weight: 15 kg
- Finish: Black
Does your TV fit the VESA mount?
We will check if your monitor (display, TV, LED, LCD, Plasma, TFT, screen) is suitable for this MonLines MWH015B height adjustable TV wall mount. Please send us your model (manufacturer + model no.) in the comment field at the end of the order process. We will check for you whether the TV fits and if not, we will contact you.

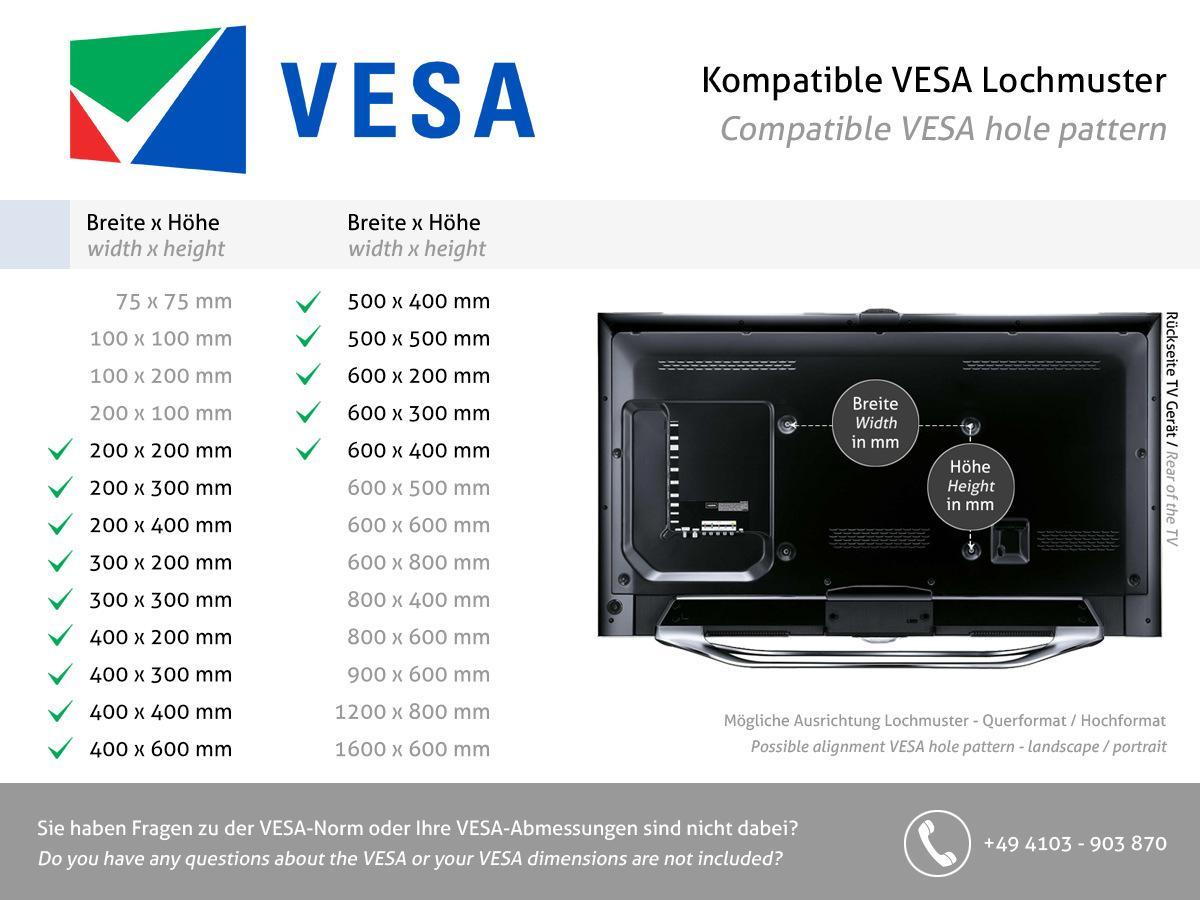

VESA standard - Learn more about the VESA standard / VESA compliant hole patterns of screen mounts!
| Product sheet: |  [pdf] |
|---|---|

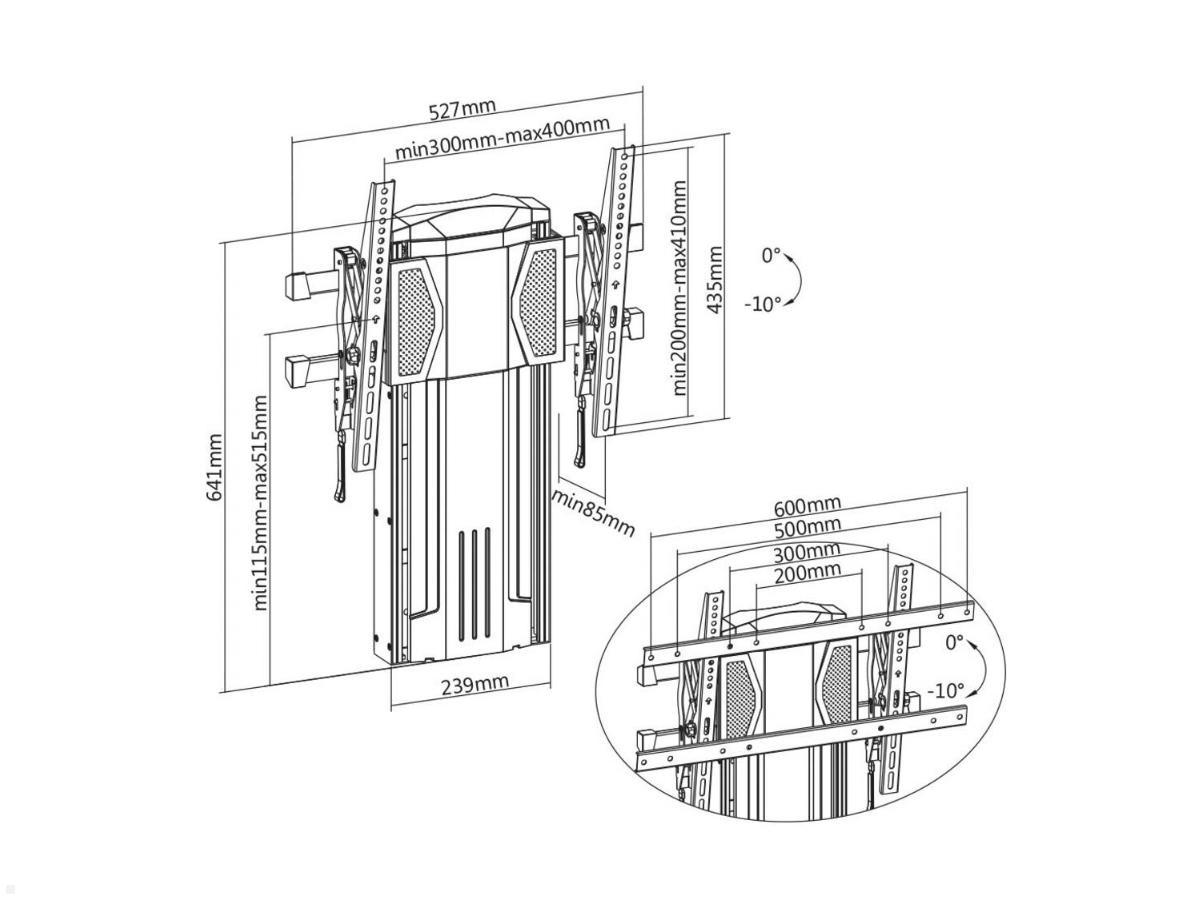

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 7 kg |
| Capacity: | 20 kg |
| Tilt: | -10° |
| Height range (mm): | max. 400 mm |
| Screen size: | 37 - 60 " |
| Material: | steel / powder coated |
| VESA Standard: | 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 400x600, 400x800, 500x400, 500x500, 600x200, 600x300, 600x400 mm |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch |
| Mobility: | height adjustable , tilting |
| Mounting type: | wall mount |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
