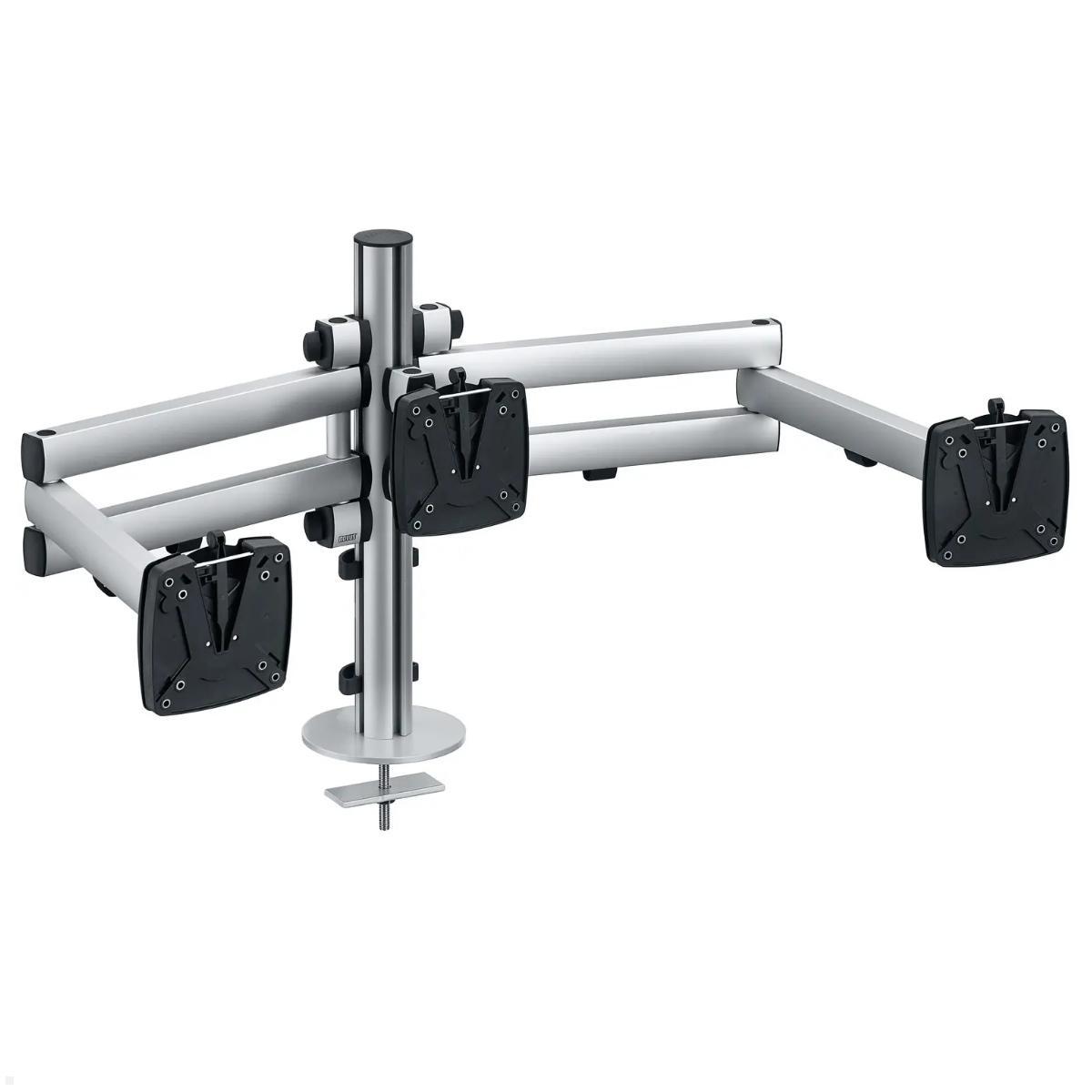

Novus multi-workstation set TSS Trio 3-way monitor desk mount (220+0180+000)
Highlights
- Triple monitor mount for up to 27 inches
- Total load capacity 45 kg, height-adjustable
- Foldable arm III XL, 700 mm reach
- VESA 75/100 with QuickRelease
- Drill-and-screw mounting, 15–70 mm desk thickness
Triple Monitor Desk Mount with Folding Arm and Through-Bolt Clamp

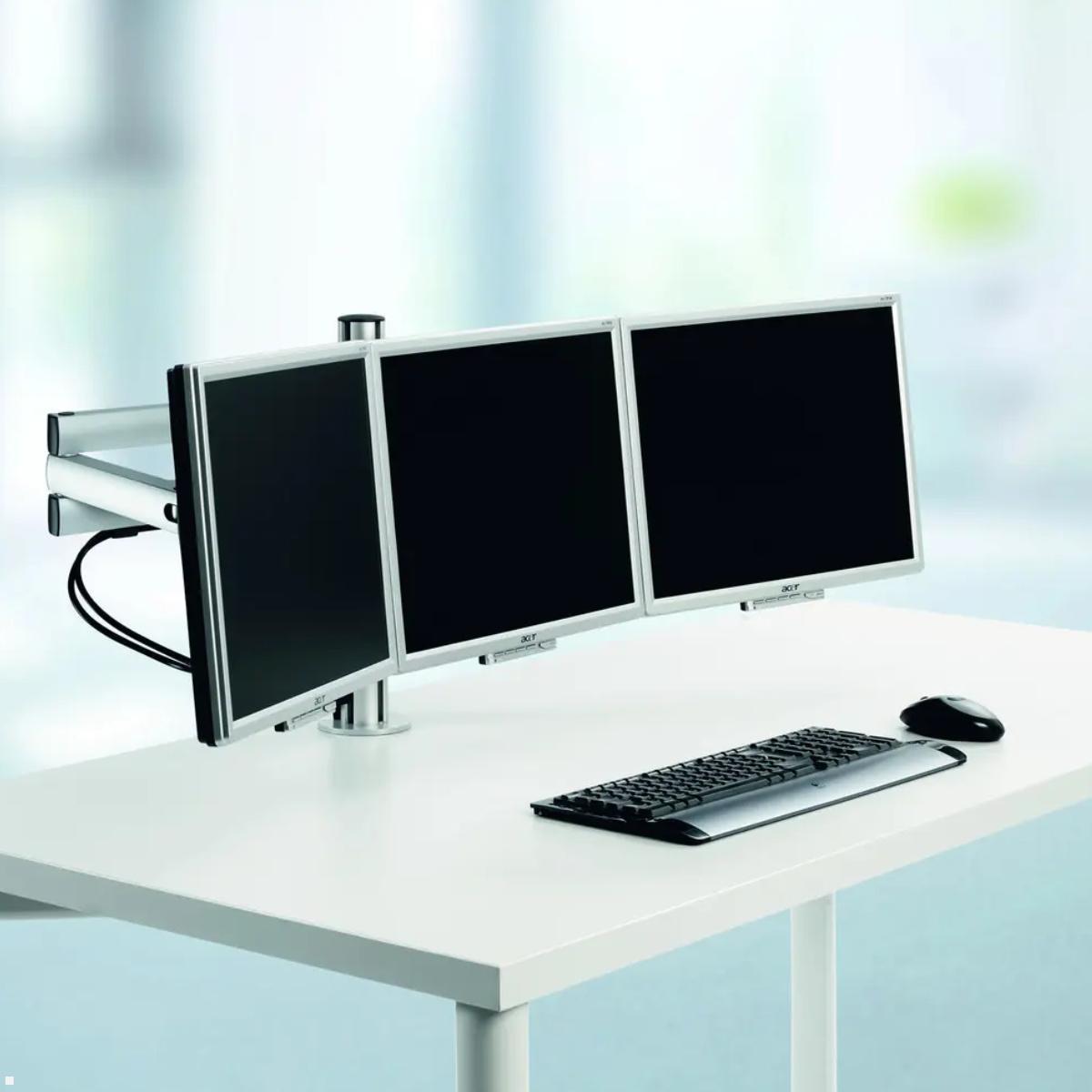

The Novus Multi-Station Set TSS Trio Triple Monitor Desk Mount (220+0180+000) is the ideal solution for productive workspaces with three screens. The high-quality desk mount from Novus of the TSS series enables the simultaneous mounting of three monitors up to approx. 27 inches with a maximum monitor width of 630 mm each. Thanks to the Folding Arms III XL with a reach of 700 mm and the sliding carriages with 105 mm, the screens can be positioned flexibly and adjusted continuously in height. The stable column with a height of 445 mm forms the central base for all three support arms. The through-bolt clamp HD ensures a secure hold on tabletops with a thickness of 15 to 70 mm and is ideally suited for use in offices, control rooms, control centres and professional trading workstations. The VESA-compatible monitor mount supports the 75 x 75 and 100 x 100 mm standards and offers particularly easy monitor attachment with the QuickRelease system.
Technical details Novus TSS Trio multiple-monitor mount
- Triple monitor mount for monitors up to approx. 27 inches (max. monitor width 630 mm)
- Total load capacity: 45 kg (evenly distributed across all arms)
- Continuously height-adjustable
- VESA standard: 75 x 75 / 100 x 100 mm
- QuickRelease system for easy monitor attachment
- Reach Folding Arm III XL: 700 mm
- Reach sliding carriage: 105 mm
- Table mounting: through-bolt clamp HD
- Tabletop thickness: 15 – 70 mm
- Height of the column: 445 mm
- Color: Silver
- Warranty: 5 years
VESA standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  pdf |
|---|---|
| Technical drawing: | pdf |
| Capacity: | 45 |
| Height range (mm): | 445 |
| Screen size: | 27" |
| Thickness of table (mm): | 15-70 |
| VESA Standard: | 75x75 100x100 mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 550 x 685 x 225 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | height adjustable , swivelling |
| Mounting type: | desk - drill screw fastening |
| Multi-monitor mount: | Triple solution |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Novus TSS Trio 3-monitor desk mount?
A three-monitor desk mount with fold arms and through-bolt fixation, designed for productive workplaces with three screens.
-
What monitor sizes and widths does it support?
Supports three monitors up to about 27 inches, with a maximum monitor width of 630 mm per screen.
-
How much weight can it support?
Total load capacity 45 kg, evenly distributed across all arms.
-
How flexible is the positioning of the monitors?
Fold arms XL reach 700 mm; carriage travel 105 mm; stepless height adjustment; column height 445 mm.
-
How is it mounted to the desk?
Desk mounting via through-bolt fixation for desk tops 15 to 70 mm thick.
-
What VESA standards are supported and is mounting easy?
VESA 75 x 75 mm and 100 x 100 mm; QuickRelease system for easy mounting.
-
What about the finish and warranty?
Color is Silver and it comes with a 5-year warranty.
Why is the Novus TSS Trio the ideal 3-way monitor mount for the desk?
The Novus multi-workstation set TSS Trio 3-way monitor desk mount (220+0180+000) was developed for demanding multi-monitor workstations where maximum productivity and ergonomic working are required. With three Folding Arms III XL and a reach of 700 mm each, the mount offers maximum flexibility in screen positioning. The total load capacity of 45 kg is evenly distributed across all three support arms and allows mounting monitors of up to approx. 27 inches with a maximum monitor width of 630 mm. The stepless height adjustment allows ergonomic adaptation to individual seating positions and ensures fatigue-free work throughout the day. The central column with a height of 445 mm forms the stable foundation of the entire construction and ensures wobble-free stability even with fully extended arms. Thanks to the QuickRelease system, all monitors can be mounted tool-free and in a few simple steps to the VESA standard 75 x 75 or 100 x 100 mm and quickly swapped if necessary.
For which application areas is the Novus TSS Trio desk mount suitable?
The Novus TSS Trio multi-monitor mount is predestined for professional work environments where multiple screens are required simultaneously. In offices and home office areas, the 3-way monitor mount significantly increases clarity and productivity, as applications can be displayed in parallel on three displays. Especially in control rooms, command centers, trading workstations and video surveillance, the simultaneous display of multiple information sources is indispensable. The robust HD through-bolt mounting is installed through a hole in the tabletop and is suitable for tabletop thicknesses from 15 to 70 mm. By fastening directly to the desk, valuable workspace is freed up and a tidy workstation is created. The support sliders with 105 mm travel additionally allow fine adjustment of the monitor position directly on the arm. Users in graphic design studios and CAD workstations also benefit from the generous screen area provided by three monitors arranged side by side.
Which technical features distinguish the Novus TSS Trio monitor mount?
The Novus TSS Trio impresses with well-thought-out technology and high-quality workmanship. Each of the three Folding Arms III XL offers a reach of 700 mm and can be adjusted steplessly in height, allowing the optimal screen position to be set individually for each user. The desk mount supports the VESA mounting standard 75 x 75 and 100 x 100 mm and is thus compatible with almost all common monitors up to approx. 27 inches. The maximum monitor width is 630 mm per screen. The elegant silver finish blends harmoniously into modern office environments. With a manufacturer's warranty of 5 years, Novus underscores the quality promise of this monitor desk mount. The quality feature "German Engineering" guarantees that the Novus TSS Trio was developed and produced according to the highest German quality standards. The monitor mount is part of Novus's proven TSS series and can be conveniently ordered online. Thanks to decades of experience in developing ergonomic mounting systems, Novus offers a reliable solution for professional use with the TSS Trio.
