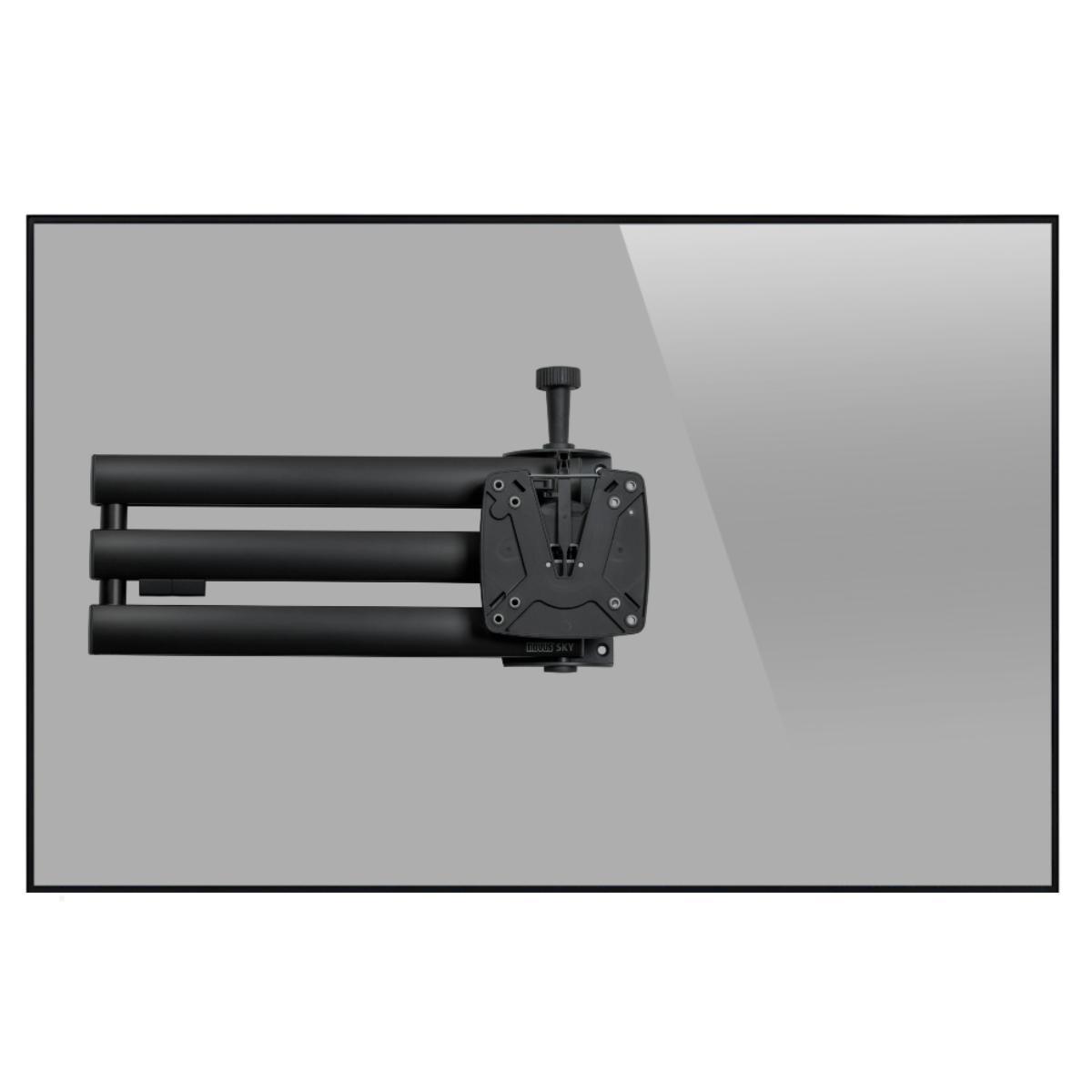

Novus SKY 10N TV wall mount arrestable 350mm, black
For mounting TVs in caravans and motorhomes, the Novus SKY 10N TV wall mount, lockable at 350mm with rotation and swivel capability and VESA 75x75 and 100x100mm is best suited.
Motorhome / Caravan TV Wall Mount 350 mm
For more than 30 years, Novus has been developing sophisticated mounting solutions for mobile use – from caravans and buses to sales vehicles and boats. The pivoting TV wall mount with a 350 mm support arm is one of the most proven products in the portfolio and impresses with its functionality and practicality.
The lockable Novus SKY 10N TV wall mount in black is characterized by its particularly robust construction. A large mounting plate, a stable locking mechanism, and a reliable monitor adapter ensure a secure hold—even while driving. The dual swivel arm and multiple adjustment options allow for flexible monitor orientation, which is particularly advantageous in limited space.
Thanks to support for the common VESA standards (75x75 mm and 100x100 mm), many flat screens can be easily mounted. The continuously adjustable mechanism allows for variable adjustment of the wall distance from 77.5 to 777.5 mm, thus offering maximum freedom of movement. The integrated locking function ensures that the screen remains securely in place while driving - a decisive contribution to safety in mobile applications.
Technical details Novus SKY 10N - 350 B motorhome TV wall mount
- Mounting: Wall mount
- Arm length: 2x 350mm
- Load capacity: 7.5 kg
- Pivot ranges: VESA mount: 180° | Center joint: 180° | Wall mount: 180°
- Tilt angle: +/- 40 degrees
- Wall distance: 77.5 - 777.5mm
- Adjustment range: stepless swivel mechanism
- VESA standard: 75x75 mm and 100x100 mm
- Lockable
- Color: Black
Does your TV, screen, or display fit the wall mount?
We would be happy to check whether your monitor is suitable for this mount. Simply provide us with your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check whether the monitor or display fits the monitor mount. If not, we will contact you.
VESA Standard - Learn more about the VESA Standard for monitor mounts!
| Technical drawing: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Capacity: | 7,5 kg |
| Tilt: | +/- 40° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 777,5 |
| Screen size: | 19 - 32 Zoll |
| VESA Standard: | 75x75, 100x100 mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
Zubehör
Pivoting TV Wall Mount for Motorhomes - Maximum Flexibility While Traveling
If you don't want to miss out on the convenience of a TV while on the go, the TV wall mount for motorhomes is the right choice. This robust, pivoting mount with a 350 mm support arm was specially developed for use in mobile environments such as motorhomes, caravans, buses, sales vehicles, or boats. It enables secure and flexible mounting of flat screens - without compromising on stability or ease of use.
Over 30 Years of Experience - Quality from Novus
For over three decades, Novus has been known for high-quality and functional mounting solutions in the mobile sector. The manufacturer's many years of experience are also evident in this model: The TV wall mount for mobile homes impresses with its well-thought-out design and reliable technology. With its large screw-on plate, a particularly solid locking mechanism, and a robust monitor adapter, the mount offers secure hold – even during vibrations while driving. This makes it the ideal solution for camping, where stability and mobility are equally important.
Convenient operation thanks to the triple swivel arm
Particularly practical: The double swivel arm can be moved 180 degrees at three pivot points – on the wall mount, the center joint, and the VESA mount. In addition, the tilt function of +40 degrees allows for precise screen alignment. This allows the TV to be comfortably and seamlessly adjusted to the ideal viewing position at any time – whether sitting, lying down, or while cooking. The adjustable wall distance of 77.5 to 777.5 mm ensures maximum freedom of movement, even in tight spaces. This makes watching TV in your motorhome a real pleasure.
Compatibility and easy installation
The mount is equipped with the common VESA standards 75x75 mm and 100x100 mm and is therefore suitable for a wide variety of monitors and flat-screen TVs weighing up to 7.5 kg. Installation is quick and easy thanks to the sophisticated design. The high-quality workmanship in anthracite blends discreetly into any interior – Whether it's a classic camper or a modern motorhome.
With this TV wall mount for motorhomes, you're opting for a durable, stable, and versatile solution, specially designed for the challenges of mobile living. Whether in a caravan, motorhome, or boat, this pivoting TV mount offers you maximum comfort, reliable security, and optimal TV viewing, wherever you are.
