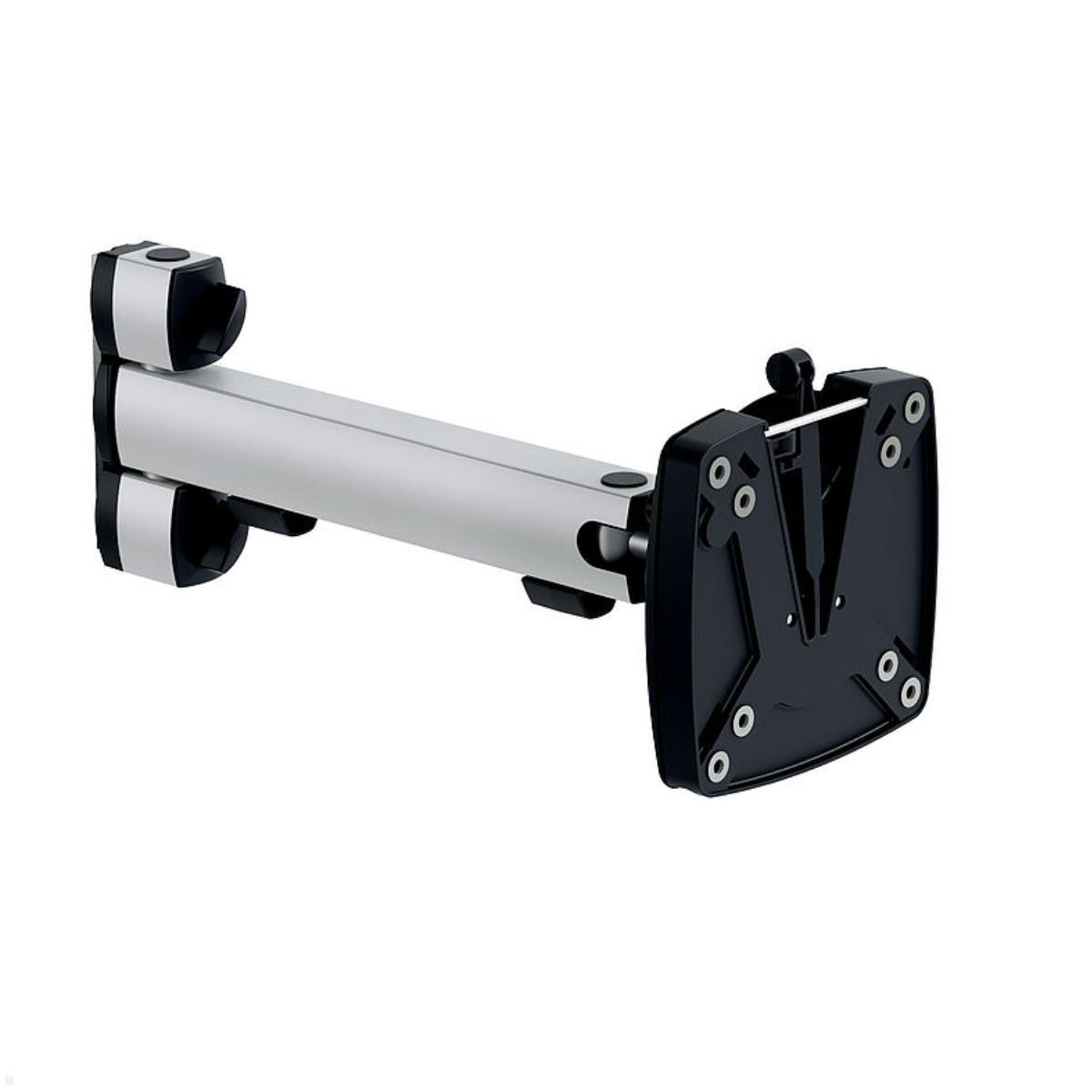

Novus TSS monitor mount arm XL 325 (962+0119+001)

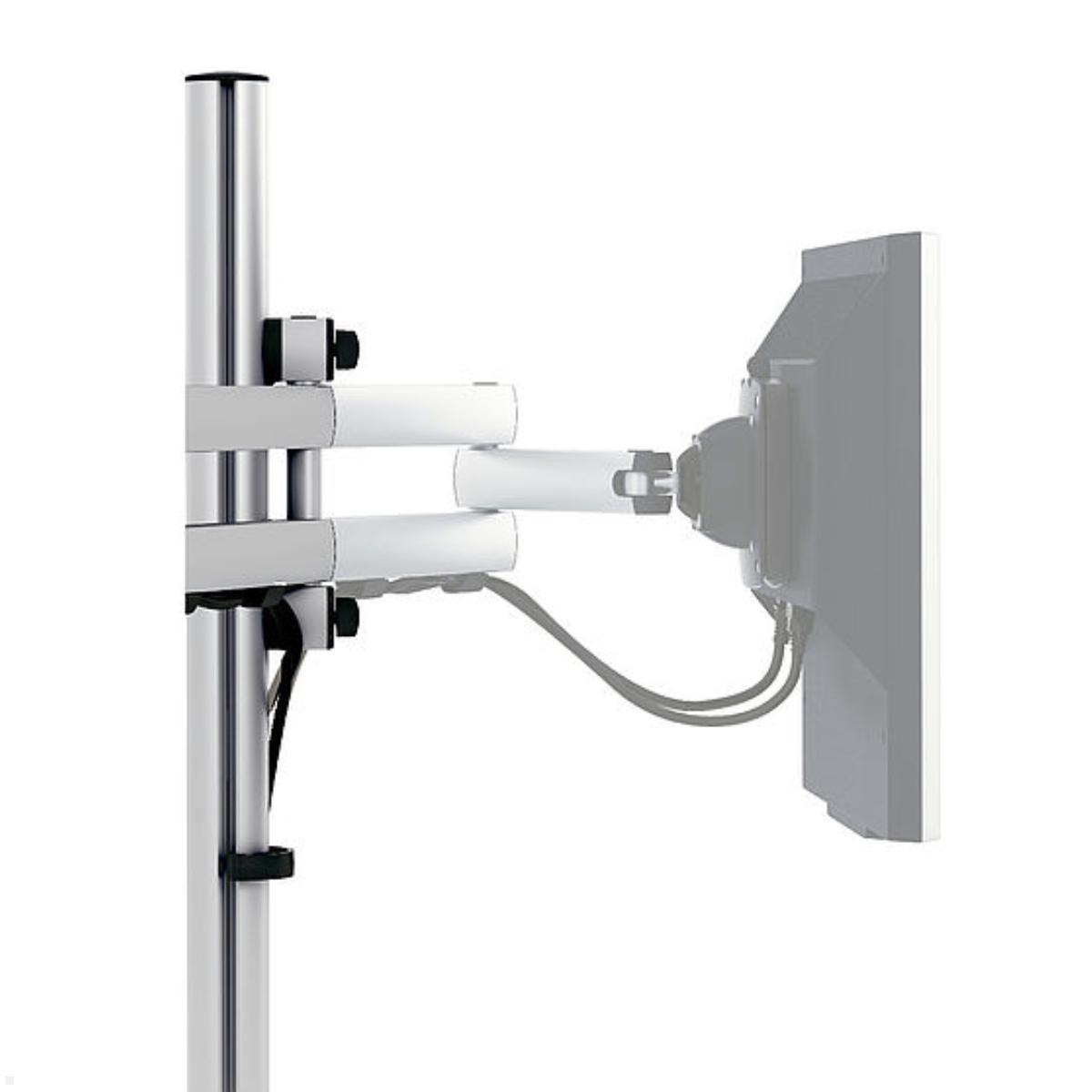

The Novus monitor mount TSS support arm (962+0119+001) in silver / anthracite can be combined on all Novus TSS columns. With a load capacity of 15 kg, the monitor arm supports screens up to 27" in size.
Monitor mount
The high-quality Novus TSS support arm monitor mount with standard VESA monitor mounting 75x75 mm and 100x100 mm is designed for screens weighing up to 15 kg. As a special highlight, the Novus TSS support arm can be rotated sideways so that the screen can be turned effortlessly from landscape to portrait format and back again using the pivot function. The Novus TSS monitor holder support arm XL is an optimal monitor holder with a max. reach of 325 mm and supports screens with a size of 15 to 27 inches. The extra long arm makes it possible to mount several monitors next to each other in a double solution.
Key features Novus TSS monitor support arm (962+0119+001)
- Max. load capacity: 15 kg
- Reach: 325 mm
- Tilt: +/- 45°

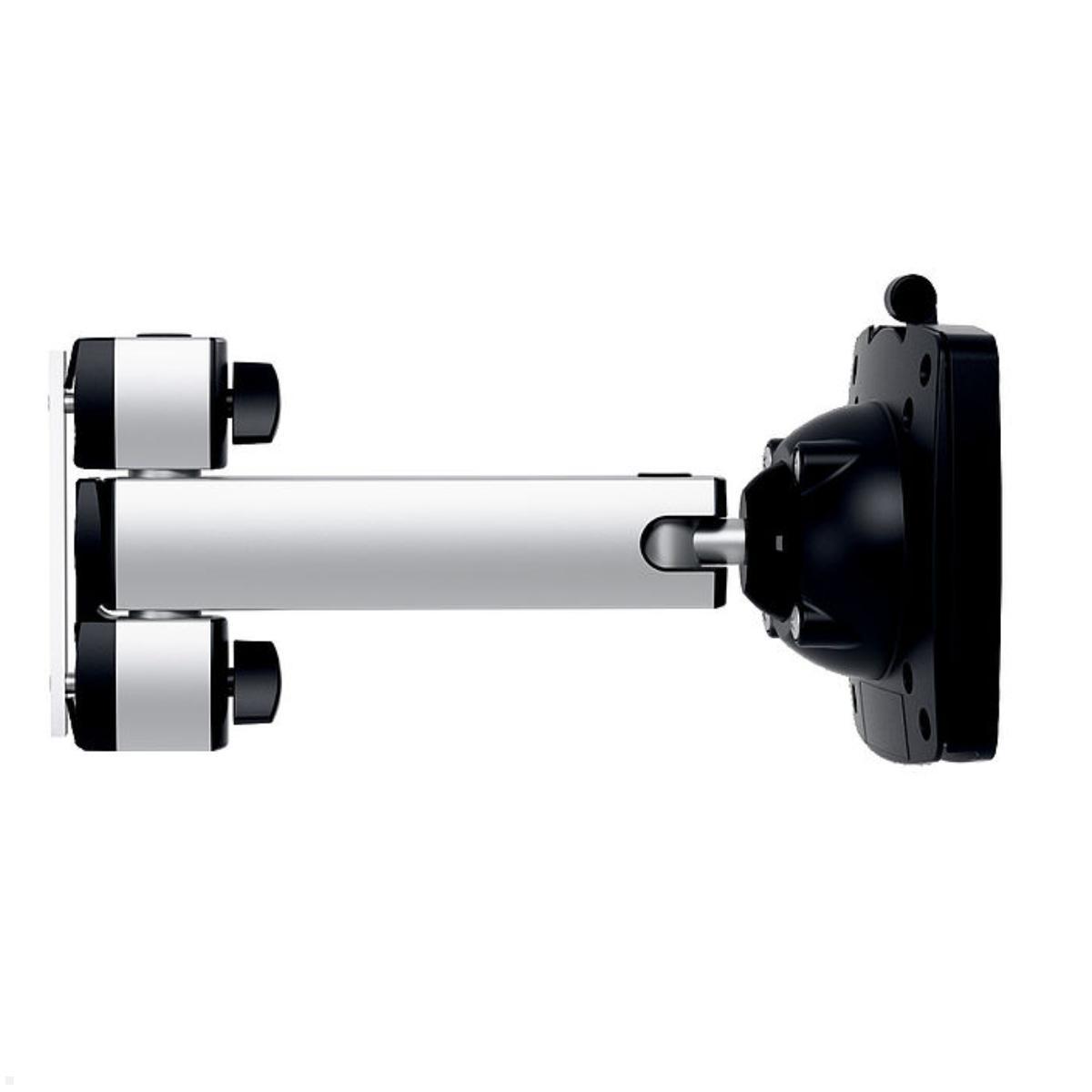

- Swivel: +/- 90° (pivot function)
- VESA adapter plate 75x75, 100x100 mm
- Unit weight: 0,99 kg

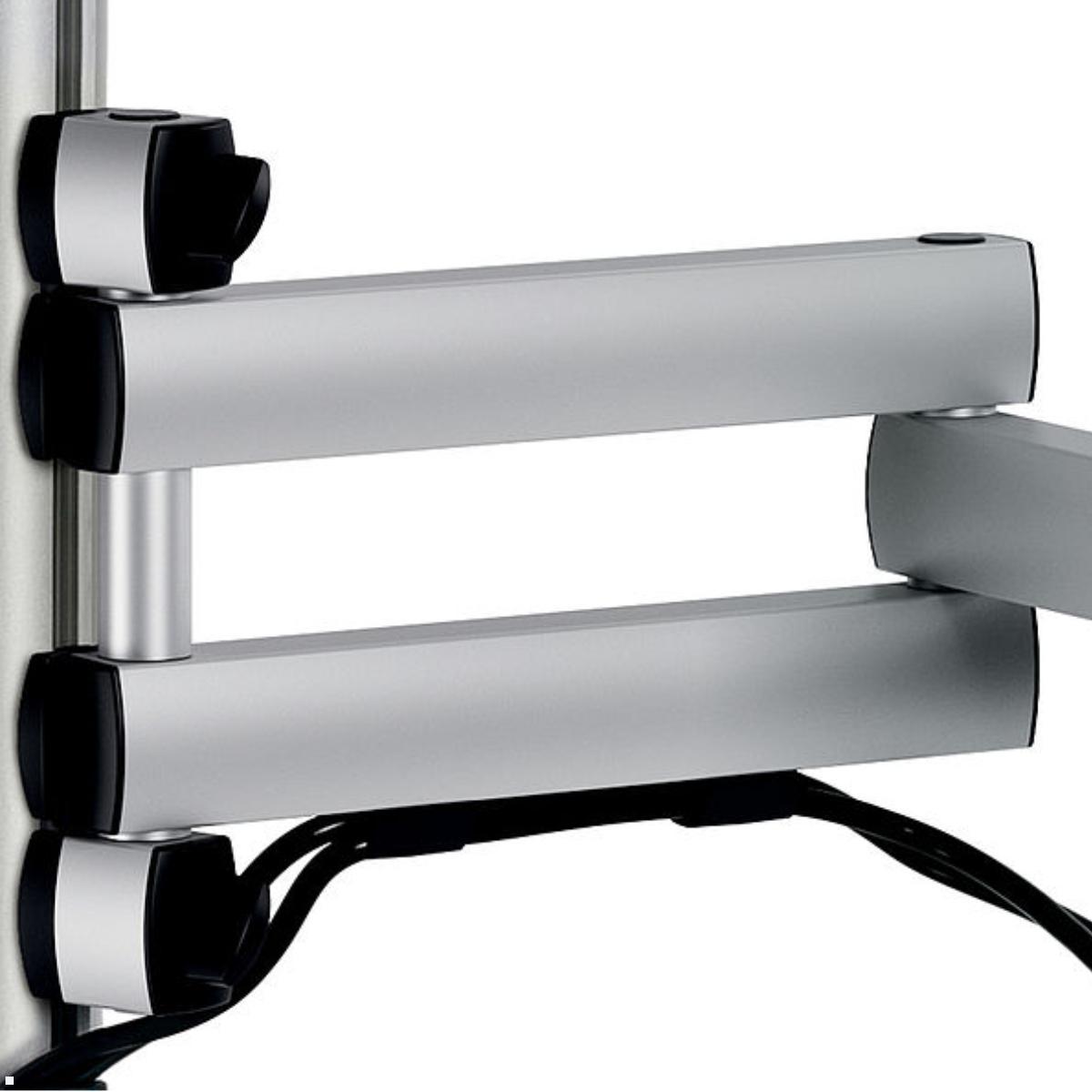

- Ball-and-socket joint for flexible and precise positioning of the monitor

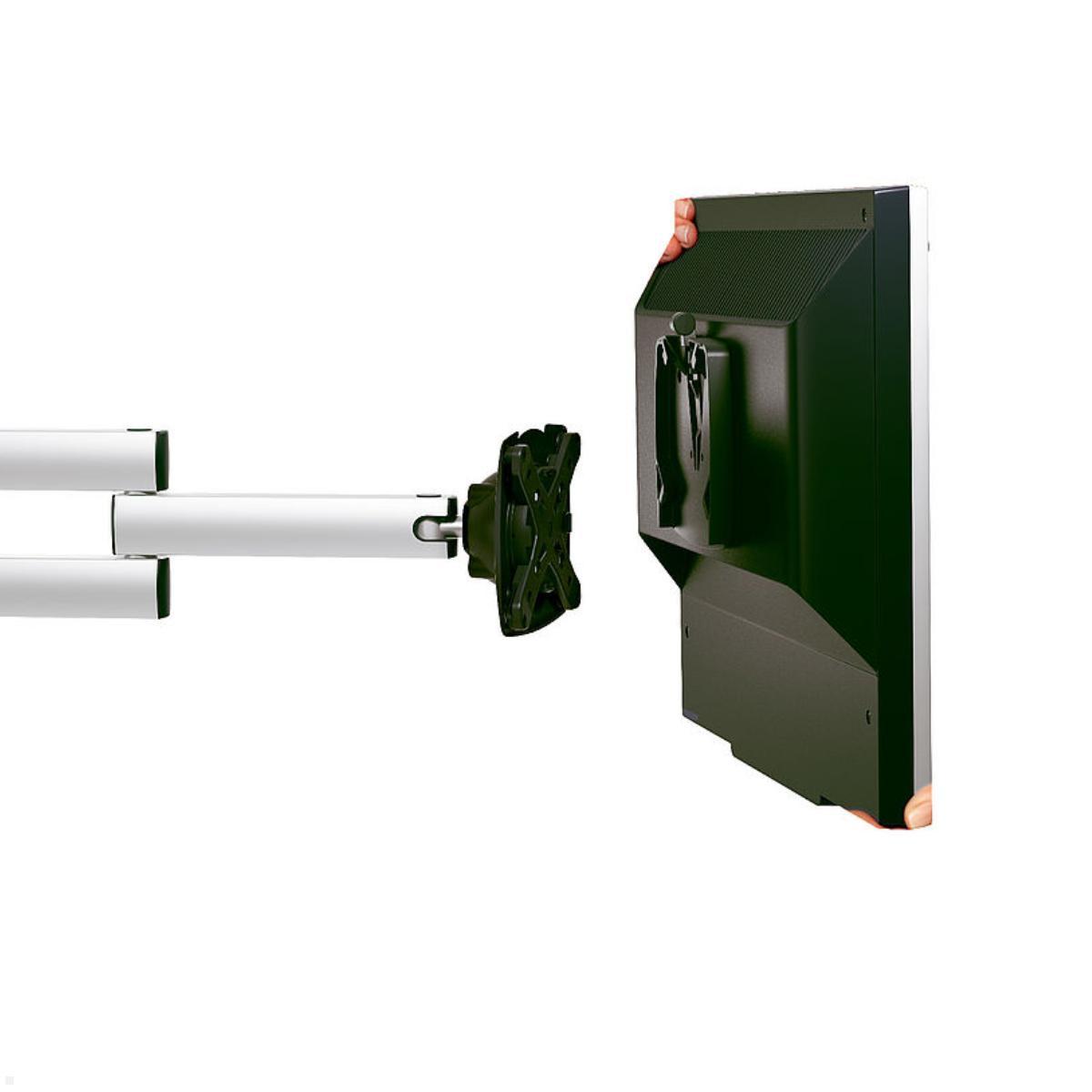

- NOVUS QuickRelease for quick and easy monitor change without tools
- Removable clamping handles for theft protection
- Material: aluminium and metal
- Cable routing / cable management through cable holder
Recommended combination TSS monitor mount:
- Novus TSS 845 grommet
- Novus TSS 545 grommet
- Novus TSS 445 grommet
- Novus TSS 845 cable grommet
- Novus TSS 545 cable grommet
- Novus TSS 445 cable grommet
- Novus TSS 890 wall mount
- Novus TSS 445 wall mount
- Novus TSS 545 desk clamp
- Novus TSS 445 desk clamp
- Novus TSS 445 desk clamp 13-25 mm
- Novus TSS 545 desk clamp
- Novus TSS 445 desk clamp
- Novus TSS 445 adapter
- Novus TSS 445 system rail
- Novus TSS 845 ceiling mount
- Novus TSS 2500 floor ceiling mount
- Novus TSS 1100 mobile work station
- Novus TSS 1800 mobile work station

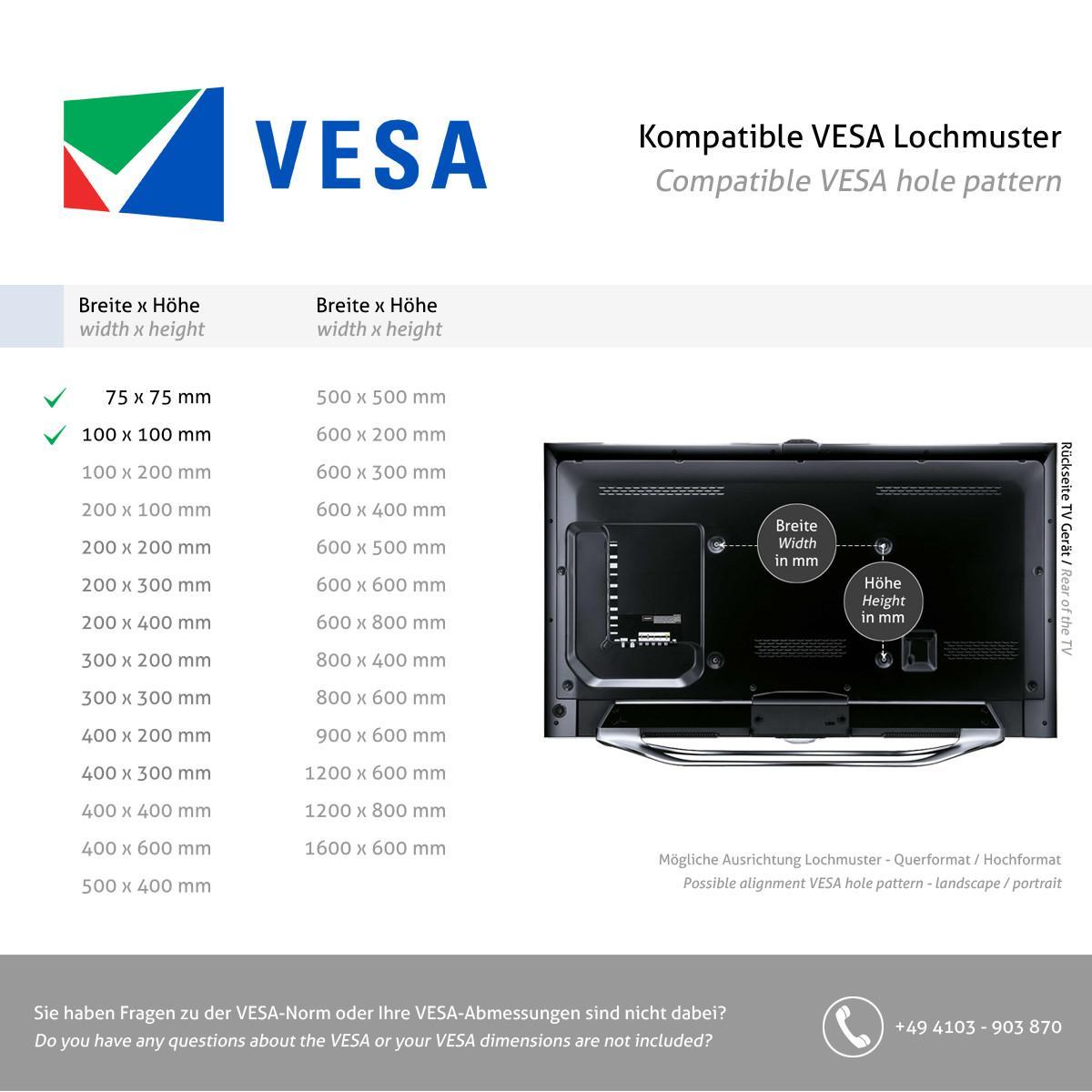

VESA standard - more information about VESA!
| Product sheet: |  [pdf] |
|---|---|

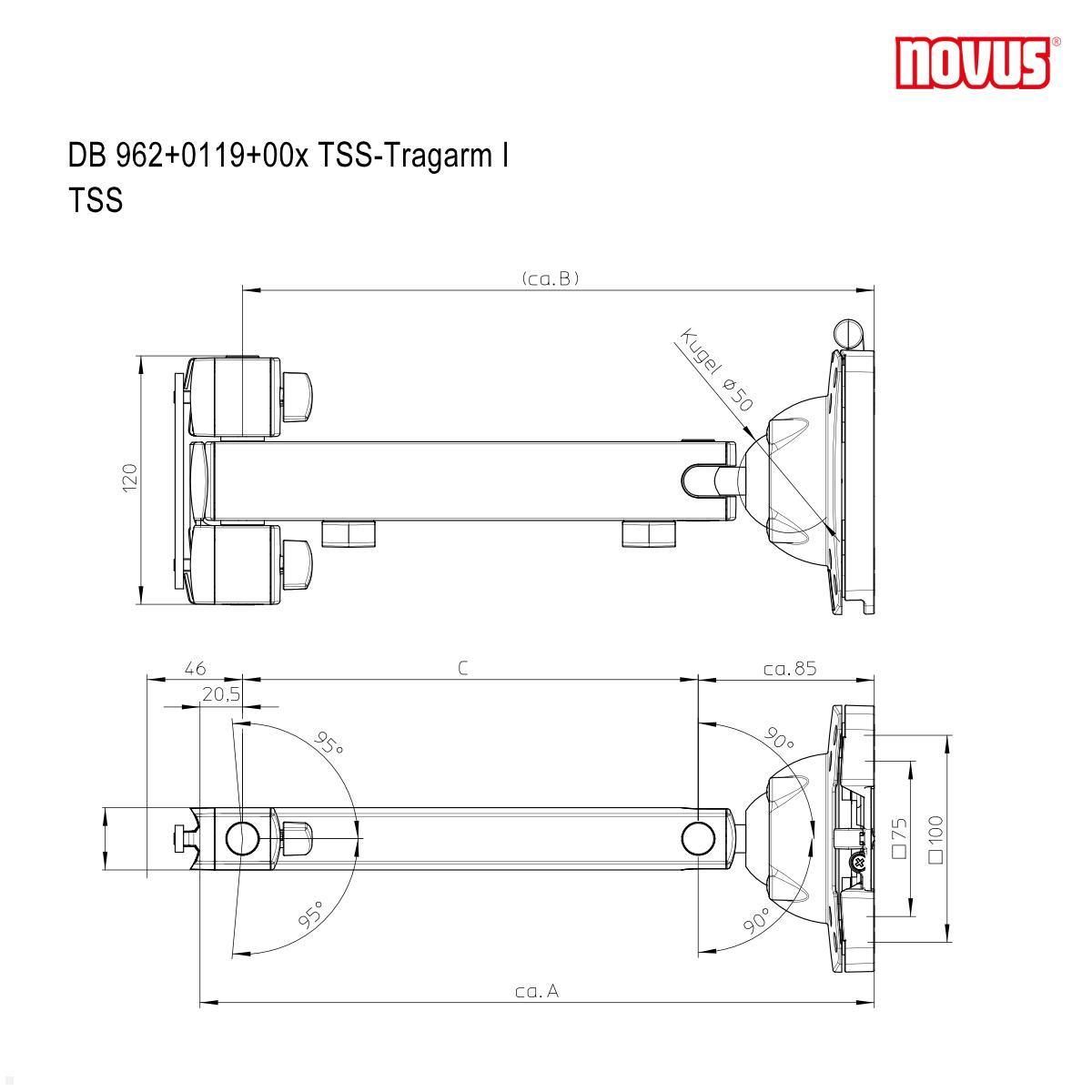

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | +/- 35° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | +/- 180° |
| Length of the swivel arm: | 325 |
| Screen size: | 15 - 27" |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 600 x 500 x 400 |
| Scope of delivery: | 1x Novus TSS articulated support arm | 1x quickrelease screen mount | installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
