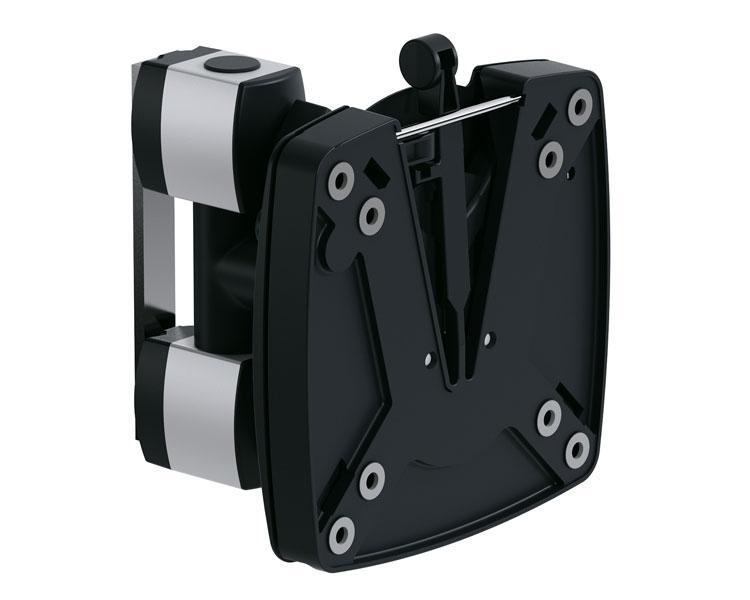

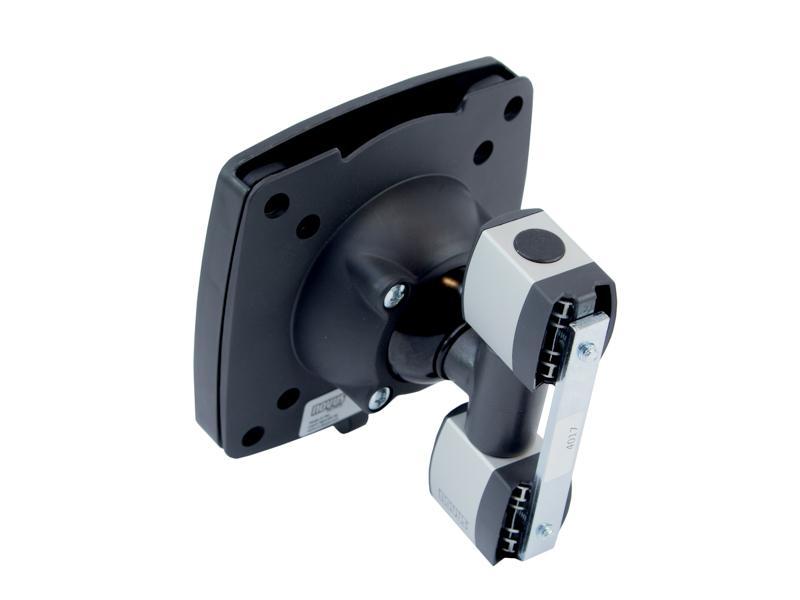

Novus TSS support carriage with QuickRelease
Highlights
- Load capacity up to 15 kg (for monitors up to 34")
- ±45° tilt, ±90° swivel
- VESA 75×75 / 100×100 mm compatible
- QuickRelease for tool-free monitor change
- Suitable for TSS columns, available in silver or anthracite
Novus Monitor Mount VESA TSS Support Bracket

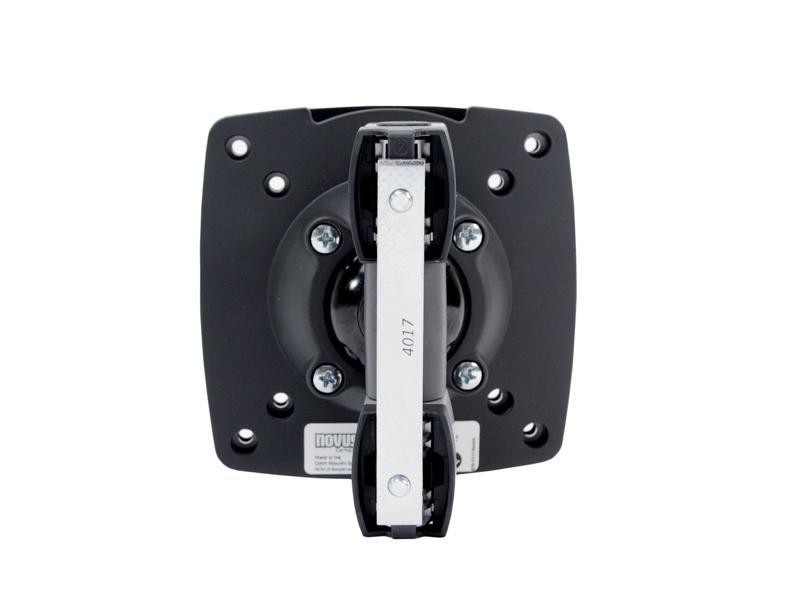

The TSS support bracket with VESA monitor mount offers a robust and flexible solution for mounting monitors. With a load capacity of up to 15 kg, this mount is particularly suitable for larger displays that require stable and secure mounting. The integrated VESA adapter plate supports the 75 x 75 mm and 100 x 100 mm standards, ensuring broad compatibility with numerous monitors.

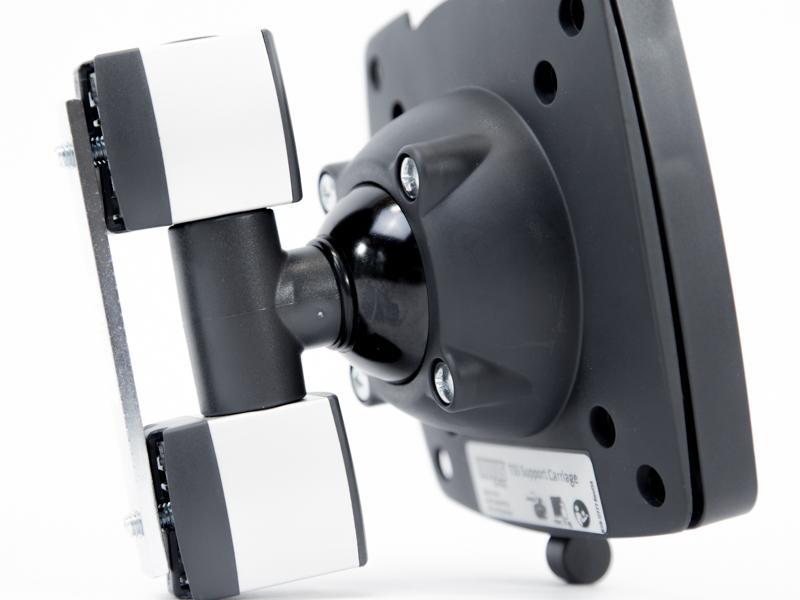

The monitor mount has a reach of 105 mm and, thanks to the ball joint, allows for precise screen alignment. The monitor can be tilted ±45° and swiveled ±90°. This allows the screen position to be flexibly adjusted to different workplace requirements and ergonomically aligned. An integrated quick-release mechanism also facilitates monitor changes. The screen can be quickly and easily mounted or removed without tools. This saves time during installation and allows for easy adjustments when changing workstations or devices.
The mount is suitable for monitors up to 34 inches in screen size and meets the requirements of the German Product Safety Act (DSG), providing added safety in daily use. The support arm is available in silver and anthracite, allowing it to be selected to match any workplace design or existing mounting system. Thanks to its robust construction and flexible adjustability, the TSS support arm is a reliable solution for modern workplaces, monitor walls, or modular mounting systems.

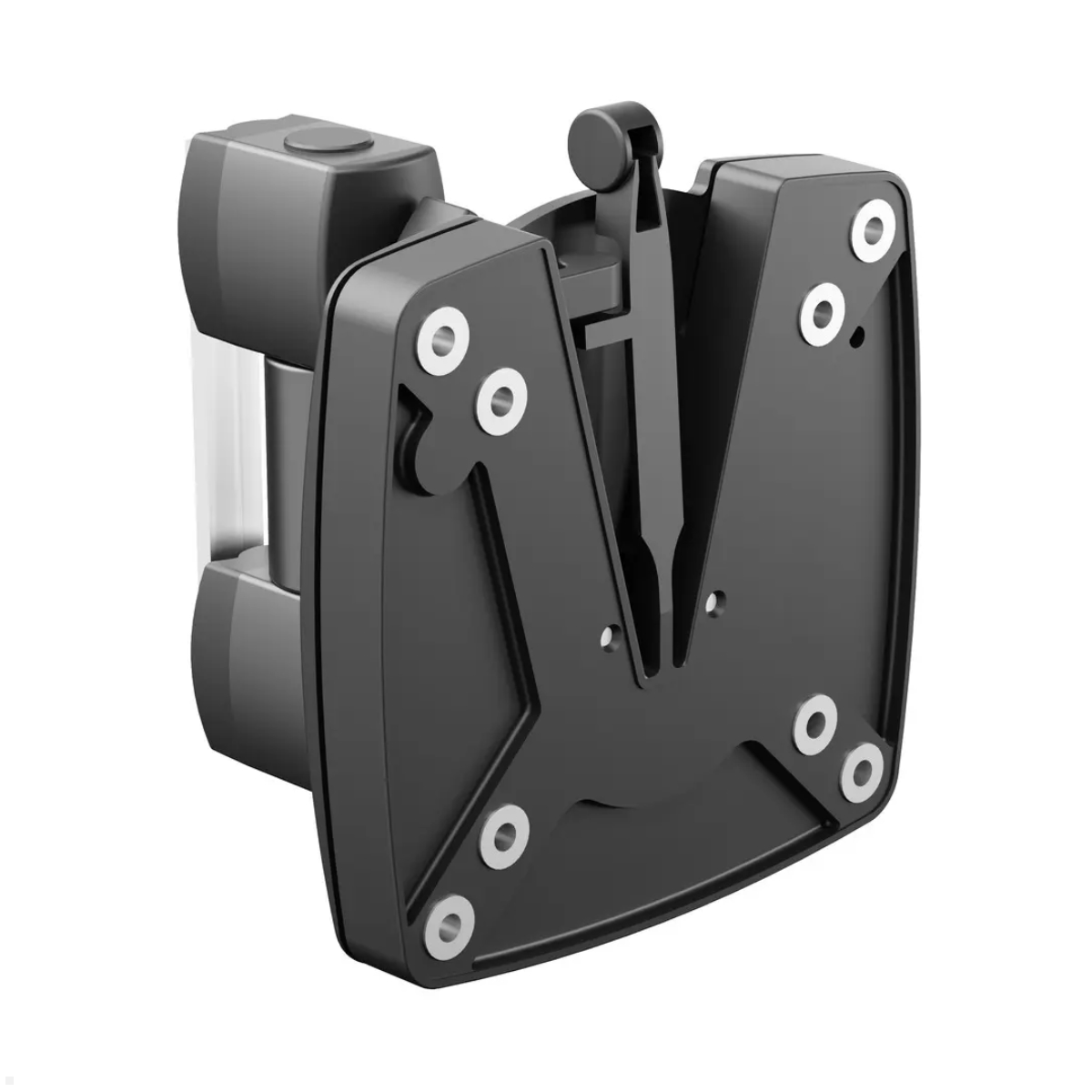

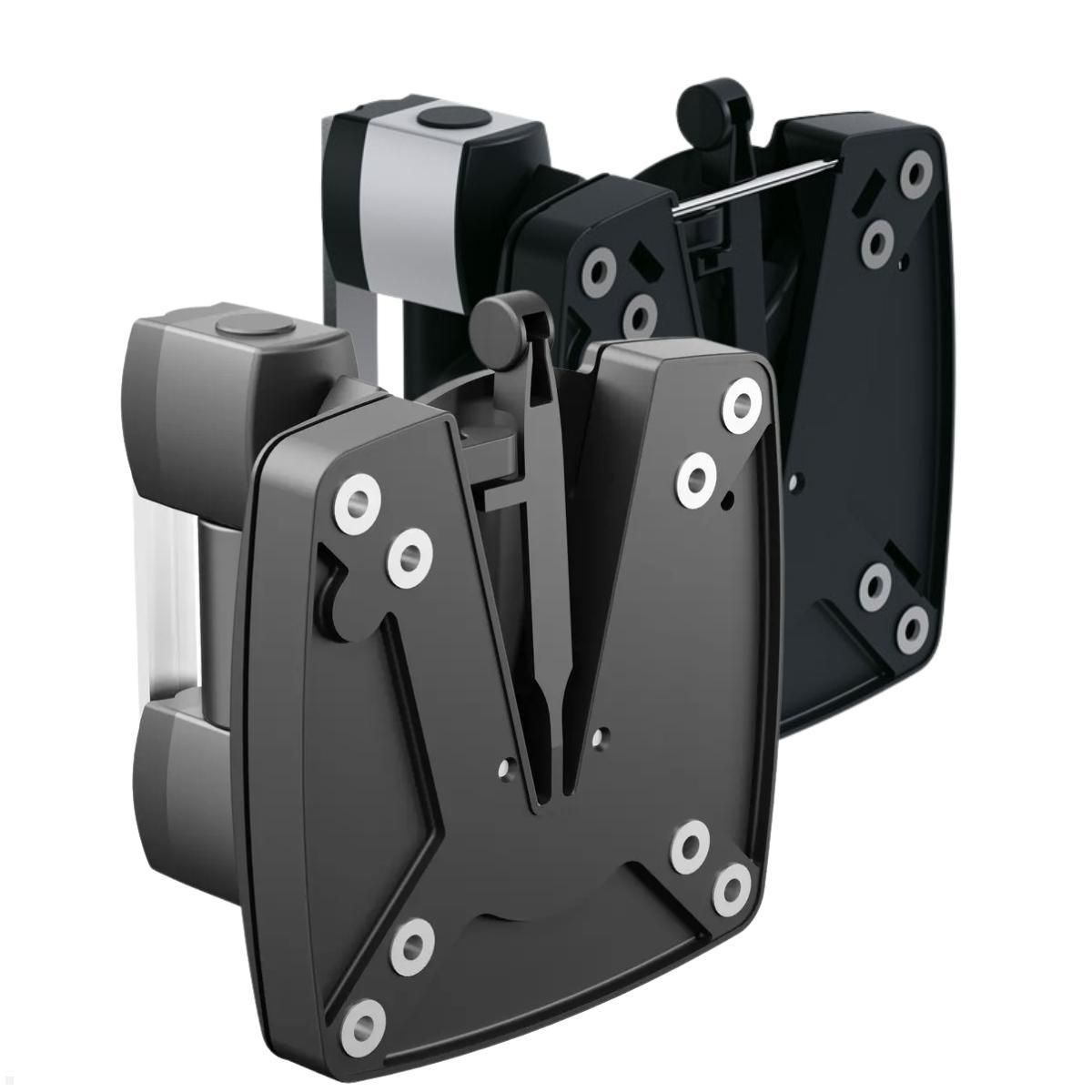

The TSS support arm is available in silver and anthracite, making it easy to match the design of your workspace or existing mounting system.
Technical Details Novus TSS Support Bracket with Quick Release
- Load capacity: 15 kg
- Max. screen size: 34 inches
- Reach: 105 mm
- Tilt: +/- 45 degrees
- Swivel range: +/- 90 degrees

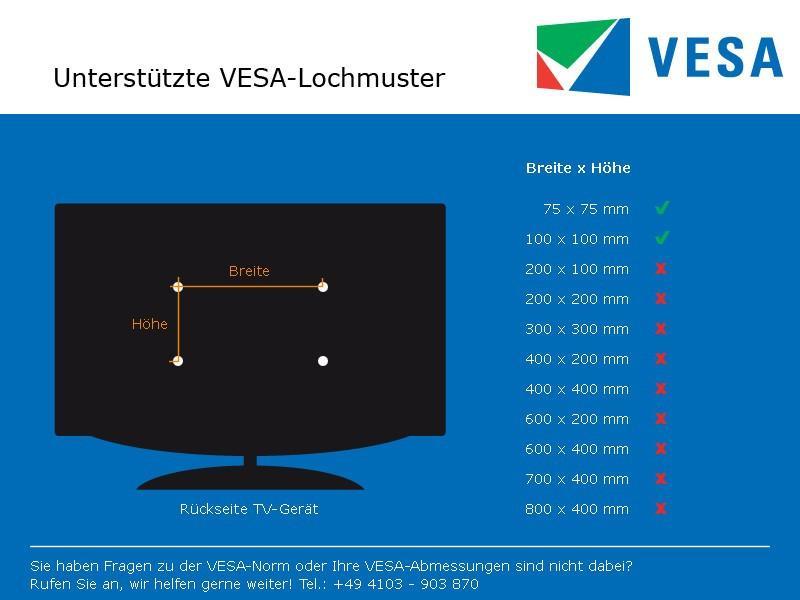

- VESA mounting adapter plate: 75x75 mm and 100x100 mm
- The device swivels to both sides and has a 105 mm reach.
- Tested according to the German Product Safety Act (DSG)
- Ball joint for flexible and precise monitor positioning
- With NOVUS QuickRelease for quick and easy monitor changes without tools
- Support arm available in silver and anthracite
Recommended combination:
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | +/- 35° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 105 |
| Screen size: | 15 - 34" |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Suitable for: | Novus TSS 845 self-drilling screw mountingNovus TSS 545 self-drilling screw mountingNovus TSS 445 self-drilling screw mountingNovus TSS 845 cable hole mountingNovus TSS 545 cable hole mountingNovus TSS 445 cable hole mountingNovus TSS 890 wall mountingNovus TSS 445 wall mountingNovus TSS 545 system clamp 1Novus TSS 445 system clamp 1Novus TSS 445 system clamp 1 13-25 mmNovus TSS 545 system clamp 2Novus TSS 445 system clamp 2Novus TSS 445 pin adapterNovus TSS 445 system rail mountingNovus TSS 845 ceiling mountingNovus TSS 2500 ceiling-floor mountingNovus TSS 1100 MobileWorkStationNovus TSS 1800 MobileWorkStation |

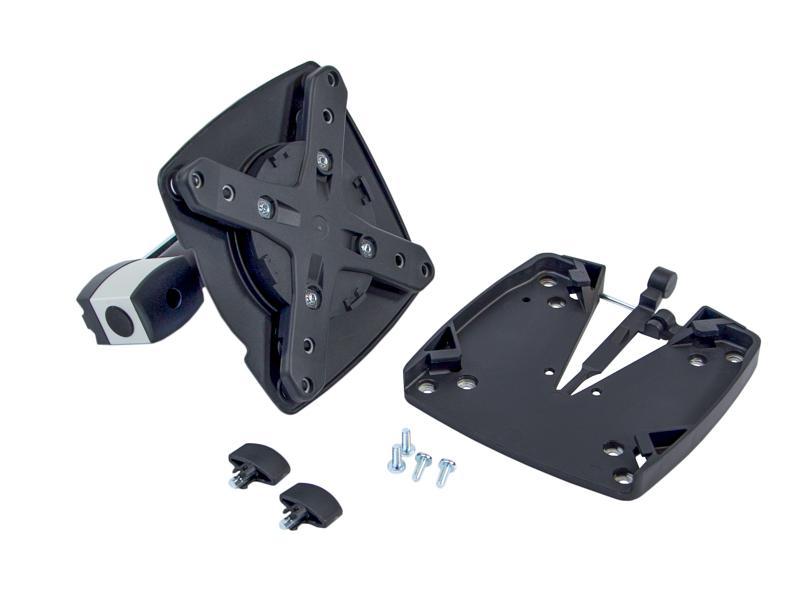

| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
2 December 2025 18:48
Alles top: Versand, spitze Erfahrung
Kontakt war super nett und hilfsbereit. Alles wie erwartet, bin sehr zufrieden.
Questions & Answers
-
What is the maximum load this monitor arm can carry?
Up to 15 kg.
-
What screen sizes does it support?
Suitable for monitors up to 34 inches.
-
Which VESA standards are supported?
VESA adapter plate 75 × 75 mm and 100 × 100 mm.
-
What are the reach and movement ranges?
Reach is 105 mm; tilt ± 45°, swivel ± 90°.
-
Is there a QuickRelease for easy monitor changes?
Yes, QuickRelease allows fast, tool-free monitor changes.
-
What colors is the arm available in?
Silver and Anthracite.
-
Is it tested for safety?
Tested under the Equipment and Product Safety Act.
Kunden kauften auch
What characterizes the TSS carriage with VESA monitor mount?
The TSS carriage with VESA monitor mount is a stable and flexible solution for securely attaching monitors to compatible TSS columns. The mount is ideal for modern workstations where monitors need to be positioned flexibly and aligned ergonomically. With a load capacity of up to 15 kg, the carriage supports larger displays and ensures a reliable and durable monitor attachment.
Thanks to the integrated VESA adapter plate, the monitor mount is compatible with the common standards 75 × 75 mm and 100 × 100 mm. This allows a wide range of flat screens, business monitors, or office displays to be mounted without difficulty. Especially in office environments, control stations, reception areas, or monitoring workspaces, a flexible and stable monitor solution plays a decisive role for productivity and ergonomics.
The carriage can be used on all TSS columns, enabling a modular extension of existing monitor workstations. Through the combination of high-quality workmanship, easy assembly, and versatile adjustment options, the mount is suitable for both single workstations and professional multi-monitor setups.
Why is a flexible monitor mount important for ergonomic workstations?
An ergonomic monitor mount contributes significantly to comfortable and healthy work. By flexibly positioning the screen, the monitor can be adjusted precisely to eye level, viewing angle, and seating position. This helps to effectively reduce neck tension, back problems, and poor posture.
The TSS carriage offers extensive adjustment options. The monitor can be tilted by ±45° and swiveled by ±90°. This mobility allows optimal adaptation to different work requirements and users. Whether a classic office workstation, shared desk, or control station – the screen can be quickly and precisely aligned at any time.
Additionally, the integrated ball-head joint provides particularly fine and precise positioning of the monitor. This keeps the screen stable in the desired position even after adjustment.
How does the QuickRelease system simplify installation?

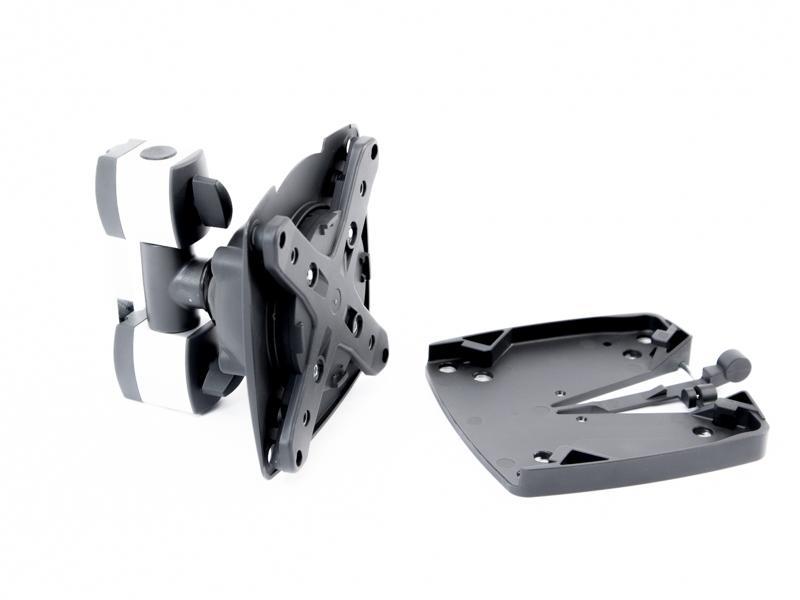

A special feature of the monitor mount is the integrated QuickRelease system. This enables a quick and tool-free monitor change. The screen can simply be hooked on or removed without time-consuming mounting work being necessary.
Especially in modern office environments, IT departments, or flexible workspace concepts, this feature offers a major advantage. Monitors can be quickly exchanged or repositioned, saving time and significantly simplifying installation.
What advantages does combining with TSS columns offer?
Using the carriage on a TSS column allows a particularly space-saving and structured monitor installation. Column-based monitor mounts provide a modular and expandable solution that can be flexibly adapted to different workplace requirements.
Through the combination of a stable column and a movable carriage, a durable monitor mount with high flexibility is created. It is ideal for offices, conference rooms, reception counters, control stations, or technical workspaces where monitors need to be regularly realigned.
The support arm is also available in silver or anthracite and can thus be visually harmonized with different office interiors and workspace designs. The high-quality workmanship ensures long service life and reliable stability in daily use.
Technical Details
- Load capacity: up to 15 kg
- Maximum screen size: up to 34 inches
- Reach: 105 mm
- Tilt: ±45°
- Swivel range: ±90°
- VESA compatibility: 75 × 75 mm and 100 × 100 mm
- Ball-head joint for precise positioning
- QuickRelease system for tool-free monitor change
- Suitable for TSS columns
- Support arm available in silver and anthracite
