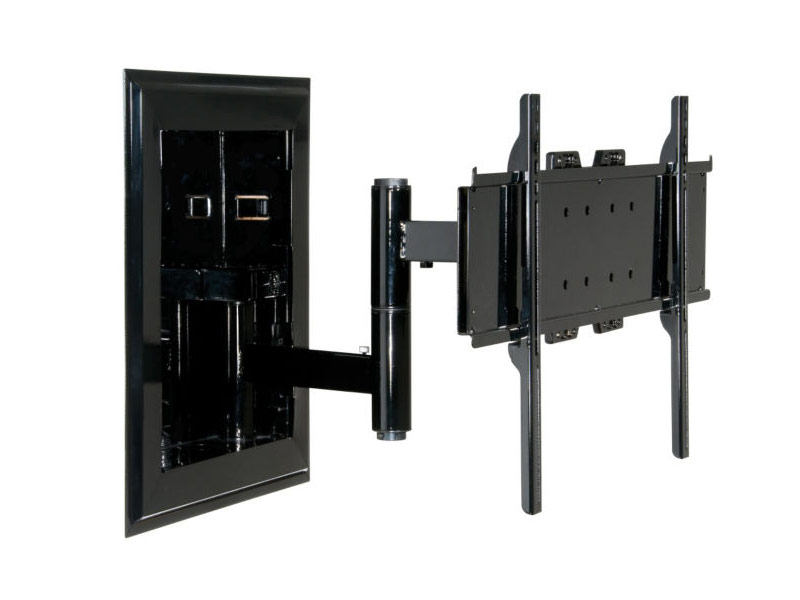

Peerless IN-WALL MOUNT IM760P 32 - 71'' black
The peerless IM760PU In-Wall Mount for 32"-71" displays surprises by making a paradoxon possible. Enjoy a swivellable and tiltable monitor wall integration!
peerless IM760PU in-wall mount, 32" bis 71"
Maximize your flat panel experience by installing it in the wall with Peerless-AV universal in-wall mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount’s stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the flat panel display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room.
Helpful Hints:
May also fit larger displays, please reference MountFinder for compatibility. *Display will be positioned flat against the wall when used only with VESA®100/200x100/200x200mm compliant flat panel displays. Addition of adapter plate will increase distance from wall.
Key features peerless IM760PU ultra flache TV Wandhalterung - neigbar, schwenkbar, für 32-71 Zoll
- Befestigung: Wandhalterung
- IM760PU models include universal adaptor plate
- Fit displays with mouting hole patterns up to 730 x 433mm (28.75" x 17.05")
- Can be inverted to position display to the right or left
- Decorative trim ring included for a clean installation

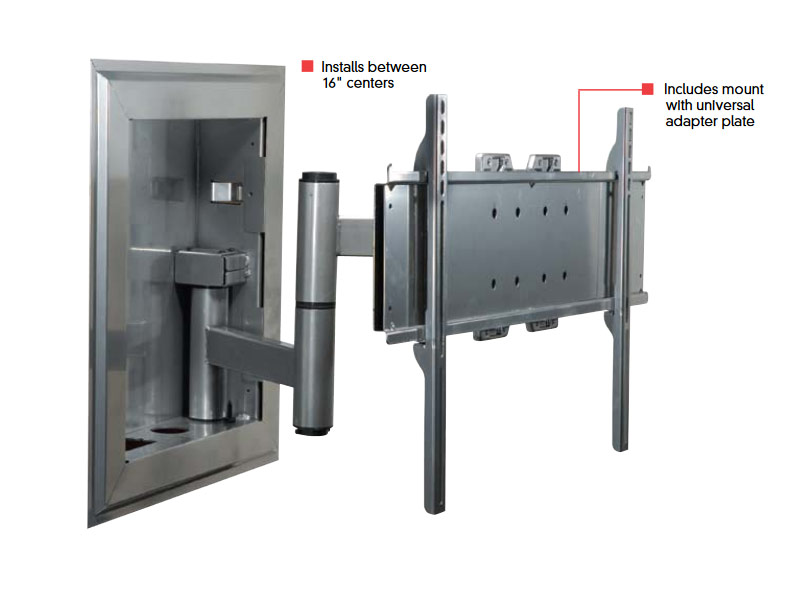

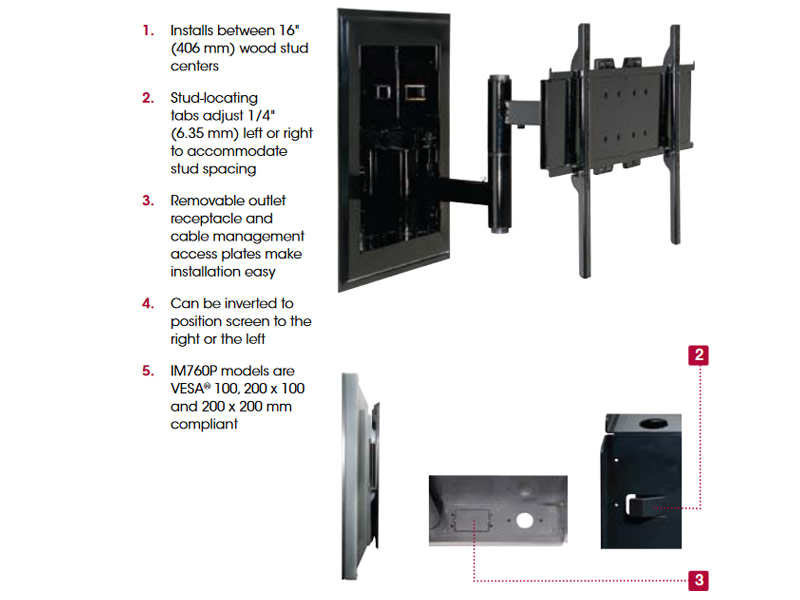

- Installs between 16" (406mm) wood stud centers
- Stud-locating tabs adjust ¼" (6mm) left or right to accommodate stud spacing
- Removable gang box and cable management access plates make installation easy

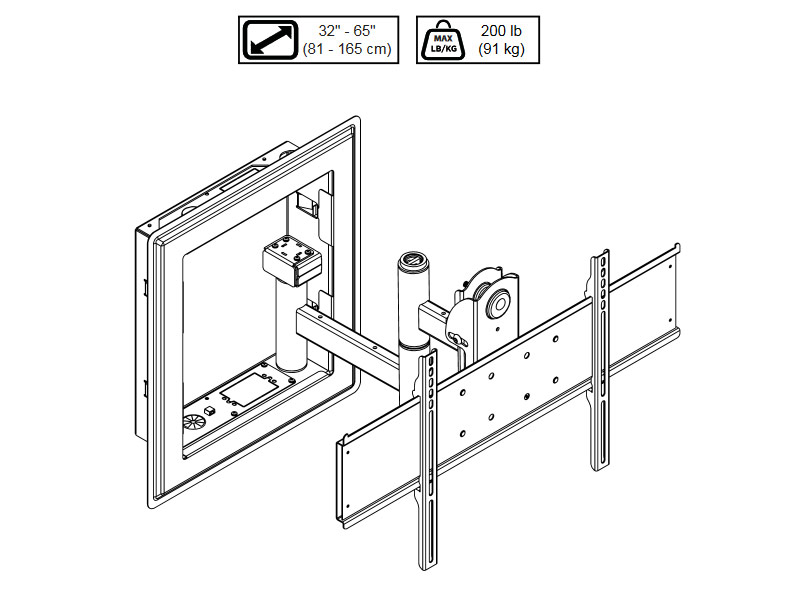

- Weight capacity: 90,7 kg per mount
- Screen size: 32-71
- Colour: Black
- swivel: +/- 45°
- tilt: +10°/-5°
- VESA Pattern 600 x 400

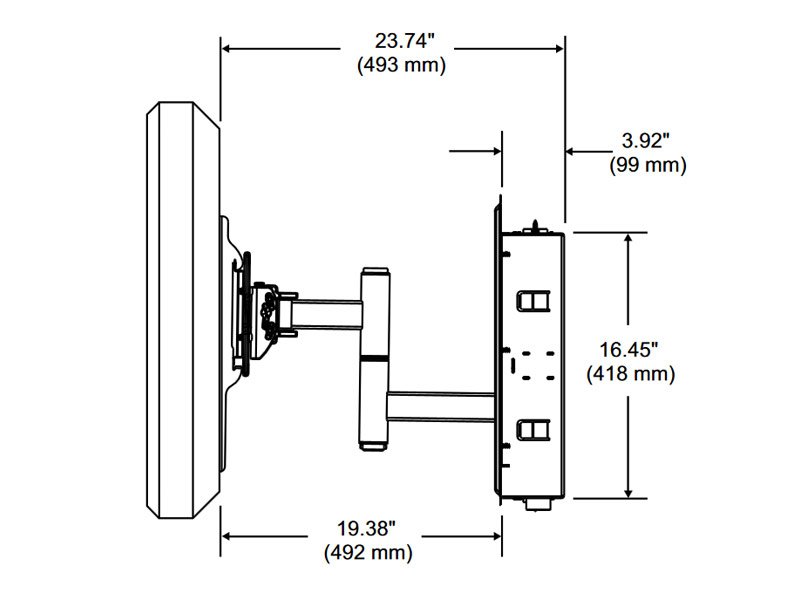

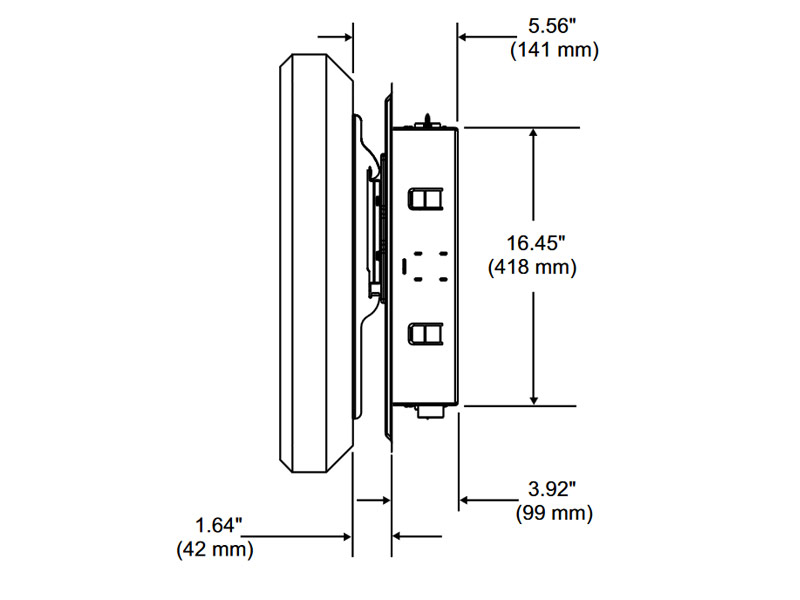

- Distance from Wall: 2.14 - 19.88" (54 - 505mm)
- Roll: +7 / -7
- Außenmaße des Wandeinbaukastens: Breite 494mm, Höhe 555mm, Tiefe 111mm
- Einbaumaße des Wandeinbaukastens: Breite 368mm, Höhe 418mm, Tiefe 99mm
- Aussparung für Kabelmanagement vorgesehen
- Garantie: 2 Jahre

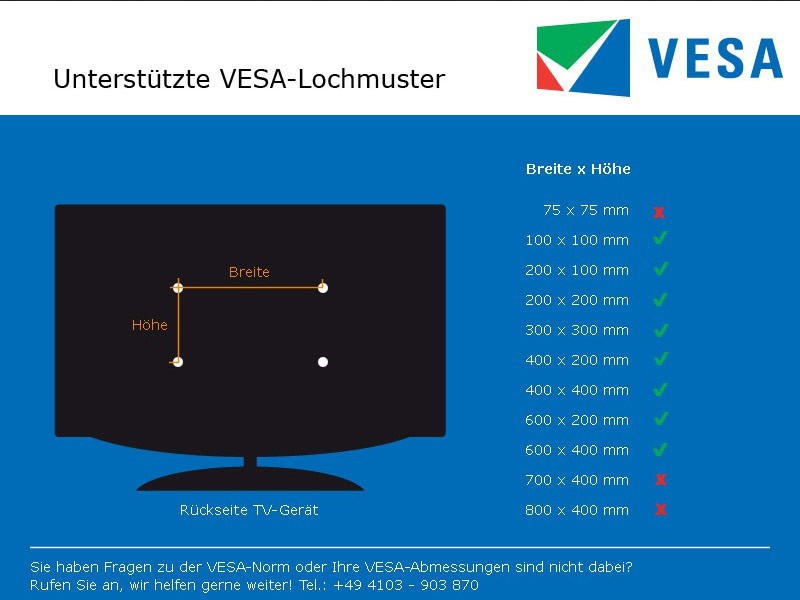

VESA Standard - Check out more about VESA Norm!
| Product sheet: |  [pdf, 198 kb - Englisch] |
|---|---|
| Technical drawing: | [pdf, 194 kb - Englisch] |
| Installation manual: | [pdf, 687 kb - Englisch] |
| Capacity: | 90,7 kg |
| Tilt: | +10°/-5° |
| Swivelling range: | +/-45° |
| Length of the swivel arm: | 492 |
| Screen size: | 32 - 60 " |
| VESA Standard: | 100x100, 200x100, 200x200 mm (www.vesa-standard.de) |
| Manufacturer/Importer: | COMM-TEC GmbH / peerless, Siemensstraße 14, 73066 Uhingen, Germany, info@exertisproav.de |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
