RAM Mounts assembly kit - 2x round base plate, long connecting arm, C-ball (RAM-101U-D)

What does the RAM Mounts assembly kit RAM-101U-D include?

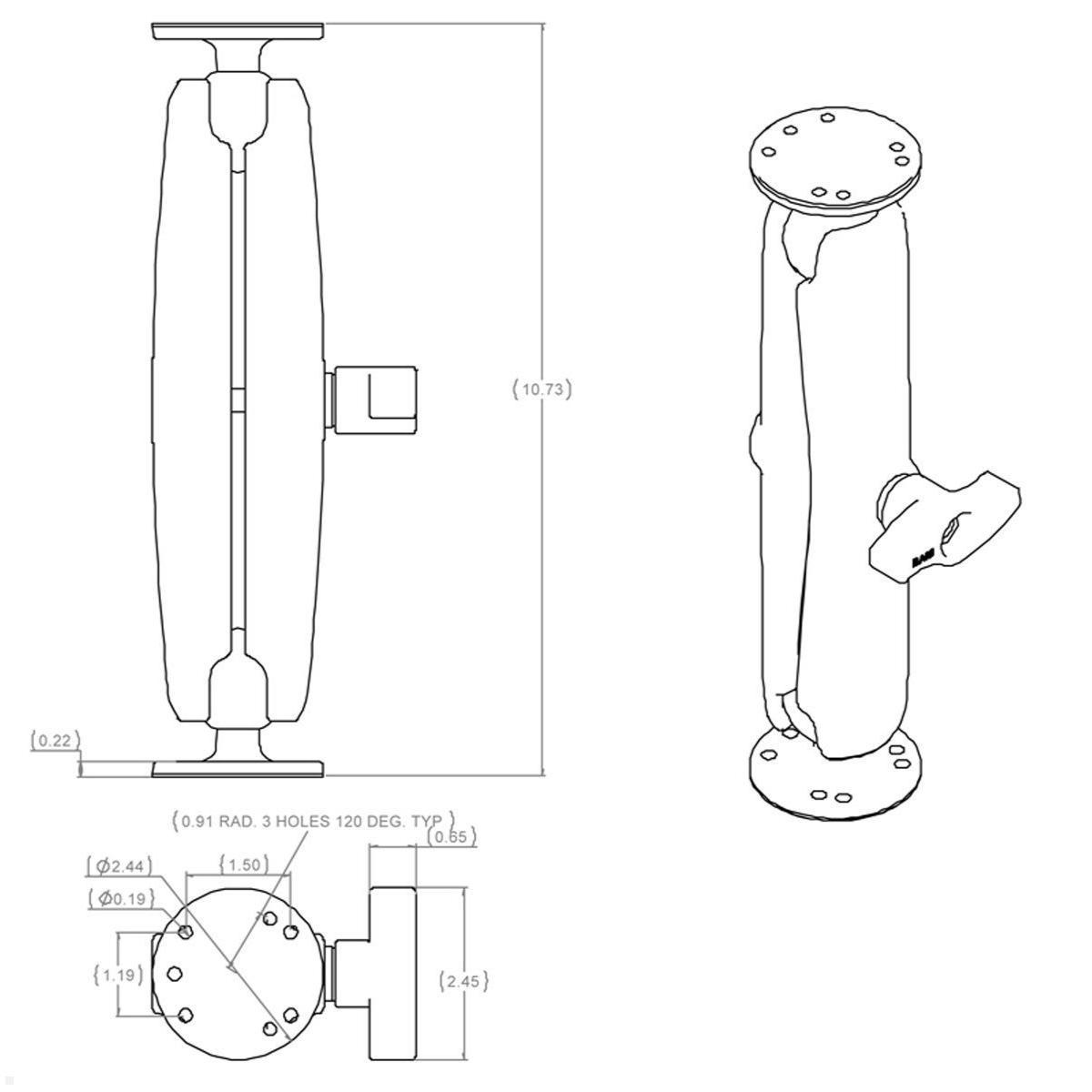

The RAM Mounts assembly kit RAM-101U-D is a complete mounting system consisting of a long connecting arm and two round base plates with an AMPS hole pattern. The connecting arm has an overall length of approx. 231.78 mm and a base-to-base length of approx. 203.2 mm, making it the longest C-ball arm in the RAM Mounts range. The two round base plates each have a diameter of 63.5 mm and feature the universal AMPS hole pattern, ensuring compatibility with numerous device holders and mounting points. The patented ball-and-socket system with 1.5-inch C-balls enables infinite angle adjustment at both ends of the connecting arm. A single locking knob is sufficient to securely fix the desired position.

What applications is the long connecting arm suitable for?

The long connecting arm of the RAM Mounts assembly kit RAM-101U-D is particularly suitable for applications where a greater distance between the mounting base and the device is required. In vehicles, the long arm allows tablets or navigation devices to be positioned within comfortable reach and line of sight of the driver, even when the mounting base is located further away on the dashboard or windshield. On boats, fishfinders and chartplotters can be installed at a sufficient distance from the mounting surface so that the screen is optimally positioned in the helmsman’s field of view. In industry, the long arm is used to mount tablets with work instructions to machine frames, where the larger swivel range provides additional flexibility in positioning. The long arm is also used in the medical field and in emergency vehicles to ergonomically position monitors and communication devices.

What load capacity does the set with C-balls offer?

The RAM Mounts assembly kit RAM-101U-D uses C-balls with a 38.1 mm diameter, which are rated for device weights up to a maximum of 4.25 kg in standard use. For heavy-duty applications with stronger vibrations, such as off-road vehicles, construction sites, or rough seas, a maximum load of approx. 1.4 kg is recommended to avoid slippage of the ball in the swivel arm. The powder-coated aluminum provides high strength and corrosion resistance, qualifying the set for continuous use under demanding conditions. The shock-absorbing properties of the patented rubber ball system protect sensitive electronic devices from vibration damage and thus extend their service life. The total weight of the set is approx. 744 g, offering a good compromise between stability and ease of handling. Due to the modular design of the RAM Mounts system, the individual components of the assembly kit can also be used separately or combined with other elements from the range. The round base plates are, for example, compatible with suction cup bases, clamp mounts, or magnetic bases, while the connecting arm can also be used with diamond base plates or VESA plates. This flexibility makes the set a future-proof investment that can adapt to changing requirements. The AMPS base plates are fastened to the desired surface with standard screws and, thanks to the standardized hole pattern, offer broad compatibility with mounts from various manufacturers. The 30-year warranty underlines the high quality and durability of this professional mounting set. Furthermore, the RAM Mounts system allows the long arm to be swapped for a short or medium arm if requirements change, without having to replace the base plates.
