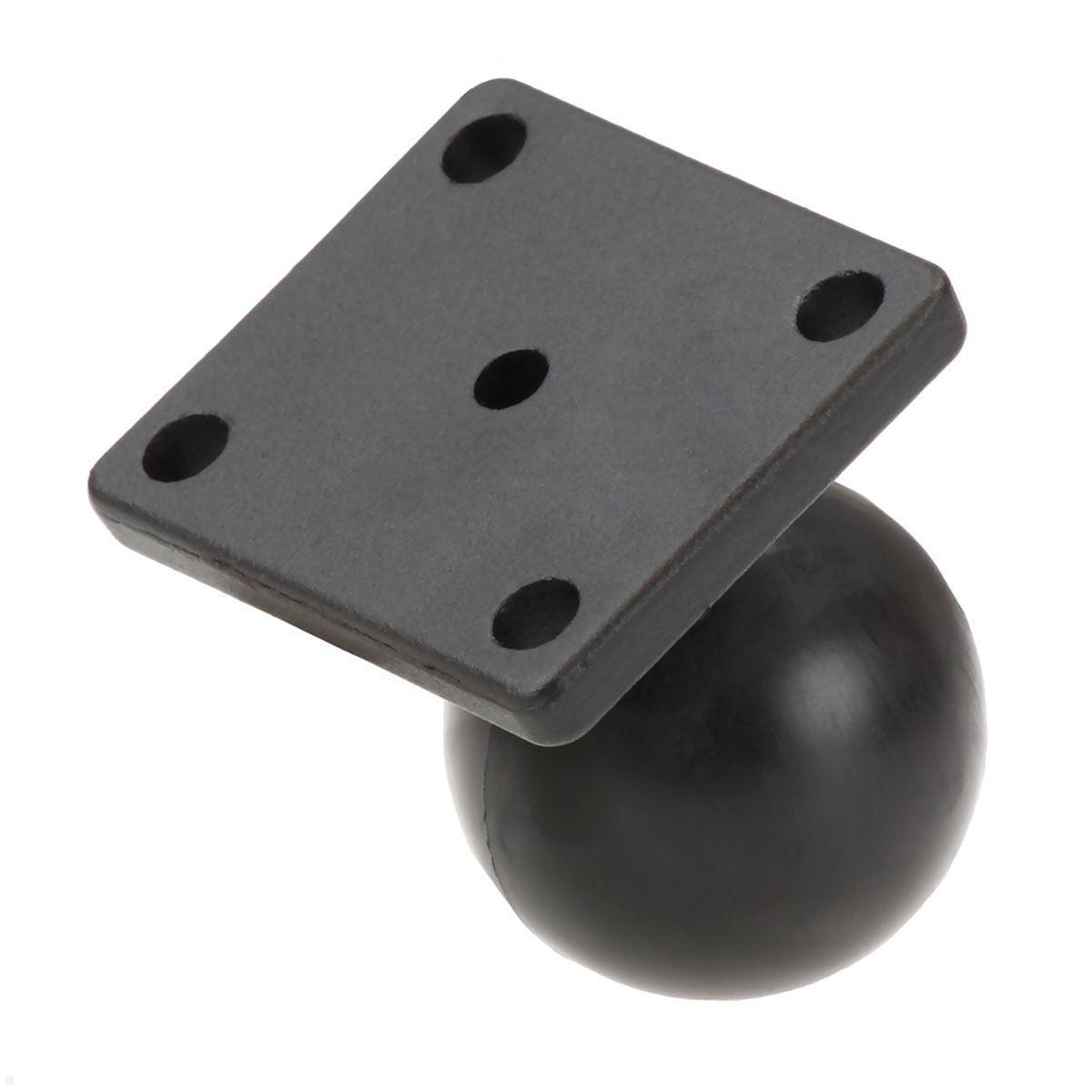

RAM Mounts base plate rectangular C-ball (RAM-347U)
Highlights
- Rectangular base plate AMPS hole pattern
- C-ball 1.5-inch mount
- Powder-coated aluminum
- Versatile mounting solution
- Compact footprint 43 x 50.8 mm
RAM Mounts rectangular mounting plate with AMPS hole pattern
The RAM Mounts base plate rectangular C-ball (RAM-347U) is a versatile mounting solution with an AMPS 4-hole pattern to securely mount electronic devices. The rectangular base plate made of powder-coated aluminum features a C-ball (1.5 inch) and is compatible with numerous RAM Mounts components. It is ideal for use in vehicles, on boats, or in industrial applications.
With a compact footprint of approx. 43 x 50.8 mm and the standardized AMPS hole pattern, the base plate offers flexible mounting options. The hole centers are approx. 6.4 mm from the edge, providing a stable and precise mounting base for navigation devices, tablets and other devices.

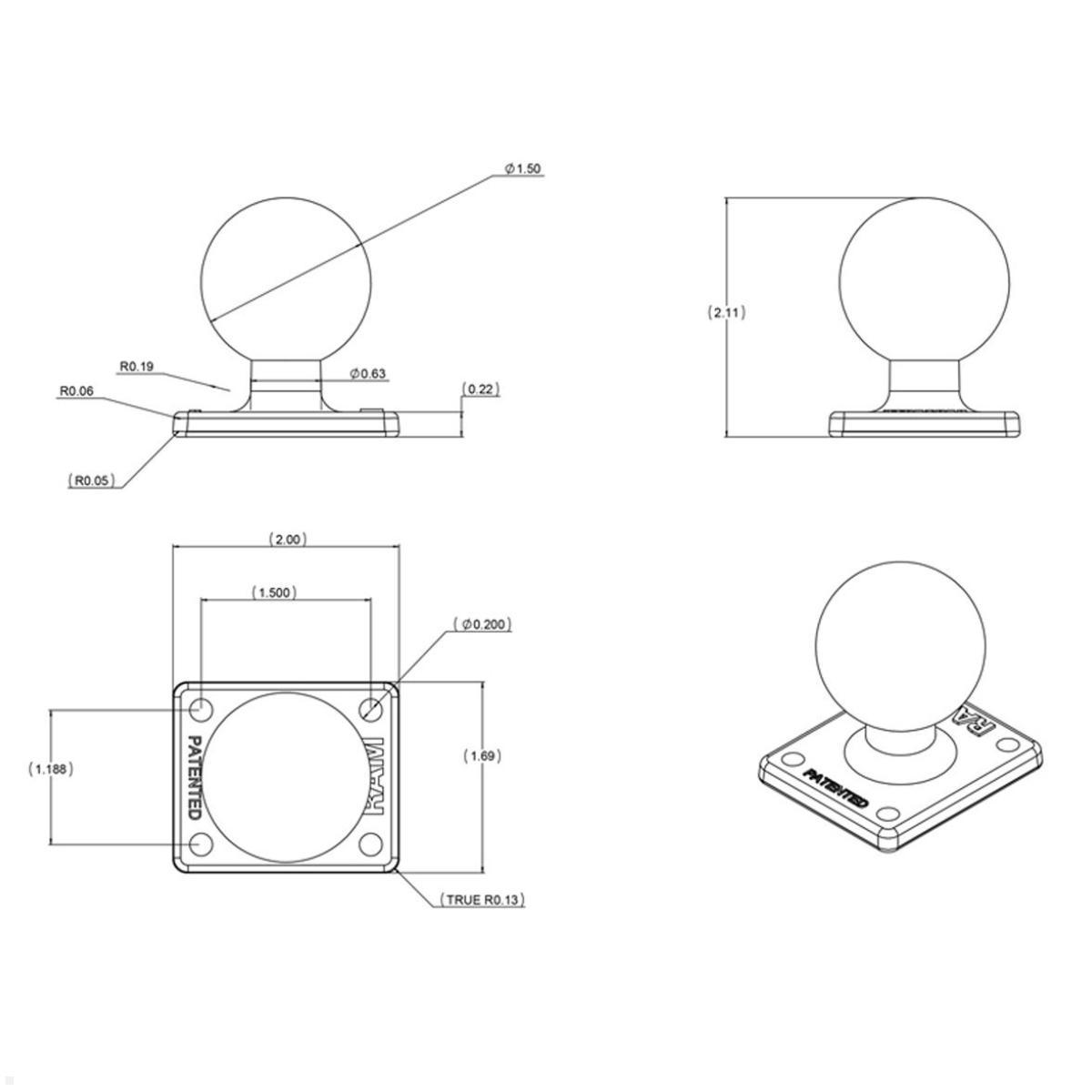

Technical details RAM Mounts rectangular base plate
- Footprint: approx. 43 x 50.8 mm (1.69 x 2 inch)
- Hole centers from edge: approx. 6.4 mm (1/4 inch)
- Distance between hole centers: 38.1 mm and 30.5 mm
- Ball diameter: 38.1 mm (1.5 inch, C-ball)
- Material: powder-coated aluminum
- Color: black
- Weight: approx. 95 g
| Material: | Pulverbeschichtetes Aluminium |
|---|---|
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | C-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts rectangular base plate with a C-ball (RAM-347U)?
It is a rectangular base plate made of powder-coated aluminium, featuring a 1.5-inch C-ball and an AMPS 4-hole pattern.
-
Where can it be used?
Suitable for use in vehicles, on boats or in industrial applications.
-
What are the dimensions?
Base dimensions are about 43 x 50.8 mm (1.69 x 2 inches) and the hole centres are about 6.4 mm from the edge.
-
What are the hole centre spacings?
The distance between the hole centers is 38.1 mm and 30.5 mm.
-
What is the ball size?
Ball diameter is 38.1 mm (1.5 inches).
-
What material and colour is it?
Material: powder-coated aluminium. Colour: black. Weight: approx 95 g.
-
Is it compatible with RAM Mounts components?
Yes, it is compatible with numerous RAM Mounts components.
What does the RAM Mounts base plate RAM-347U offer?
The RAM Mounts base plate RAM-347U is a rectangular mounting plate with a C-ball and an AMPS 4-hole pattern. The compact footprint of approximately 43 x 50.8 mm provides a stable base for attaching electronic devices via the modular RAM Mounts system. The standardized AMPS hole pattern with spacings of 38.1 mm and 30.5 mm enables the direct mounting of GPS devices, navigation holders and other AMPS-compatible components. The hole centers are about 6.4 mm from the edge, ensuring precise alignment of the mounted components. The C-ball with a diameter of 38.1 mm accepts swivel arms and mounts for flexible positioning.
What is the AMPS hole pattern and what is it used for?
The AMPS hole pattern is a widely used mounting standard for electronic devices and brackets. The abbreviation AMPS stands for a standardized 4-hole drilling pattern used by numerous manufacturers of GPS devices, navigation units and tablet mounts. The RAM Mounts base plate RAM-347U features this standardized hole pattern and is therefore compatible with a wide range of device mounts and adapters. The AMPS pattern allows direct screwing without additional adapters and provides a particularly secure connection between the base plate and the device mount.
In which areas is the rectangular base plate used?
The RAM Mounts base plate RAM-347U is used in numerous areas. In vehicles it is screwed to dashboards, center consoles or vehicle panels to secure navigation devices or smartphones. On boats it serves as a mounting base for fishfinders, chartplotters and communication devices. In industry the base plate is mounted on workbenches, machine frames and shelving systems to position tablets with work instructions or test protocols. The compact design and low weight of approximately 95 g make the plate a universal fastening solution for professional and private applications.
