RAM Mounts EZ-Roll'r protective cover for Samsung Tab Active3 & Active5 (RAM-HOL-SAM60CPU)
Highlights
- For Samsung Tab Active3 & Active5
- USB-C charging in the dock
- AMPS 4-hole mount

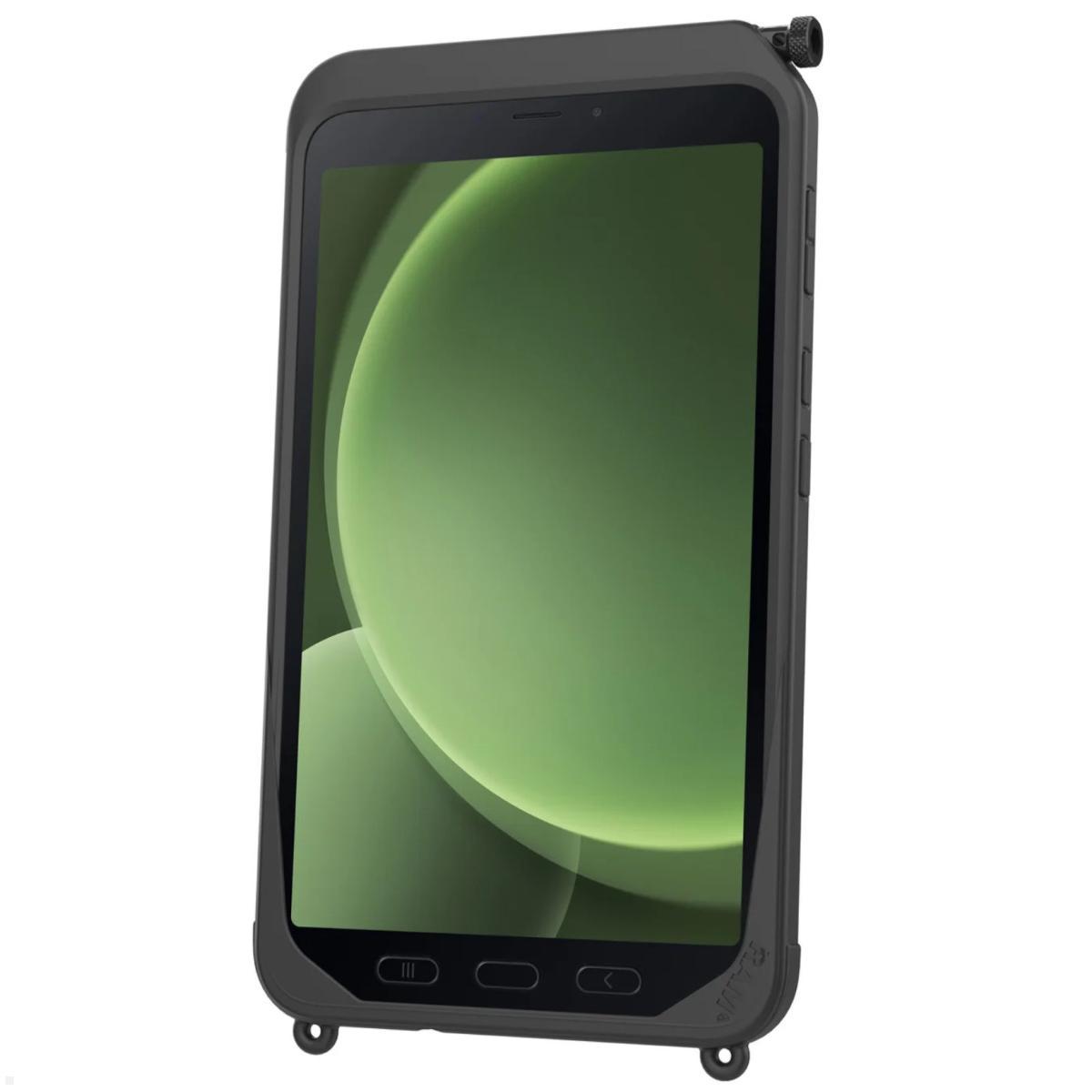

- Only with OEM/RAM skin
- Compatible with RAM accessories
RAM Mounts EZ-Roll'r Cradle for Samsung Tab Active3 & Active5

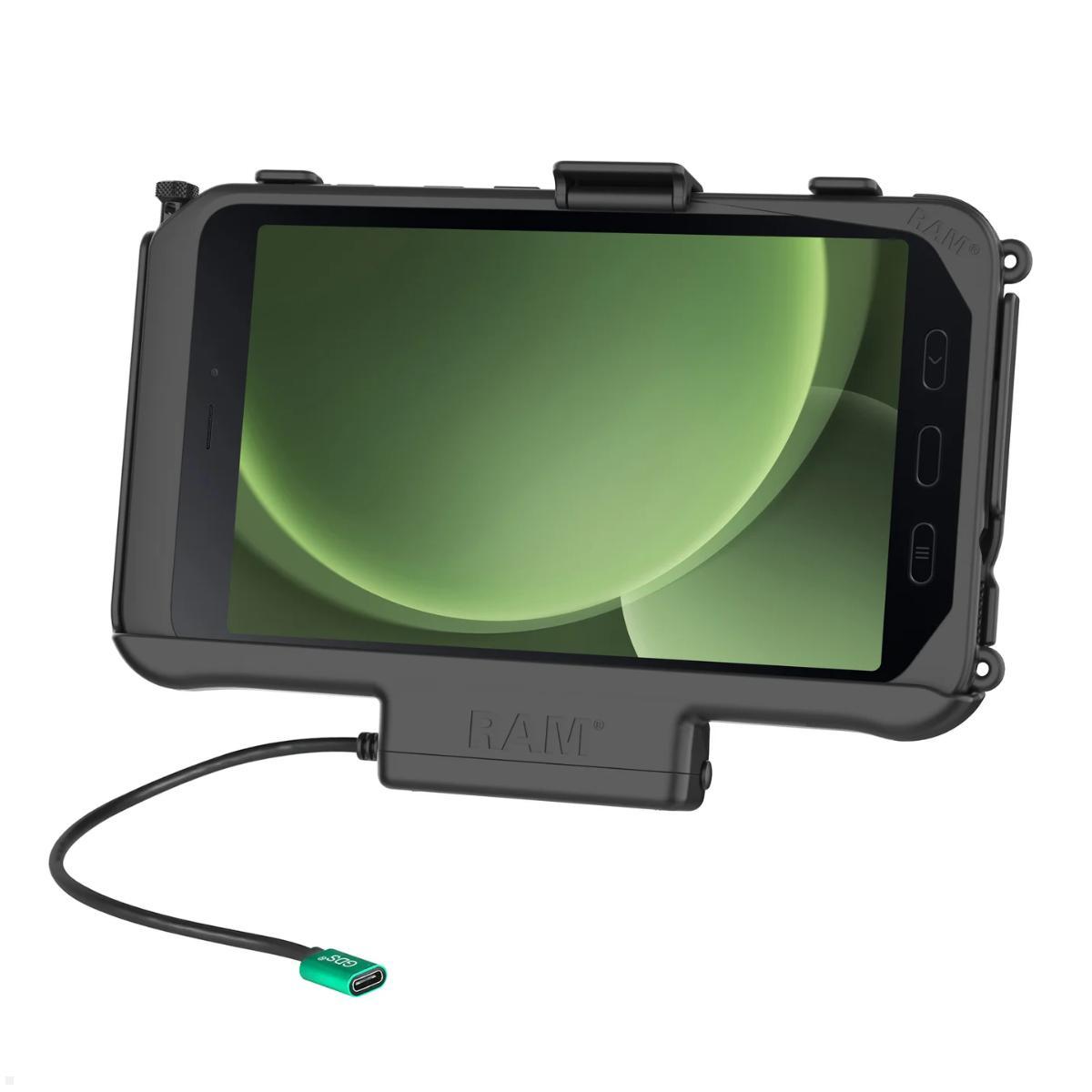

The RAM Mounts EZ-Roll'r Cradle RAM-HOL-SAM60CPU is the ideal vehicle mounting solution for the Samsung Galaxy Tab Active3 and Active5 in OEM or RAM protective case. The form-fit cradle is powered via a USB-C connector and charges the tablet directly in the dock — for uninterrupted operation in the vehicle, warehouse or field service. Insertion is achieved by simply pressing the bottom of the device until it snaps into place.
Precise cutouts keep all buttons and ports of the Samsung Galaxy Tab Active3 & Active5 fully usable. The back of the RAM-HOL-SAM60CPU is prepared to accept a round base plate (AMPS, not included) and thus allows combination with the entire RAM Mounts mounting system. Possible areas of application include vehicle mounts, fleet management, logistics and field service.
Technical details RAM Mounts EZ-Roll'r Cradle, Samsung Tab Active3 & Active5 (RAM-HOL-SAM60CPU)
- Compatible devices: Samsung Galaxy Tab Active2, Active3 & Active5 (in OEM or RAM protective case)
- Hole pattern: AMPS 4-hole
- Mounting: screws
- Connector: USB-C
- Input voltage: 5.3–5.4 VDC
- Output voltage: 5 VDC
- Input cable length: approx. 21 cm
- Only usable with OEM or RAM skin
- Compatible with accessories (hand-stand, shoulder strap)
- Weight: 323 g
- EAN: 0793442018428
| Material: | Kunststoff |
|---|---|
| Suitable for: | Samsung Galaxy Tab Active2, Active3 & Active5 (in OEM- oder RAM Schutzhülle) |

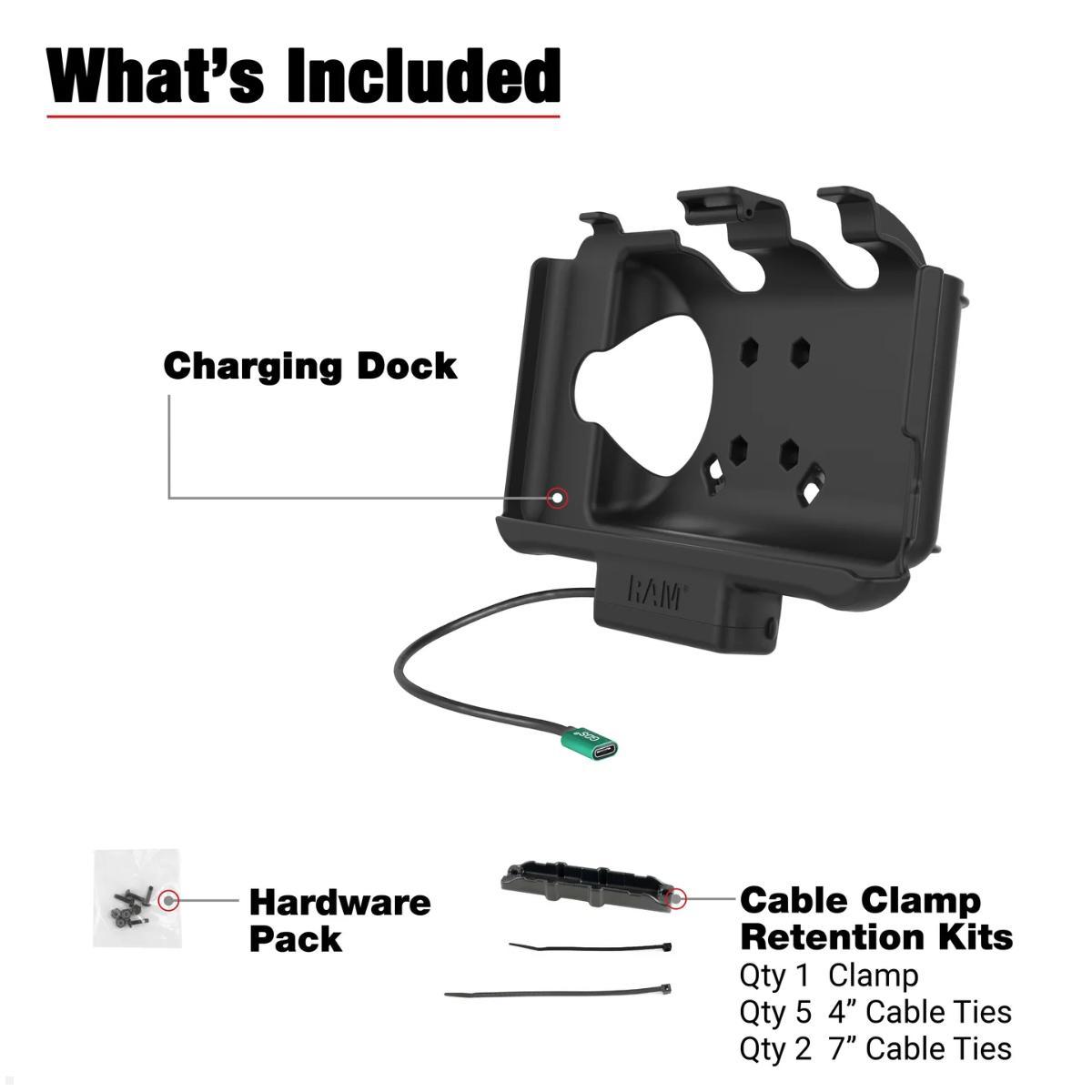

| Scope of delivery: | 1x EZ-Roll'r holding cradle (RAM-HOL-SAM60CPU) |
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is the RAM Mounts EZ-Roll'r Form-Fit Holder RAM-HOL-SAM60CPU the ideal vehicle solution for the Samsung Galaxy Tab Active3 and Active5?
Anyone who wants to operate a Samsung Galaxy Tab Active3 or Active5 permanently and reliably in a vehicle needs more than a simple mount. The RAM Mounts EZ-Roll'r Form-Fit holder RAM-HOL-SAM60CPU combines secure device fixation with an integrated charging function and was specifically developed for professional vehicle use. The tablet can be easily placed into the holder from above — the bottom of the device is pushed in until it audibly clicks into place. Removal is equally straightforward. This allows the Samsung Galaxy Tab Active3 or Active5 to be quickly installed and removed without tools or complicated maneuvers. The USB-C connection between the holder and the tablet charges the device at the same time, so it is always fully charged and ready for use in the vehicle. The RAM-HOL-SAM60CPU is only compatible with devices in an OEM or RAM protective case — it cannot be used without a case. Typical application areas include commercial vehicles, forklifts, emergency vehicles, logistics fleets, and any work environments where a securely mounted and charged tablet is indispensable.
How is the RAM-HOL-SAM60CPU mounted in the vehicle?

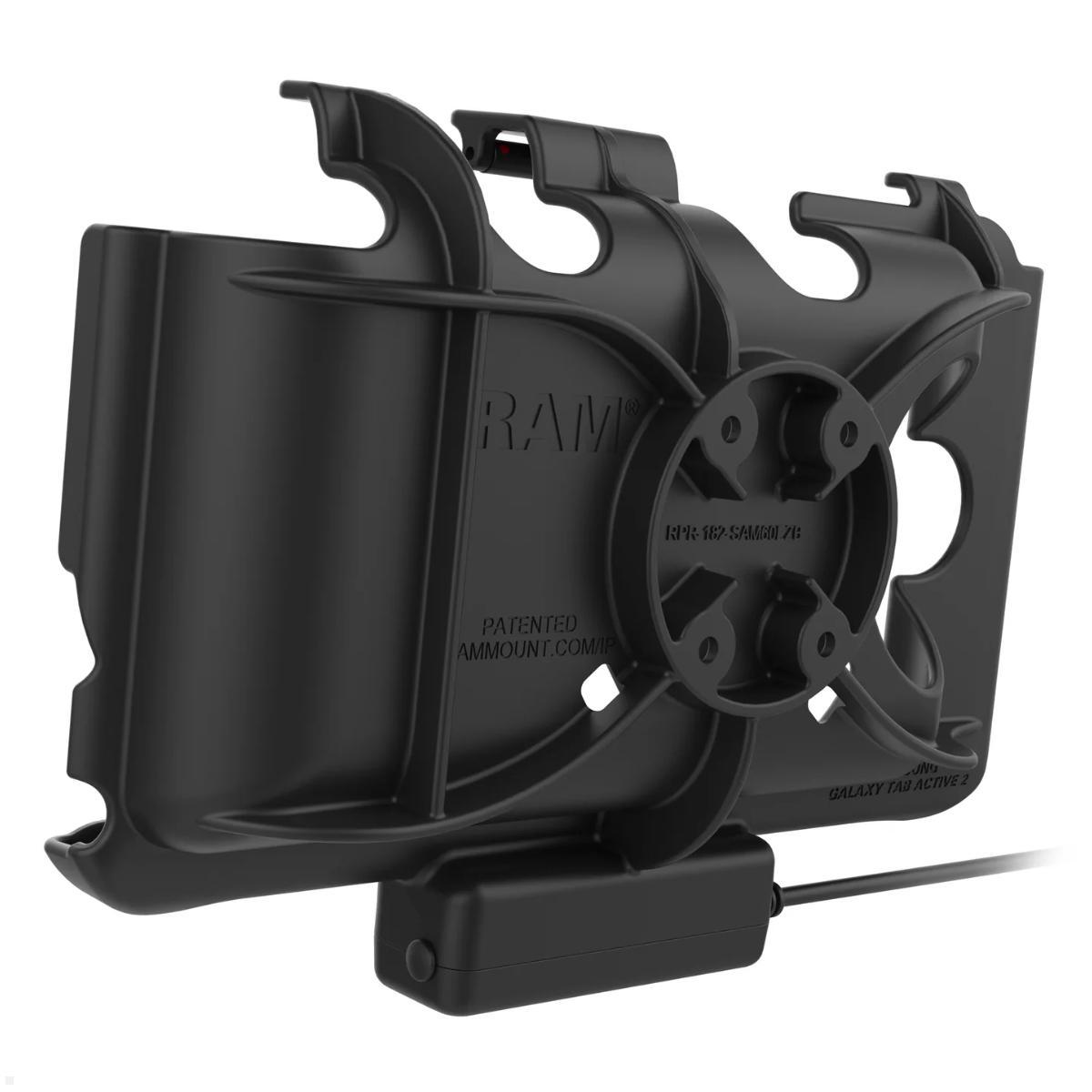

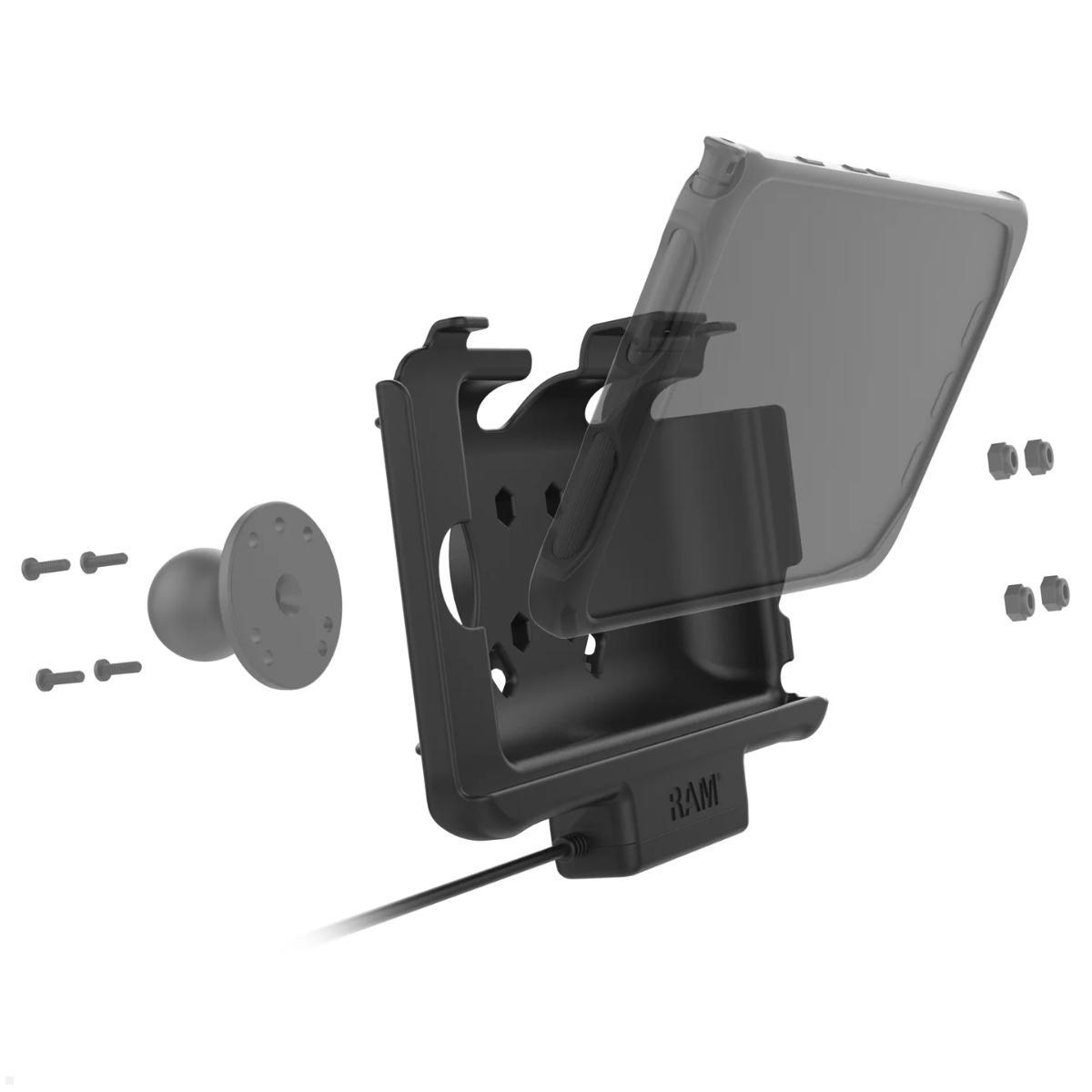

The back of the RAM Mounts EZ-Roll'r holder RAM-HOL-SAM60CPU is equipped with a standardized AMPS 4-hole interface. This allows direct combination with all compatible connecting arms, base plates and mounting solutions from the RAM Mounts range. Depending on the vehicle type and installation situation, the holder can be mounted via a round base plate, a screw clamp, a pipe clamp, or other AMPS-compatible components. The connection is made using screws, which ensure a particularly stable and vibration-resistant attachment — ideal for rugged vehicle use. The input charging cable has a length of approx. 21 cm, which allows for flexible routing in most vehicles. Please note: The RAM-HOL-SAM60CPU is not compatible with Power Delivery chargers, as the tablet's pogo pins do not support Power Delivery. For proper operation, a charger without PD functionality is therefore required.
Which devices are compatible with the RAM-HOL-SAM60CPU and what should be observed?
The RAM Mounts EZ-Roll'r holder RAM-HOL-SAM60CPU is suitable for the Samsung Galaxy Tab Active2, Active3 and Active5 — each in an OEM or RAM protective case. This means that the tablet must always be in an appropriate protective case before being placed in the holder. Without a protective case, a secure and correct fit is not possible. The holder is also compatible with accessories such as the GDS Hand-Stand (hand strap with kickstand) and the GDS shoulder strap from RAM Mounts, making it flexible for use outside the vehicle as well. This product also does not support the so-called No-Battery-Mode function of the Samsung Galaxy Tab Active5. Those who want to permanently and securely mount and charge their tablet in a vehicle will find a professional, well-thought-out solution in the RAM Mounts EZ-Roll'r holder RAM-HOL-SAM60CPU from a proven mounting system.
