RAM Mounts EZ-Roll'r Protective Case for Samsung Tab Active4 Pro & Active Pro (RAM-HOL-SAM52CPU)
Highlights
- For Samsung Tab Active4 Pro
- USB-C charging in the dock
- AMPS 4-hole mount
- Only with OEM/RAM skin
- Compatible with RAM system

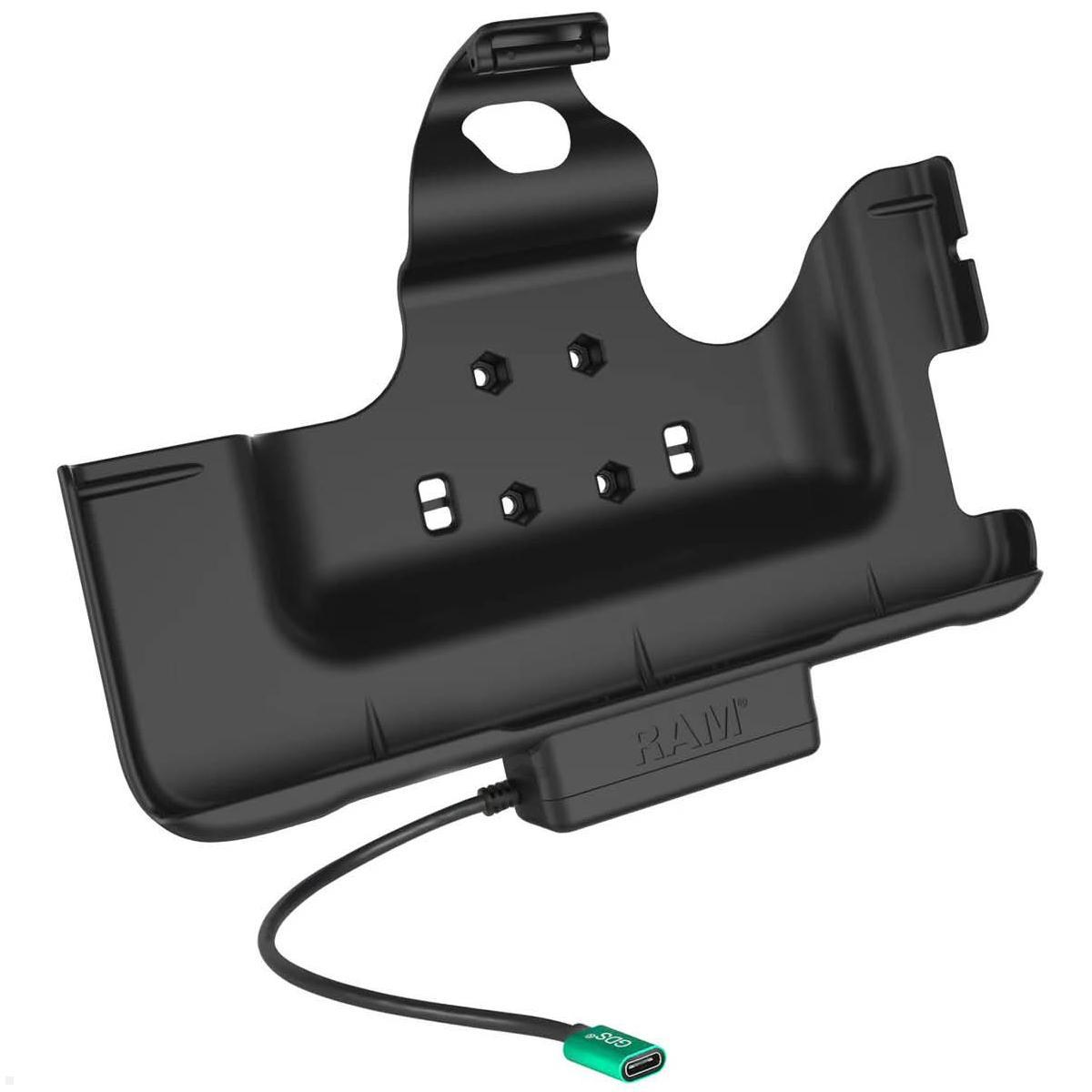

RAM Mounts EZ-Roll'r Holder Shell for Samsung Tab Active4 Pro & Active Pro
The RAM Mounts EZ-Roll'r Form-Fit Holder Shell RAM-HOL-SAM52CPU is the professional vehicle docking station for the Samsung Galaxy Tab Active Pro, Active4 Pro and Active5 Pro in OEM or RAM protective skin. The holder supplies the tablet with power via a USB-C connector and charges it directly in the dock — for uninterrupted use in vehicles, machinery and field service. Insertion is performed conveniently by simply pressing the bottom of the device until it audibly and tactilely clicks into place.
All buttons and ports remain fully accessible thanks to the precise cutouts. The back of the RAM-HOL-SAM52CPU features an AMPS 4-hole mounting pattern and is therefore compatible with the entire RAM Mounts mounting system. Possible areas of application include fleet management, logistics, field service and all industrial environments with high demands on device mounting and charging infrastructure.
Technical details RAM Mounts EZ-Roll'r Holder Shell, Samsung Tab Active4 Pro (RAM-HOL-SAM52CPU)
- Compatible devices: Samsung Galaxy Tab Active Pro, Active4 Pro & Active5 Pro (in OEM or RAM protective skin)
- Hole pattern: AMPS 4-hole
- Mounting: screws
- Connector: USB-C
- Input voltage: 5.3–5.4 VDC
- Output voltage: 5 VDC
- Input cable length: approx. 21 cm
- Only usable with OEM or RAM skin
- Not compatible with Power Delivery chargers
- Weight: 323 g
- EAN: 0793442017360
| Material: | Kunststoff |
|---|---|
| Suitable for: | Samsung Galaxy Tab Active Pro, Active4 Pro & Active5 Pro (in OEM- oder RAM Schutzhülle) |

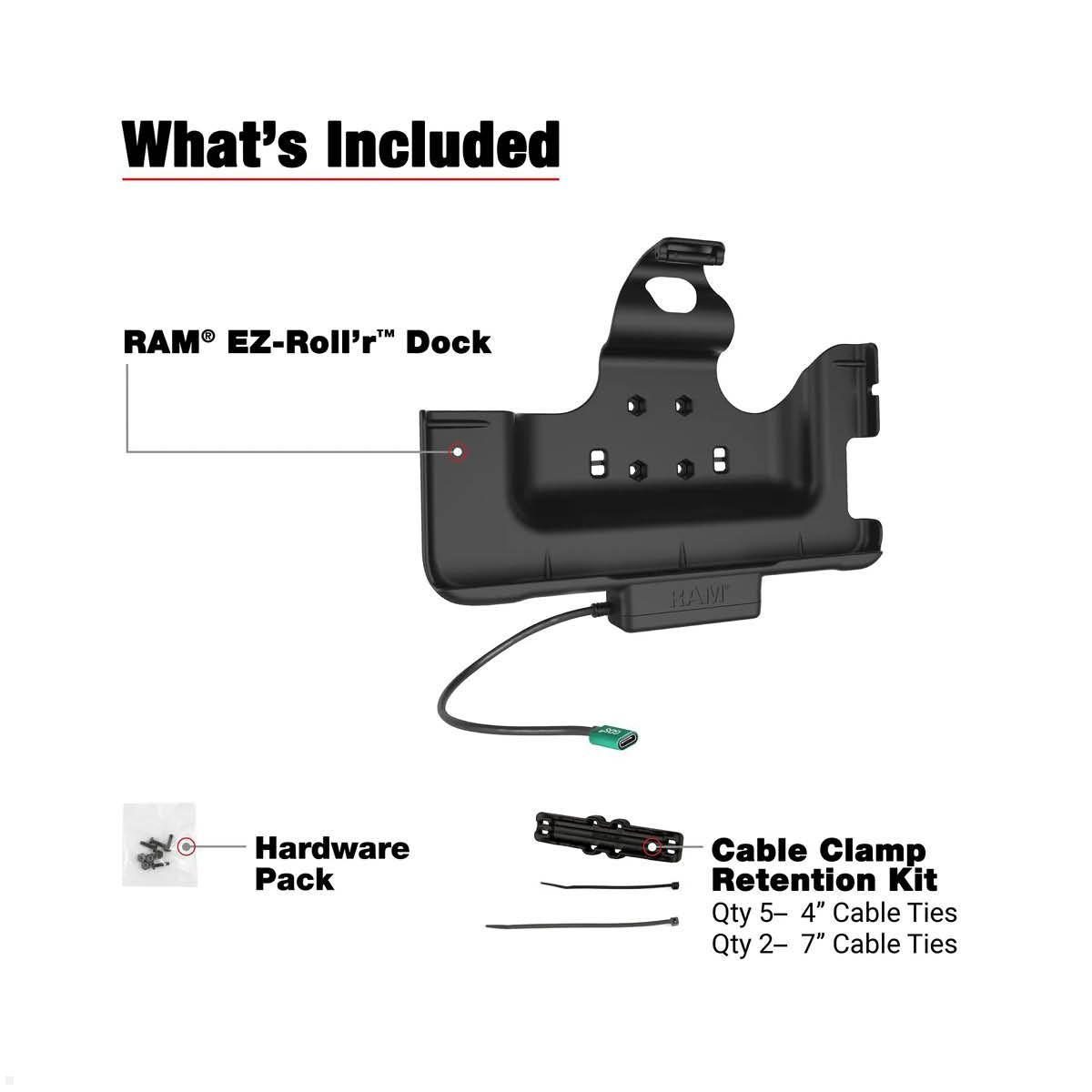

| Scope of delivery: | 1x EZ-Roll'r mounting cradle (RAM-HOL-SAM52CPU) |
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is the RAM Mounts EZ-Roll'r cradle RAM-HOL-SAM52CPU the perfect docking solution for the Samsung Galaxy Tab Active4 Pro in vehicles?
In professional vehicle use, tablet mounts are required that not only provide secure holding but also charge the device. The RAM Mounts EZ-Roll'r Form-Fit cradle RAM-HOL-SAM52CPU meets exactly these requirements for the Samsung Galaxy Tab Active Pro, Active4 Pro and Active5 Pro. The cradle accepts the tablet — in OEM or RAM protective case — securely and simultaneously supplies it with power via the integrated USB-C connector. Inserting the tablet is quick and intuitive: the bottom of the device is pressed into the cradle until it audibly and tactilely clicks into place. Removal is equally simple. Thanks to the precise cutouts of the RAM-HOL-SAM52CPU, all buttons and ports of the Samsung Galaxy Tab Active4 Pro remain fully usable. The cradle is also compatible with accessories such as the GDS Hand-Stand and the GDS Shoulder Strap, making use flexible beyond the vehicle. Typical areas of application are commercial vehicles, forklifts, emergency vehicles as well as vehicle fleets in logistics, field service and industry — everywhere a continuously ready and securely mounted tablet is required.
What technical features are there for charging with the RAM-HOL-SAM52CPU?
The RAM Mounts EZ-Roll'r cradle RAM-HOL-SAM52CPU features a USB-C charging connector with an input voltage of 5.3 to 5.4 VDC and an output voltage of 5 VDC. The input charging cable has a length of approx. 21 cm, allowing flexible routing in the vehicle. It is important to note that the RAM-HOL-SAM52CPU is not compatible with Power Delivery chargers. Although the cradle has a USB-C connector, the pogo pins on the side of the tablet do not support Power Delivery. For proper operation, a charger without PD function is therefore strictly required. In addition, this product does not support the No-Battery-Mode function of the Samsung Galaxy Tab Active4 Pro. The cradle is also designed for landscape operation only — for more demanding applications or portrait operation, RAM Mounts recommends the model RAM-HOL-SAM57CPKL-CU.
How can the RAM-HOL-SAM52CPU be integrated into the RAM Mounts mounting system?
The back of the RAM Mounts EZ-Roll'r cradle RAM-HOL-SAM52CPU features a standardized AMPS 4-hole mount, which enables direct combination with the entire RAM Mounts mounting system. Depending on the installation situation, the RAM-HOL-SAM52CPU can be mounted using round base plates, connecting arms, screw clamps, tube clamps or seat rail adapters — for almost every vehicle type and mounting position there is a suitable solution. Mounting is done with screws and thus ensures a vibration-resistant, professional attachment. Those who wish to combine multiple mounting components will find compatible connecting arms and base plates in the RAM Mounts range that are perfectly matched to the RAM-HOL-SAM52CPU.
