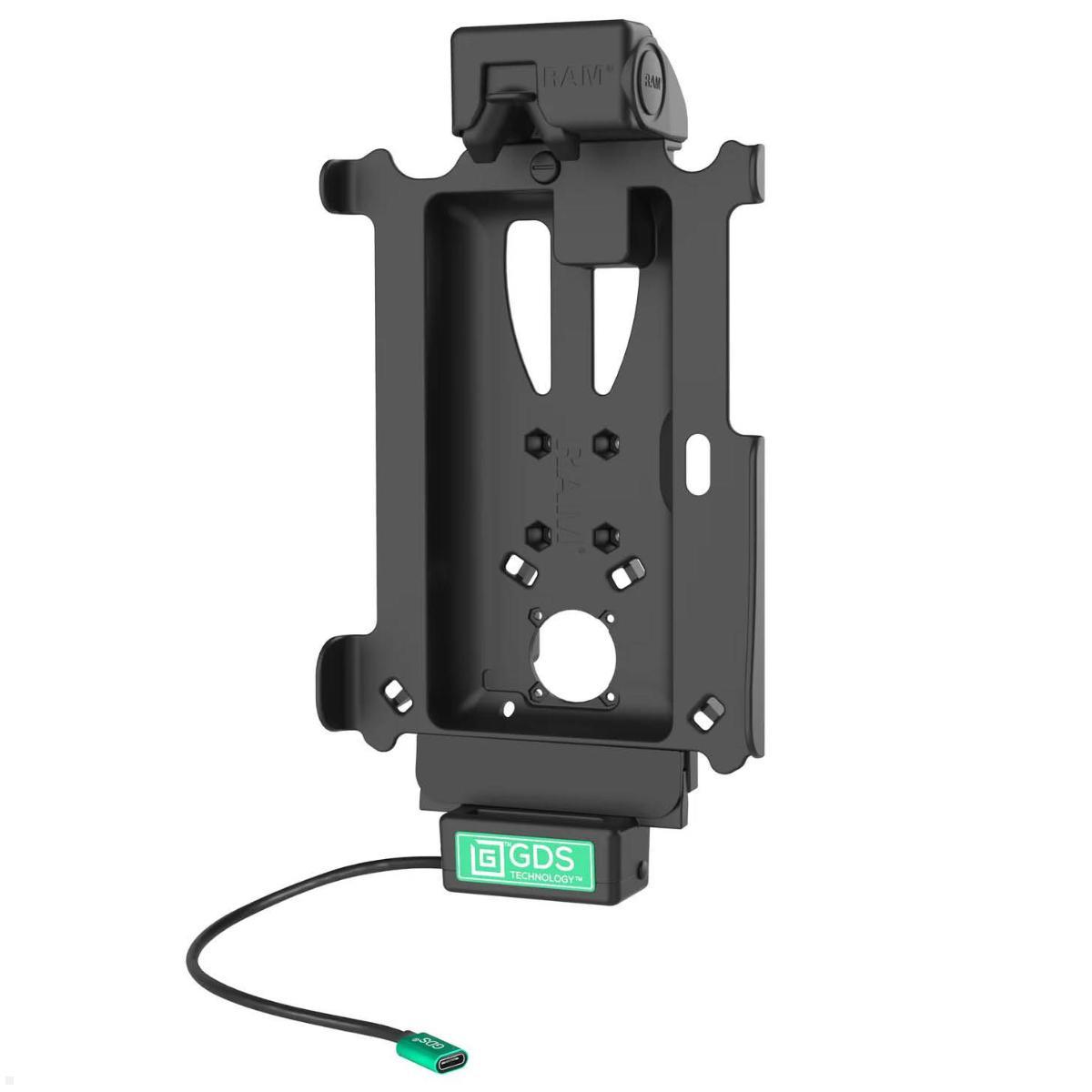

RAM Mounts GDS Tough-Dock Tab Active Pro (RAM-GDS-DOCK-SAM54NCPU)
Highlights
- GDS Tough-Dock with USB-C 60W
- For Tab Active Pro, 4 Pro & 5 Pro
- Compatible with IntelliSkin Next Gen
- NFC repeater module can be retrofitted
- Prepared for GDS Axial Fan
GDS Tough-Dock cradle with USB-C charging function for Samsung Tab Active Pro

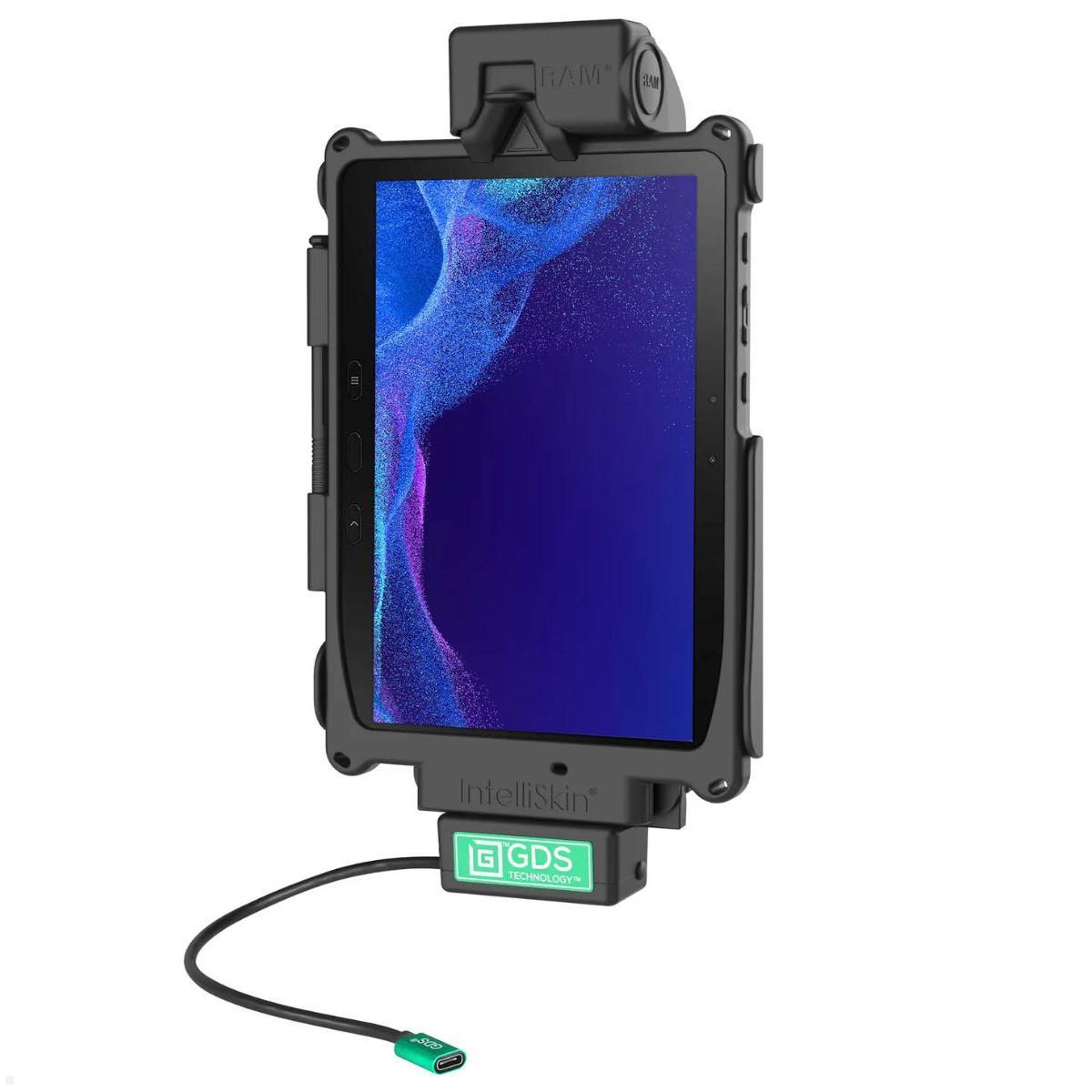

The RAM Mounts GDS Tough-Dock Tab Active Pro (RAM-GDS-DOCK-SAM54NCPU) is a rugged cradle with an integrated USB-C charging function and an output power of 60 watts. It is compatible with the Samsung Tab Active Pro, Tab Active4 Pro and Tab Active5 Pro when used with an IntelliSkin Next-Gen protective sleeve. The device is simply placed into the cradle and pressed in until the snap latch clicks into place.

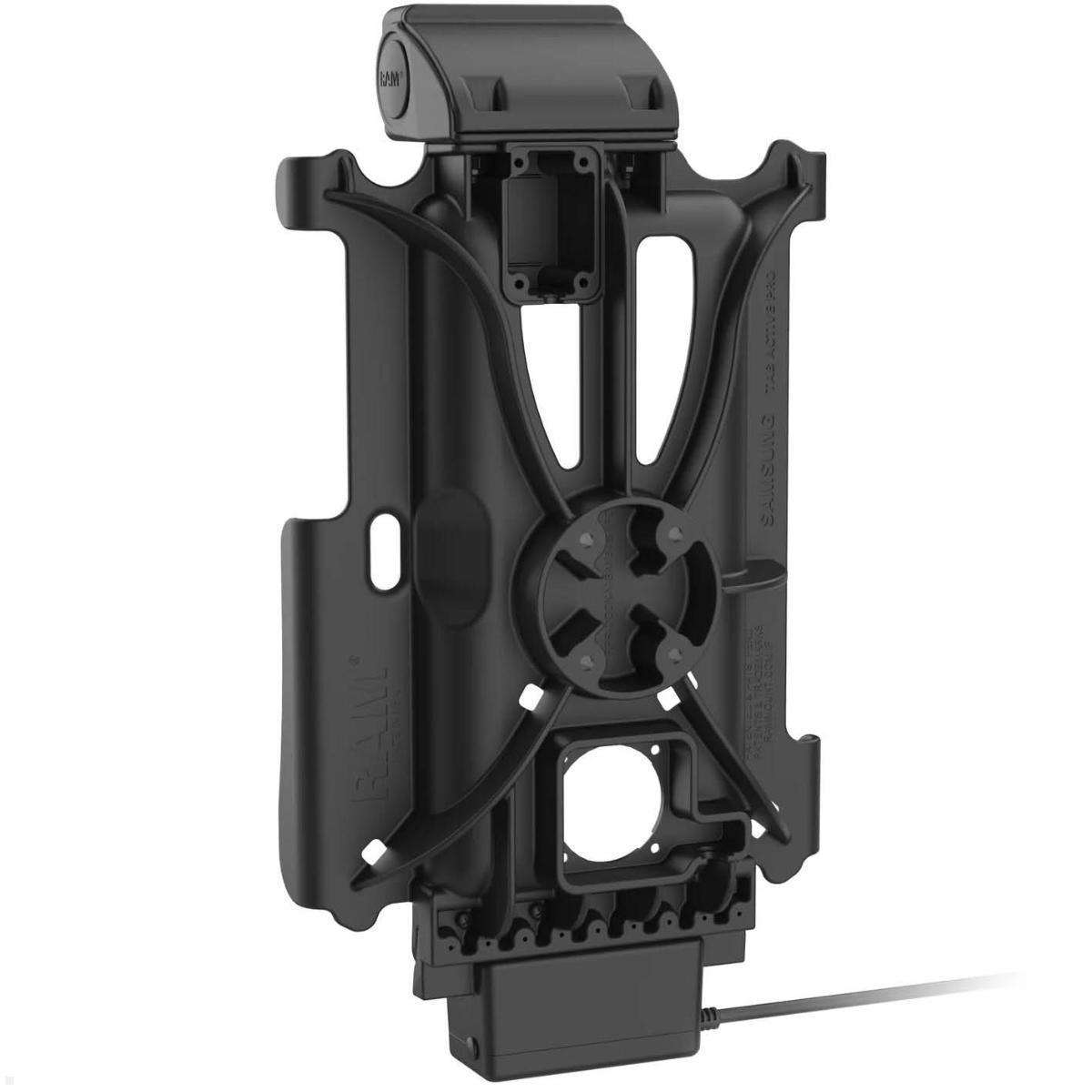

Precise cutouts for all buttons and ports preserve the full operability of the tablet. Optionally, a GDS 12-VDC axial fan can be connected for cooling or an NFC repeater add-on module to extend the internal NFC reader. The cradle is also compatible with the GDS Hand-Stand. The back is prepared to accept a round base plate, which is sold separately.
Technical details RAM Mounts GDS Tough-Dock RAM-GDS-DOCK-SAM54NCPU
- Type: GDS Tough-Dock cradle with snap latch and charging function
- Connector: USB-C
- Output power: 60 watts
- Output voltage: 5-20V at 3A
- Hole pattern: AMPS 4-hole
- Mounting: screws
- Compatibility: Samsung Tab Active Pro, Tab Active4 Pro, Tab Active5 Pro
- Requirement: IntelliSkin Next-Gen protective sleeve (not included)
- Prepared for: GDS-FAN 12-VDC axial fan, NFC repeater add-on module
- Compatible with accessories: GDS Hand-Stand
- Note: Does not support the "No Battery Mode" function of the Tab Active4 Pro and Active5 Pro
- Contents: 1x RAM-GDS-DOCK-SAM54NCPU cradle
| Material: | Kunststoff |
|---|---|
| Scope of delivery: | 1x RAM-GDS-DOCK-SAM54NCPU retaining bracket |
| Contains installation material: | + |
| Warranty: | 1 year |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts GDS Tough-Dock Tab Active Pro?
It is a robust cradle with a built-in USB-C charging function and a 60-watt output. It is compatible with Samsung Tab Active Pro, Tab Active4 Pro, and Tab Active5 Pro when used with an IntelliSkin Next-Gen protective case.
-
Which tablets are compatible?
Samsung Tab Active Pro, Tab Active4 Pro and Tab Active5 Pro when used with an IntelliSkin Next-Gen protective case (not included).
-
How do you insert the tablet into the cradle?
The tablet is placed into the cradle and pressed until the snap latch locks; precise cutouts keep full access to all buttons and ports.
-
What optional extras are available?
Optionally, a GDS 12-VDC axial fan for cooling or an NFC repeater accessory module can be connected; the cradle is also compatible with the GDS Hand-Stand.
-
What are the connector and power specs?
USB-C port; 60-watt output; output voltage 5–20 V at 3 A.
-
What are the prerequisites?
Prerequisite: IntelliSkin Next-Gen protective case (not included).
-
What does the No Battery Mode note mean?
The cradle does not support the 'No Battery Mode' function of the Tab Active4 Pro and Active5 Pro.
-
What is included in the package?
1x RAM-GDS-DOCK-SAM54NCPU cradle.
What is the RAM Mounts GDS Tough-Dock cradle for the Samsung Tab Active Pro used for?
The RAM Mounts GDS Tough-Dock cradle RAM-GDS-DOCK-SAM54NCPU is a professional docking solution for the secure use of Samsung Active-series tablets in demanding environments. The Tough-Dock holds the tablet firmly in place with a robust snap latch and at the same time powers it via the USB-C port with up to 60 watts of charging power. This makes the cradle ideal for use in vehicles, on forklifts, in warehouses or at industrial workstations. The tablet is placed into the dock together with an IntelliSkin Next-Gen protective sleeve, creating a secure mechanical and electrical connection. A special feature is the ability to connect an NFC repeater add-on module that extends the tablet's internal NFC reader. Anyone who wants to buy the GDS Tough-Dock cradle receives a versatile RAM Mounts solution for commercial continuous use.
Which Samsung tablets is the GDS Tough-Dock SAM54NCPU cradle compatible with?
The cradle supports three models of the Samsung Tab Active series: the Tab Active Pro, the Tab Active4 Pro and the Tab Active5 Pro. These rugged business tablets are specially designed for use in harsh environments and are frequently used in logistics, field service and manufacturing. A compatible IntelliSkin Next-Gen protective sleeve, which is sold separately, is required for use. It is important to note that the No Battery Mode function of the Tab Active4 Pro and Active5 Pro is not supported by this dock. All buttons, ports and controls of the tablet remain fully accessible through the precise cutouts. The optional GDS Hand-Stand further extends the use options by providing an ergonomic grip solution for mobile use.
What expansion options does the Tough-Dock cradle offer?
The cradle offers two optional expansions that distinguish it from simple charging docks. The GDS 12‑VDC axial fan can be connected to actively cool the tablet during intensive use or high ambient temperatures. This is particularly relevant in vehicles or near machinery where elevated temperatures can affect the device's performance and lifespan. The NFC repeater add-on module extends the tablet's internal NFC reader and enables contactless payment transactions or identification processes even when the device is docked. The back features an AMPS 4-hole pattern and is prepared for a round base plate, allowing mounting to various RAM Mounts mounting systems. Only the cradle is included in the delivery.
