Vogels DesignMount NEXT 7345 Swivel TV Wall Mount
The Vogels DesignMount NEXT 7345 Swivel TV Wall Mount is a turning point for wall mount design that brings a fresh new look to the market.
Vogels DesignMount NEXT 7345 Swivel TV Wall Mount
A unique mount shaped by 40 years of experience.
The Vogels DesignMount NEXT 7345 Swivel TV Wall Mount is a turning point for wall mount design that brings a fresh new look to the market. We paid special attention to every detail and tried to create a wall mount which looks and feels luxurious. One look and you will always recognize it. One touch and you will love how easily it moves.

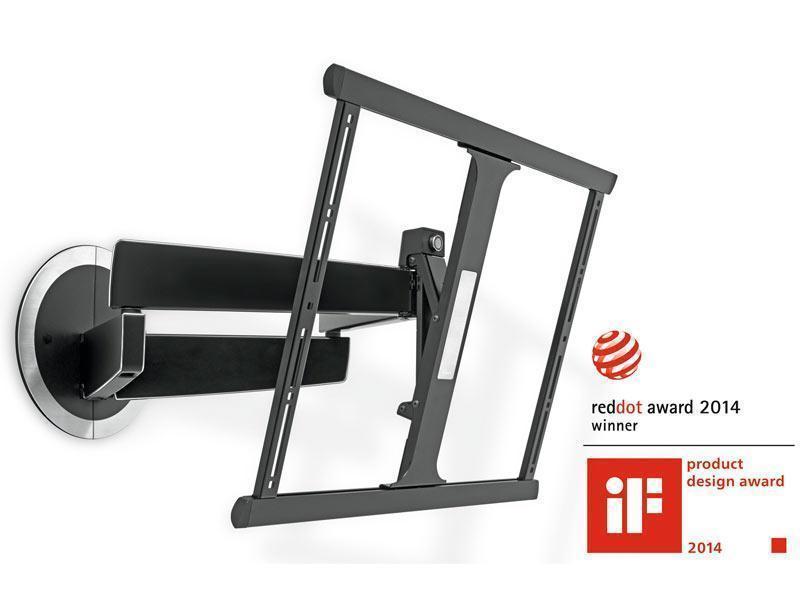

Vogel’s DesignMount has received both a Red Dot and iF Product Design award – from two of the world’s most important design forums.
Elegance and flexibility in one TV wall mount

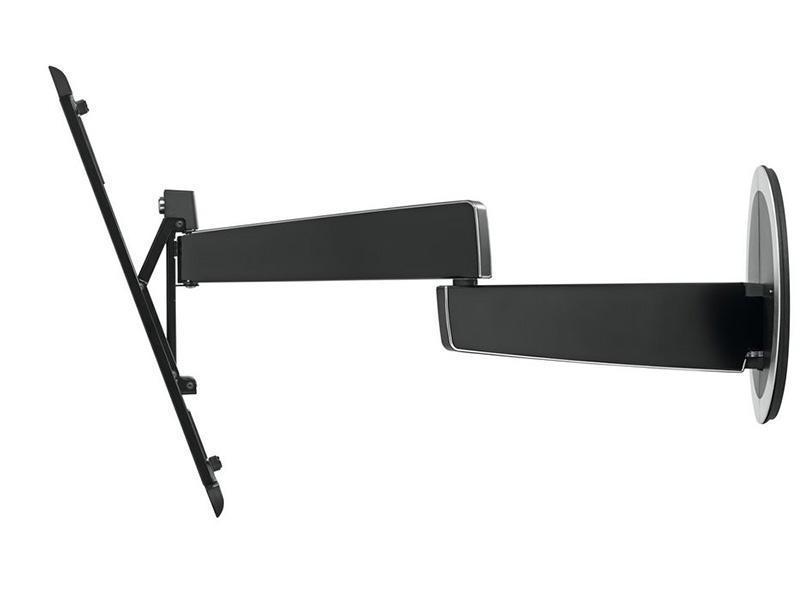

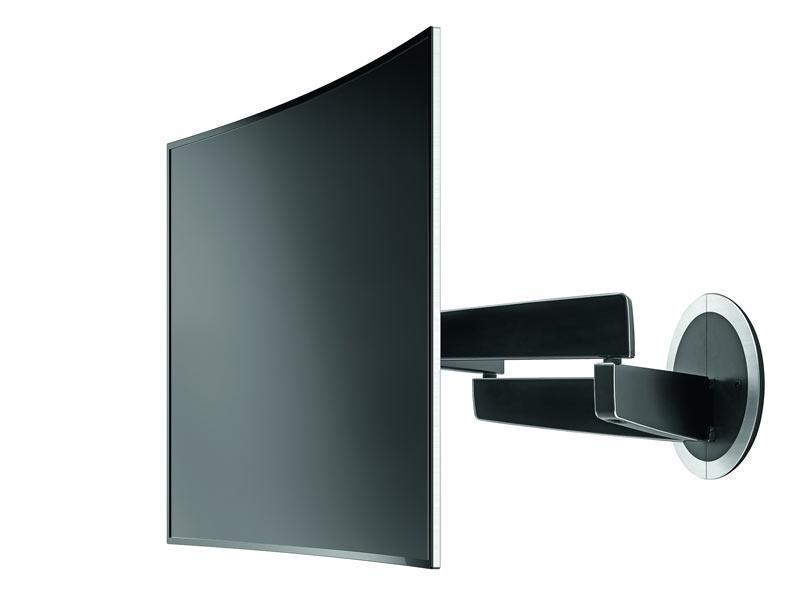

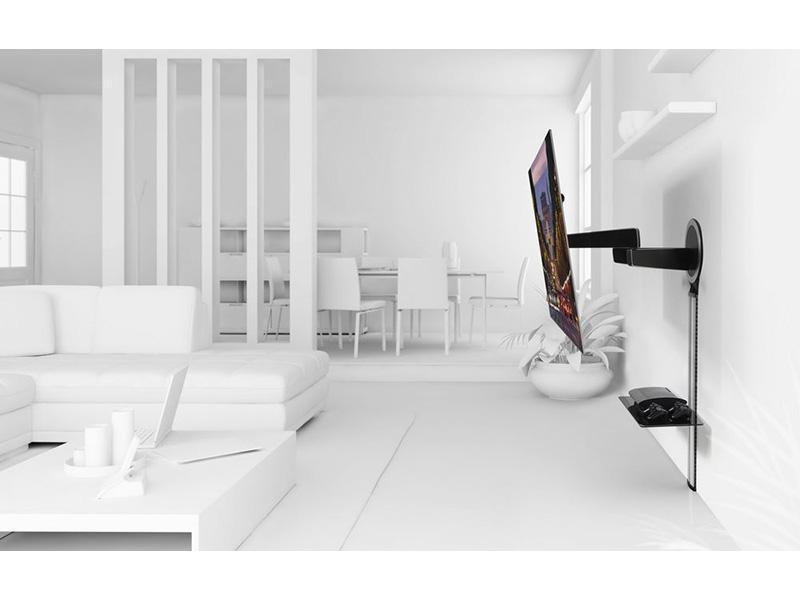

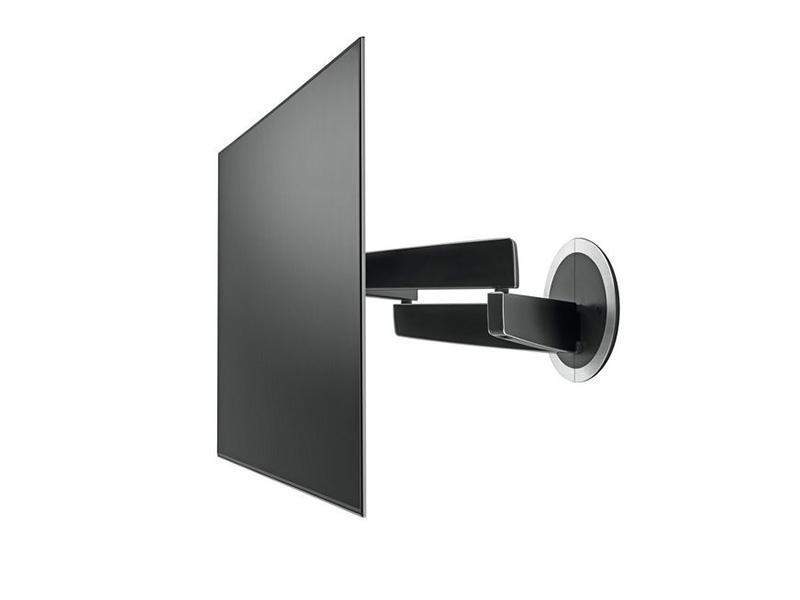

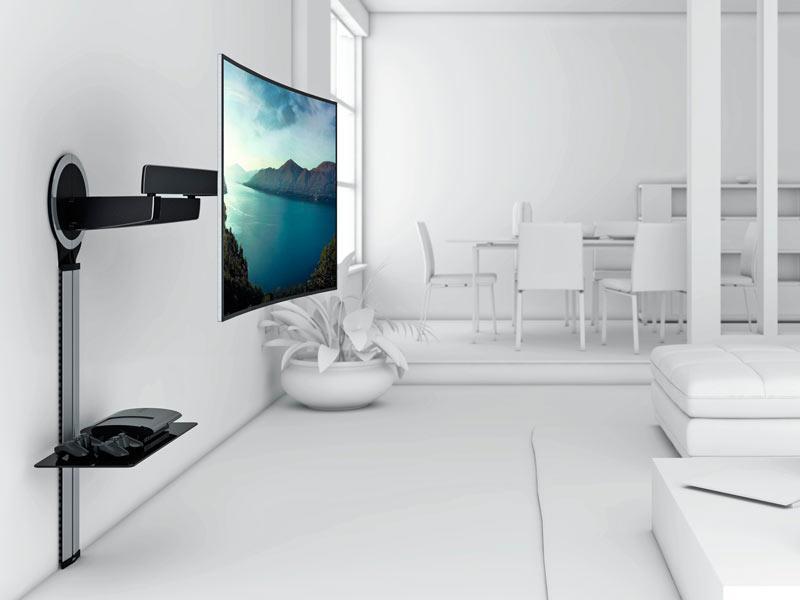

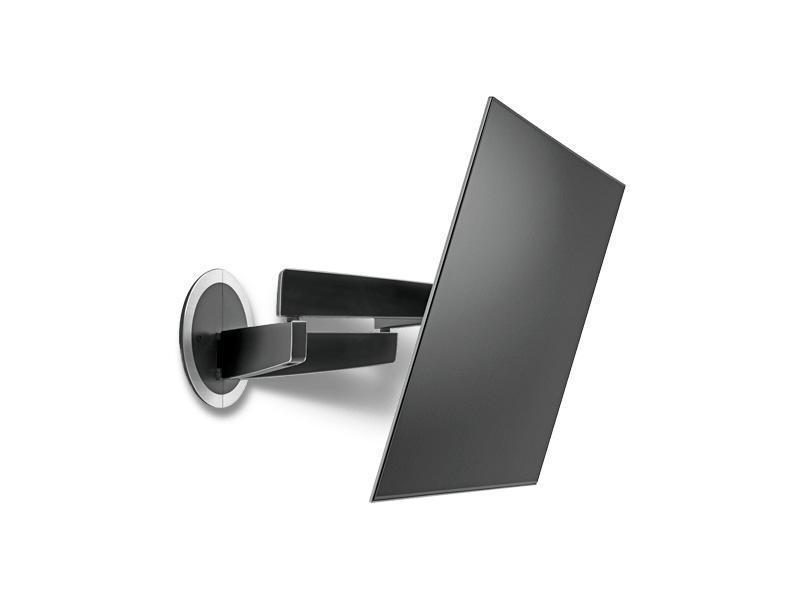

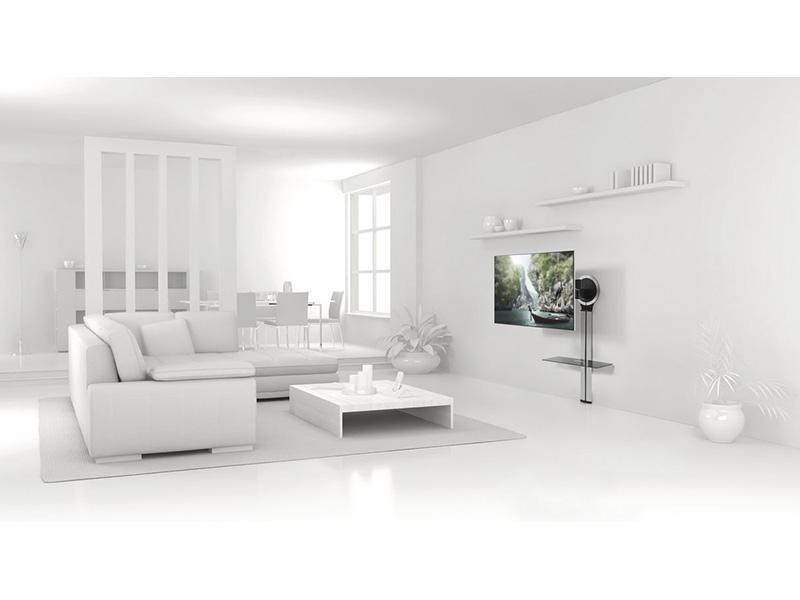

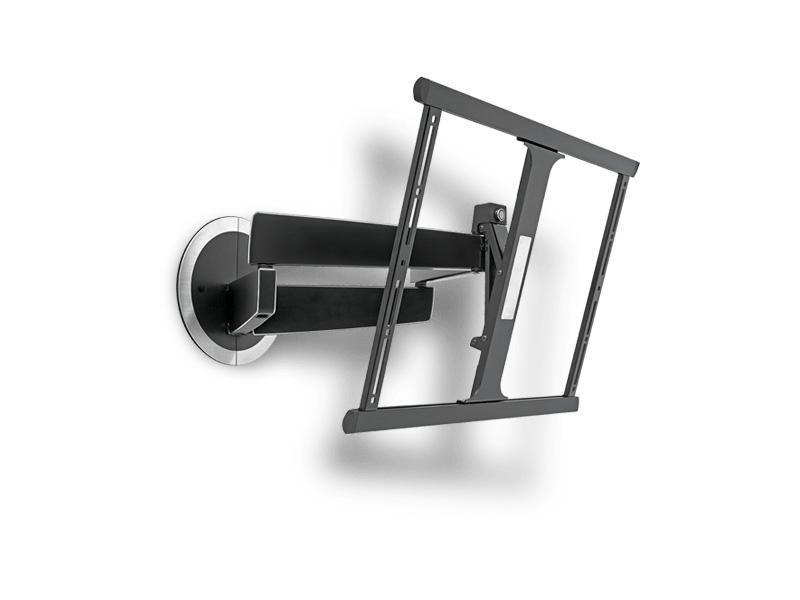

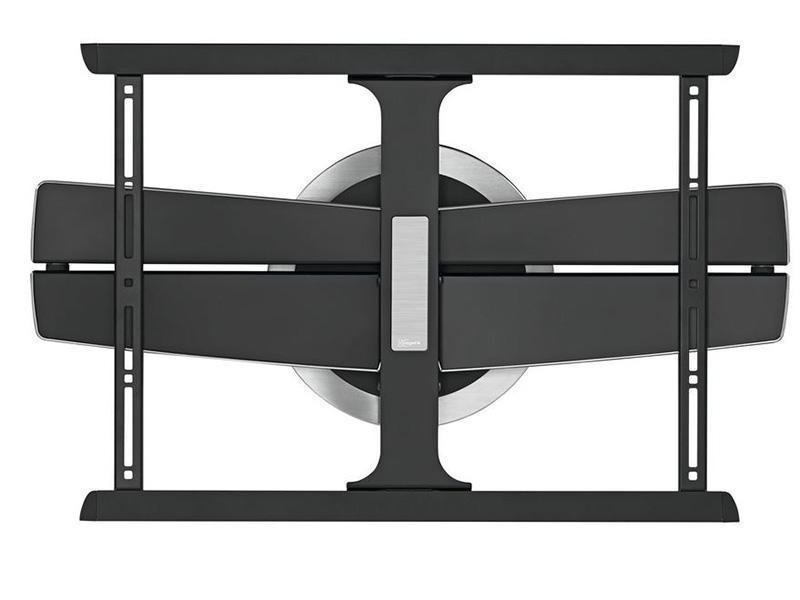

Vogel’s DesignMount is designed to endure. It has a clean bold look with graceful lines that creates a unique setting for a TV. The DesignMount NEXT 7345 folds effortlessly against the wall, leaving a minimal amount of space between the mount and the wall. It glides effortlessly away from the wall, tilts 20 degrees, and can turn up to 120 degrees. Its robust frame is designed to support TVs ranging from 40" to 65" (102 -165 cm), weighing up to 30 kg. When we created this mount, we put a great bit of Vogel’s legacy in it. We included our Screen Protection System®, which we invented a few years ago.
It protects your TV from bumping into the wall The amazing thing about this mount is how lightly it moves. Just a tiny push from your finger can turn it. We call it the Smart Movement Mechanism ®. Create a clean look by concealing your cables from sight with the Vogel’s patented Cable Inlay System®. We took all the best things from our other successful products and combined this into one new concept that looks and feels more luxurious than anything else out there.
We hope you’ll love using the DesignMount as much as we loved creating it.
Key Features Vogel´s Design Mount 7345 Wall Bracket:
- Flatscreen-size: 40" - 65"
- Weight capacity: 30 kg

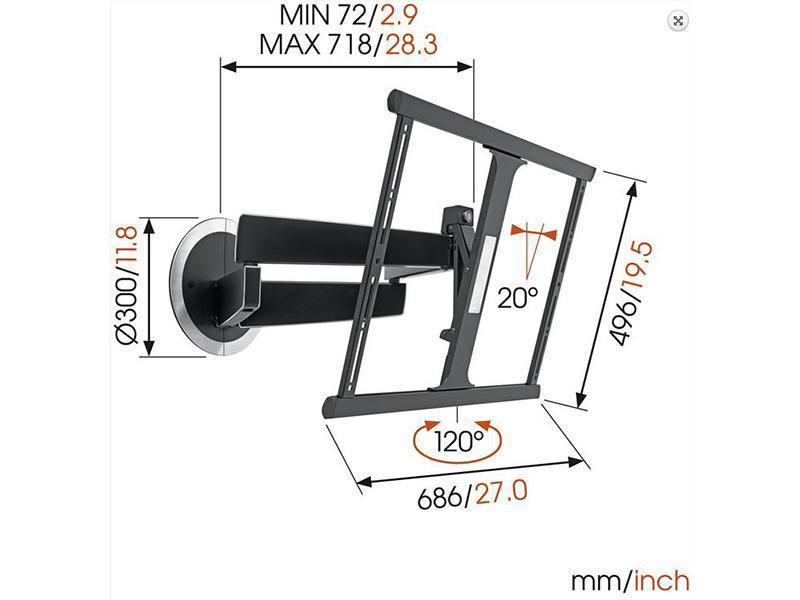

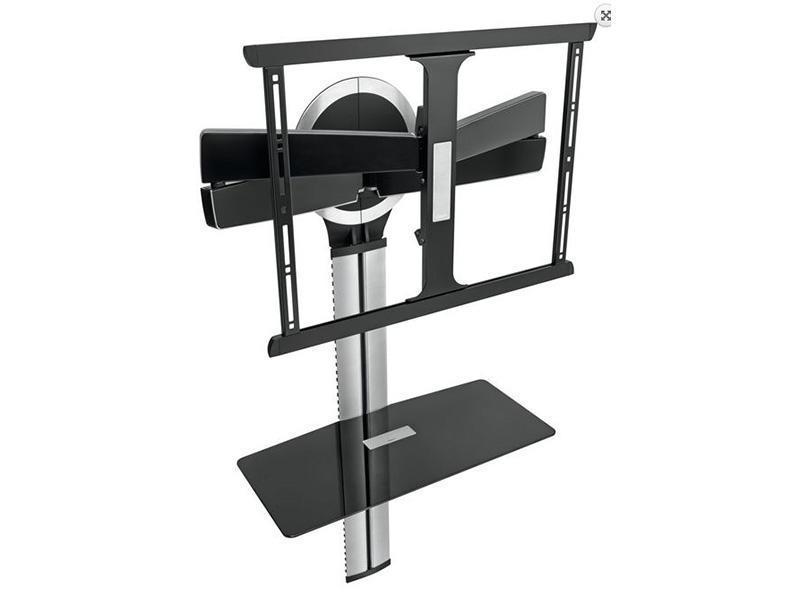

- VESA: 100x200 - 600x400 mm
- min. wall distance: 72 mm
- max. wall distance: 720 mm
- Interface width: 686 mm
- Interface height: 496 mm
- Swivel: 120°

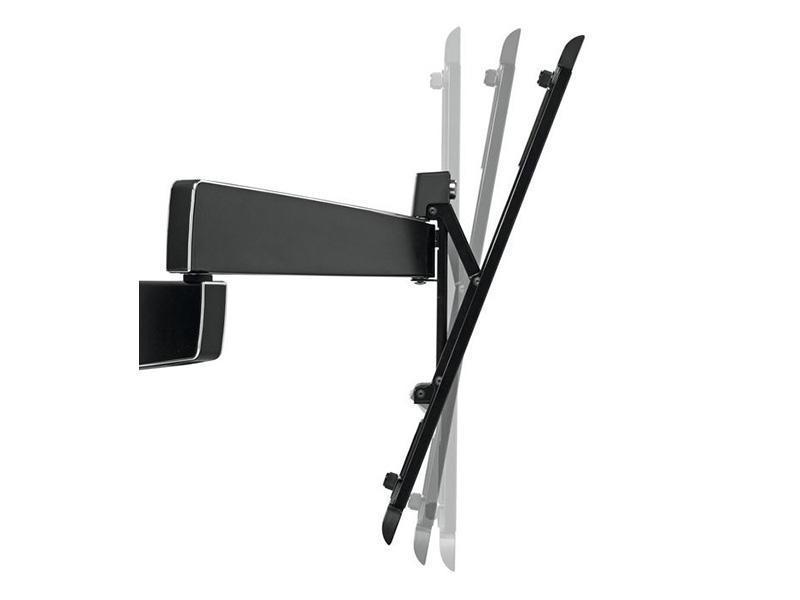

- Tilt: 20°
- Sleek, graceful design

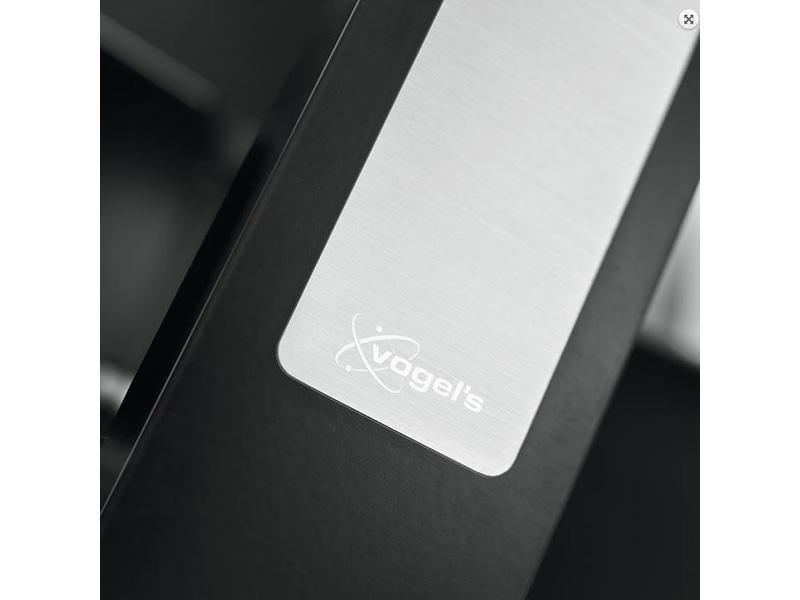

- Brushed aluminium and chrome accents
- Screen Protection System (SPS®): Vogel’s patented Screen Protection System (SPS) protects your flatscreen from bumping into the wall when turning.
- Smart Movement Mechanism (SMM®): The patented Smart Movement Mechanism (SMM) lets you move your TV screen with the touch of a fingertip
- Magnetic Home Position: Your screen always straight with the Vogel's patented Easy Click home system.
- Easy adjust: Straight mounting guaranteed

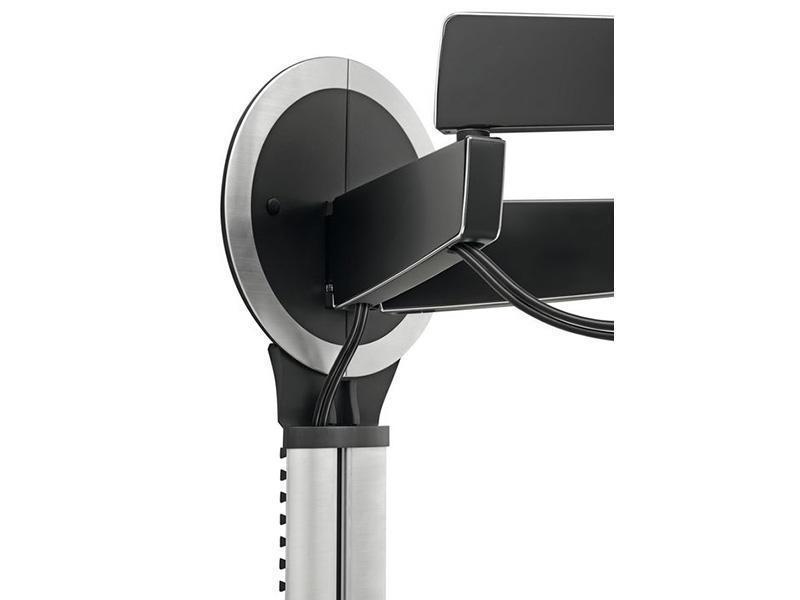

- Cable Inlay System (CIS®): hide all unsightly cables.
- Extends up to 72 cm/28.3 inch
| Product sheet: |  [pdf] |
|---|---|

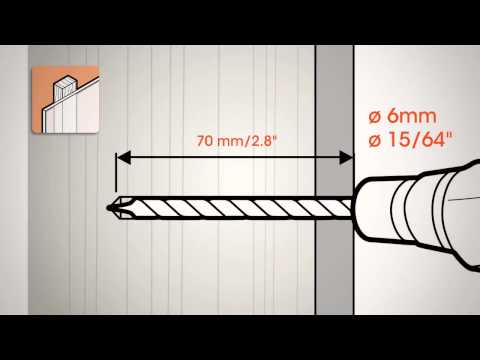

| Installation manual: | [pdf, 1,6 MB] |
| Capacity: | 30 kg |
| Tilt: | 20° |
| Swivelling range: | 120° |
| Screen size: | 40 - 65 " |
| VESA Standard: | 100x200 - 600x400 mm (www.vesa-standard.com) |

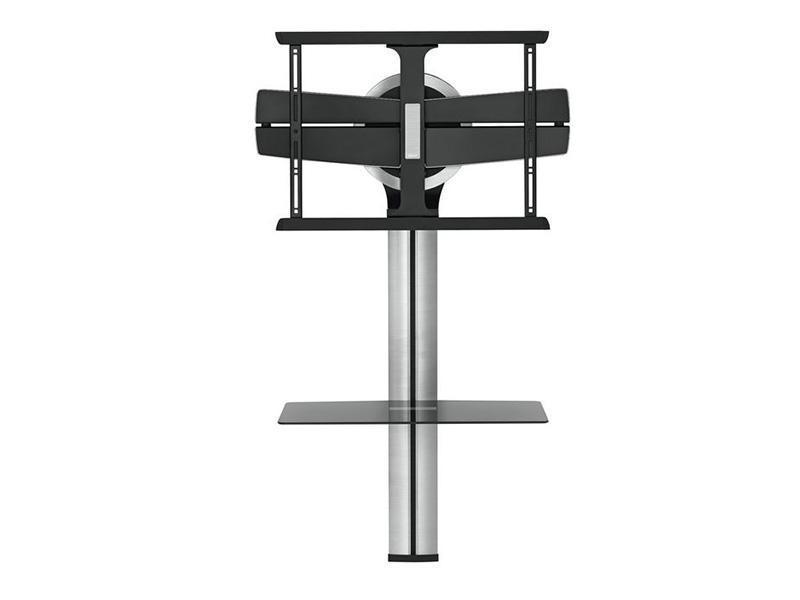

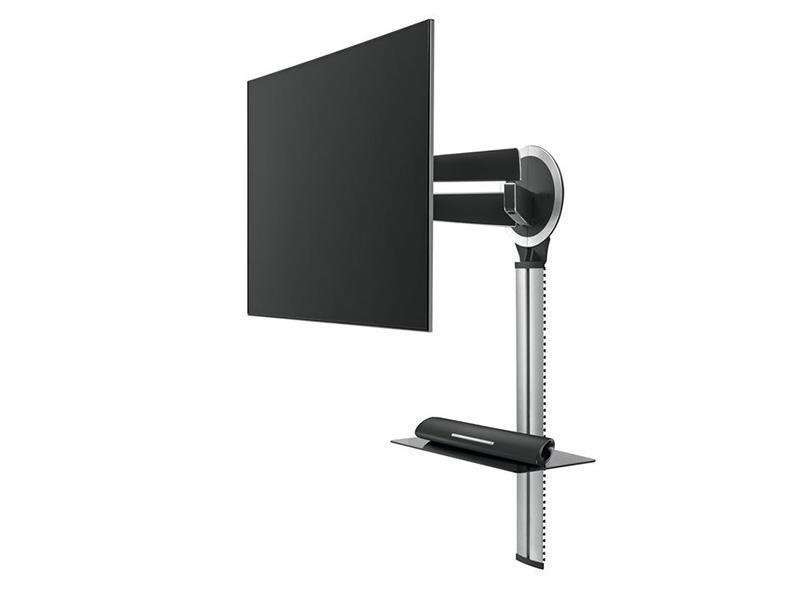

| Accessories: | Vogels DesignMount NEXT 7840 Kabelkanal Säulensystem Vogels DesignMount NEXT 7825 AV-Multi-Halterung Ablage |
| Packaging dimensions (LxWxH in mm): | 840 x 517 x 115 |
| Contains installation material: | + |
| Warranty: | 15 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
