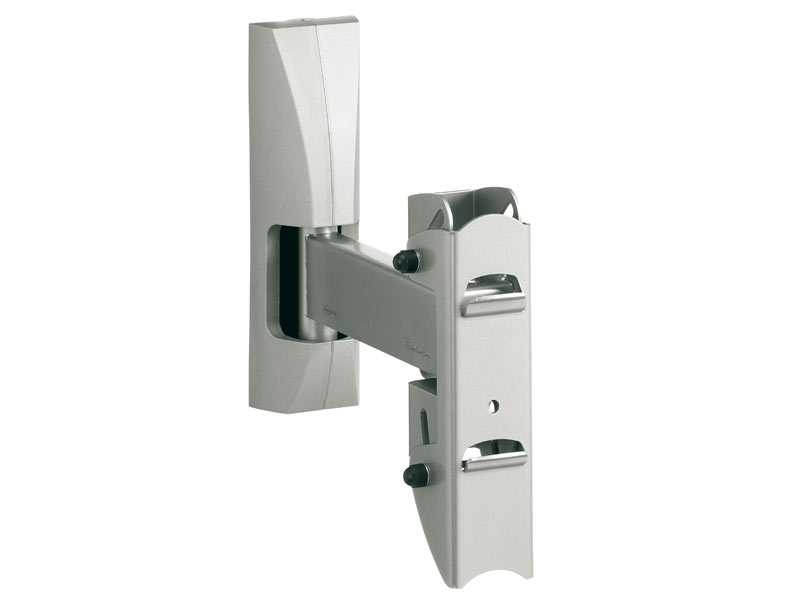

Vogels PFW 930 Flat display wall mount, silver

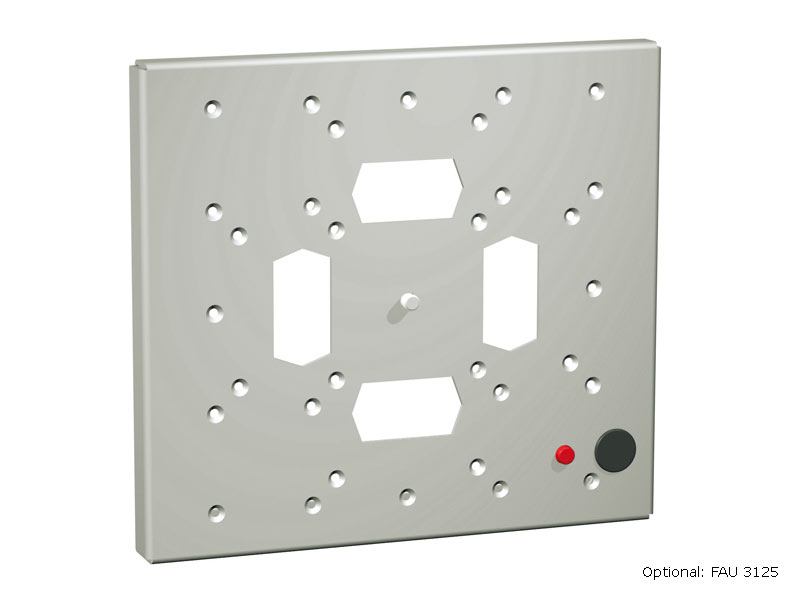

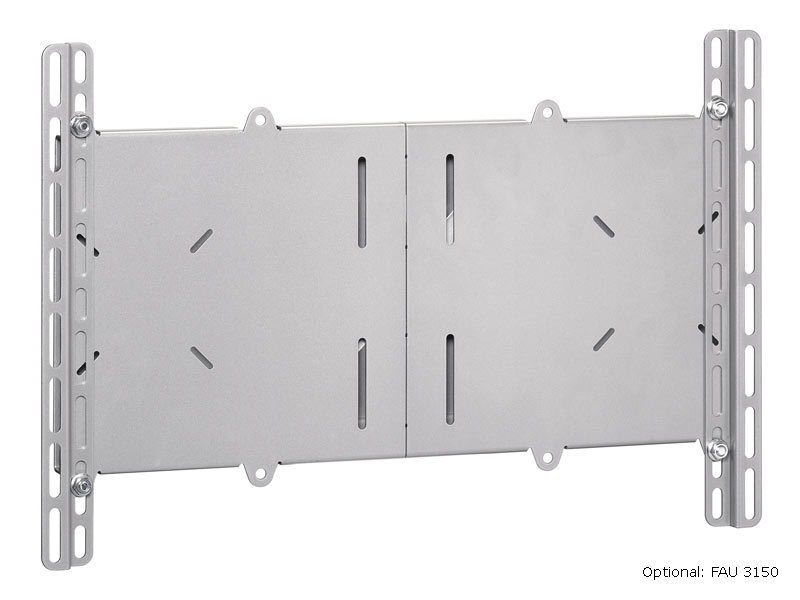

The Vogels PFW 930 is a flat display wall mount with turn and tilt function (180° turn, 15° tilt) to mount 23"-65" flat displays to the wall (up to 70 kg). NOT including interface Vogels FAU 3150 or Vogels FAU 3125.

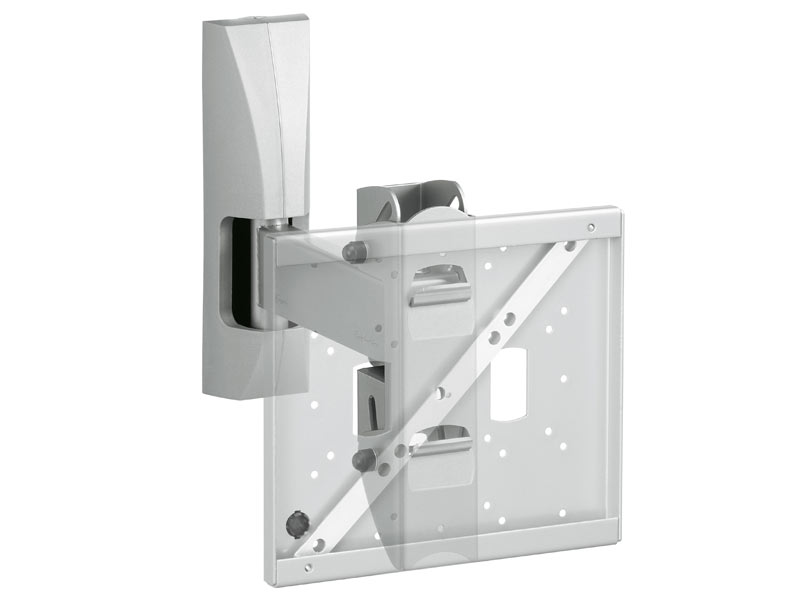

The Vogels PFW 930 flat display wall mount is part of a modular system which enables you to create your own wall mounting solution for flat displays. Just add the needed universal flat display interface (FAU 3150/3125), depending on the flat display. The Autolock® locking system locks the interface onto the mount and prevents the display from falling of the turn and tilt unit when accidently lifted. The optional lock Vogels PFA 9008 blocks the locking system, hence preventing theft.
Feature Vogels PFW 930 Flat display wall mount
- Main Color: Silver
- Turn: 180 °
- Tilt: 15 °
- Max. weight: 60 kg
- Number of pivot points: 2
- Amount of appliances: 1
- Min. distance to the wall: 125 mm
- Max. distance to the wall: 355 mm
- TÜV Certificate number: 60002961
- Autolock® locking system
- NOT INCLUDING interface Vogels FAU 3125 or Vogels FAU 3150
- With turn and tilt function
- Tilt mechanism with virtual pivot
- Guarantee: 5 years
| Product sheet: |  [pdf, 148 kb] |
|---|---|
| Installation manual: | [pdf, 304 kb] |
| Capacity: | 60 kg |
| Tilt: | 15° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 250 |
| Accessories: | FAU 3150, FAU 3125 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
