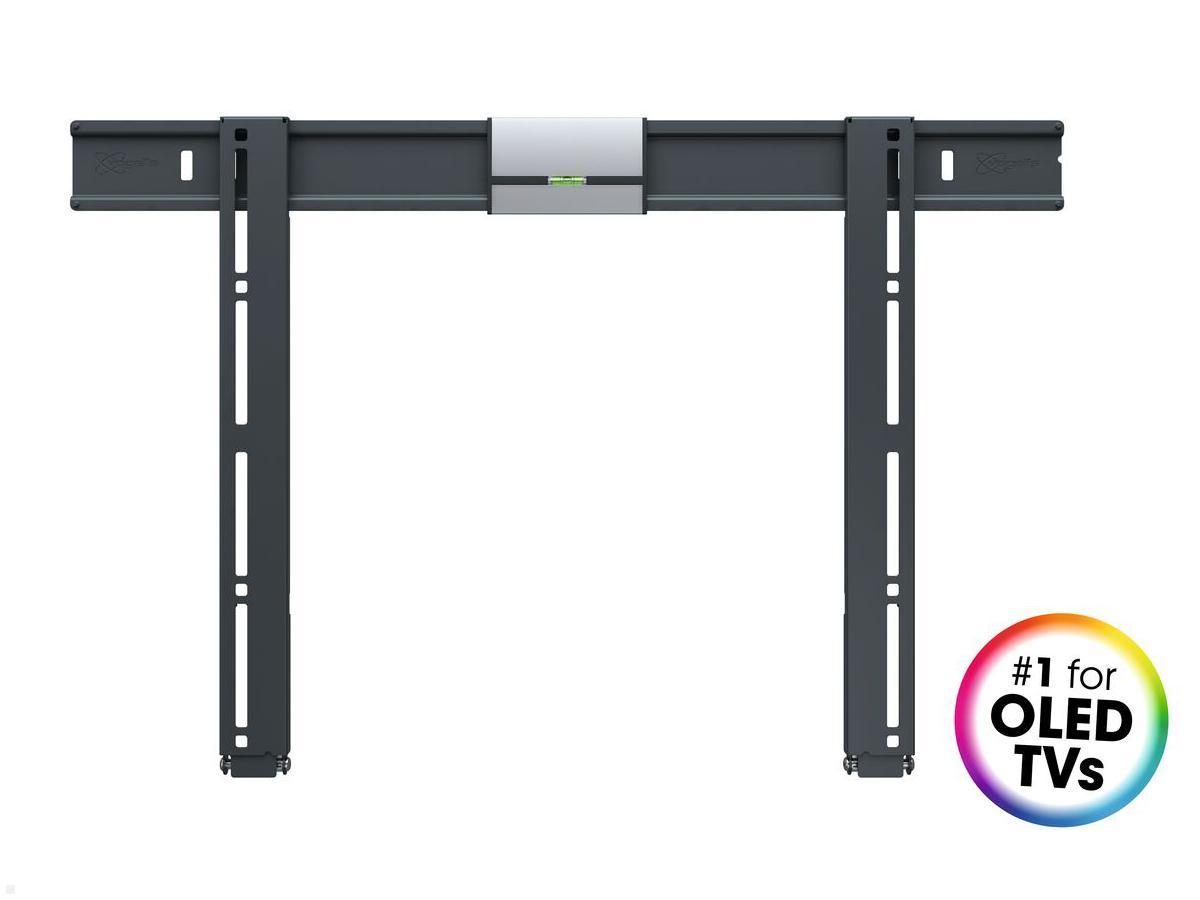

Vogels THIN 505 ExtraThin fixed TV wall mount 40"-65" up to 40kg
Vogels THIN 505 TV Wall mount: simply elegant. The THIN 505 TV wall mount is almost invisible to the eye, with a distance of only 1.5 cm between the TV and the wall. Suitable for 40 to 65 inch flat screens with a weight of up to 40kg.
Vogels THIN 505 ExtraThin fixed TV wall mount for 40 - 65 inch flatscreens

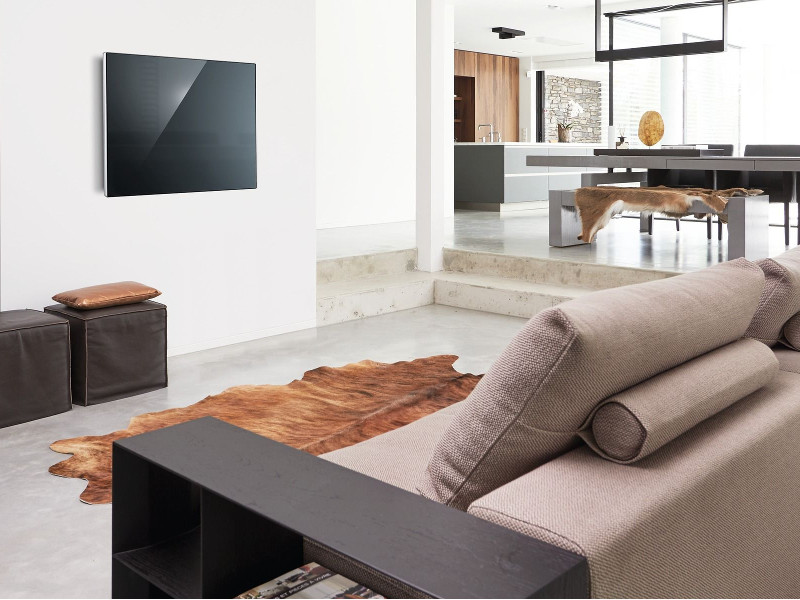

Are you looking for a robust and secure way to mount your TV flat on the wall? With the extra-flat Vogels THIN505 TV wall mount you can hang your flat screen with only 15 mm distance from the wall - so the TV holder is almost invisible after installation.
The solid Vogels THIN 505 monitor holder is a reliable and stable solution with the guaranteed quality from Vogel's and is suitable for thin flatscreen TVs between 40 and 65 inches (102-165 cm) with a weight of max. 40 kg.
Key features Vogels THIN 505 TV wall bracket:
- Screen size: 40"-65"
- Capacity: 40 kg

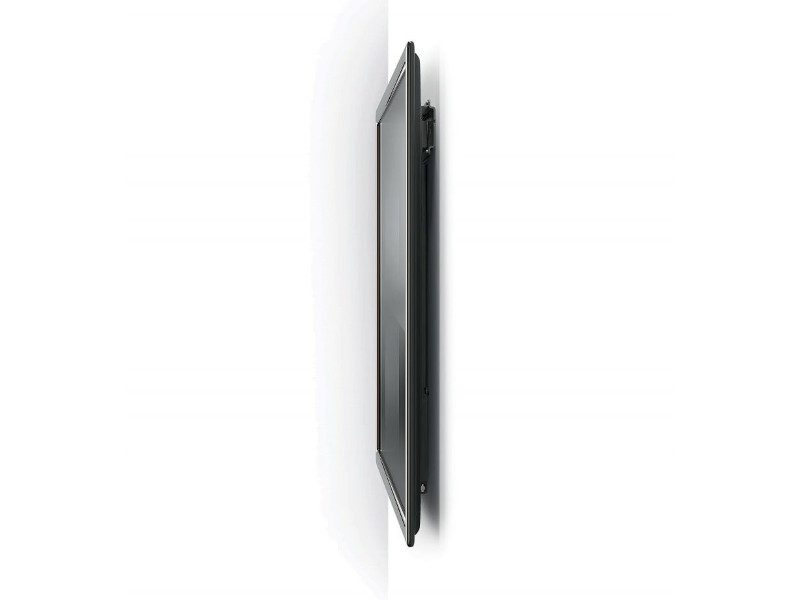

- Wall distance: 15mm

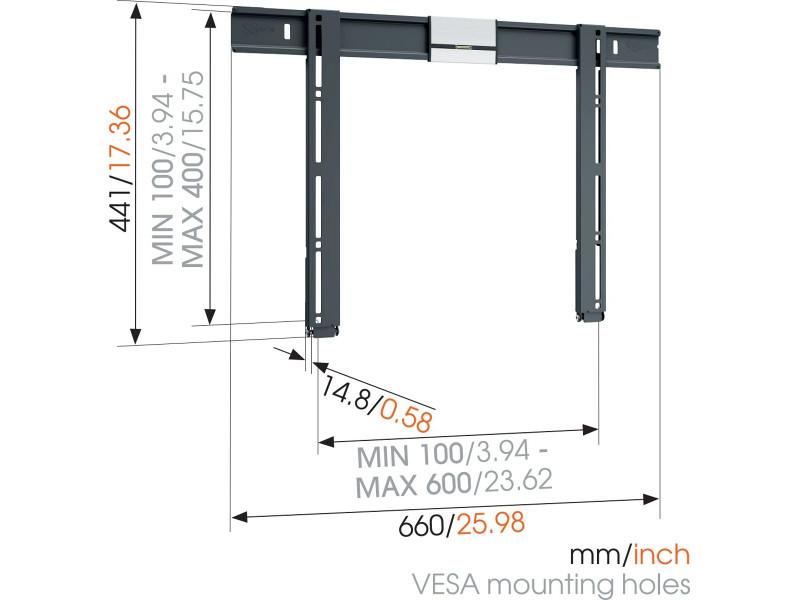

- VESA mounting 100x100, 200x100, 200x200, 300x300, 400x200, 400x400, 600x400mm
- Adapter width: 680mm
- Adapter height: 437mm
- Integrated cablemanagement
- Optional accessories: Vogel's Cable 4 and Cable 8 cable cover

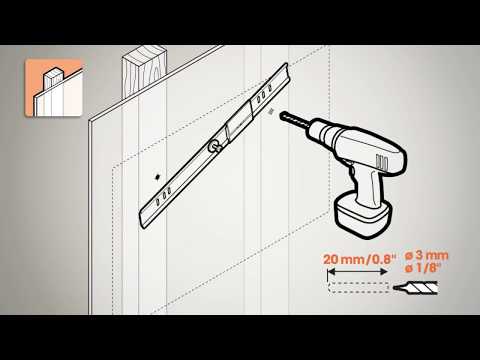

- Easy installation thanks to integrated water scale

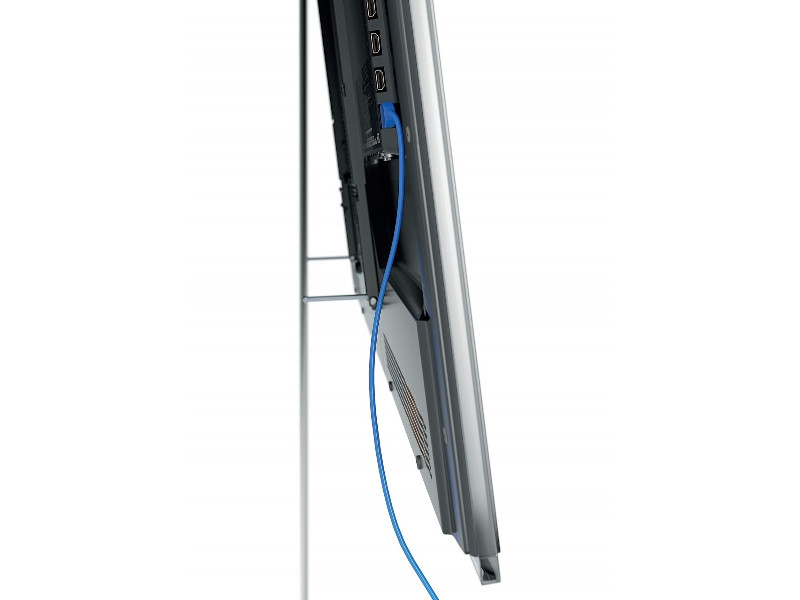

- Service positioning allows very easy access to the cables
- Finish: black
- Lifetime guarantee
Does your TV or monitor fit the Vogels THIN505 bracket?
We are happy to check if your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this Vogels THIN 505 monitor holder. Simply send us your model (manufacturer + model no.) at the end of the order process. We then check for you whether the monitor fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 132 kb] |
|---|---|
| Technical drawing: | [pdf, 389 kb] |
| Installation manual: | [pdf, 1,4 MB] |
| Capacity: | 40 kg |
| Screen size: | 40 - 65 " |
| Depth of the bracket: | 15 mm |

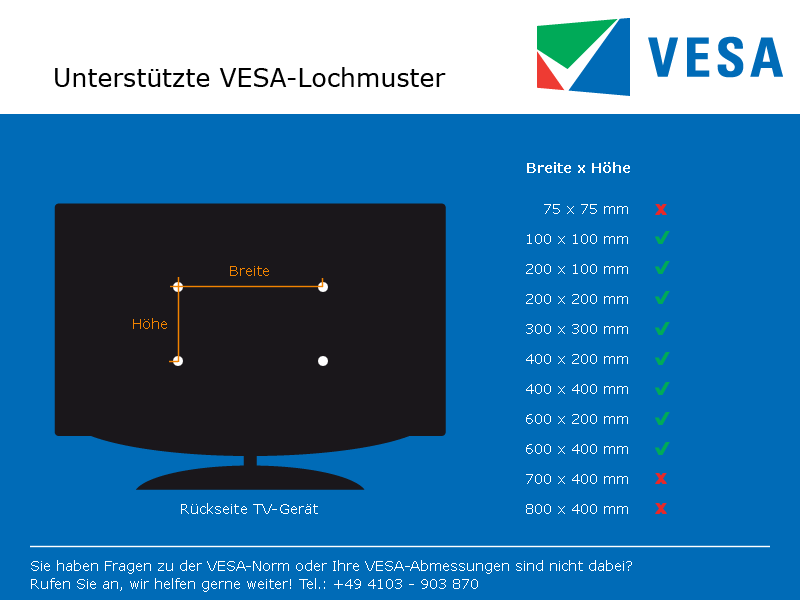

| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.de) |
| Accessories: | Vogel´s Cable Management |
| Packaging dimensions (LxWxH in mm): | 715 x 125 x 37 |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | fixed |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
