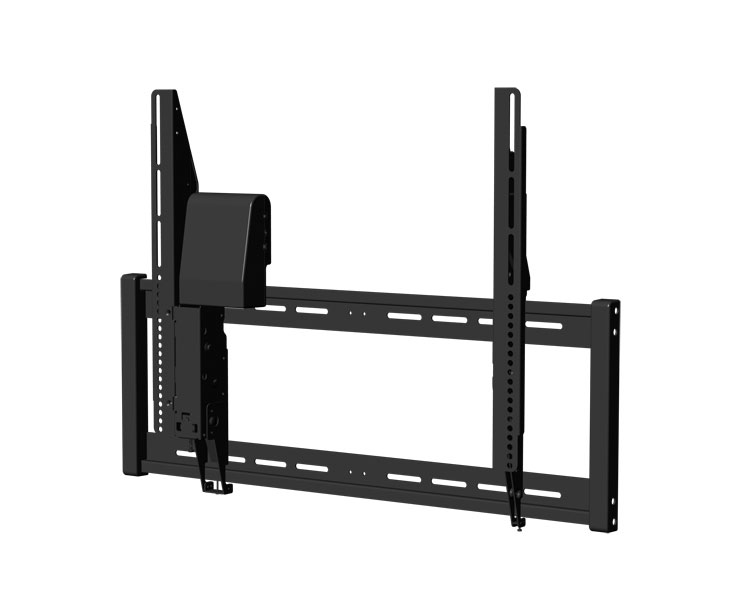

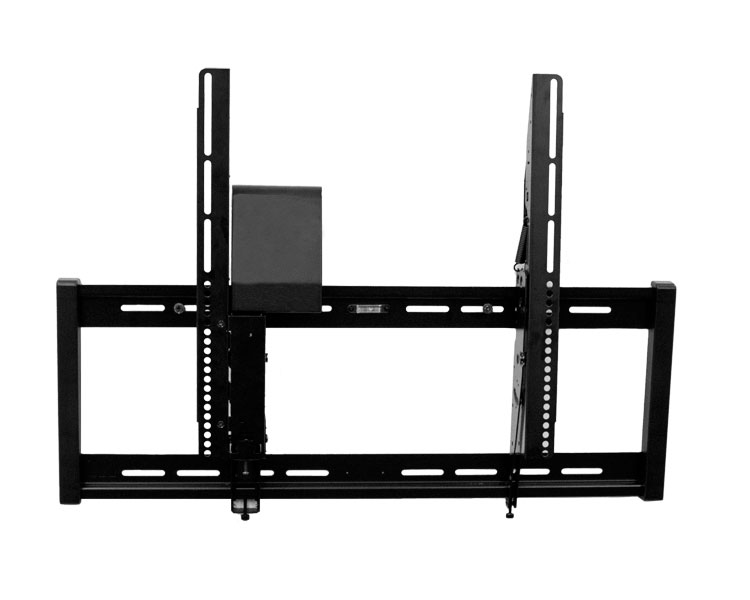

WallWizard TP150B - Large Motorized Tilt Mount 40-60"
WallWizard TP150B - Large Motorized Tilt Mount 40-60"
WallWizard TP150B - Large Motorized Tilt Mount 40-60"
Our large motorized tilt mount offers the best of both worlds in one application. TP150B automatically tilt to a preset viewing angle when the TV is turned on, or included remote control may be used to tilt the TV. Perfect for TVs placed above a fireplace, as it returns flush against the wall when turned off, preventing heat damage and making it aesthetically pleasing much like a picture frame on the wall. The TP150B offers a user-friendly design and are simple to install, allowing you to achieve the perfect viewing experience every time.
SPECIFICATIONS
- Fits Most: 40”- 60” Flat Panel TVs
- Weight Capacity: Up to 150 lbs
- Variable Tilt: 0°/-13°
- Profile: 3.3”
- Presets: 2
- Auto Mode: through optical cable feature
- Power Supply: 100V – 240V auto ranging
- Color: Black
- Warranty: 1 year
- Certifications: UL, CE, TUV
BENEFITS
- Automatically tilts the TV down, when the TV is turned on-reducing or eliminating glare and reflections.
- Automatically tilts the TV flush against the wall, when the TV is turned off.
- Perfect for TVs placed above a fireplace.
- Optical cable included for auto mode featur.
- IR receiver and remote control included.
- Mounting hardware.
- Quiet and smooth operation.
- $10,000 Component Assurance Guarantee.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 1,1 MB] |
|---|---|
| Capacity: | 68 kg |
| Tilt: | +2°/-13° |
| Screen size: | 40 - 60" |
| VESA Standard: | 100x100, 200x100, 200x200, 400x400, 600x200, 600x400, 800x400 (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
