WallWizard X700CB - MOTORIZED ARTICULATING MOUNT
WallWizard X700CB - MOTORIZED ARTICULATING MOUNT
WallWizard X700CB - MOTORIZED ARTICULATING MOUNT

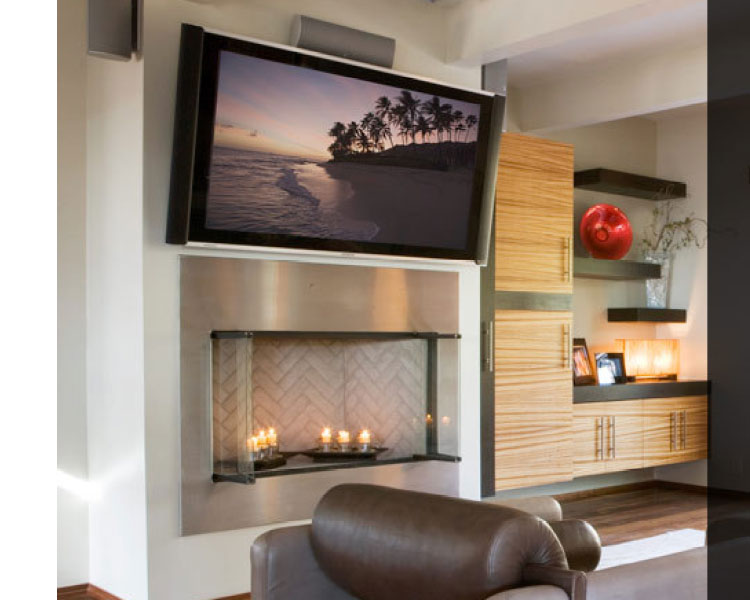

Our articulating motorized mount is the most advanced motorized mounting solution for flat panel TVs. Capable of swiveling up to 28° left and right and tilt up 7° or down 20° to fine - tune your viewing experience at the touch of a button. The included universal remote control offers four programmable memory locations to recall your favorite viewing positions. X700CB’s sturdy design supports installation of the largest flat panel displays making them secure and flexible. With our full motion motorized mount, you will always have the best seat in the house.
SPECIFICATIONS
- Fits Most: 40”- 63” Flat panel TVs
- Weight Capacity: Up to 180 lbs
- Swivel: Up to 28° left or right

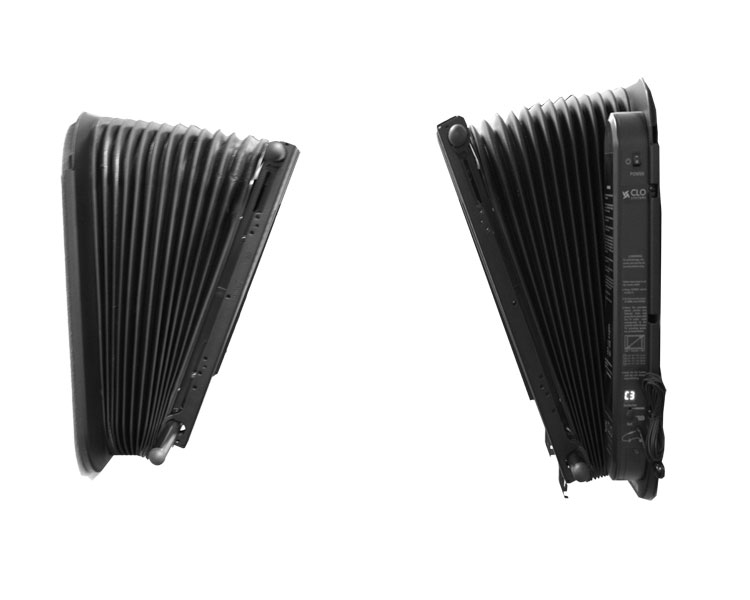

- Tilt Angle: +7°/-20° up or down

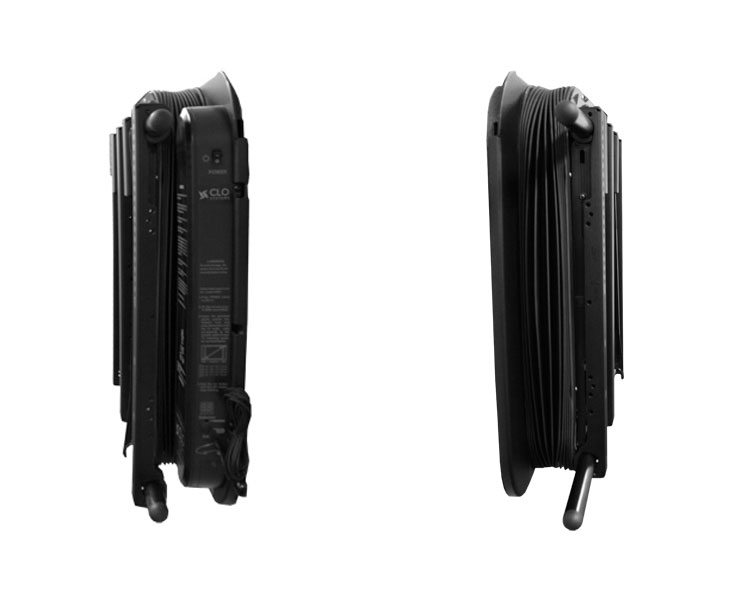

- Profile: 4.6”
- Control interface: IR or RS-232
- Presets: 4
- Power Supply: 100V – 240V auto ranging
- Color: Black
- Warranty: 1 year
- Certifications: UL, CUL, CE & TUV
BENEFITS
- Advanced full motion motorized mounting technology to maximize your viewing pleasure.
- Four programmable presets to recall those favorite locations.
- Mounting hardware included.
- IR receiver and universal remote control included.
- Quiet and smooth operation.
- Easy to use and simple to install.
- $10,000 Component Assurance Guarantee.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 457 kb] |
|---|---|
| Technical drawing: | [pdf, 420 kb] |
| Installation manual: | [pdf, 4,8 MB] |
| Tilt: | +7°/-20° |
| Swivelling range: | 28° links und 28° rechts |
| Screen size: | 40 - 63 " |
| VESA Standard: | 100x100, 200x100, 200x200, 400x400, 600x200, 600x400 (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
