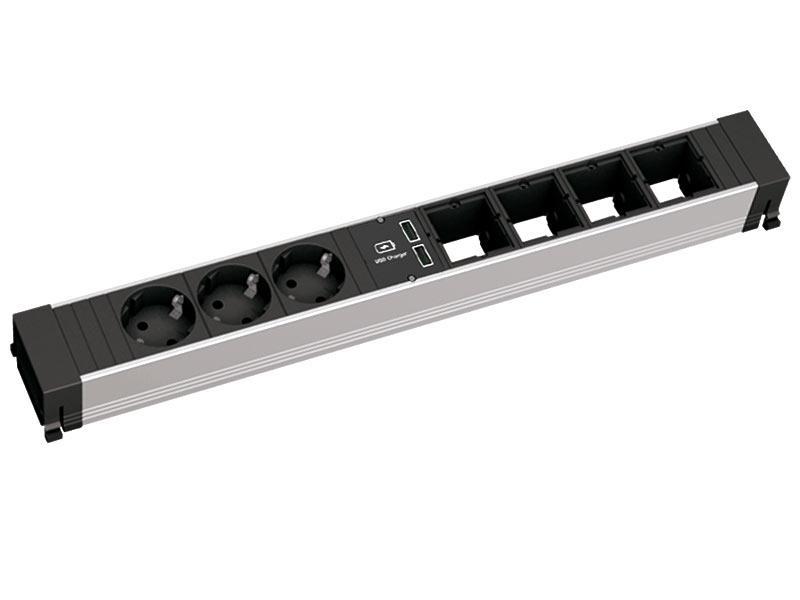

Bachmann CONFERENCE / TOP FRAME 8-way 4x Custom 3x power 1x USB (909.0057)
The Bachmann 8-way power strip 909.0057 with 4 custom modules, 3x socket outlets, 1x USB Charger is suitable for the X-Large CONFERENCE and the X-Large TOP FRAME series.
Bachmann CONFERENCE / TOP FRAME 8-way 4x Custom 3x power 1x USB (909.0057)

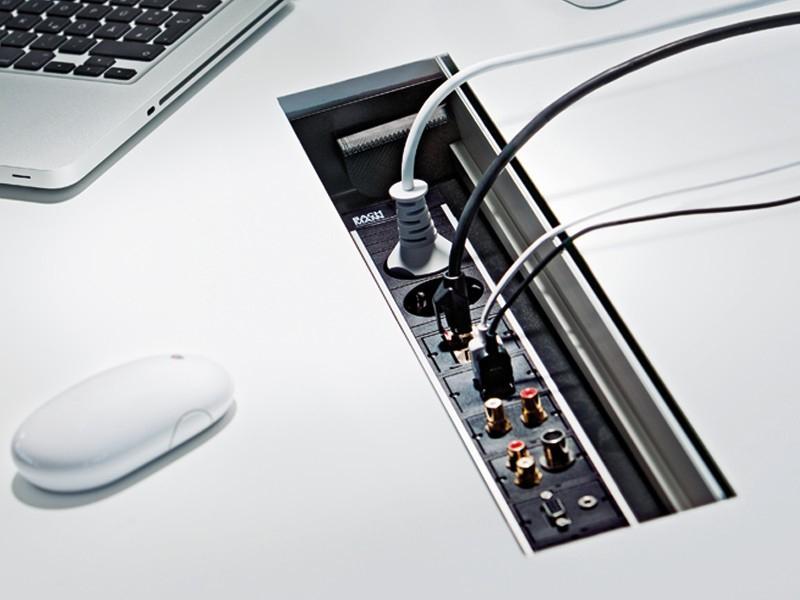

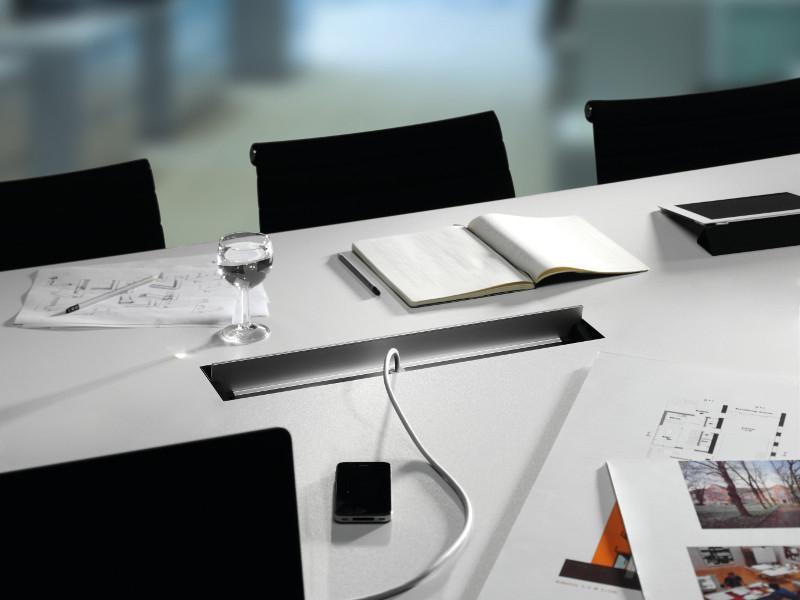

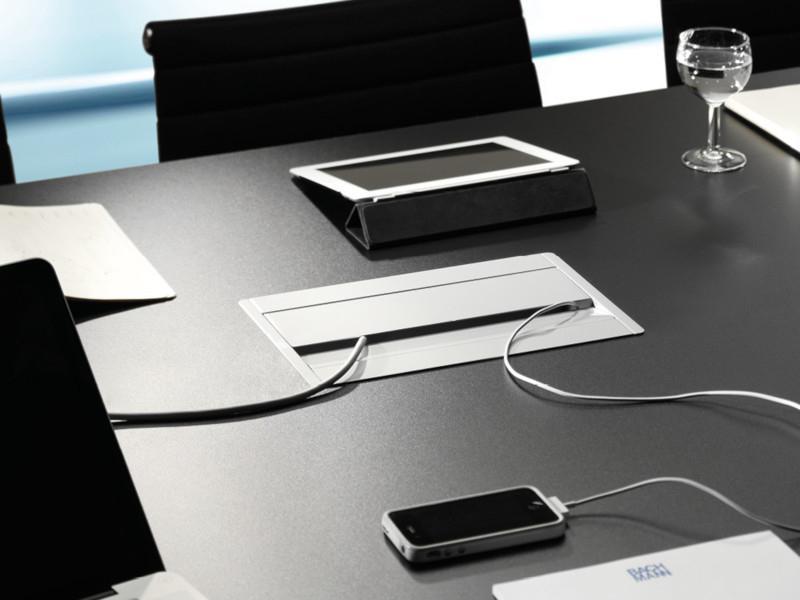

The Bachmann 8-way power strip with 4 custom modules, 3x socket outlets, 1x USB Charger 909.0057 is suitable for the X-Large CONFERENCE and the X-Large TOP FRAME series. In conjunction with the TOP FRAME or CONFERENCE series, the 8-way power strip is embedded in the desk and used for power and data supply in living and working environments, in conference rooms, training tables and high-quality workstations.
Key features Bachmann CONFERENCE / TOP FRAME 8-way 4x Custom 3x power 1x USB (909.0057)
- 7-way power strip
- 3x power socket, rotated 35°
- 4x Custom Modul
- 1x USB double-Charger
- Power output GST18i3
- Length: 444 mm
- Material: aluminum profile anodised
- Finish power socket: black
- Suitable for: X-Large TOP FRAME, X-LARGE CONFERENCE
| Product sheet: |  [pdf, 69 kb] |
|---|---|

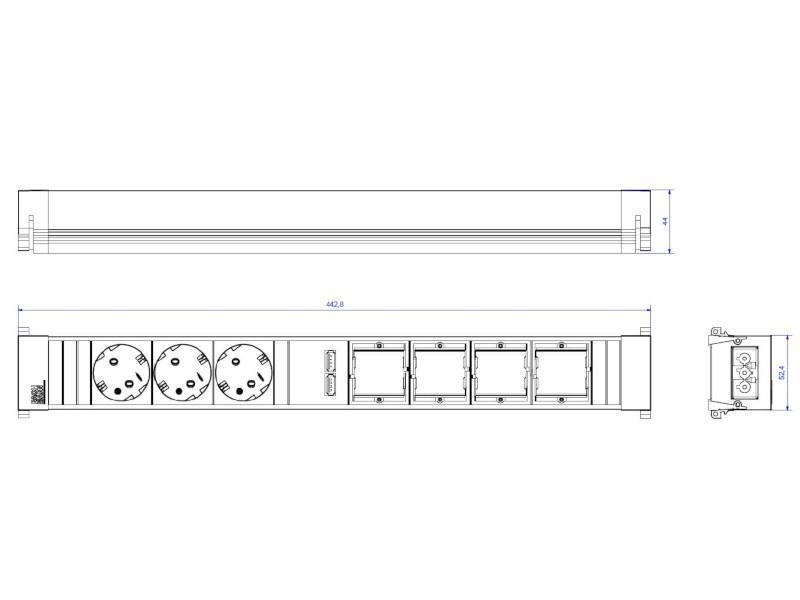

| Technical drawing: | [pdf, 66 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | Silver/Black |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
