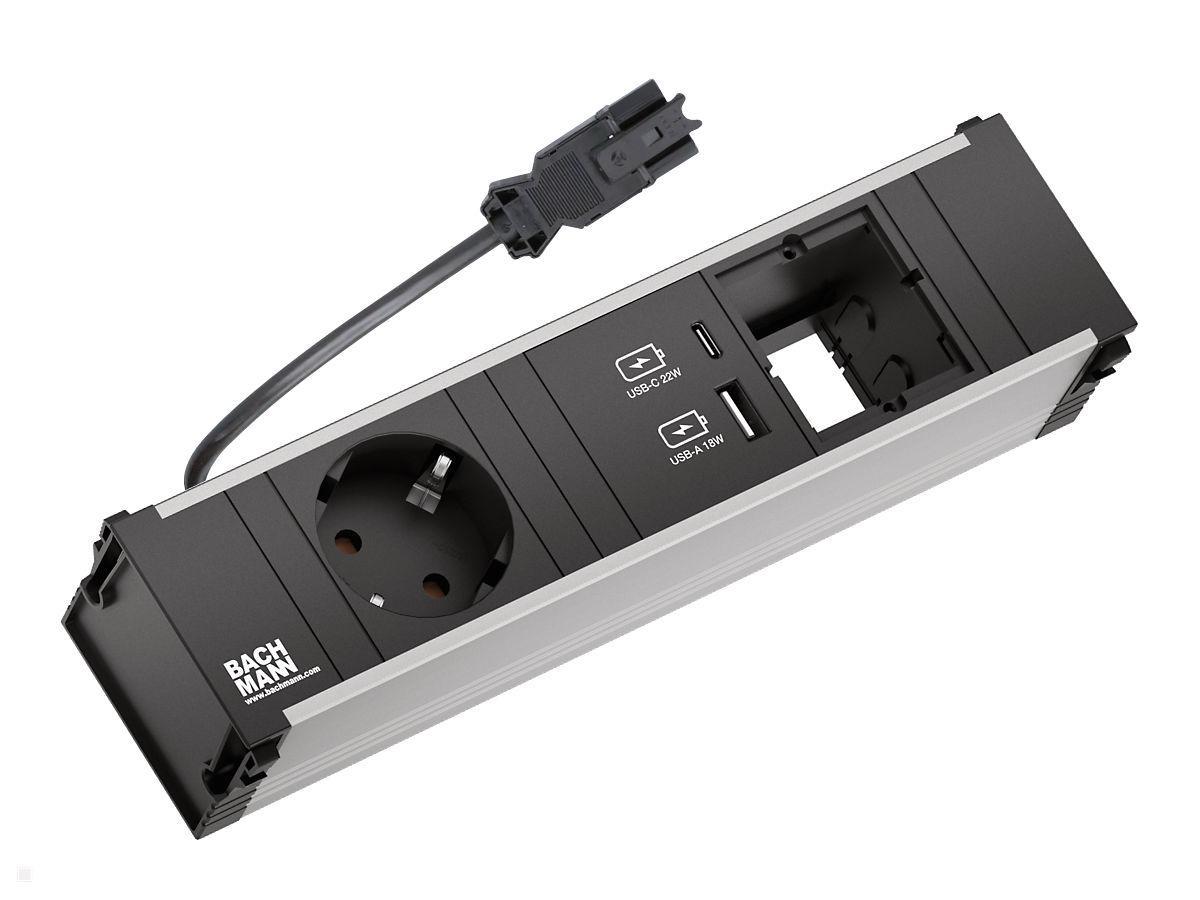

Bachmann CONI 3-way insert, 1x socket, 1x USB-A/C charger, 1x CM (912.167)
The CONI power strip 3-fold insert, 1x socket, 1x USB-A/C charger, 1x CM (912.167) is inserted into the cut-out in the desk or table with a mounting frame (not included). Supplement it with a preconfigured or combinable custom module (CM).
Configurable power strip insert with USB-C charger
The Configurable power strip insert with USB-C charger in aluminium / black integrates perfectly into the furniture surface with a mounting frame (not included). This desk connection panel requires only a minimum installation depth, the frame closes even with cables inserted and can be installed quickly and easily - even retrospectively. The Custom Module (CM) provides great freedom - here data connections can be configured as required. Choose between pre-configured or combinable modules and keystones. The different surface designs of Bachmann CONI mounting frames also provide the necessary design freedom.
Key features CONI (912.167)
- Colour: aluminium / black
- 1x socket outlet with earthing contact turned 35° in black
- 1x USB-C 22W Charger
- 1x USB-A 18W Charger

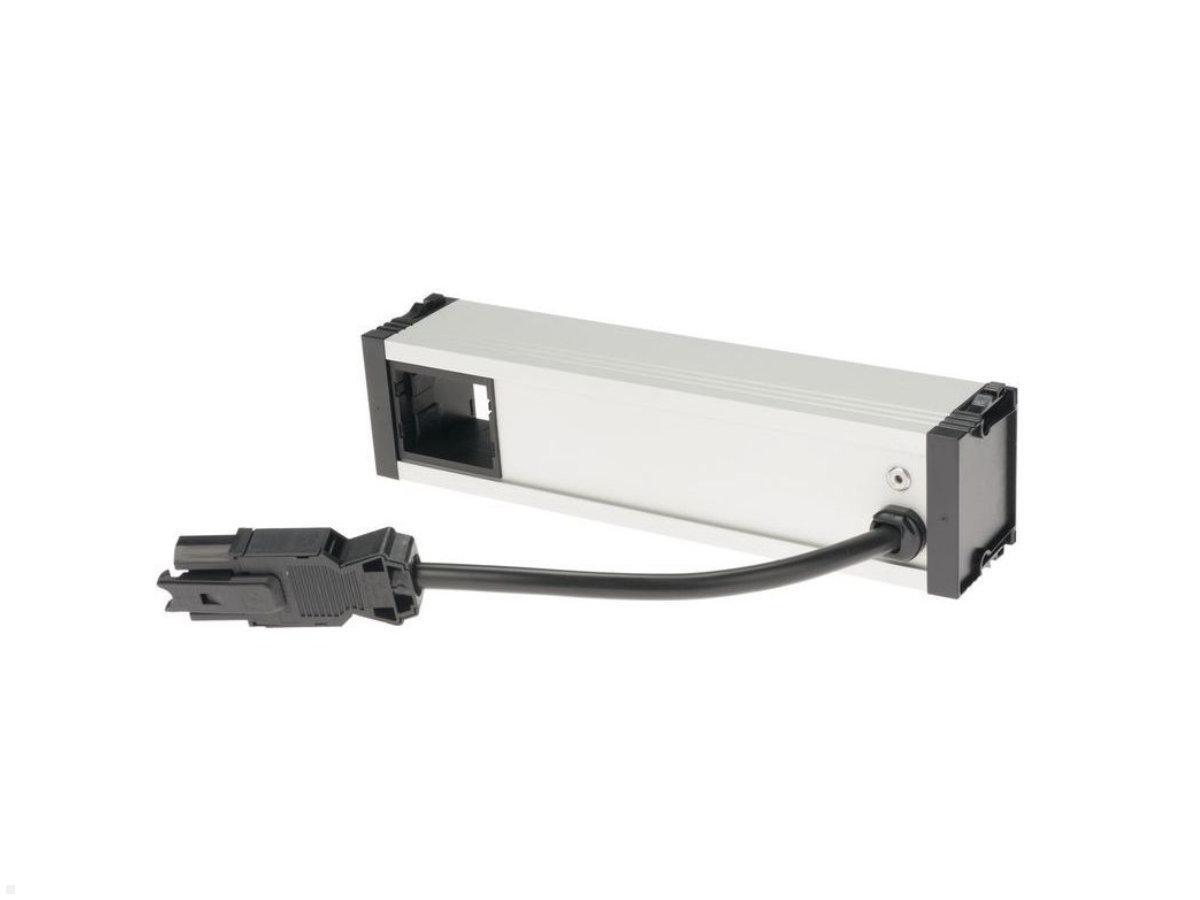

- 1x custom module empty
- Power input: 0.2m H05VV-F 3G1.5 mm² in black with Wieland GST18 connector
- Installation depth (without fixing kits): 56 mm
- Dimensions: 217x151x59 mm
- Without mounting frame
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |

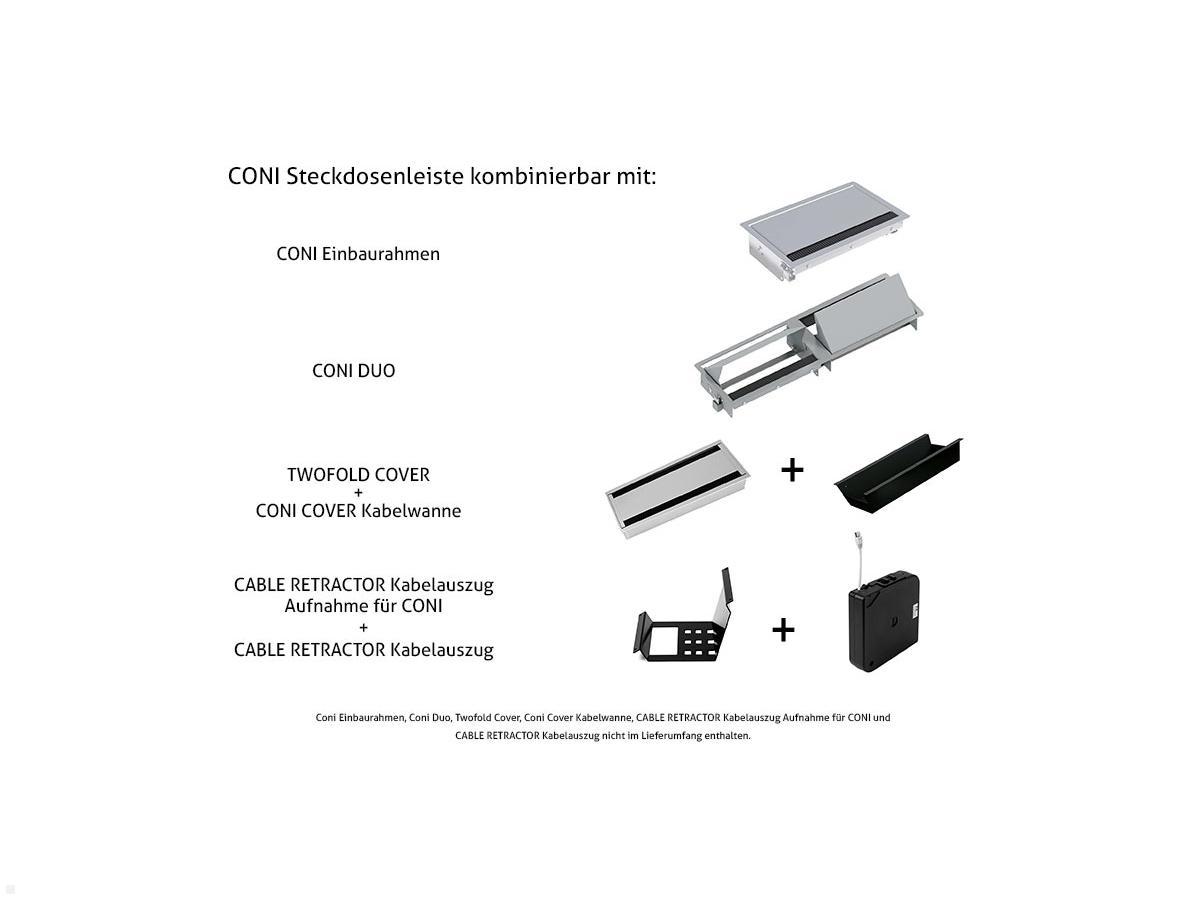

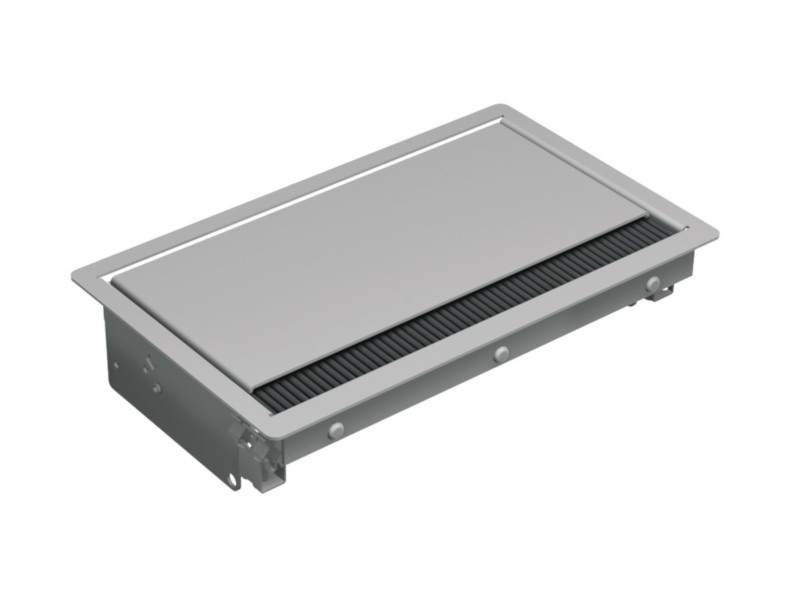

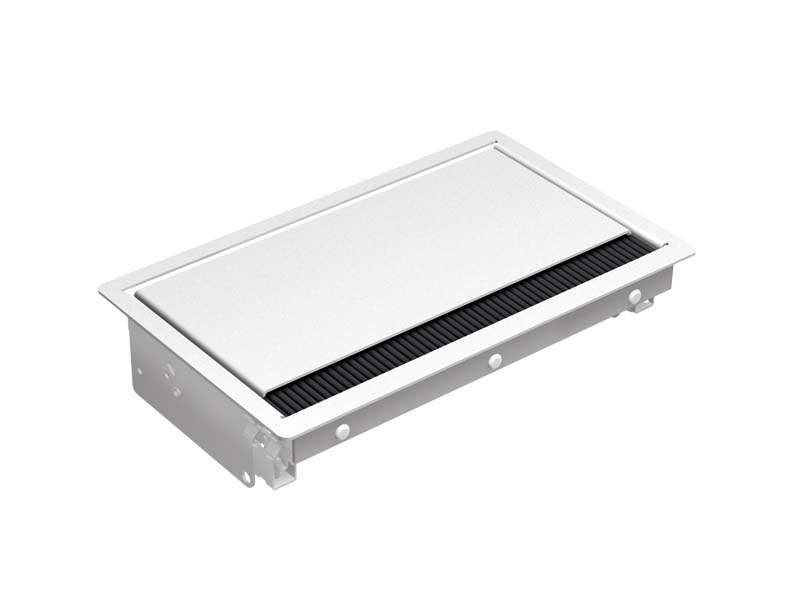

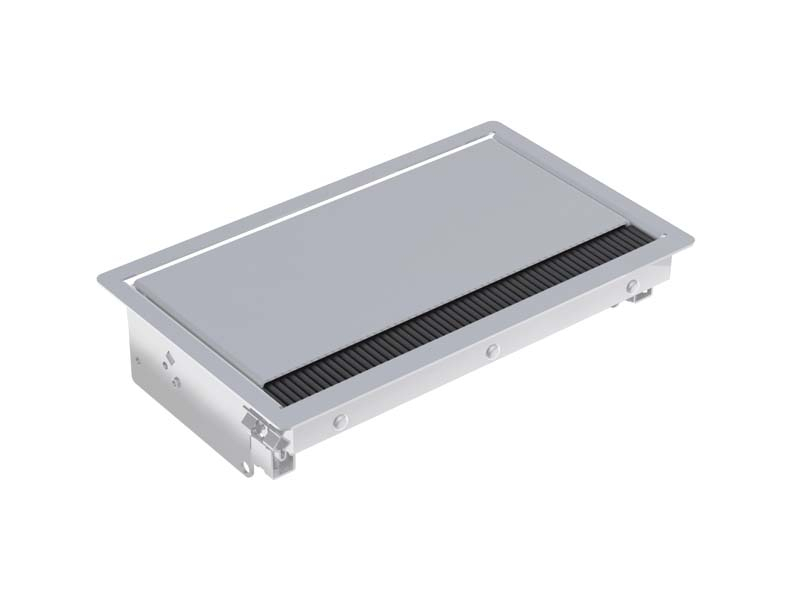

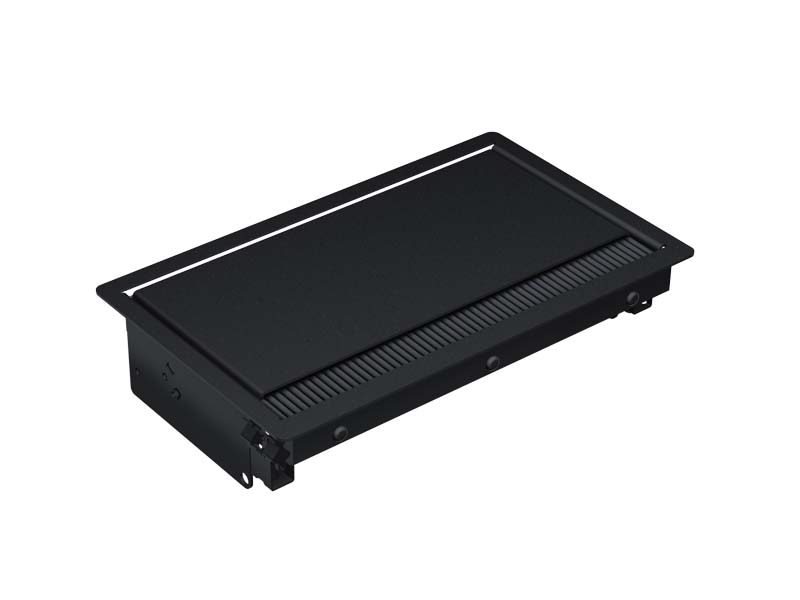

| Accessories: | Bachmann Custom Module Bachmann Coni Cover Abdeckrahmen kurz Bachmann Coni Einbaurahmen kurz |
| Contains installation material: | - |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
