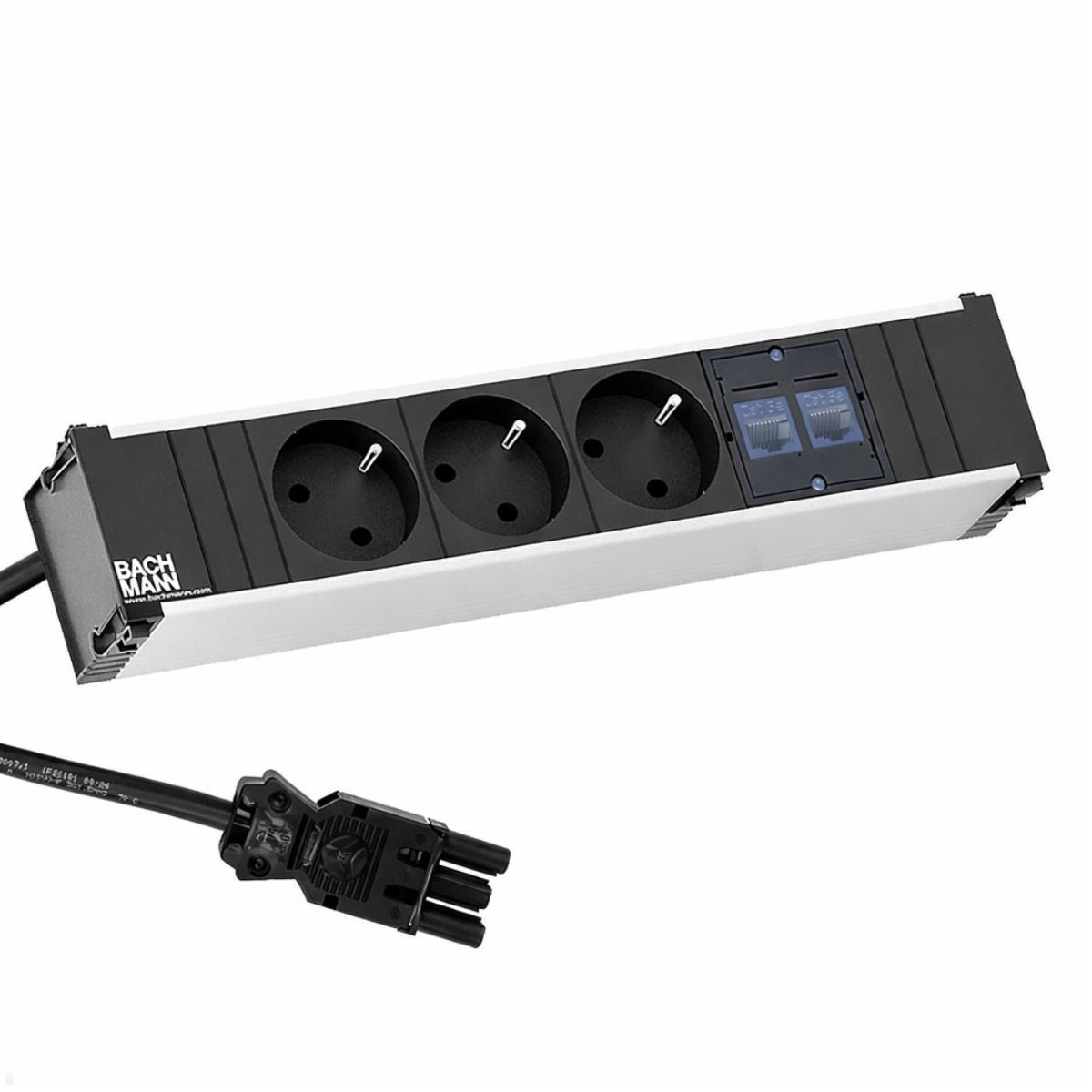

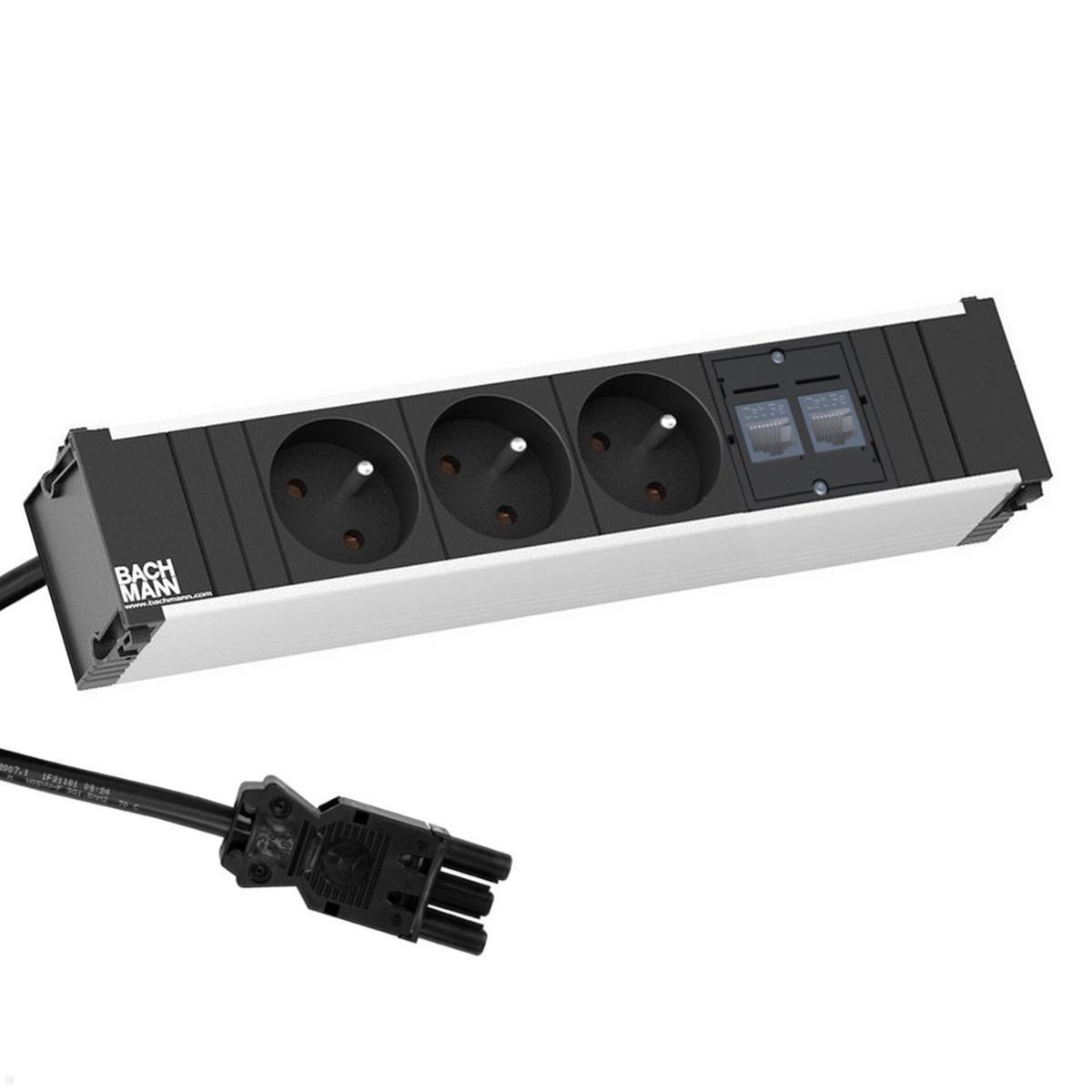

Bachmann CONI module carrier 4-way 3x socket 2x CAT6a (333.2167)
The Bachmann CONI 4-way socket unit (2x CAT6a, 3x power socket) is for the Bachmann CONI mounting frame.
Bachmann Coni 4-way power outlet unit: 3x Schuko + 1x custom module with 2x Cat6a
Bachmann CONI power outlet units bring maximum flexibility to the table surface and are therefore ideal for conference rooms, training rooms, meeting areas or modern office workstations. Thanks to its modular design, the CONI series offers access to power, media and data connections directly at the workstation – without complex additional cabling or cumbersome table setups.

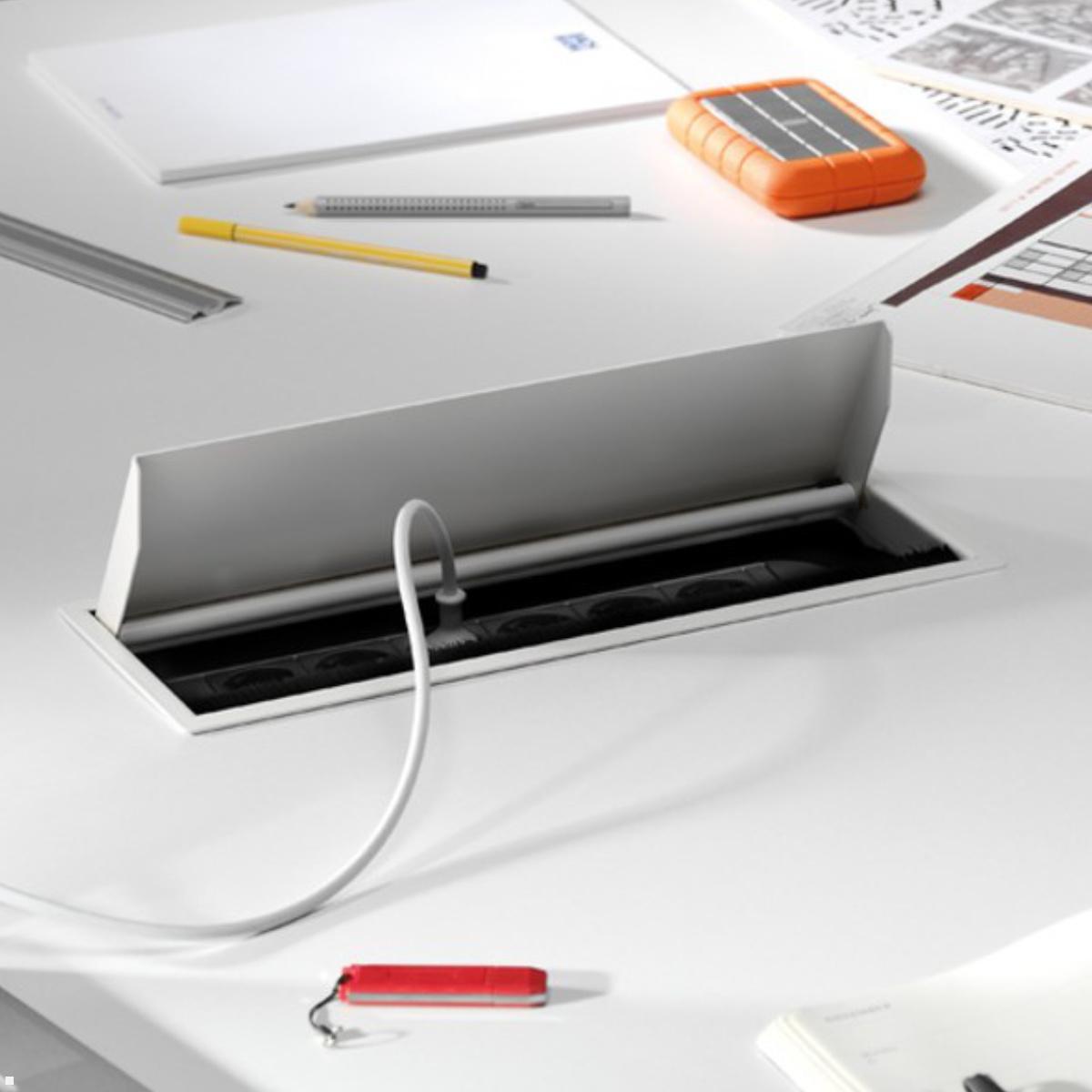

When closed, the CONI unit sits almost flush with the table surface. When needed, the lid is opened, devices are connected, and then the lid is closed again thanks to the integrated brush insert, without pinching any cables. The result is a smooth and visually tidy table surface, perfect for professional presentations and hybrid meetings. Version 333.2167 features a 4-way configuration consisting of three Schuko sockets for power supply and one custom module with two CAT6a network connections (RJ45). This makes the unit ideally suited for modern business environments where, in addition to end devices such as laptops or monitors, network data also needs to be transmitted via cable – for example, for videoconferencing-capable installations, stable network connections, or presentation systems. The integrated CAT6a dual module supports Gigabit Ethernet networks and is therefore ideal for high-performance data connections in conference and training environments. The network connections are – as is usual with Bachmann – socket/socket design, allowing cables to be connected without an adapter.
Key features of Bachmann CONI socket unit 333.2167
-
- Design: 4-way
- 3x power socket, black
- 2x Network CAT6a RJ45, front: socket / back: socket

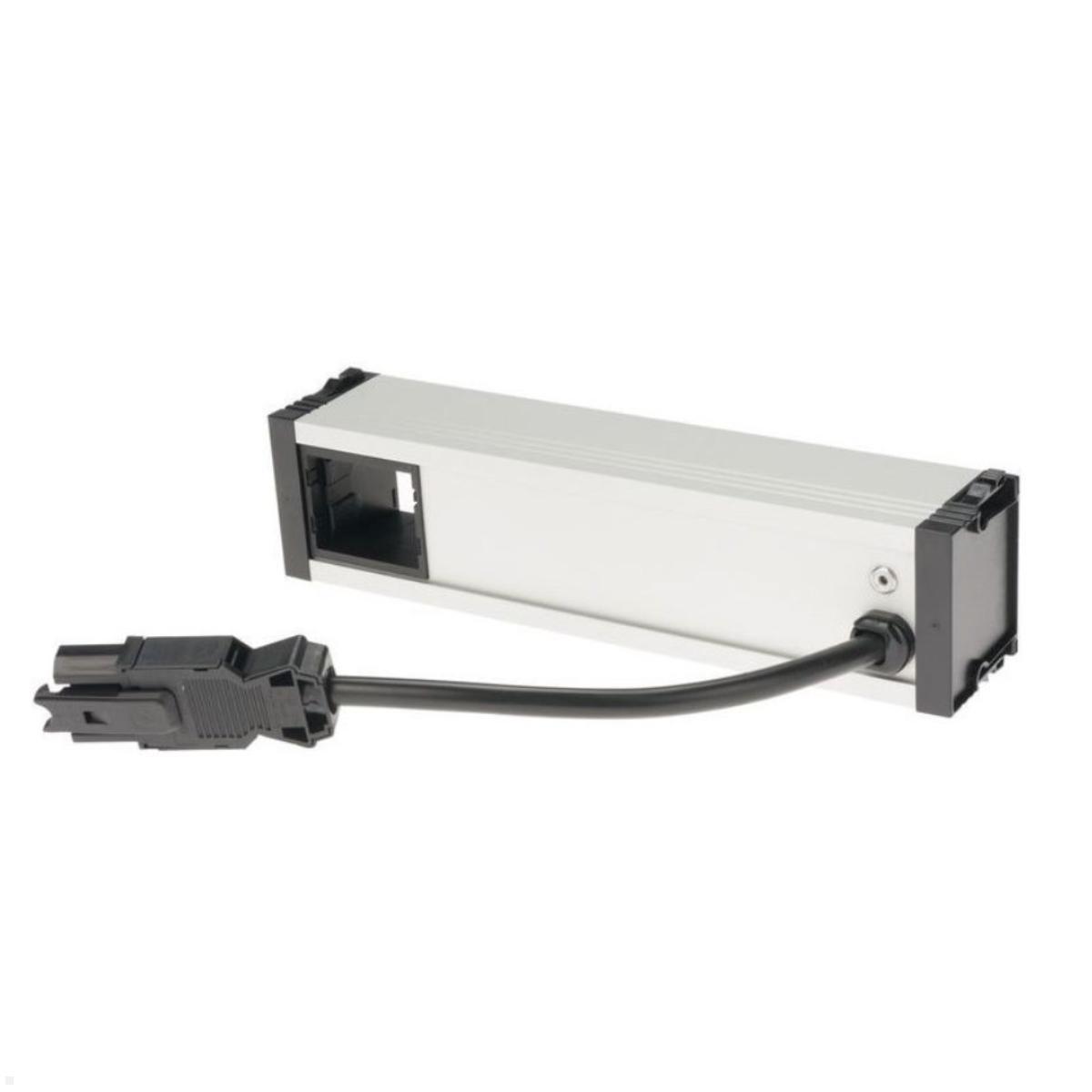

- Power input: H05VV-F 3G1.5 mm² with Wieland GST18
- Installation depth: 56 mm (standard CONI platform)
- Tabletop thickness: 10–35 mm
- Material: Aluminum housing, black cover
- Power supply: 16A / 250V~, with increased touch protection
- Protection class: IP20
Advantages of Bachmann CONI
- Integrated into the table surfaceMinimal installation depthrobust Frame design
- Integrated brush insert for locking with attached cables
- Free choice of configuration
- Quick replacement of the complete socket unit
- Retrofitting possible
Note DGUV V3: According to DGUV V3, permanently screwed/stationary socket strips must be inspected every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable socket strips must be inspected annually. Further information can be found in the download area under "Manufacturer's Declarations""
Will your Bachmann Coni table keypad fit?
We would be happy to check whether your Bachmann product is suitable for your application. Simply provide us with your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the Bachmann power strip is fully compatible, and if not, our team will contact you.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Flexible table connection panel for modern meeting and work environments
The Bachmann CONI socket unit 333.2167 is a high-quality 4-way table socket specifically designed for modern conference rooms, training areas, meeting rooms, as well as project and office workstations. The combination of 3 safety sockets and 1 custom module with 2 CAT6a RJ45 network connections allows for the simultaneous power and network supply of end devices. An ideal solution for hybrid meetings, presentations, video conferences, and high-performance workplace environments. When closed, the CONI unit fits almost flush and inconspicuously into the table surface. When needed, the lid is opened, devices are connected, and then closed again using the integrated brush insert, without pinching cables or cluttering the work surface. This keeps the table surface visually tidy and functionally usable. A particularly important aspect in representational areas such as conference rooms or boardrooms.
Power and data connections for professional conference technology
Equipped with CAT6a RJ45, it supports Gigabit-capable network connections and is ideally suited for use in professional environments where stable, wired network connections continue to play a vital role. In many conference situations, high-performance LAN connections are essential for reliably operating video conferencing hardware, presentation systems, or corporate networks. The Bachmann CONI series enables this type of conference table electrification without the need for external table modules, floor boxes, or cable ducts. Thanks to the modular design of the Custom Module System, the table socket can be flexibly adapted to new requirements in the future. If other media or data connections are needed—such as USB-C Power Delivery, HDMI, DisplayPort, audio, or USB-A—the module can be replaced or expanded without tools. This makes the series particularly sustainable and suitable for long-term use, even in rapidly evolving conference technology.
Easy integration, shallow installation depth, and intelligent cable management
With an installation depth of only 56 mm, the CONI unit is ideal for tables with a slim design or for edge mounting. The shallow depth ensures full legroom and maximum comfort in the meeting room. The robust frames and covers of the Bachmann series are designed for intensive B2B use and have proven their worth in office environments where table connection panels are used daily. The integrated cable management ensures that cables are routed neatly and that no unsightly loops are formed. Thanks to the tool-free interchangeability of the socket units, the system remains not only future-proof but also particularly easy to service. Subsequent installations or modifications are also easily possible – a decisive advantage for companies that regularly modernize their conference technology.
