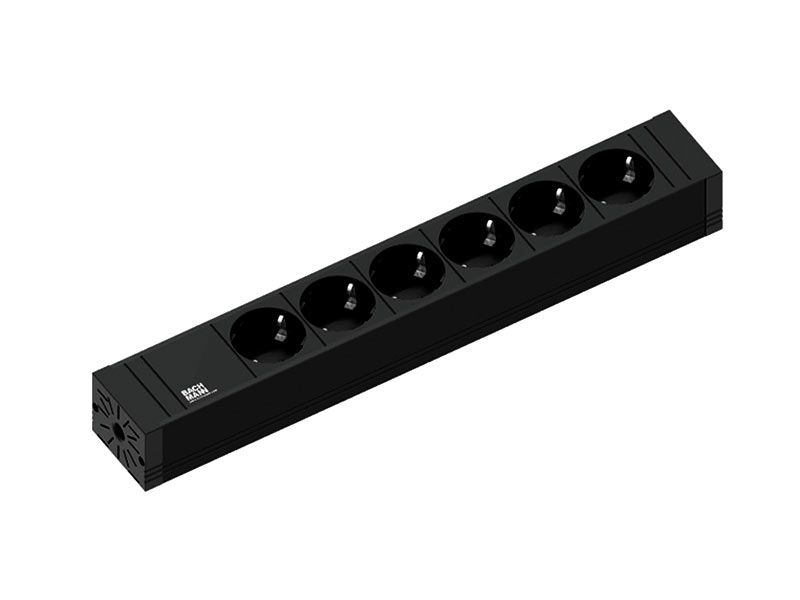

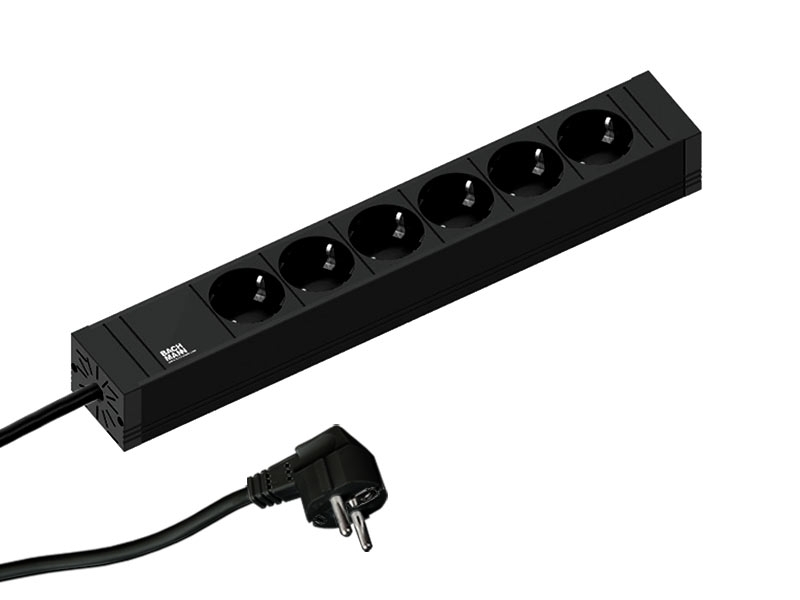

Bachmann CONNECT LINE protective contact socket 6-way (420.0018)
The Bachmann socket strip CONNECTLINE 420.0018 6-way is variable due to its compact external dimensions, both in the home and in business.
Bachmann CONNECT LINE protective contakt socket 6-way (420.0018)
The Bachmann socket strip CONNECTLINE 420.0018 6-way is variable due to its compact external dimensions, both in the home and in business. The large product family of different sockets offers the optimum solution for

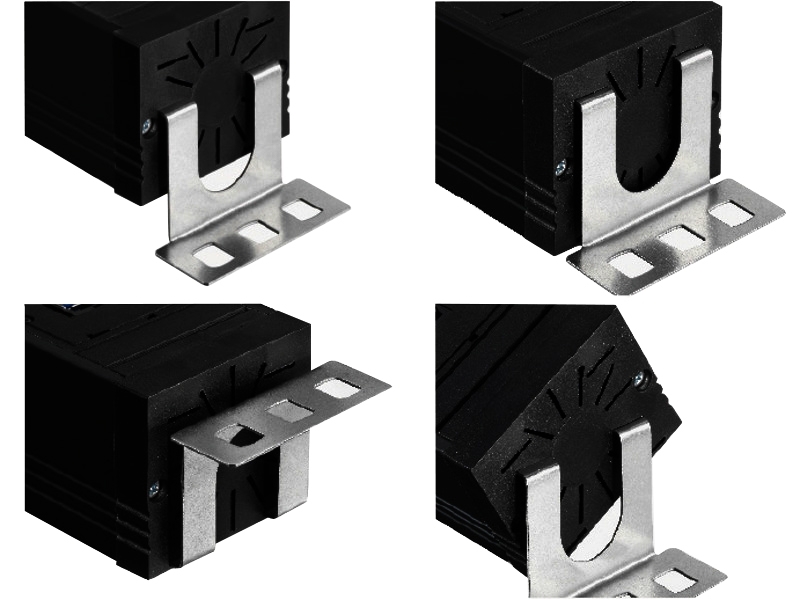

every application and is optionally equipped with versions such as USB chargers, overvoltage protection and switches. CONNECTLINE can be flexibly installed in 30 ° increments using the supplied bracket. The length and type of connector can be configured according to customer requirements. Contact us, we're happy to help.
The extremely compact dimensions, the simple design and the numerous product variants make the Bachmann CONNECTLINE a functional tool for power generation in the office, home and other applications.
Key features Bachmann CONNECT LINE protective contakt socket 6-way (420.0018)
- Finish: black
- Dimensions (WxHxD): 353 x 53 x 52 mm
- 6-way socket strip
- Supply: 2.0 m H05VV-F 3G 1.5 mm² with protective contact angle plug
- Protective contact sockets turned through 35 °, with nickel-plated protective contacts and integrated child protection
- Screwed and re-connected
- Plug-and-Play
- Incl. Mounting angle
- Flexible mounting option
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 535 kb] |
|---|---|
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| Overvoltage protection: | Yes |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
