Bachmann CONNECTUS 6x power strip, 1x switch, overvoltage protection (330.104)
The Bachmann CONNECTUS (330.104) power socket 6-way including switch and overvoltage protection can be used variably as a socket strip for commercial as well as for private use.
Bachmann CONNECTUS 6x power strip, 1x switch, overvoltage protection (330.104)

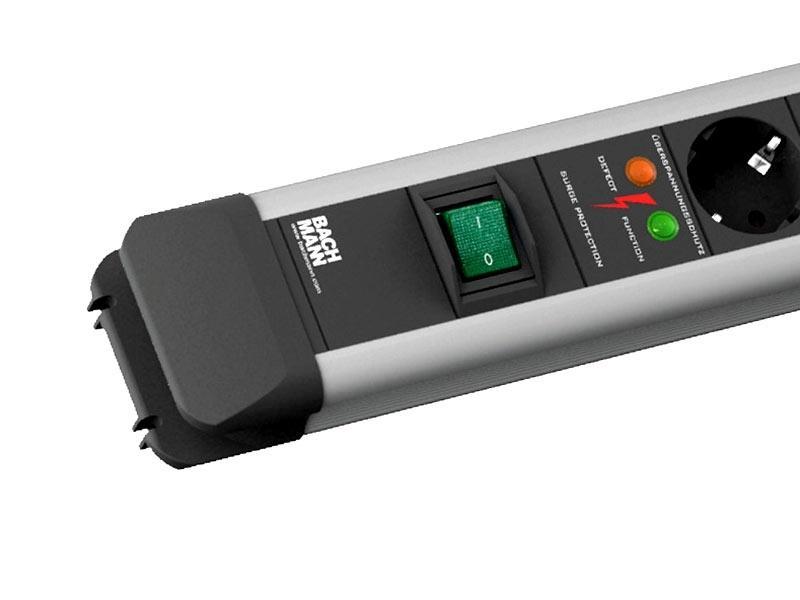

The Bachmann CONNECTUS (330.104) socket strip consists of 6 power strips sockets in black which can be switched on and off with a rocker switch. The built-in overvoltage protection protects against excessive electrical voltage.
The Bachmann CONNECTUS (330.104) socket strip has an integrated child protection in the socket outlets, which are turned through 35 ° and are equipped with a nickel-plated protective contact. Practical are the multiple socket outlets for commercial and private use thanks to the integrated cable rewind.
Key features Bachmann CONNECTUS 6x power strip, 1x switch, overvoltage protection (330.104)
- Socket colour: black
- Material: Plastic profile
- Dimensions (WxHxD):480x72x49 mm
- 6-way power strip
- Socket, 35° twisted
- 1x 2-pole illinated switch
- Incl. overvoltage protection
- Supply cable: 2,0 m H05VV 3G 1,50 mm²
- Incl. Protective contact angle plug
- IP protection class: IP20
- Integrated child protection
- Integrated cable rewind
- Easy mounting through mounting holes
- Black end caps can not be opened
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 142 kb] |
|---|---|

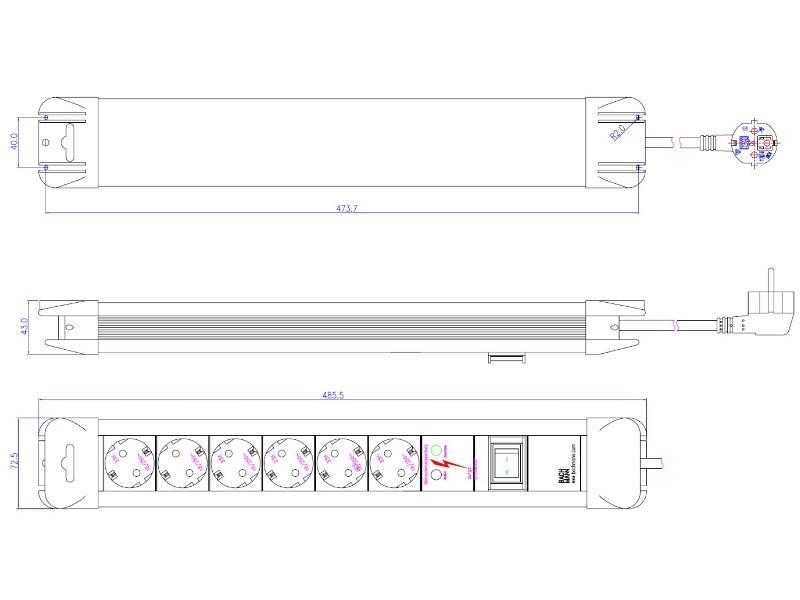

| Technical drawing: | [pdf, 140 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Overvoltage protection: | Yes |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
8 January 2025 11:34
Bachmann - wie gewohnt gute Qualität
Die Steckdosenleitung funktioniert einwandfrei und ist mir ihrer Kindersicherung und dem Blitzschutz die passende Leiste der Wahl. Preis vollkommen in Ordnung.
