Bachmann custom module VGA cable bushing (917.033)
Bachmann custom module VGA cable bushing (917.033) - Module with 2-part cable bushing, ideal for routing VGA cables. Suitable for cables up to 24 mm in diameter.
Custom module cable bushing
The article Bachmann 917.033 custom module frame with cable bushing for VGA/HDMI cables to Ø 23mm is a cable grommet/cable clamp specially designed for VGA and HDMI cables (not included) with a diameter of up to 23mm. Bachmann 917.033 Custommodule are the central building blocks for video, audio and network connections. Due to their structure, they enable you to install them easily and flexibly in the areas of facility systems, rack and electrical installations. The versatile custom modules make Bachmann FACILITY SOLUTIONS even more flexible.
Key features Bachmann custom module 917.033
- Custom module frame

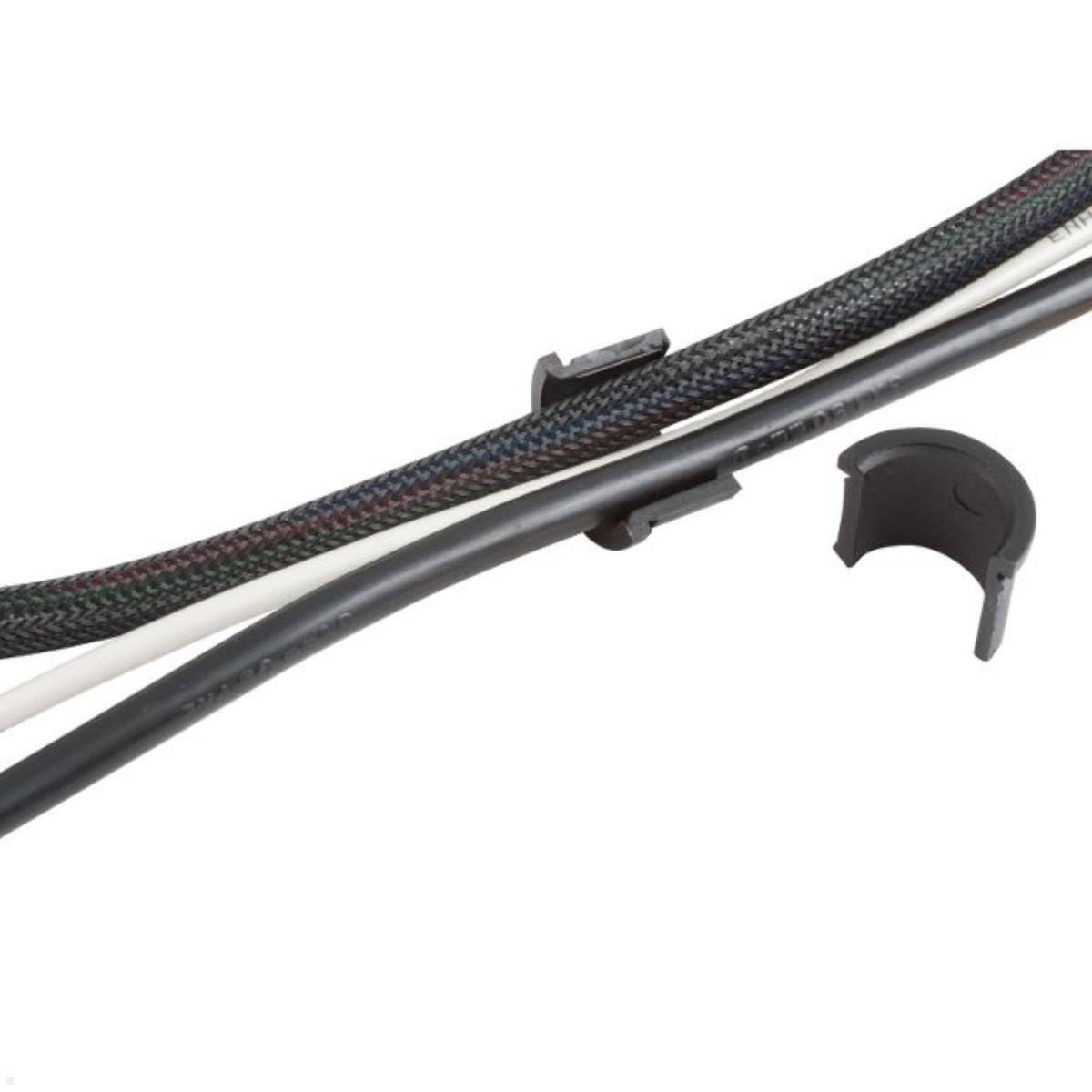

- With 2-part cable bushing,
- Ideal for routing VGA or HDMI cables, for example
- Suitable for cables up to Ø 23 mm diameter
- ETIM 8.0: insert/cover for communication technology (EC000018)

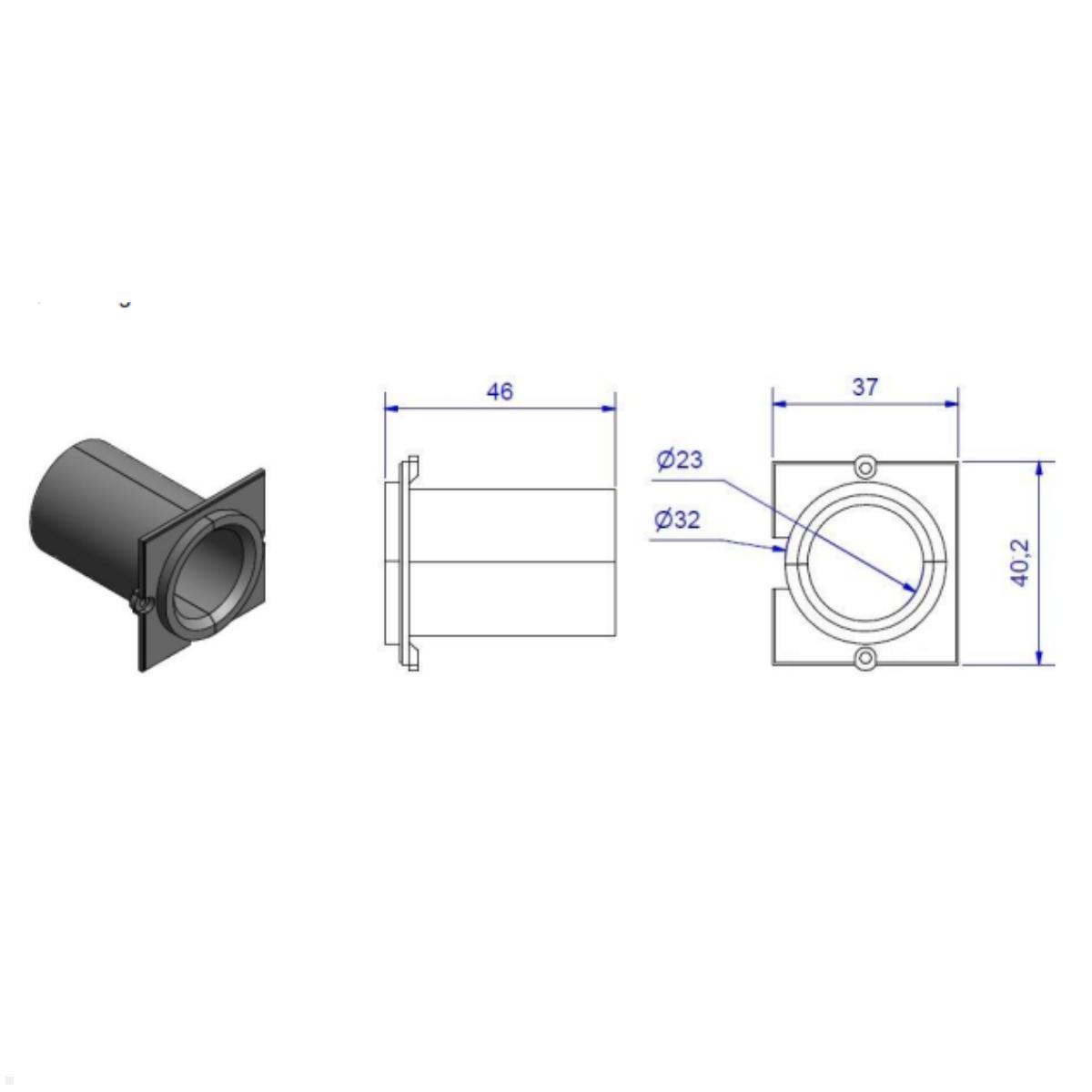

- Width: 37 mm, height: 40.20 mm, depth: 50 mm
| Technical drawing: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann Modul 2x Keystone black (917.000), Bachmann Modul 1x Keystone black (917.001) |
| Packaging dimensions (LxWxH in mm): | 40 x 60 x 40 |
| Scope of delivery: | 1x Custom Modul, 1x zweiteilige Kabeldurchführung, 1x T6 Torx Schrauben (2 Stück) |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
